ASROCK B760M Steel Legend Wifi DDR5 Intel Motherboard
MPN ASROCK-B760M-STEEL-LEGENED-WIFI · Brand ASROCK · mATX

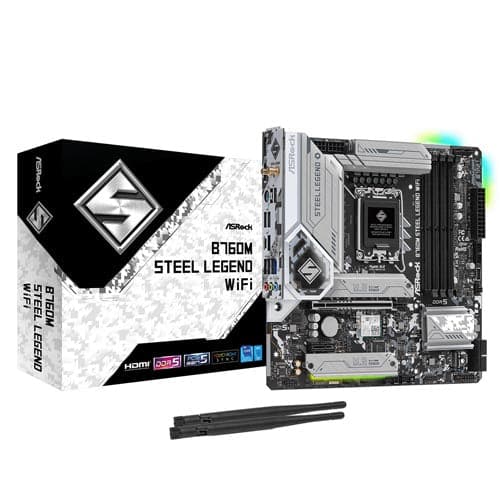

ASRock B760M Steel Legend WiFi DDR5 is a Micro-ATX motherboard with the Intel B760 chipset, supporting LGA1700 processors (12th/13th/14th Gen), PCIe 5.0, three M.2 Gen4 slots, Wi-Fi 6E, 2.5G LAN, and up to 128GB DDR5 memory
Inclusive of GST · GST invoice available
Overview
The ASRock B760M Steel Legend WiFi DDR5 is a Micro-ATX motherboard built around the Intel B760 chipset, designed to support Intel Core 12th, 13th, and 14th generation processors via the LGA1700 socket. With a compact 9.6" x 9.6" footprint, it fits standard Micro-ATX chassis while delivering a feature set typically associated with larger boards. At the heart of its power delivery is a 12+1+1 phase design using Dr.MOS integrated power stage solutions rated at 50A for VCore and GT phases. This configuration is paired with Nichicon 12K Black Caps — high-quality conductive polymer capacitors — and a 6-layer PCB with 2oz copper inner layers, which together help sustain stable voltages and lower operating temperatures during demanding workloads. Memory support is handled by four DDR5 DIMM slots (288-pin) with a rated native speed of DDR5 4800 MHz and overclocking support up to DDR5 6800+ MHz (1DPC 1R configuration). Maximum capacity is 128GB in dual-channel mode. The board supports Intel XMP 3.0 profiles, and AMD EXPO profiles are also recognized. A dedicated DDR5 protection circuit reduces the risk of memory damage from improper removal or installation under live power. For graphics, a reinforced PCIe 5.0 x16 slot (with 15µ gold contacts and surface-mount technology) accommodates discrete GPUs, while an additional PCIe 4.0 x1 slot handles expansion cards. Display outputs on the rear I/O include one HDMI and one DisplayPort, plus an onboard eDP connector for ASRock's optional 13.3" Side Panel Kit. Three Hyper M.2 sockets (M2_1 via CPU, M2_2 and M2_3 via chipset) all support PCIe Gen4 x4 at up to 64 Gb/s for NVMe SSDs. Four SATA 6Gb/s ports round out storage, with RAID 0/1/5/10 support. Connectivity is led by an Intel-standard 802.11ax (Wi-Fi 6E) module covering 2.4 GHz, 5 GHz, and 6 GHz bands, accompanied by Bluetooth 5.3 and a Dragon RTL8125BG 2.5Gb/s wired LAN port. USB ports include one USB 3.2 Gen 2 Type-A and one USB 3.2 Gen 2 Type-C on the rear, four USB 3.2 Gen 1 Type-A on the rear, two USB 2.0 on the rear, plus front-panel headers for USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and four USB 2.0 ports. Audio is handled by a Realtek ALC897 codec with 7.1-channel HD output, supported by Nahimic Audio software for noise suppression, echo cancellation, and surround sound processing. RGB lighting headers include one standard RGB header (12V/3A) and three addressable RGB headers (5V/3A), all compatible with ASRock Polychrome RGB Sync. Verified Specifications: - Chipset: Intel B760 - Socket: LGA1700 - CPU Support: Intel Core 12th / 13th / 14th Gen - Form Factor: Micro-ATX (9.6" x 9.6") - Memory: 4x DDR5 DIMM, up to 128GB, DDR5 4800 native / 6800+ OC, Dual Channel, XMP 3.0 - PCIe: 1x PCIe 5.0 x16, 1x PCIe 4.0 x1 - Storage: 3x Hyper M.2 PCIe Gen4 x4, 4x SATA 6Gb/s, RAID 0/1/5/10 - LAN: 2.5Gbps (Dragon RTL8125BG) - Wireless: 802.11ax Wi-Fi 6E + Bluetooth 5.3 - Audio: Realtek ALC897, 7.1 CH - Display Out: HDMI, DisplayPort, eDP - Power: 1x 24-pin ATX, 2x 8-pin 12V - OS: Windows 11 supported
Datasheet

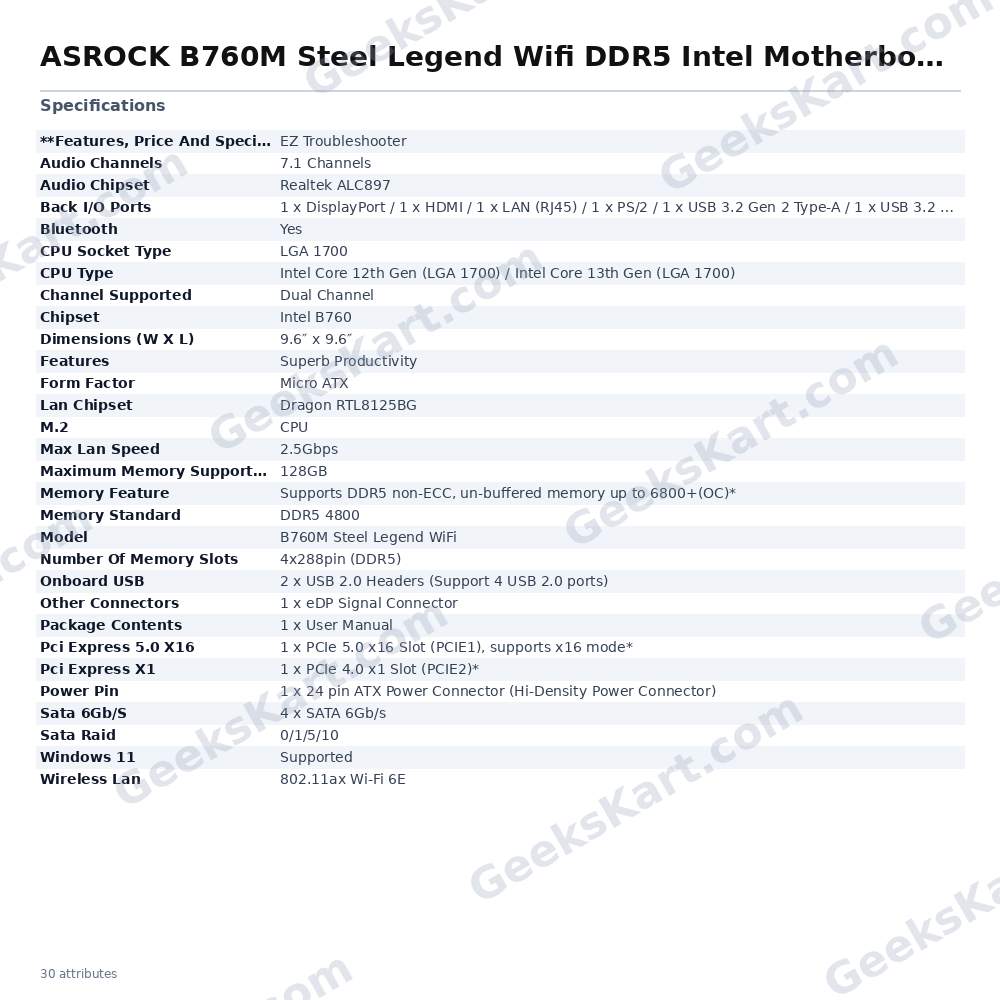

| Form Factor | mATX |
|---|---|
| Chipset | INTEL B760 |
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) |
| M.2 | CPU |
| Model | B760M Steel Legend WiFi |
| Features | Superb Productivity |
| Bluetooth | Yes |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Sata Raid | 0/1/5/10 |
| Sata 6Gb/S | 4 x SATA 6Gb/s |
| Windows 11 | Supported |
| Lan Chipset | Dragon RTL8125BG |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Wireless Lan | 802.11ax Wi-Fi 6E |
| Audio Chipset | Realtek ALC897 |
| Max Lan Speed | 2.5Gbps |
| Audio Channels | 7.1 Channels |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1 Type-A |
| Memory Feature | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* |
| Pci Express X1 | 1 x PCIe 4.0 x1 Slot (PCIE2)* |
| CPU Socket Type | LGA 1700 |
| Memory Standard | DDR5 4800 |
| Other Connectors | 1 x eDP Signal Connector |
| Package Contents | 1 x User Manual |
| Channel Supported | Dual Channel |
| Dimensions (W X L) | 9.6″ x 9.6″ |
| Pci Express 5.0 X16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Number Of Memory Slots | 4x288pin (DDR5) |
| Maximum Memory Supported | 128GB |
| **Features, Price And Specifications Are Subject To Change Without Notice To Customer. | EZ Troubleshooter |
