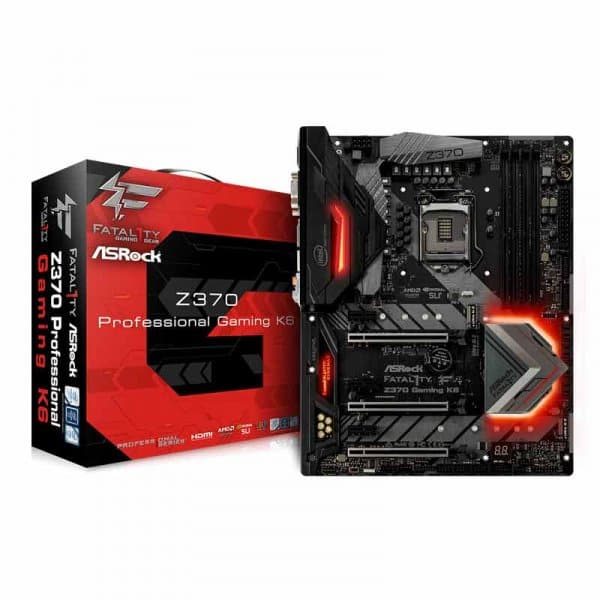

ASROCK Fatal1ty Z370 Gaming K6 DDR4 Intel Motherboard
MPN ASROCK-FATAL1TY-Z370-GAMING-K6 · Brand ASROCK · ATX
The ASRock Fatal1ty Z370 Gaming K6 is an ATX motherboard for 8th Gen Intel Core processors, featuring a 12-phase digital power design, DDR4 support up to 4333+ MHz OC, dual Intel Gigabit LAN, USB 3.1 Gen2, and Realtek ALC1220 7.1-channel audio
Inclusive of GST · GST invoice available
Overview

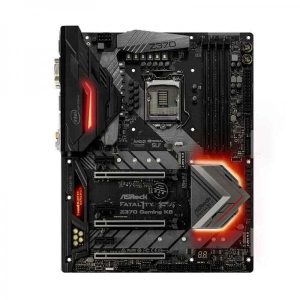

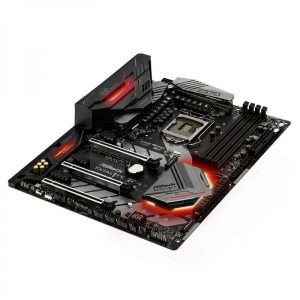

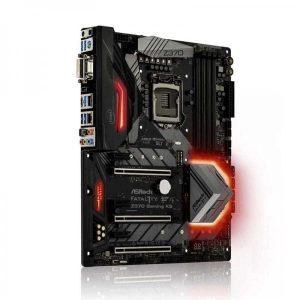

The ASRock Fatal1ty Z370 Gaming K6 is a full-size ATX motherboard built on the Intel Z370 chipset, designed for 8th Generation Intel Core processors in Socket LGA1151. Its 12-phase digital power delivery system, featuring Dual-Stack MOSFETs, premium 60A power chokes, and Nichicon 12K Black capacitors, provides stable and efficient power to unlocked K-Series CPUs and supports Intel Turbo Boost 2.0, ASRock BCLK Full-range Overclocking, and Hyper BCLK Engine II for enthusiast-level tuning. Memory support spans four DDR4 DIMM slots in dual-channel configuration, accommodating up to 64 GB and reaching DDR4 4333+ MHz in overclocked mode with XMP 2.0 profiles. ASRock's Hyper DDR4 optimised trace layout and 4-Layer Memory POOL technology contribute to signal integrity at high frequencies. Expansion is handled by three PCIe 3.0 x16 slots — operating at x16 single, x8/x8 dual, or x8/x8/x4 triple configurations — plus three PCIe 3.0 x1 slots. The board supports NVIDIA Quad SLI and AMD Quad CrossFireX multi-GPU setups. Storage options include eight SATA3 6 Gb/s ports with RAID 0/1/5/10 support and two Ultra M.2 sockets (PCIe Gen3 x4, up to 32 Gb/s, plus SATA3), alongside a Key-E M.2 slot for a WiFi/Bluetooth module. Connectivity is extensive: two USB 3.1 Gen2 ports (one Type-A and one Type-C at 10 Gb/s via ASMedia ASM3142), nine USB 3.1 Gen1 ports across front and rear headers, and dual Intel Gigabit LAN (I219V + I211AT) with teaming support. Display outputs via integrated graphics include HDMI (up to 4K/30 Hz), DVI-D (up to 1920×1200/60 Hz), and D-Sub (up to 1920×1200/60 Hz). Audio is powered by a Realtek ALC1220 codec delivering 7.1-channel HD audio at 120 dB SNR, with a dedicated NE5532 headset amplifier supporting up to 600-ohm headsets, PCB-isolated audio layers, Nichicon Fine Gold Series audio capacitors, and Creative Sound Blaster Cinema 3 software support. The matte-black, High Density Glass Fabric ATX PCB (305 mm × 244 mm) carries ASRock Steel Slots, an XXL aluminium alloy heatsink with heat-pipe design, I/O Armor, full-spike protection across USB, audio, and LAN ports, RGB LED header, and onboard Dr. Debug LED for diagnostics. The dual AMI UEFI BIOS with backup copy, ASRock F-Stream software, and XMP toggle switch round out a well-specified platform for gamers and enthusiasts building around Intel's 8th Gen lineup. Verified Specifications: - Chipset: Intel Z370 - Socket: LGA1151 (8th Gen Intel Core) - Memory: 4 x DDR4 DIMM, max 64 GB, DDR4 2133–4333+ MHz (OC), XMP 2.0 - Expansion: 3 x PCIe 3.0 x16, 3 x PCIe 3.0 x1, 1 x M.2 Key-E (2230) - Storage: 8 x SATA3 6 Gb/s (6 native + 2 via ASM1061), 2 x Ultra M.2 PCIe Gen3 x4/SATA3 - USB: 2 x USB 3.1 Gen2 (10 Gb/s), 9 x USB 3.1 Gen1, 6 x USB 2.0 (internal headers) - LAN: Dual Intel Gigabit (I219V + I211AT) - Audio: Realtek ALC1220, 7.1 CH, 120 dB SNR - Video Out: HDMI, DVI-D, D-Sub - Form Factor: ATX, 305 mm × 244 mm - Power: 12-phase digital, 24-pin + 8-pin ATX - Certifications: FCC, CE, ErP/EuP ready
Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z370 |
| CPU Type | |
| Os | Microsoft® Windows® 10 64-bit |
| Lan | Gigabit LAN 10/100/1000 Mb/s- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Dual LAN with Teaming*- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)- Supports Secure Backup UEFI Technology- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, GT Core/Cache, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Nichicon Fine Gold Series Audio Caps- 120dB SNR DAC with Differential Amplifier- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Front Out port- Individual PCB Layers for R/L Audio Channel- RGB LED- Gold Audio Jacks- 15μ Gold Audio Connector- Supports Creative Sound Blaster™ Cinema 3 |
| Slots | 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*- 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™- Supports NVIDIA® Quad SLI™ and SLI™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module- 15μ Gold Contact in VGA PCIe Slot (PCIE2) |
| Memory | Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4333+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots |
| Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
| Graphics | Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: VP9 8-bit, VP9 10- bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1- Max. shared memory 1024MB**- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports 4K Ultra HD (UHD) playback with HDMI Port |
| Connector | 1 x COM Port Header- 1 x TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 1 x CPU Fan Connector (4-pin)**- 1 x CPU Optional/Water Pump Fan Connector (4-pin)***- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x Chassis Optional/Water Pump Fan Connector (4-pin)****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin)- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel® Z370) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel® Z370) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.1 Gen1 Header (ASMedia ASM1074 hub)- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED- 1 x XMP Switch |
| Support Cd | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield- 4 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 3 x Screws for M.2 Sockets |
| Gaming Armor | Power- Hi-Density Power Connectors (24 pin and 8 pin)Memory- 15μ Gold Contact in DIMM SlotsVGA Card- 15μ Gold Contact in VGA PCIe Slot (PCIE2)Internet- Intel® LANCooling- XXL Aluminum Alloy Heatsink- Heat Pipe DesignAudio- Creative Sound Blaster™ Cinema 3 |
| Certifications | FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

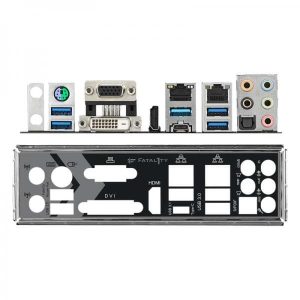

| Rear Panel I/O | 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)- 4 x USB 3.1 Gen1 Ports (Intel® Z370) (Supports ESD Protection)*- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Unique Feature | ASRock USB 3.1 Gen2- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Dual-Stack MOSFET (DSM)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST |
| Software And Uefi | Software- ASRock F-Stream- ASRock RGB LED- ASRock Key Master- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer |
