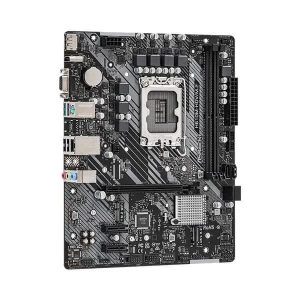

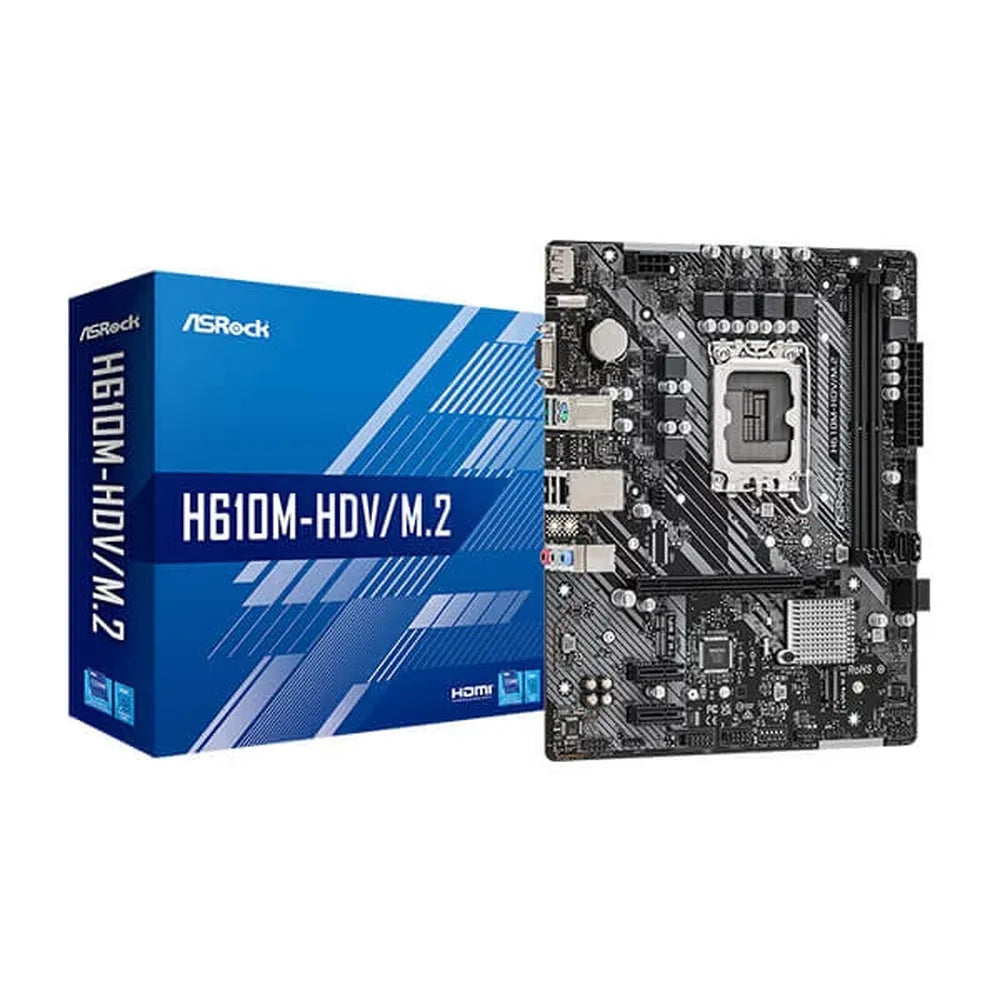

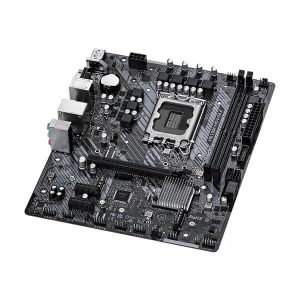

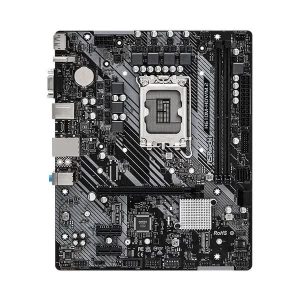

ASROCK H610M-HDV/M.2 DDR4 Intel Motherboard
MPN ASROCK-H610M · Brand ASROCK · mATX
The ASRock H610M-HDV/M.2 DDR4 is a Micro ATX motherboard for 12th Gen Intel Core (LGA1700) CPUs, featuring PCIe 4.0 x16, Ultra M.2 (PCIe Gen3 x4), DDR4-3200 up to 64 GB, triple display outputs (HDMI 2.1, DisplayPort 1.4, D-Sub), and Intel Gigabit LAN
Inclusive of GST · GST invoice available
Overview
The ASRock H610M-HDV/M.2 DDR4 is a Micro ATX motherboard designed for 12th Generation Intel Core processors using the LGA1700 socket. It provides a solid foundation for budget-friendly home, office, or entry-level workstation builds without sacrificing the connectivity features modern users expect. At the heart of its power delivery is a 6-phase digital power design paired with ASRock Super Alloy components, including a Premium Power Choke, solid capacitors, and a High Density Glass Fabric PCB. These materials are specified to contribute to board longevity and stable operation under sustained loads. For expansion, the board offers one PCIe 4.0 x16 slot driven directly from the CPU for discrete graphics cards, plus two chipset-connected PCIe 3.0 x1 slots for add-in cards. Storage is handled by one Ultra M.2 socket (Key M, types 2260/2280) supporting both PCIe Gen3 x4 speeds up to 32 Gb/s and SATA3 6 Gb/s M.2 modules, alongside four SATA3 6 Gb/s ports for traditional drives. Memory support spans two DDR4 DIMM slots in dual-channel configuration, accommodating up to 64 GB of DDR4 at speeds up to 3200 MHz, with XMP 2.0 profile support for compatible kits. Display output options are generous for an H610 board: a D-Sub port (up to 1920×1200 @ 60 Hz), an HDMI 2.1 TMDS-compatible port (up to 4K @ 60 Hz), and a DisplayPort 1.4 with DSC (up to 8K @ 60 Hz compressed or 5K @ 120 Hz). All outputs require a processor with integrated Intel Xe Graphics (Gen 12). Audio is handled by a Realtek ALC897/887 codec delivering 7.1-channel HD audio with surge protection. Networking uses Intel's I219V Gigabit PHY, supporting Wake- LAN, Energy Efficient Ethernet 802.3az, ESD/lightning protection, and UEFI PXE. A Key-E M.2 slot (type 2230) is also present for optional 802.11ac Wi-Fi/Bluetooth module installation. USB connectivity includes 4 USB 3.2 Gen1 ports (2 rear, 2 via front header) and 5 USB 2.0 ports (2 rear, 3 via front headers). ASRock Full Spike Protection covers all USB, audio, and LAN ports. The rear panel also includes a PS/2 combo port and dual antenna mounting points. The 128 Mb AMI UEFI BIOS supports ACPI 6.0, SMBIOS 2.7, and multiple voltage adjustment points. The software suite includes A-Tuning, XFast LAN, ASRock Instant Flash, and Internet Flash utilities. Verified Specifications: - Form Factor: Micro ATX, 9.6 in × 7.9 in (24.4 cm × 20.1 cm) - Socket: LGA1700 (12th Gen Intel Core) - Chipset: Intel H610 - Memory: 2 × DDR4 DIMM, dual-channel, up to 64 GB, DDR4-3200, XMP 2.0 - PCIe Slots: 1 × PCIe 4.0 x16 (CPU); 2 × PCIe 3.0 x1 (chipset) - Storage: 1 × Ultra M.2 (PCIe Gen3 x4 / SATA3); 4 × SATA3 6 Gb/s - Display: D-Sub, HDMI 2.1 TMDS, DisplayPort 1.4 - Audio: Realtek ALC897/887, 7.1 CH HD - LAN: Intel I219V Gigabit - USB (rear): 2 × USB 3.2 Gen1, 2 × USB 2.0 - OS Support: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

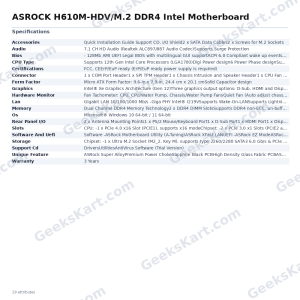

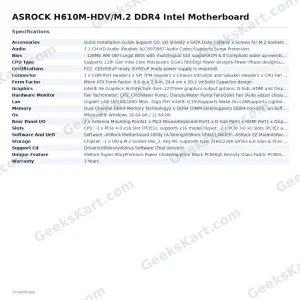

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| CPU Type | Supports 12th Gen Intel Core Processors (LGA1700)Digi Power design6 Power Phase designSupports Intel® Hybrid TechnologySupports Intel® Turbo Boost Max 3.0 Technology |
| Os | Microsoft® Windows 10 64-bit / 11 64-bit |
| Lan | Gigabit LAN 10/100/1000 Mb/s -Giga PHY Intel® I219VSupports Wake-On-LANSupports Lightning/ESD ProtectionSupports Energy Efficient Ethernet 802.3azSupports UEFI PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI supportACPI 6.0 Compliant wake up eventsSMBIOS 2.7 SupportCPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Audio | 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)Supports Surge Protection |
| Slots | CPU: -1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset: -2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* -1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Memory | Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 non-ECC, un-buffered memory up to 3200Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 64GBSupports Intel® Extreme Memory Profile (XMP) 2.0 |
| Storage | Chipset: -1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes4 x SATA3 6.0 Gb/s Connectors |
| Graphics | Intel® Xe Graphics Architecture (Gen 12)Three graphics output options: D-Sub, HDMI and DisplayPort 1.4Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60HzSupports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120HzSupports D-Sub with max. resolution up to 1920×1200 @ 60HzSupports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Connector | 1 x COM Port Header1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Support Cd | DriversUtilitiesAntiVirus Software (Trial Version) |
| Accessories | Quick Installation Guide Support CD, I/O Shield2 x SATA Data Cables2 x Screws for M.2 Sockets |
| Certifications | FCC, CEErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.42 x USB 3.2 Gen1 Ports (Supports ESD Protection)2 x USB 2.0 Ports(Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super AlloyPremium Power ChokeSapphire Black PCBHigh Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump FansQuiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump FansFan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump FansCASE OPEN detectionVoltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V |
| Software And Uefi | Software -ASRock Motherboard Utility (A-Tuning)ASRock XFast LANUEFI -ASRock EZ ModeASRock Full HD UEFIASRock My Favorites in UEFIASRock Instant FlashASRock Internet Flash |
