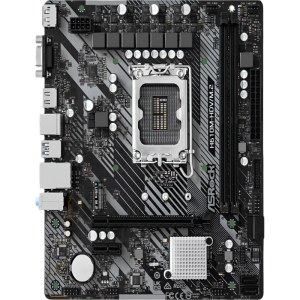

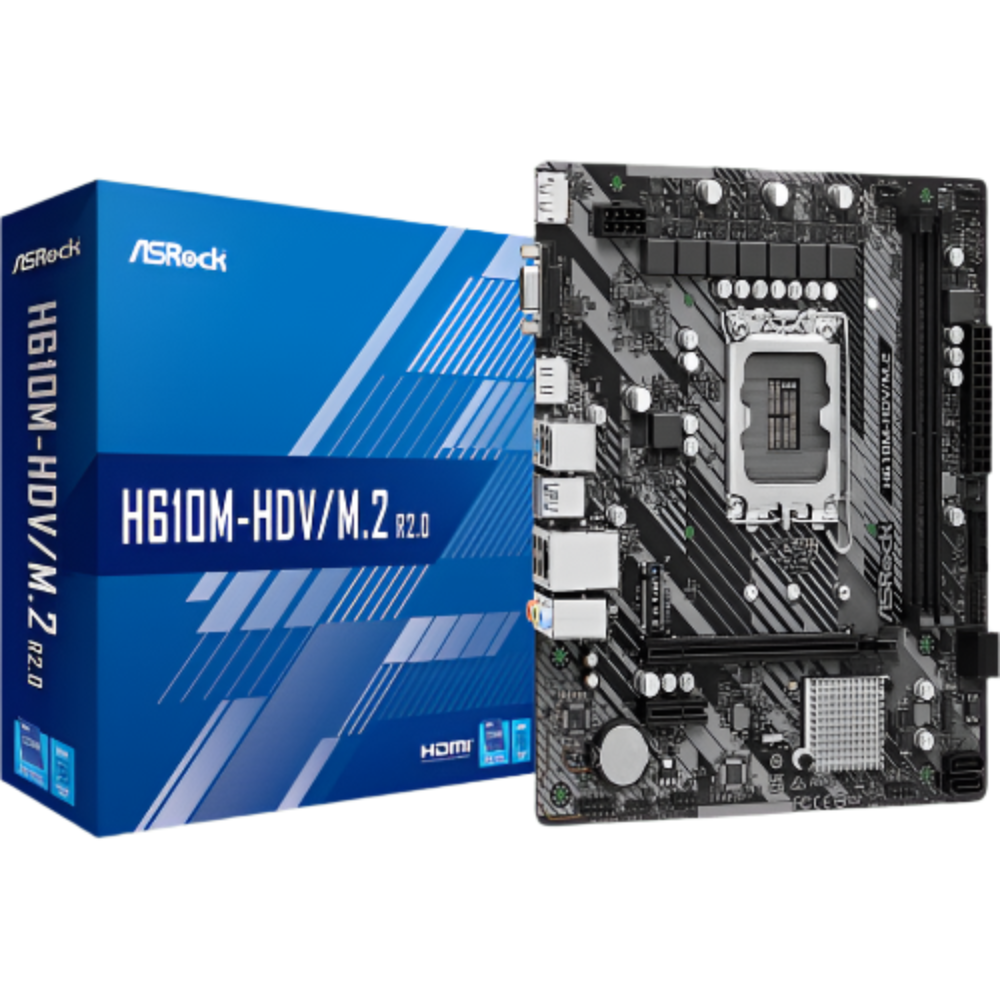

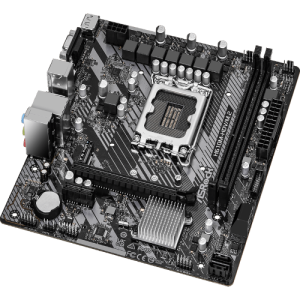

ASROCK H610M-HDV/M.2 R2.0 DDR4 Intel Motherboard
MPN ASROCK-H610M-HDV-M.2-R2.0 · Brand ASROCK · mATX
The ASRock H610M-HDV/M.2 R2.0 is a Micro-ATX motherboard for Intel LGA1700 CPUs (12th & 13th Gen) featuring DDR4-3200 support, PCIe 4.0 x16, an M.2 NVMe slot, and HDMI/DisplayPort/D-Sub triple display output
Inclusive of GST · GST invoice available
Overview
The ASRock H610M-HDV/M.2 R2.0 is a Micro-ATX form-factor motherboard built on the Intel H610 chipset, designed for the LGA1700 socket. It is compatible with 12th Generation and 13th Generation Intel Core processors, making it a practical foundation for both new builds and platform upgrades within the Intel 600 and 700 series ecosystem. Memory support is provided through two DIMM slots accommodating DDR4 non-ECC unbuffered RAM in dual-channel configuration, with speeds up to DDR4 3200MHz and a maximum capacity of 64GB. This dual-channel setup allows for meaningful bandwidth headroom in everyday computing and productivity tasks. For expansion, the board features one PCIe 4.0 x16 slot for discrete graphics cards, and one PCIe 3.0 x1 slot for additional peripherals. Storage options include four SATA3 6.0 Gb/s connectors alongside one Ultra M.2 slot operating at PCIe Gen3 x4, delivering sequential transfer speeds up to 32 Gb/s for compatible NVMe SSDs. Display connectivity is handled through three integrated video outputs — HDMI, DisplayPort 1.4, and D-Sub — enabling up to three simultaneous displays when used with a processor featuring integrated graphics. The HDMI output supports 4K at 60Hz. Audio is powered by the Realtek ALC897 codec offering 7.1-channel HD audio. USB connectivity totals ten ports: four USB 3.2 Gen1 ports (two rear, two front-panel) and six USB 2.0 ports (four rear, two front-panel), all with ESD protection. Networking is handled by a Realtek PCIe Gigabit LAN controller supporting 10/100/1000 Mb/s. Wi-Fi and Bluetooth are not included. The board incorporates a 7-phase digital PWM power design, ASRock Premium Power Chokes, Full Spike Protection circuitry, and a High Density Glass Fabric PCB intended to reduce humidity-related electrical shorts. The PCB carries ASRock's Sapphire Black finish. Verified Specifications: - Socket: LGA1700 - Chipset: Intel H610 - Form Factor: Micro-ATX - CPU Support: 12th & 13th Gen Intel Core (LGA1700) - Memory: 2x DIMM, DDR4 non-ECC unbuffered, dual-channel, up to DDR4-3200, max 64GB - PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 - M.2: 1x Ultra M.2 PCIe Gen3 x4 (up to 32 Gb/s) - SATA: 4x SATA3 6.0 Gb/s - Display: HDMI (4K@60Hz), DisplayPort 1.4, D-Sub - Audio: Realtek ALC897 7.1 CH HD - LAN: Realtek PCIe Gigabit (10/100/1000 Mb/s) - USB: 4x USB 3.2 Gen1 + 6x USB 2.0 - Wi-Fi/Bluetooth: Not available - Warranty: 3 Years
Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | Intel H610 |
| Socket | LGA1700 |
| Max Memory | 64GB |
| Lan | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| HDMI | 1 x HDMI Port |
| M.2/Nvme | Yes |
| Pci-Ex16 | 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode |
| Sata Iii | 4 x SATA3 6.0 Gb/s Connectors |
| Dimm Slots | 2 |
| CPU Support | Supports 12th Gen Intel Core Processors |
| Display Port | 1 x DisplayPort 1.4 |
| Memory Channel | Dual Channel DDR4 Memory Technology |
| Audio Ports(Rear) | HD Audio Jacks: Line in / Front Speaker / Microphone |
| USB 2.0 Ports(Rear) | 4 x USB 2.0 Ports (Supports ESD Protection) |
| USB 3.2 Ports(Rear) | 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| USB 2.0 Ports(Front) | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| USB 3.2 Ports(Front) | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
