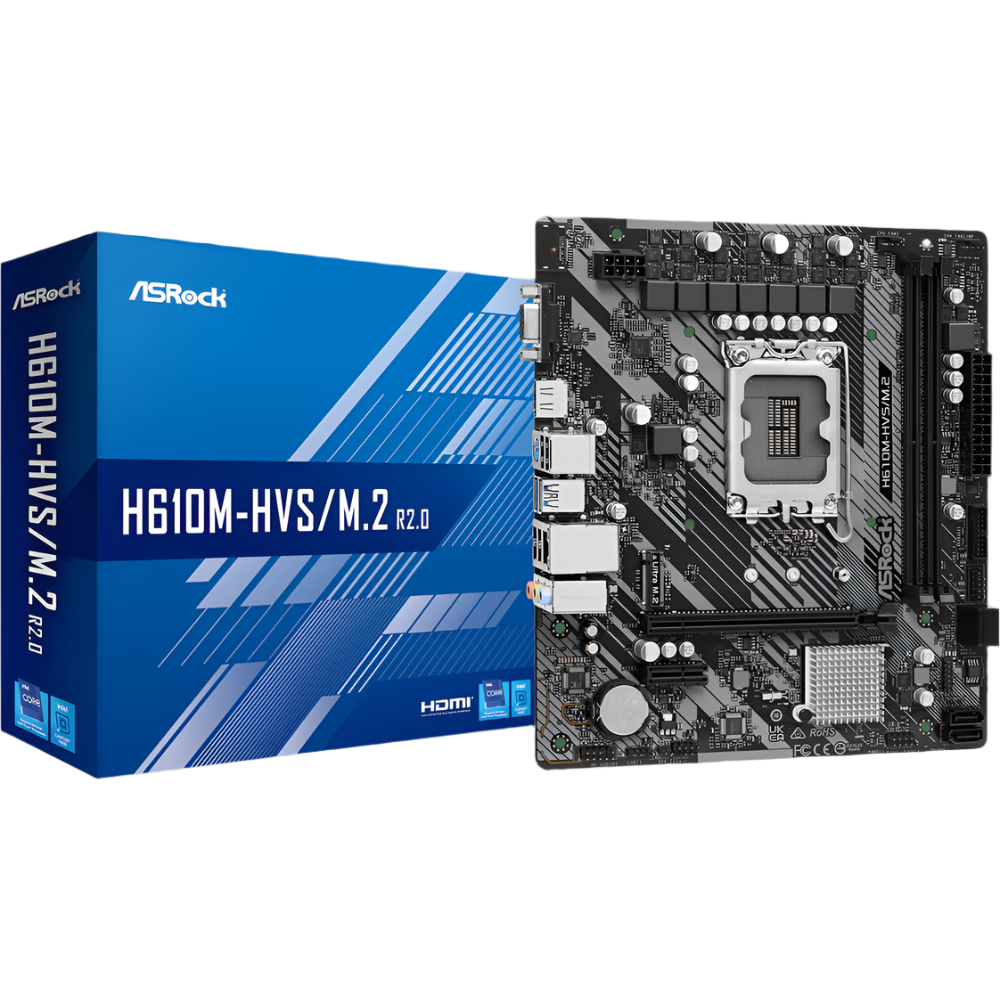

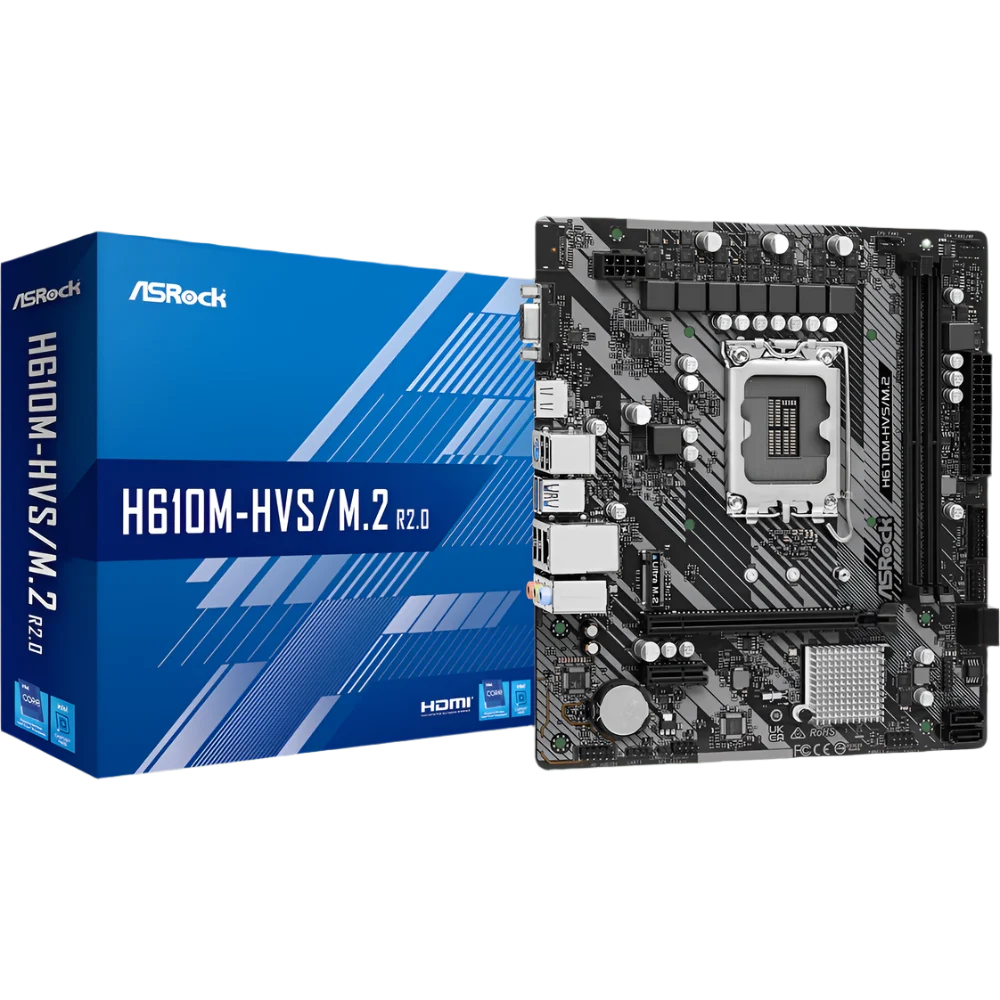

ASROCK H610M-HVS/M.2 R2.0 DDR4 Intel Motherboard
MPN ASROCK-H610M-HVS-M.2-R2.0 · Brand ASROCK · mATX
The ASRock H610M-HVS/M.2 R2.0 is a Micro ATX motherboard supporting 12th to 14th Gen Intel Core processors on LGA1700, with DDR4-3200, PCIe 4.0 x16, Ultra M.2 Gen3, and dual HDMI/D-Sub display output
Inclusive of GST · GST invoice available
Overview

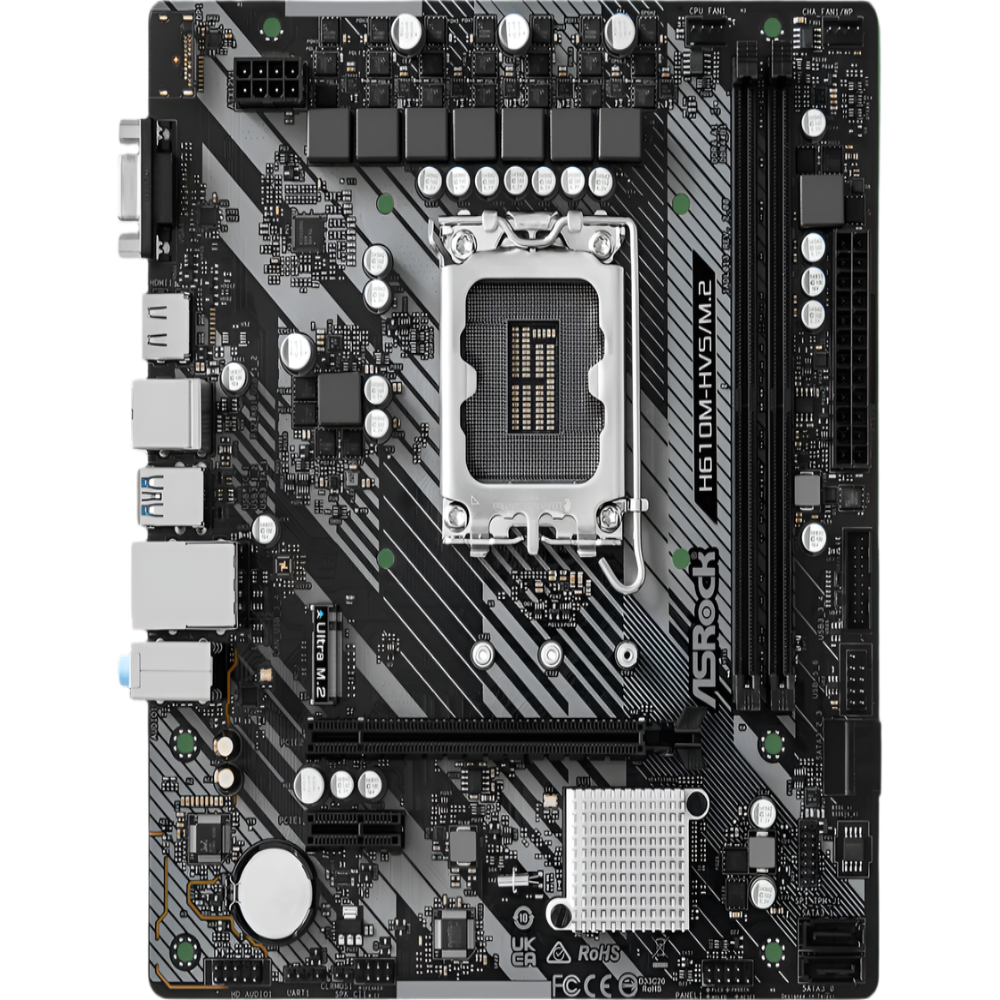

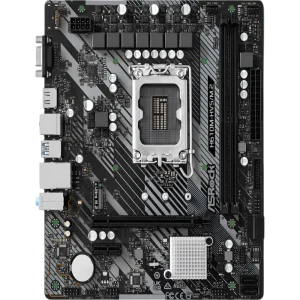

The ASRock H610M-HVS/M.2 R2.0 is a Micro ATX motherboard built on the Intel H610 chipset, designed to support 12th, 13th, and 14th Generation Intel Core processors via the LGA1700 socket. Its 6+1+1 digital PWM power phase design delivers stable CPU Vcore voltage using Pulse-Width Modulation technology, helping to maintain consistent performance during everyday computing and productivity workloads. For memory, the board features two DDR4 DIMM slots supporting dual-channel DDR4 memory up to 3200 MHz (non-ECC, unbuffered), with a maximum system capacity of 64 GB. Intel XMP 2.0 profiles are also supported for straightforward memory configuration. Storage connectivity is well covered: one Ultra M.2 socket (Key M, types 2242/2260/2280) operates at up to 32 Gb/s via PCIe Gen3 x4, while four SATA3 6.0 Gb/s connectors provide traditional drive support. Expansion slots include one PCIe 4.0 x16 slot (CPU-connected, x16 mode) and one PCIe 3.0 x1 slot from the chipset. Display output options include an HDMI port (HDMI 2.1 TMDS compatible, up to 4K 2160p at 60 Hz) and a D-Sub port (up to 1920×1200 at 60 Hz), driven independently by Intel Xe Graphics Architecture (Gen 12) integrated in compatible CPUs. HDCP 2.3 is supported on the HDMI port. Audio is handled by the Realtek ALC897 codec delivering 7.1-channel HD audio with surge protection. Networking is provided by a Realtek RTL8111H Gigabit LAN controller (10/100/1000 Mb/s) supporting Wake- LAN, Energy Efficient Ethernet 802.3az, Lightning/ESD protection, and PXE. Rear I/O includes 2× USB 3.2 Gen1 ports, 4× USB 2.0 ports, 1× HDMI, 1× D-Sub, 1× PS/2, 1× RJ-45, and HD audio jacks. Internal headers add 2× USB 3.2 Gen1 and 2× USB 2.0 front-panel ports. ASRock Full Spike Protection covers all USB, audio, and LAN ports. The board ships with a 128 Mb AMI UEFI BIOS featuring multilingual GUI, ASRock EZ Mode, Instant Flash, and Full HD UEFI interface. Software includes ASRock A-Tuning utility and XFast LAN. Certifications: FCC, CE, ErP/EuP ready. Warranty: 3 years. Key Specifications: - Form Factor: Micro ATX, 22.0 cm × 19.3 cm (8.66 in × 7.6 in) - Socket: LGA1700 - Chipset: Intel H610 - CPU Support: 12th / 13th / 14th Gen Intel Core (LGA1700) - Memory: 2× DDR4 DIMM, dual-channel, up to 3200 MHz, max 64 GB - Storage: 1× Ultra M.2 PCIe Gen3 x4 (32 Gb/s), 4× SATA3 6 Gb/s - PCIe: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 - Display: HDMI 2.1 TMDS (4K@60Hz), D-Sub (1920×1200@60Hz) - Audio: Realtek ALC897, 7.1 CH HD - LAN: Realtek RTL8111H Gigabit - USB Rear: 2× USB 3.2 Gen1, 4× USB 2.0 - OS: Windows 10 / 11 (64-bit) - Warranty: 3 Years

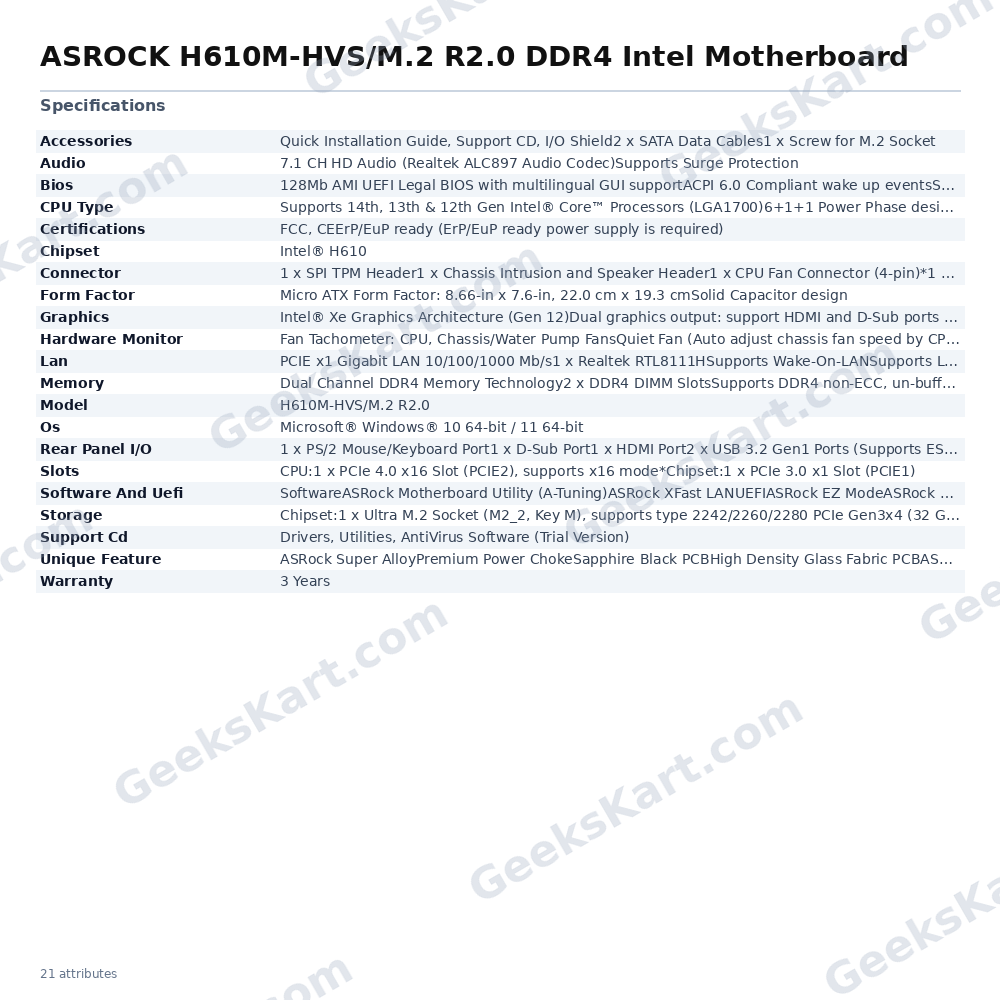

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H610 |
| CPU Type | Supports 14th, 13th & 12th Gen Intel® CoreTM Processors (LGA1700)6+1+1 Power Phase designSupports Intel® Hybrid TechnologySupports Intel® Turbo Boost Max 3.0 Technology |
| Os | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | PCIE x1 Gigabit LAN 10/100/1000 Mb/s1 x Realtek RTL8111HSupports Wake-On-LANSupports Lightning/ESD ProtectionSupports Energy Efficient Ethernet 802.3azSupports PXE |
| Bios | 128Mb AMI UEFI Legal BIOS with multilingual GUI supportACPI 6.0 Compliant wake up eventsSMBIOS 2.7 SupportCPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec)Supports Surge Protection |
| Model | H610M-HVS/M.2 R2.0 |
| Slots | CPU:1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*Chipset:1 x PCIe 3.0 x1 Slot (PCIE1) |
| Memory | Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 non-ECC, un-buffered memory up to 3200Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 64GBSupports Intel® Extreme Memory Profile (XMP) 2.0 |
| Storage | Chipset:1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*4 x SATA3 6.0 Gb/s Connectors |
| Graphics | Intel® Xe Graphics Architecture (Gen 12)Dual graphics output: support HDMI and D-Sub ports by independent display controllersSupports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60HzSupports D-Sub with max. resolution up to 1920×1200 @ 60HzSupports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
| Connector | 1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)*1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Support Cd | Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket |
| Certifications | FCC, CEErP/EuP ready (ErP/EuP ready power supply is required) |

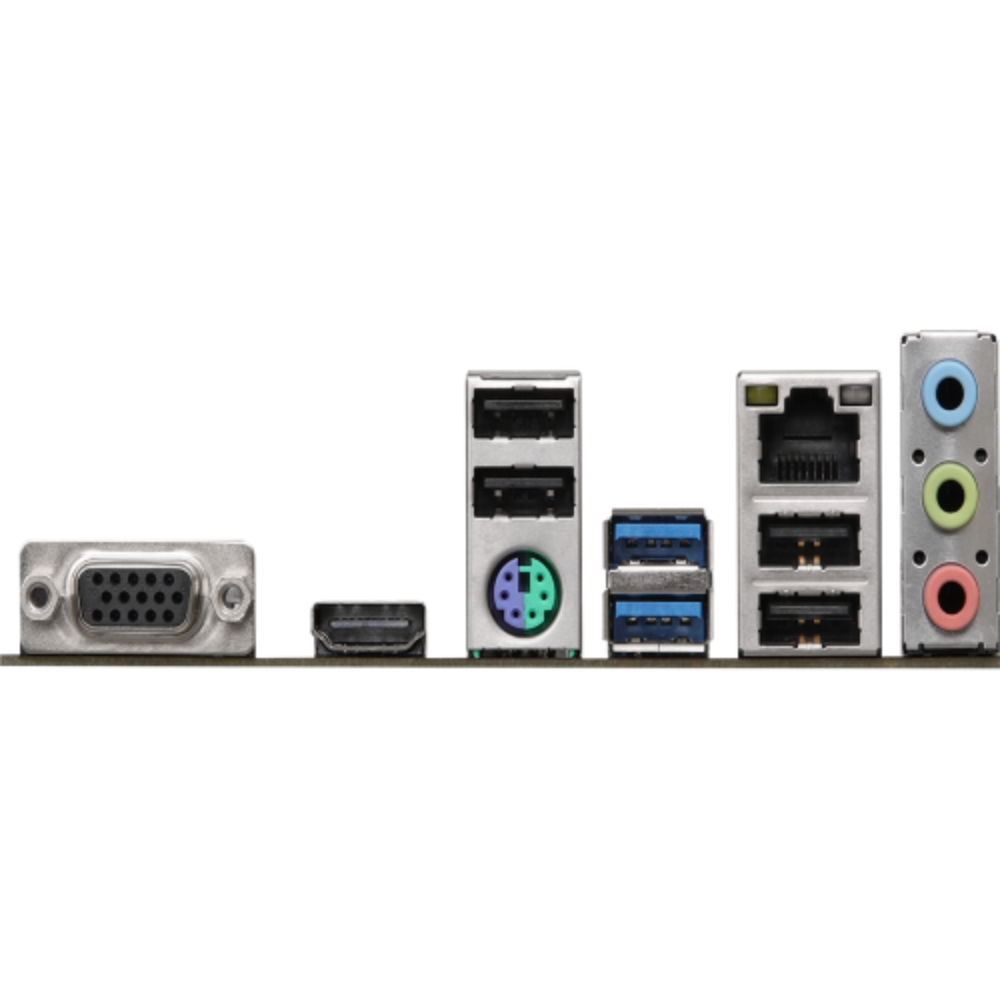

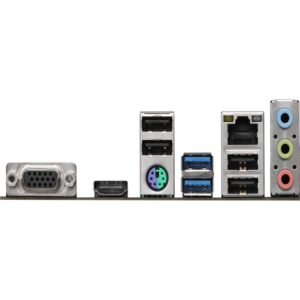

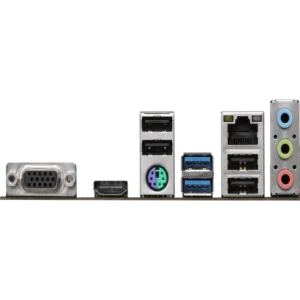

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port2 x USB 3.2 Gen1 Ports (Supports ESD Protection)4 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super AlloyPremium Power ChokeSapphire Black PCBHigh Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | Fan Tachometer: CPU, Chassis/Water Pump FansQuiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump FansFan Multi-Speed Control: CPU, Chassis/Water Pump FansCASE OPEN detectionVoltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
| Software And Uefi | SoftwareASRock Motherboard Utility (A-Tuning)ASRock XFast LANUEFIASRock EZ ModeASRock Full HD UEFIASRock My Favorites in UEFIASRock Instant Flash |
