ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard
MPN H610M-HVS-M-2-R2-0 · Brand ASROCK · mATX
The ASRock H610M-HVS/M.2 R2.0 is a Micro-ATX motherboard on Intel H610 (LGA1700) supporting 12th–14th Gen Intel Core processors, DDR4-3200 memory up to 64 GB, PCIe 4.0 x16, an M.2 NVMe slot, HDMI 2.1 output, and Gigabit LAN
Inclusive of GST · GST invoice available
Overview
The ASRock H610M-HVS/M.2 R2.0 is a Micro-ATX motherboard built on Intel's H610 chipset and designed for the LGA1700 socket, making it compatible with Intel 12th, 13th, and 14th Generation Core processors including those supporting Intel Hybrid Technology and Intel Turbo Boost Max 3.0 Technology. Its compact 22.0 cm × 19.3 cm footprint fits standard mATX cases, while the Sapphire Black PCB with High Density Glass Fabric construction and ASRock Super Alloy Premium Power Choke contribute to long-term platform stability. For memory, the board provides two DDR4 DIMM slots in a dual-channel configuration, supporting speeds up to DDR4-3200 and a maximum installed capacity of 64 GB. Intel XMP 2.0 profiles are supported for straightforward memory speed optimisation. The primary expansion slot is a PCIe 4.0 x16 slot for discrete graphics cards, complemented by a PCIe 3.0 x1 slot for add-in cards. Storage options include one Ultra M.2 socket (Key M, 2242/2260/2280) running at PCIe Gen3 x4 (up to 32 Gb/s) for NVMe solid-state drives, plus four SATA3 6.0 Gb/s ports for traditional or SATA SSD storage. Display output is handled through onboard Intel Xe Graphics (Gen 12), with an HDMI 2.1 port capable of 4K (4096×2160) at 60 Hz and a D-Sub port supporting up to 1920×1200 at 60 Hz via independent display controllers; HDCP 2.3 is supported on the HDMI port. Connectivity on the rear I/O includes 2 × USB 3.2 Gen1 and 4 × USB 2.0 ports, a PS/2 keyboard/mouse combo port, Realtek RTL8111H Gigabit LAN with Wake- LAN and Energy Efficient Ethernet 802.3az, and a full HD audio jack set (Line-in, Front Speaker, Microphone) powered by the Realtek ALC897 7.1-channel HD Audio codec with surge protection. Internal headers add 2 × USB 3.2 Gen1 and 2 × USB 2.0 ports. ASRock Full Spike Protection covers all USB, audio, and LAN ports against ESD and transient surges. Fan management is handled through a 4-pin CPU fan connector and a 4-pin Chassis/Water Pump fan connector with Smart Fan Speed Control that adjusts speed based on CPU temperature. A 128 Mb AMI UEFI BIOS with multilingual GUI, ACPI 6.0 compliance, and ASRock Instant Flash utility simplifies firmware updates. The board ships with two SATA data cables, an I/O shield, and an M.2 mounting screw. It is FCC and CE certified, ErP/EuP ready, and carries a 3-year warranty. Verified Specifications: — Socket: LGA1700 | Chipset: Intel H610 — CPU Support: 12th / 13th / 14th Gen Intel Core (LGA1700) — Memory: 2 × DDR4 DIMM, Dual-Channel, up to DDR4-3200, max 64 GB, XMP 2.0 — Expansion: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 — Storage: 1 × M.2 (PCIe Gen3 x4, Key M), 4 × SATA3 6.0 Gb/s — Display: HDMI 2.1 (4K@60 Hz), D-Sub (1920×1200@60 Hz) — Audio: Realtek ALC897, 7.1 CH HD — LAN: Realtek RTL8111H, 10/100/1000 Mb/s — USB: 4 × USB 3.2 Gen1 (2 rear + 2 front), 6 × USB 2.0 (4 rear + 2 front) — Form Factor: Micro-ATX, 22.0 cm × 19.3 cm — OS: Windows 10 / 11 (64-bit) — Warranty: 3 Years

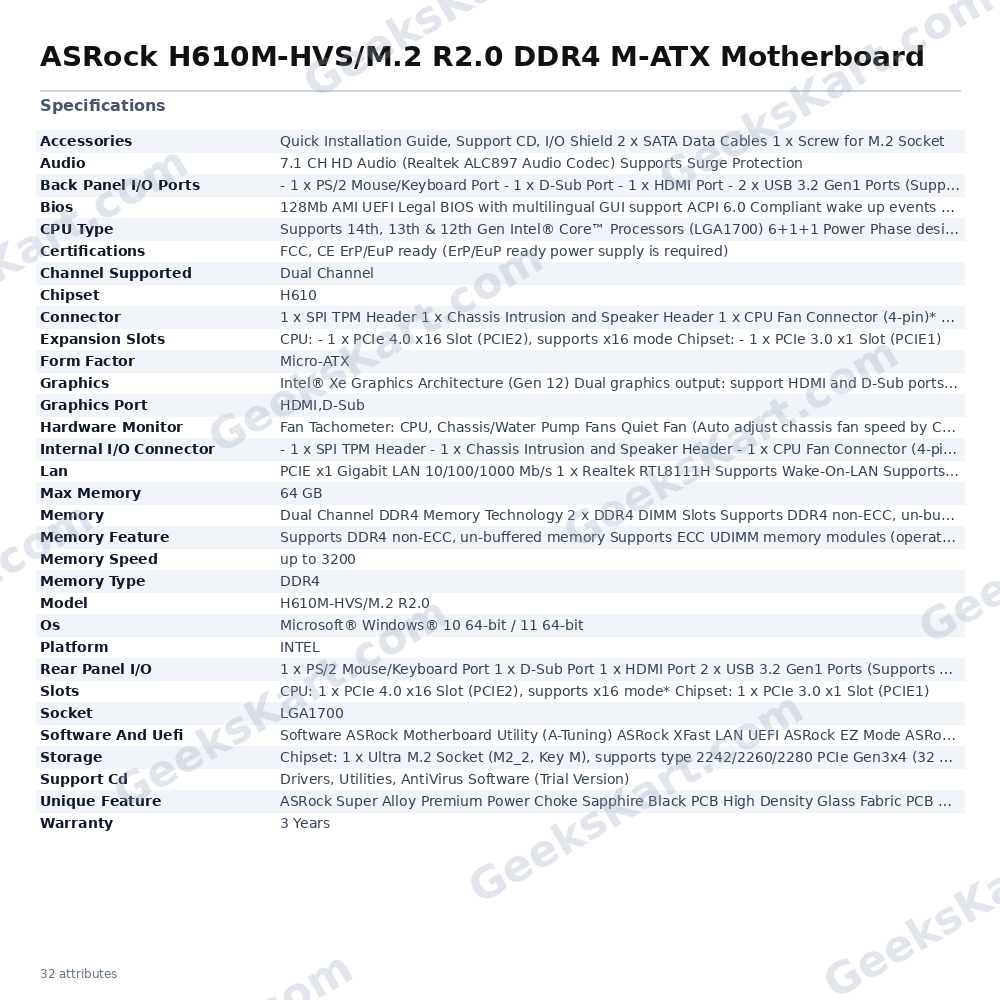

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | Supports 14th, 13th & 12th Gen Intel® CoreTM Processors (LGA1700) 6+1+1 Power Phase design Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology |
| Max Memory | 64 GB |
| Memory Speed | up to 3200 |
| Os | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Bios | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection |
| Model | H610M-HVS/M.2 R2.0 |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: 1 x PCIe 3.0 x1 Slot (PCIE1) |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Storage | Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
| Platform | INTEL |
| Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Support Cd | Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket |
| Graphics Port | HDMI,D-Sub |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Memory Feature | Supports DDR4 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy Premium Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Expansion Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE1) |
| Hardware Monitor | Fan Tachometer: CPU, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans CASE OPEN detection Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
| Channel Supported | Dual Channel |
| Software And Uefi | Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash |
| Back Panel I/O Ports | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x HDMI Port – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 4 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
