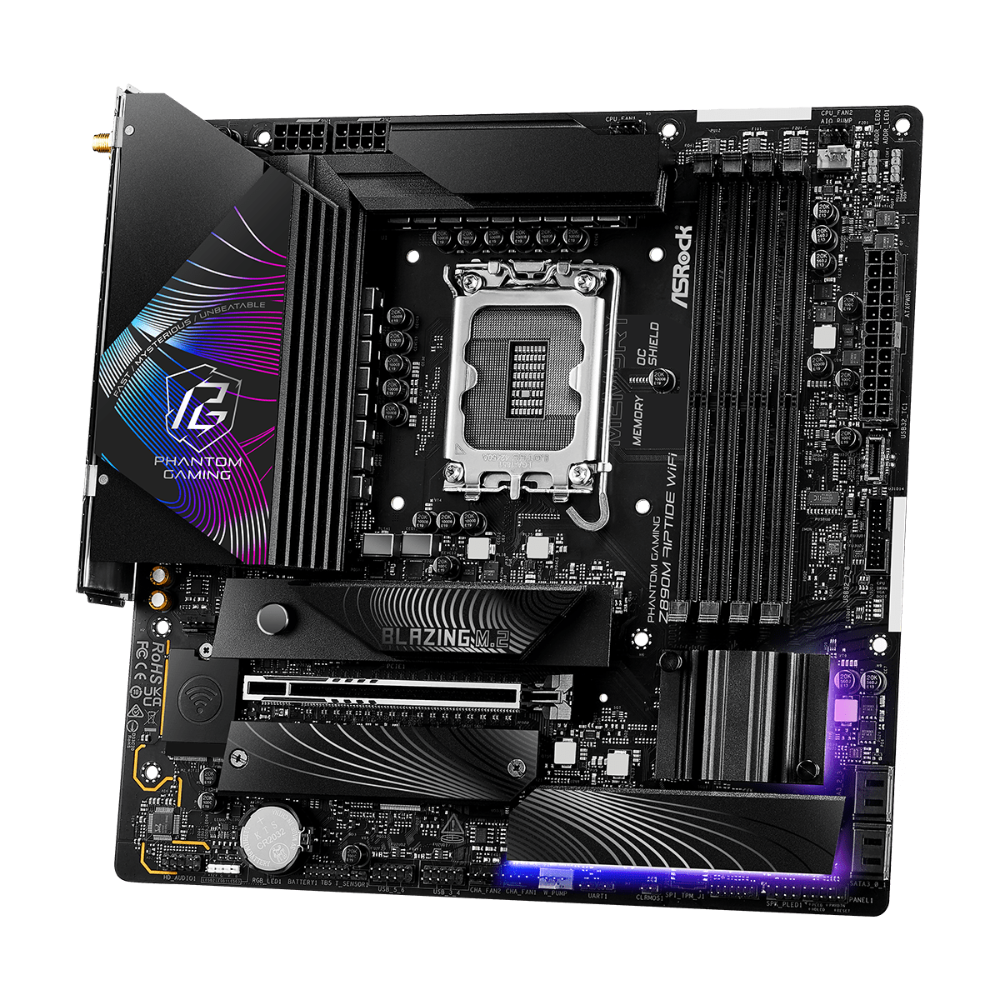

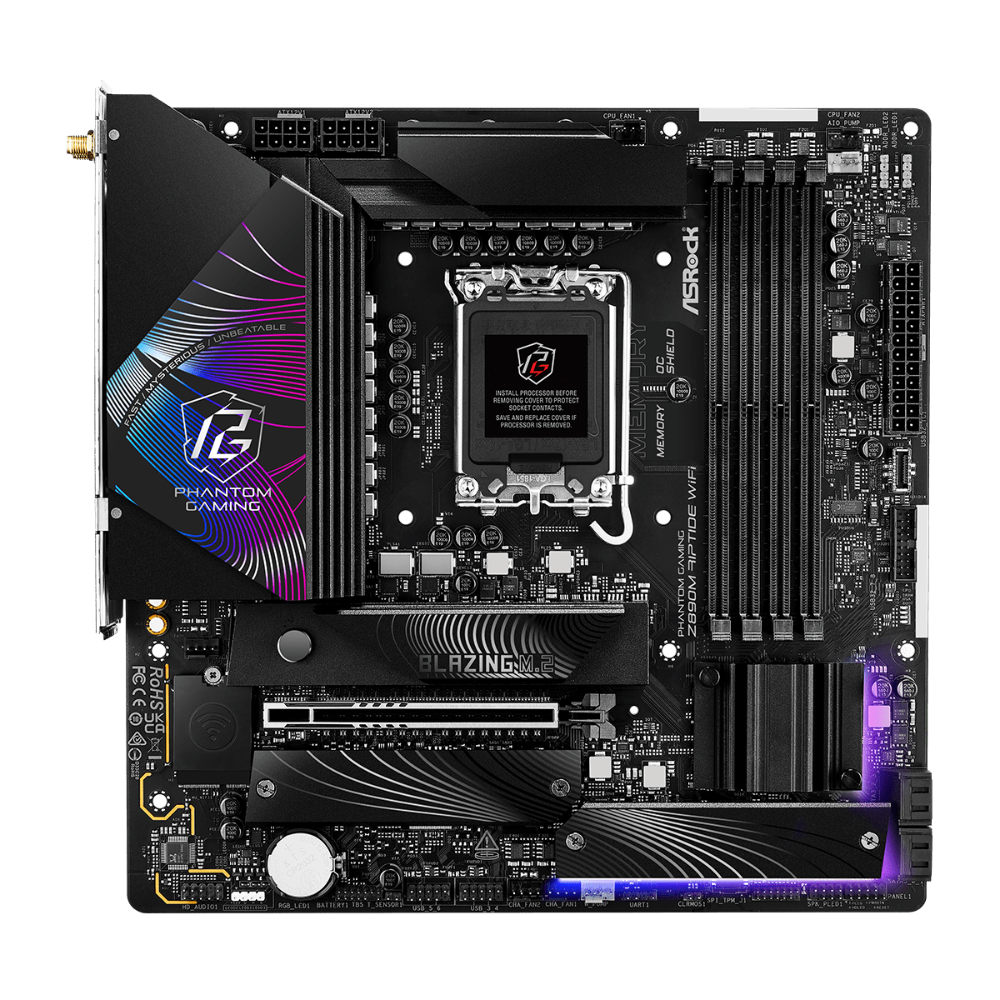

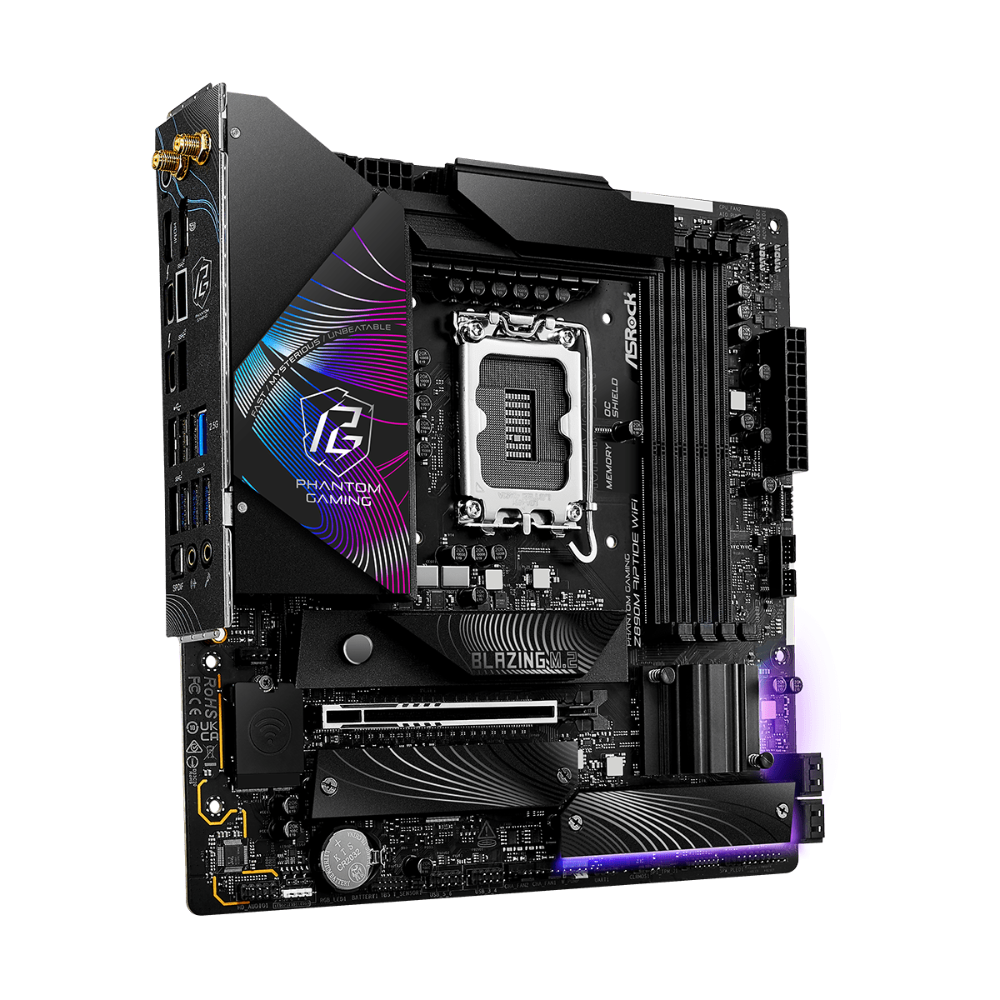

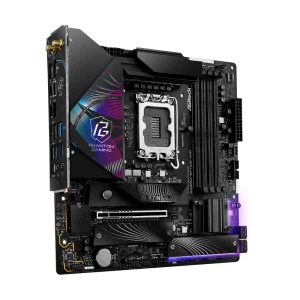

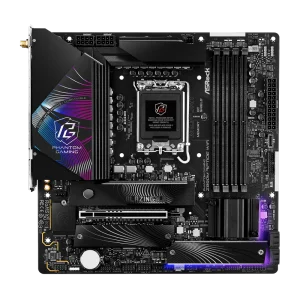

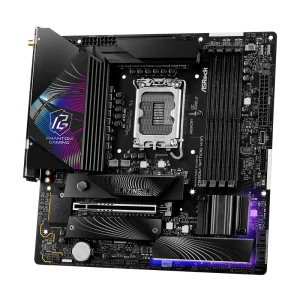

The ASRock Phantom Gaming Z890M Riptide WiFi is a Micro ATX motherboard engineered for Intel Core Ultra Series 2 processors on the LGA1851 socket. Powered by the Intel Z890 chipset, it delivers a capable platform for high-performance gaming and productivity workloads in a compact 9.6-inch × 9.6-inch footprint. At the heart of its power delivery is a 16+1+1+1+1 phase design using 80A Dr.MOS components covering VCore, GT, and SA rails, paired with a reinforced heatsink armor to maintain thermal stability under sustained loads. The board’s 2oz copper PCB inner layers contribute to lower operating temperatures and more stable power traces during overclocking sessions. Memory support spans four DDR5 DIMM slots in dual-channel configuration, accommodating up to 256GB of non-ECC unbuffered DDR5, with XMP 3.0 profiles and CUDIMM support. Overclocking headroom extends to 9466MHz and beyond when using the Memory OC Shield — ASRock’s patented EMI-reduction feature designed to improve stability at high memory frequencies. Storage connectivity is headlined by a Blazing M.2 slot (PCIe Gen5 x4, up to 128 Gb/s), complemented by two Hyper M.2 slots running PCIe Gen4 x4 (64 Gb/s each) and four SATA3 6.0 Gb/s ports. RAID 0, 1, 5, and 10 are supported across both SATA and NVMe devices. Connectivity on the rear I/O is extensive: two Thunderbolt 4 Type-C ports (40 Gb/s), two USB 3.2 Gen2 Type-A (10 Gb/s), four USB 3.2 Gen1, two USB 2.0, HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (8K 60Hz), and a Killer E3100G 2.5 Gigabit LAN port. Wireless networking is handled by an 802.11axe Wi-Fi 6E module covering 2.4, 5, and 6 GHz bands with 2×2 MU-MIMO and Bluetooth 5.3. Killer DoubleShot Pro allows simultaneous use of wired and wireless connections for traffic prioritisation. Audio is delivered via a Realtek ALC897 7.1-channel HD codec with Nahimic Audio software. The board supports BIOS Flashback for no-CPU firmware updates, ASRock Polychrome SYNC for RGB/ARGB header management, and Intel 200S Boost performance uplift via a BIOS update. The 20K Black capacitors rated at 1000uF capacitance are designed for a 20,000-hour operational lifespan. A 3-year manufacturer warranty is included. Key Specifications: • Form Factor: Micro ATX — 9.6 in × 9.6 in (24.4 cm × 24.4 cm) • Socket / Chipset: LGA1851 / Intel Z890 • CPU Support: Intel Core Ultra Series 2 • Memory: 4× DDR5 DIMM, dual-channel, up to 256GB, up to 9466MHz+ (OC), XMP 3.0, CUDIMM • PCIe Slot: 1× PCIe 5.0 x16 • Storage: 1× M.2 PCIe Gen5 x4 (128 Gb/s), 2× M.2 PCIe Gen4 x4 (64 Gb/s each), 4× SATA3 • Display Outputs: 1× HDMI 2.1 (4K 120Hz), 1× DisplayPort 1.4 (8K 60Hz), 2× Thunderbolt 4 Type-C • USB (Rear): 2× TB4 Type-C, 2× USB 3.2 Gen2 Type-A, 4× USB 3.2 Gen1, 2× USB 2.0 • LAN: Killer E3100G 2.5G Ethernet • Wireless: Wi-Fi 6E (802.11axe), Bluetooth 5.3 • Audio: Realtek ALC897, 7.1 CH HD, Nahimic Audio • Power Delivery: 16+1+1+1+1 phase, 80A Dr.MOS • Warranty: 3 years
ASUS PRIME B860M-K CSM DDR5 Intel Motherboard
₹15,245.00
MSI MAG B850 Tomahawk Max Wifi DDR5 AMD Motherboard
₹25,525.00
ASROCK Phantom Gaming Z890M Riptide Wifi 6E DDR5 Intel Motherboard
₹28,930.00
The ASRock Phantom Gaming Z890M Riptide WiFi 6E DDR5 is a Micro ATX motherboard for Intel Core Ultra Series 2 (LGA1851) featuring PCIe 5.0, Thunderbolt 4, Wi-Fi 6E, Killer 2.5G LAN, and DDR5 support up to 9466MHz

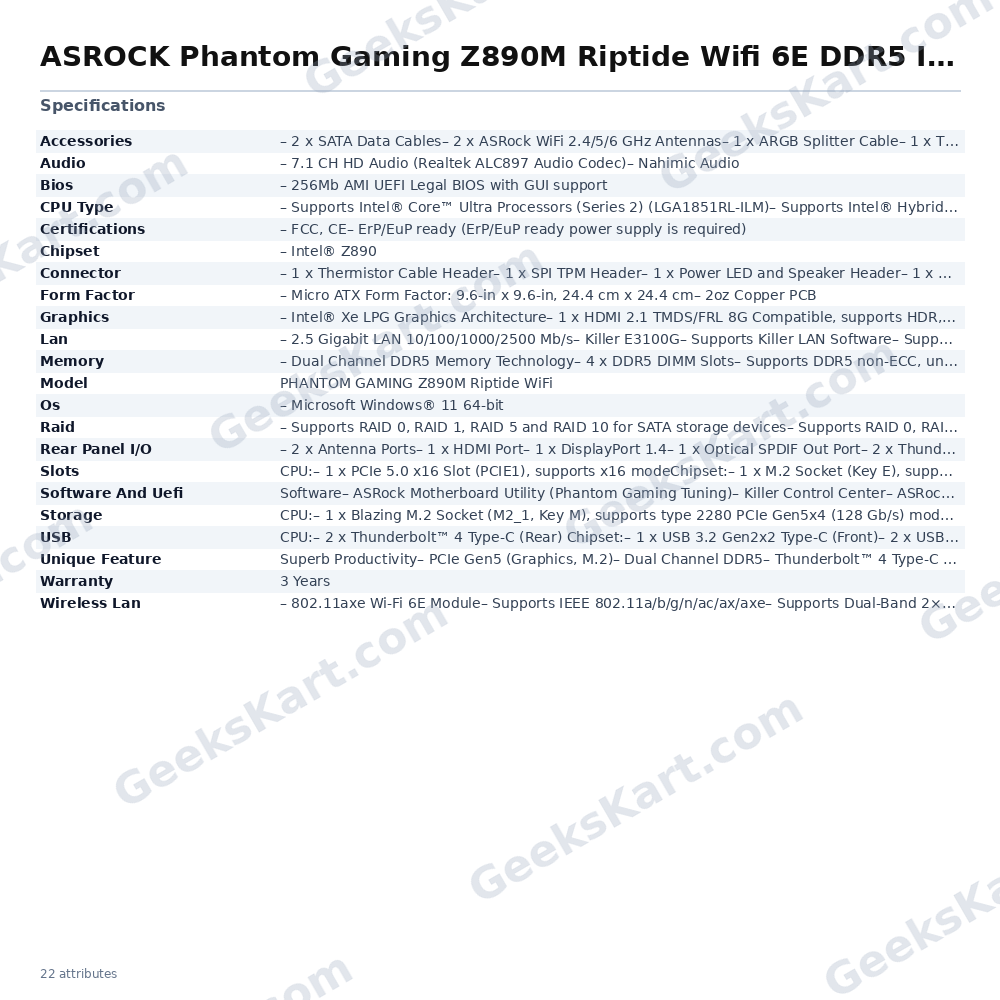

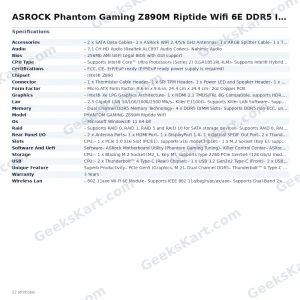

Additional information
| Warranty | 3 Years |
|---|---|
| Chipset | – Intel® Z890 |
| CPU Type | – Supports Intel® CoreTM Ultra Processors (Series 2) (LGA1851RL-ILM)– Supports Intel® Hybrid Technology– Supports Intel® Turbo Boost Max 3.0 Technology– Supports Intel® Thermal Velocity Boost (TVB)– Supports Intel® Adaptive Boost Technology (ABT)– Integrated NPU for dedicated AI acceleration |
| Os | – Microsoft Windows® 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s– Killer E3100G– Supports Killer LAN Software– Supports Killer DoubleShot™ Pro |
| USB | CPU:– 2 x Thunderbolt™ 4 Type-C (Rear) Chipset:– 1 x USB 3.2 Gen2x2 Type-C (Front)– 2 x USB 3.2 Gen2 Type-A (Rear)– 6 x USB 3.2 Gen1 (4 Rear, 2 Front)– 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)– Nahimic Audio |
| Slots | CPU:– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeChipset:– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Memory | – Dual Channel DDR5 Memory Technology– 4 x DDR5 DIMM Slots– Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)– Supports Clocked Unbuffered DIMM (CUDIMM)– Max. capacity of system memory: 256GB– Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Storage | CPU:– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modeChipset:– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes– 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe LPG Graphics Architecture– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz– 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connector | – 1 x Thermistor Cable Header– 1 x SPI TPM Header– 1 x Power LED and Speaker Header– 1 x RGB LED Header– 2 x Addressable LED Headers– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)– 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Model | PHANTOM GAMING Z890M Riptide WiFi |

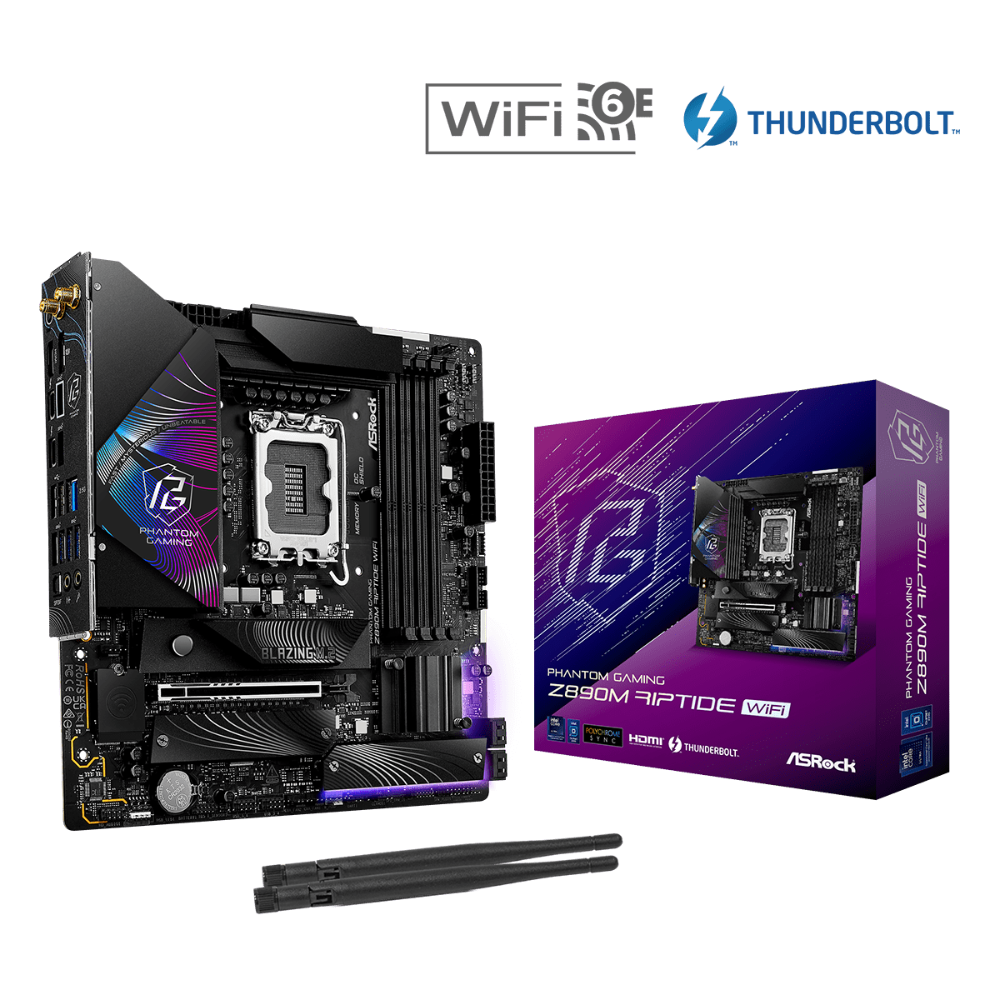

| Accessories | – 2 x SATA Data Cables– 2 x ASRock WiFi 2.4/5/6 GHz Antennas– 1 x ARGB Splitter Cable– 1 x Thermistor Cable |
| Wireless Lan | – 802.11axe Wi-Fi 6E Module– Supports IEEE 802.11a/b/g/n/ac/ax/axe– Supports Dual-Band 2×2 160MHz with extended 6GHz band support– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology– Supports Bluetooth 5.3– Supports MU-MIMO– Supports Killer LAN Software– Supports Killer DoubleShot™ Pro |
| Certifications | – FCC, CE– ErP/EuP ready (ErP/EuP ready power supply is required) |

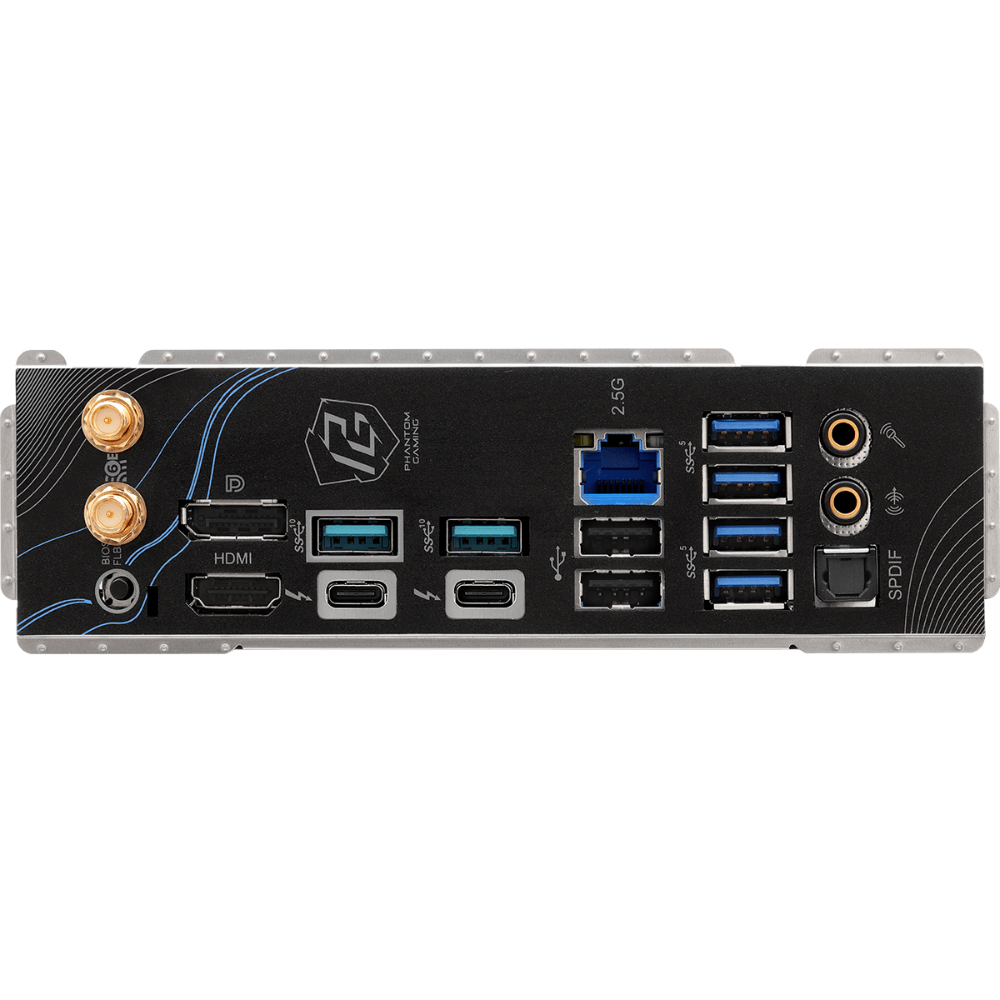

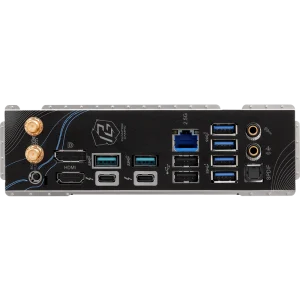

| Rear Panel I/O | – 2 x Antenna Ports– 1 x HDMI Port– 1 x DisplayPort 1.4– 1 x Optical SPDIF Out Port– 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)– 4 x USB 3.2 Gen1 Ports– 2 x USB 2.0 Ports– 1 x RJ-45 LAN Port– 1 x BIOS Flashback Button– 1 x Line Out Jack (Gold Audio Jack)– 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity– PCIe Gen5 (Graphics, M.2)– Dual Channel DDR5– Thunderbolt™ 4 Type-C Ports (40 Gb/s)Rock-Solid Durability– Server-Grade Low-Loss PCB– 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor– Memory OC Shield– Flexible Integrated I/O Shield– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming– Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module– Killer DoubleShot™ ProEZ Update– BIOS Flashback Button– ASRock Auto Driver InstallerEZ Troubleshooter |
| Software And Uefi | Software– ASRock Motherboard Utility (Phantom Gaming Tuning)– Killer Control Center– ASRock Polychrome SYNCUEFI– ASRock EZ Mode– ASRock Full HD UEFI– ASRock My Favorites in UEFI– ASRock Auto Driver Installer– ASRock Instant Flash |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm– 2oz Copper PCB |
