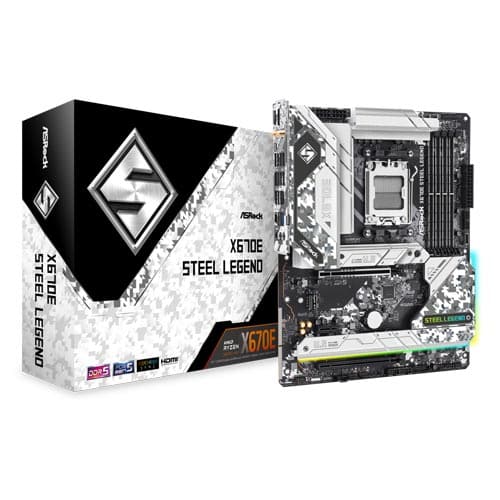

ASROCK X670E Steel Legend DDR5 AMD Motherboard

The ASRock X670E Steel Legend is a full-size ATX motherboard built on the AMD X670E chipset and designed exclusively for the AM5 socket, making it fully compatible with AMD Ryzen 7000 series processors. Its 16+2+1 power phase design uses Smart Power Stage (SPS) Dr.MOS technology to monitor current and temperature per phase, delivering clean and stable power to the CPU for demanding workloads and overclocking sessions. Memory support comes via four DDR5 DIMM slots capable of running up to DDR5-6600 and beyond in overclocked configurations. The board supports both AMD EXPO and Intel XMP memory profiles, allowing enthusiasts to push DDR5 speeds toward 7600 MHz using pre-tested profiles without manual tuning. Reinforced DIMM slots improve physical durability and signal integrity. Storage options are generous: one Blazing M.2 slot running PCIe Gen 5 x4, three Hyper M.2 slots running PCIe Gen 4 x4, and four SATA3 ports give builders extensive flexibility for NVMe SSDs and traditional drives. Expansion slots include one PCIe 5.0 x16 for the graphics card, one PCIe 3.0 x16, and one PCIe 3.0 x1. Connectivity is handled by dual Realtek LAN controllers — 2.5 Gigabit and 1 Gigabit — alongside an integrated 802.11ax Wi-Fi 6E and Bluetooth module for wireless connectivity. Audio is powered by a Realtek ALC1220 codec supporting 7.1-channel HD audio with Nahimic Audio enhancement. USB ports span USB 3.2 Gen 2x2 Type-C (one rear, one front header), one USB 3.2 Gen 2 Type-A at the rear, and ten USB 3.2 Gen 1 ports (six rear, four via front header). Display outputs include one HDMI and one DisplayPort for use with processors featuring integrated graphics. The PCB is constructed with eight layers and server-grade low-loss materials, improving signal integrity for both PCIe 5.0 and high-frequency memory operation. POLYCHROME RGB onboard lighting, addressable RGB headers, and standard RGB headers allow customisation and synchronisation across compatible peripherals. Key Specifications: - Chipset: AMD X670E - Socket: AM5 - Form Factor: ATX - Memory: 4x DDR5 DIMM, up to DDR5-6600+(OC), EXPO & XMP support - PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 - M.2: 1x PCIe Gen 5 x4 (Blazing), 3x PCIe Gen 4 x4 (Hyper) - Storage: 4x SATA3 - Audio: Realtek ALC1220, 7.1 CH HD, Nahimic Audio - LAN: Realtek 2.5G + Realtek 1G - Wireless: Wi-Fi 6E (802.11ax) + Bluetooth - USB: 2x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 10x USB 3.2 Gen 1 - Display Output: 1x HDMI, 1x DisplayPort - Power Design: 16+2+1 phases, SPS Dr.MOS - PCB: 8-layer, server-grade low-loss - Warranty: 3 Years
