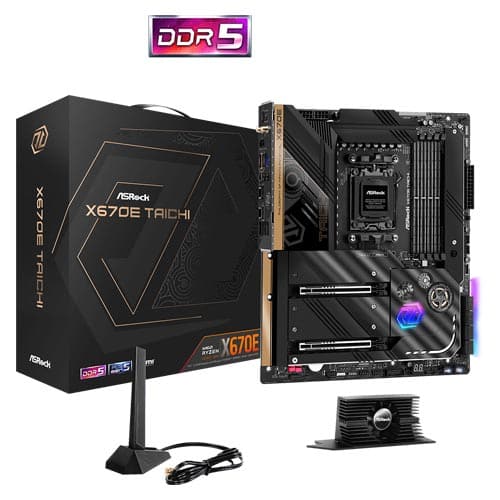

ASROCK X670E Taichi DDR5 AMD Motherboard

The ASRock X670E Taichi is a high-end ATX motherboard built on the AMD X670E chipset for AMD's AM5 socket, designed to support AMD Ryzen 7000 series processors. It pairs a robust power delivery system with a wide range of connectivity options, making it a strong foundation for enthusiast and overclocking-focused desktop builds. At the heart of its power delivery is a 24+2+1 phase design using Smart Power Stage (SPS) technology, which monitors current and temperature per phase to deliver stable, efficient power to the CPU across standard and overclocked operation. The board uses an 8-layer, server-grade low-loss PCB that improves signal integrity across the entire platform. Memory support covers four DDR5 DIMM slots with compatibility up to DDR5-6600+ in OC mode. Reinforced DIMM slots and a built-in DDR5 protection circuit help reduce installation risk and support aggressive memory frequency tuning. Storage and expansion are generously provisioned: two PCIe 5.0 x16 slots handle discrete GPUs, while the Blazing M.2 slot delivers PCIe Gen 5 x4 bandwidth for next-generation SSDs. Additional M.2 slots include one PCIe Gen 4 x4 with SATA3 support and two PCIe Gen 4 x4 slots, alongside eight SATA3 ports. Networking is handled by Killer E3100 2.5G Ethernet and a Killer AX1675 Wi-Fi 6E (802.11ax) with Bluetooth adapter. The Killer DoubleShot Pro feature allows simultaneous use of both wired and wireless connections. Audio is driven by a Realtek ALC4082 5.1-channel HD codec paired with an ESS SABRE9218 DAC rated at 130 dB SNR and 112 dB THD+N, with WIMA audio capacitors and Nahimic Audio software support. Rear I/O includes two USB4 Type-C ports (up to 40 Gbps, 27 W PD 3.0), five USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 Type-A ports, and one HDMI output. A front-panel USB 3.2 Gen 2x2 Type-C header provides up to 20 Gbps. Polychrome RGB sync is supported via onboard RGB and addressable RGB headers. Key Specifications: - Chipset: AMD X670E - Socket: AM5 - Form Factor: ATX - Memory: 4x DDR5 DIMM, up to DDR5-6600+ (OC) - PCIe Slots: 2x PCIe 5.0 x16 - M.2 Slots: 1x PCIe Gen5 x4 (Blazing), 1x PCIe Gen4 x4 + SATA3 (Hyper), 2x PCIe Gen4 x4 (Hyper) - SATA Ports: 8x SATA3 - LAN: Killer E3100 2.5G Ethernet - Wireless: Killer AX1675 Wi-Fi 6E (802.11ax) + Bluetooth - Audio: Realtek ALC4082 + ESS SABRE9218 DAC - Rear USB: 2x USB4 Type-C, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A - Video Output: 1x HDMI, 2x USB4 Type-C (DisplayPort Alt Mode) - Warranty: 3 Years - Weight: 2 kg
