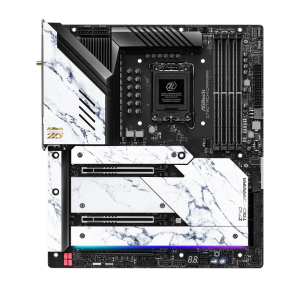

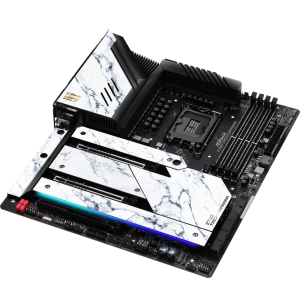

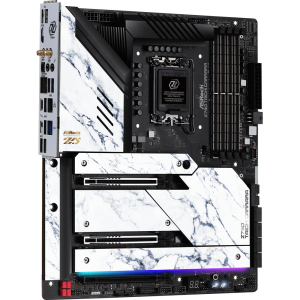

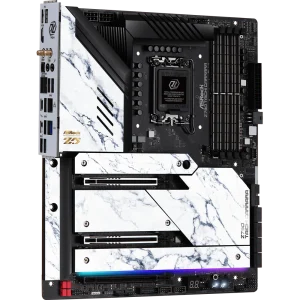

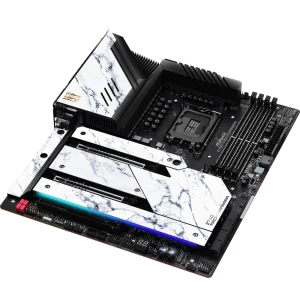

ASROCK Z790 Taichi Carrara Wifi6e DDR5 Intel Motherboard ( White )
MPN ASROCK-Z790-TAICHI-CARRARA-WIFI-DDR5 · Brand ASROCK · E-ATX
The ASRock Z790 Taichi Carrara is a flagship EATX motherboard for Intel LGA1700 (12th–14th Gen), featuring a 24+1+2 phase VRM, PCIe 5.0, Thunderbolt 4, Wi-Fi 6E, Killer 2.5G LAN, and DDR5 support up to 7400+ MHz — finished in a distinctive Carrara marble-inspired white aesthetic
Inclusive of GST · GST invoice available
Overview
The ASRock Z790 Taichi Carrara is an EATX enthusiast motherboard built on the Intel Z790 chipset, designed to support 12th, 13th, and 14th Generation Intel Core processors on the LGA1700 socket. Taking aesthetic inspiration from the natural white veining of Carrara marble, it pairs a distinctive white visual identity with a feature set aimed at overclockers, content creators, and high-performance PC builders. At the heart of its power delivery is a 24+1+2 phase VRM configuration using 105A Smart Power Stage (SPS) Dr.MOS components, paired with composite VRM heatsinks, XXL aluminium heatsinks, a heat pipe, and active cooling fans for sustained thermal management. The eight-layer PCB further contributes to signal integrity and thermal stability under demanding workloads. For memory, the board provides four DDR5 DIMM slots supporting dual-channel non-ECC unbuffered memory up to 256 GB, with native speeds starting at 4800 MHz (1DPC 1R) and overclocked profiles reaching 7400+ MHz via Intel XMP 3.0. AMD EXPO profiles are also supported for compatible modules. Storage connectivity is equally capable: a PCIe Gen 5 x4 Blazing M.2 slot (M2_1) delivers up to 128 Gb/s bandwidth, accompanied by four additional PCIe Gen 4 x4 Hyper M.2 slots and eight SATA3 6 Gb/s ports. Two full-length PCIe 5.0 x16 slots serve discrete graphics, with support for x16 or x8/x8 configurations. Networking is handled by a Killer E3100G 2.5 Gigabit Ethernet controller alongside an Intel I219V Gigabit LAN port, plus an Intel-based Killer AX1675 Wi-Fi 6E module (802.11ax, 2x2 160 MHz, 6 GHz band) with Bluetooth 5.3. Killer DoubleShot Pro allows simultaneous use of wired and wireless for traffic prioritisation. Connectivity on the rear panel includes two USB4 Thunderbolt 4 Type-C ports (40 Gb/s), two USB 3.2 Gen 2 Type-A ports (10 Gb/s), six USB 3.2 Gen 1 ports, two USB 2.0 ports, one HDMI 2.1 (up to 4K 60 Hz), and one optical S/PDIF output. A front-panel USB 3.2 Gen 2x2 Type-C header supports up to 20 Gb/s data transfer and 60 W fast charging (20 V/3 A). Audio is delivered by a Realtek ALC4082 codec paired with an ESS SABRE9218 DAC (130 dB SNR) for the front panel outputs, WIMA audio capacitors, and dedicated PCB layers for left/right channel separation. Lighting is managed through ASRock Polychrome SYNC with one RGB header and three addressable RGB headers on board. The included 12 cm Carrara Edition cooling fan (800–2500 RPM, 76.21 CFM, dual-ball bearing) extends the white marble aesthetic inside the chassis. Verified Specifications: - Form Factor: EATX, 12.0 in x 10.5 in (30.5 cm x 26.7 cm), 8-layer PCB - Chipset: Intel Z790 - Socket: LGA1700 (12th/13th/14th Gen Intel Core) - Memory: 4x DDR5 DIMM, up to 256 GB, up to 7400+ MHz (OC), XMP 3.0 - Storage: 1x PCIe 5.0 x4 M.2, 4x PCIe 4.0 x4 M.2, 8x SATA3 - PCIe Slots: 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode) - LAN: Killer E3100G 2.5GbE + Intel I219V 1GbE - Wi-Fi: 802.11ax Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.3 - Rear USB: 2x USB4 TB4 Type-C (40 Gb/s), 2x USB 3.2 Gen2 Type-A, 6x USB 3.2 Gen1, 2x USB 2.0 - Audio: Realtek ALC4082, ESS SABRE9218 DAC (130 dB SNR) - OS: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP, CEC Tier II
Datasheet
| Form Factor | E-ATX |
|---|---|
| Chipset | – Intel® Z790 |
| CPU Type | |
| Os | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Lan | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) – Supports Killer LAN Software – Supports Killer DoubleShot™ Pro 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |
| USB | – 2 x USB4 Thunderbolt™ 4 Type-C (Rear) – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 10 x USB 3.2 Gen1 (6 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio | – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – WIMA Audio Capacitors (For Front Outputs) – ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) – Individual PCB Layers for R/L Audio Channel – Impedance Sensing on Rear Out port – Nahimic Audio |
| Slots | CPU: – 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2) * If M2_1 is occupied, PCIE1 will downgrade to x8 mode. If PCIE2 is occupied, M2_1 will be disabled. If PCIE3 is occupied, SATA3_0~3 will be disabled. Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7400+(OC)* – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7400+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors** *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M2_1 is occupied, PCIE1 will downgrade to x8 mode. If PCIE2 is occupied, M2_1 will be disabled. M2_1 and M2_2 cannot be populated simultaneously. **If PCIE3 is occupied, SATA3_0~3 will be disabled |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 2 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz** *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics |
| Connector | – 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)******- 1 x Clear CMOS Button- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED |

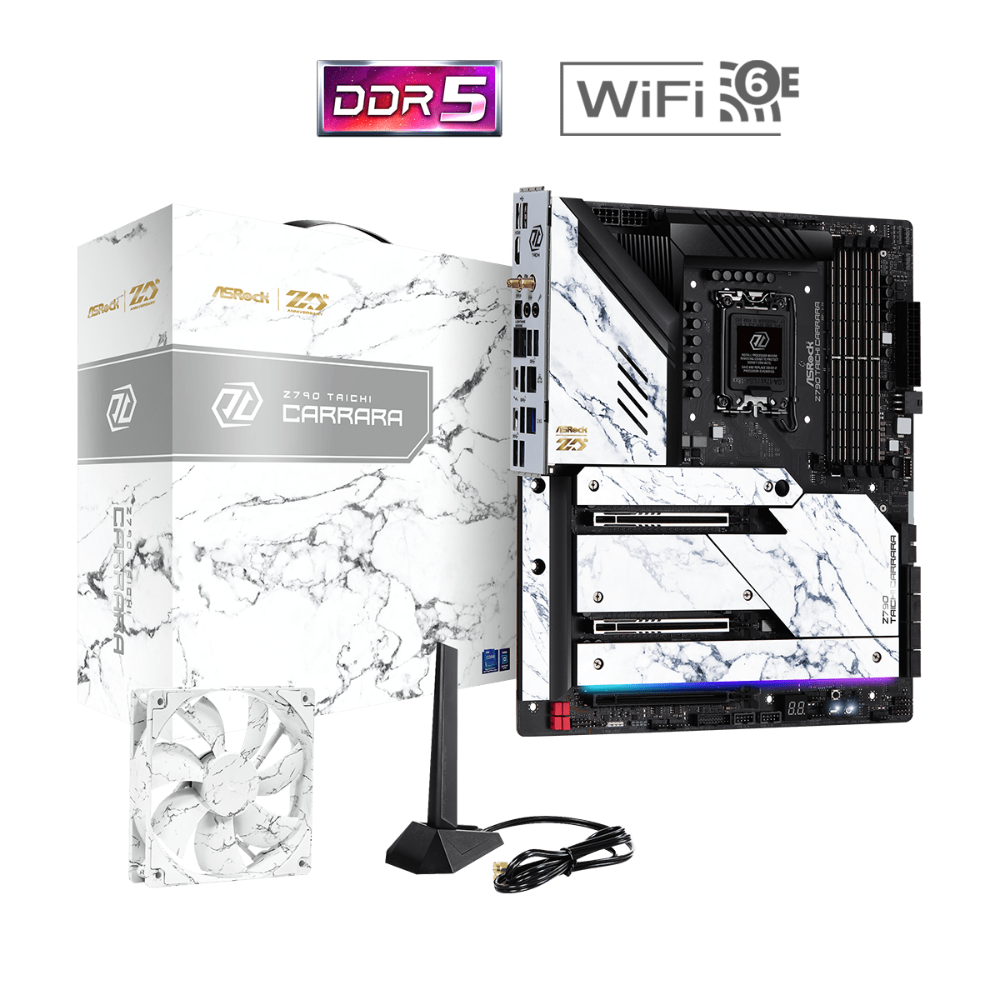

| Accessories | – 1 x User Manual – 4 x SATA Data Cables – 1 x Wireless Dongle USB Bracket – 1 x 12CM Carrara Edition Cooling FAN – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 4 x Screws for M.2 Sockets |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 160MHz with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 + High speed class II – Supports MU-MIMO – Supports Killer LAN Software – Supports Killer DoubleShot™ Pro *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) – CEC Tier II ready |

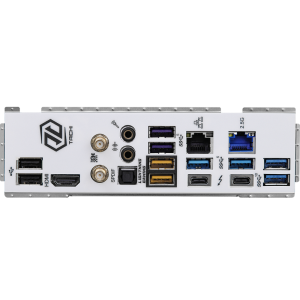

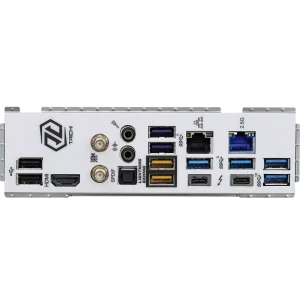

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.) – 2 x USB 2.0 Ports – 2 x RJ-45 LAN Ports – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – 12CM Carrara Edition Cooling FAN – Dual Channel DDR5 – USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity – Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module – Killer DoubleShot™ Pro – Front Panel Type-C 60W Fast Charging (20V/3A) – ASRock Lightning Gaming Ports EZ Update – ASRock Auto Driver Installer |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – Killer Control Center – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
