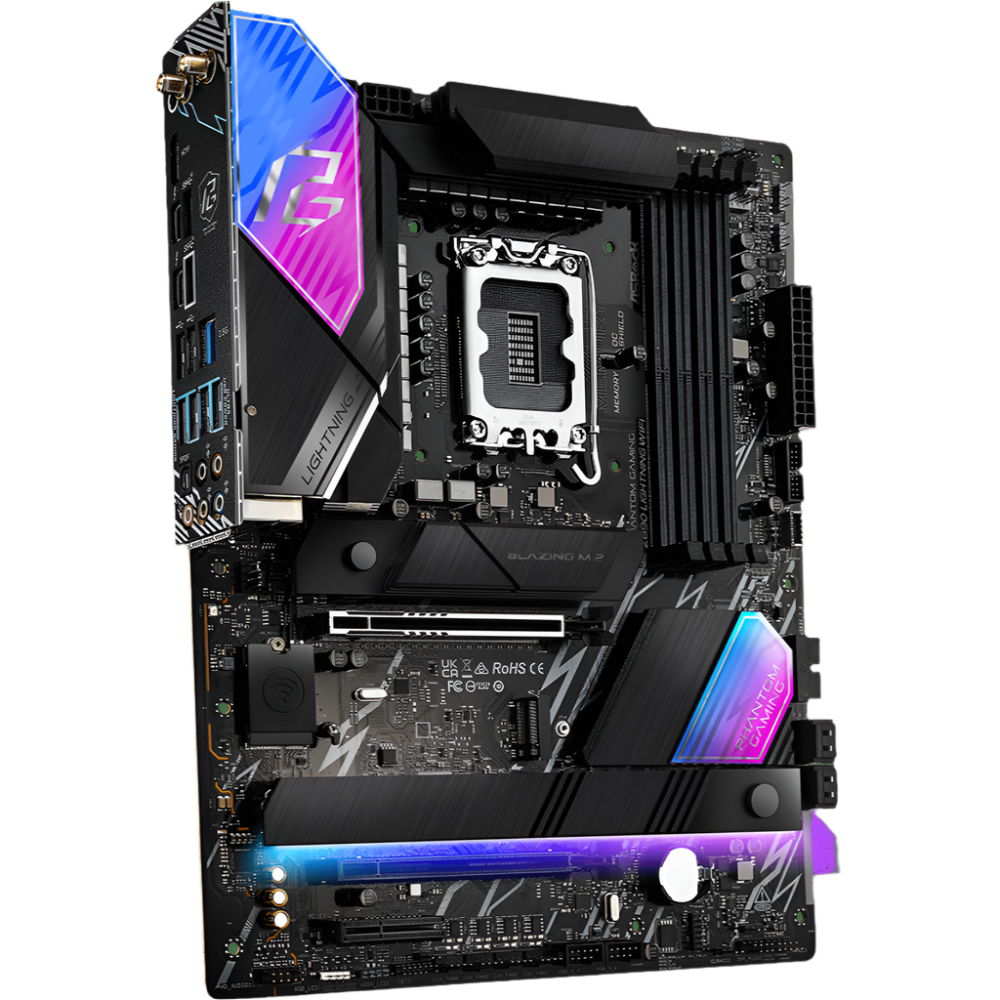

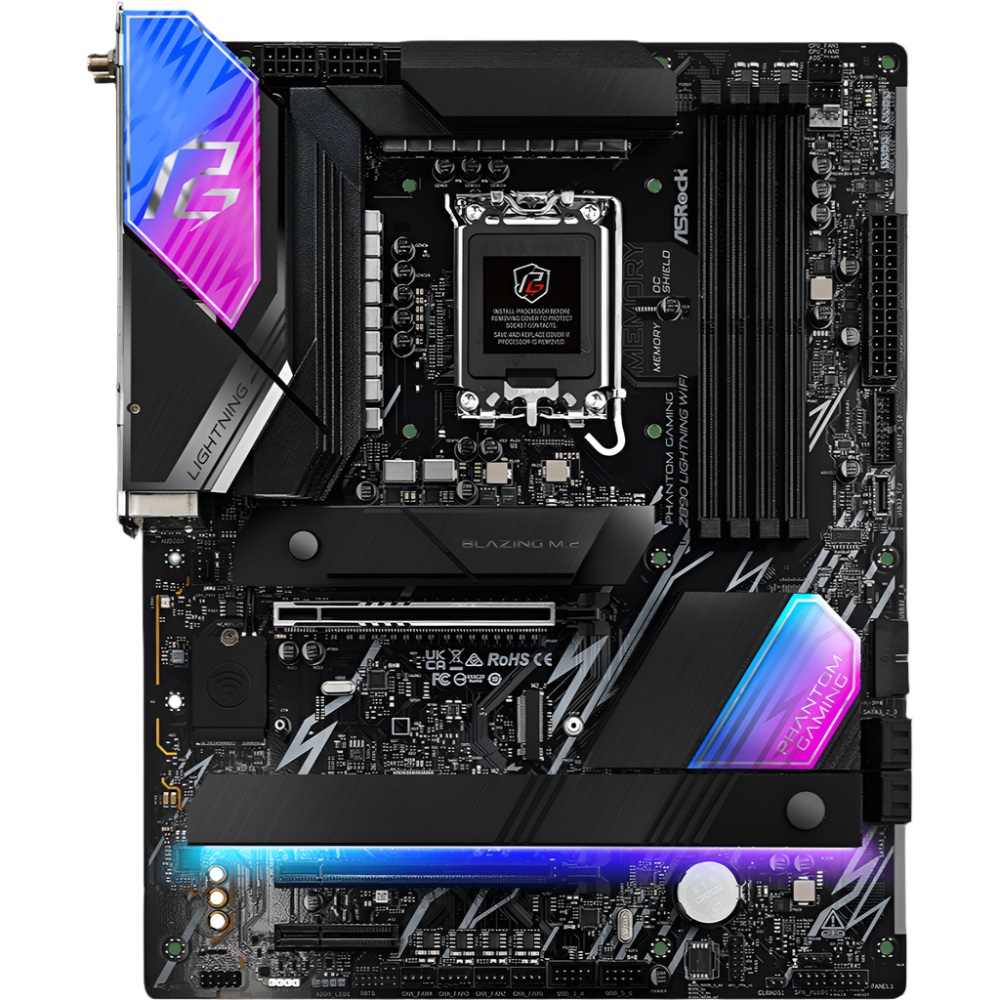

ASROCK Z890 Lightning WIFI DDR5 Intel Motherboard
MPN ASROCK-Z890-LIGHTNING-WIFI · Brand ASROCK · ATX
The ASRock Z890 Lightning WiFi is an ATX motherboard for Intel Core Ultra Series 2 (LGA1851) processors, featuring DDR5 support up to 9466MHz, PCIe Gen5 storage, Wi-Fi 7, dual Thunderbolt 4 ports, and an 18+1+1+1+1 phase VRM
Inclusive of GST · GST invoice available
Overview
The ASRock Z890 Lightning WiFi is an ATX form-factor motherboard built around the Intel Z890 chipset, designed to support Intel Core Ultra Series 2 processors in the LGA1851 socket. It delivers a platform that covers high-performance gaming, content creation, and productivity workloads through a combination of modern connectivity standards and robust power delivery. Power delivery centres on an 18+1+1+1+1 power phase design using Smart Power Stage (SPS) technology rated at 80A per phase for VCore, GT, and SA rails. ASRock's Hi-Density Power Connectors — a 24-pin ATX and dual 8-pin 12V connectors — are engineered to handle the higher current demands of CPU overclocking while reducing thermal stress. Complementing this, the board uses 2oz copper inner PCB layers for improved signal integrity and thermal management, alongside 20K-rated Black capacitors with 1000µF capacitance for stable, low-ripple power output. Memory support spans four DDR5 DIMM slots in dual-channel configuration, accommodating non-ECC unbuffered memory up to 9466MHz (OC) and CUDIMM modules, with a maximum installed capacity of 256GB. Intel XMP 3.0 profiles are supported, and ASRock's Memory OC Shield provides EMI reduction to stabilise high-frequency overclocking sessions. Storage is handled by four M.2 sockets: one PCIe Gen5 x4 Blazing M.2 delivering up to 128GB/s, and three PCIe Gen4 x4 Hyper M.2 sockets offering up to 64GB/s each. Four SATA3 6Gb/s ports round out the storage options, with RAID 0/1/5/10 support across both SATA and NVMe devices. Connectivity includes a Killer E3100G 2.5 Gigabit LAN controller and an 802.11be (Wi-Fi 7) 2×2 module covering 2.4GHz, 5GHz, and 6GHz bands with up to 320MHz channel bandwidth and MU-MIMO, paired with Bluetooth 5.4. The rear panel carries two Thunderbolt 4 Type-C ports (40Gb/s), two USB 3.2 Gen2 Type-A ports (10Gb/s), four USB 3.2 Gen1 ports, two USB 2.0 ports, one HDMI 2.1 output (4K/120Hz), and an optical S/PDIF output. A front-panel USB 3.2 Gen2×2 Type-C header (20Gb/s) is also included. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel HD audio with impedance sensing, individual PCB layers per channel, 15µ gold audio connectors, and Nahimic Audio software support. RGB and ARGB lighting headers (1× RGB, 3× ARGB) are managed through ASRock Polychrome SYNC software. Verified Specifications: - Form Factor: ATX (12.0 in × 9.6 in / 30.5 cm × 24.4 cm) - Chipset: Intel Z890 - CPU Socket: LGA1851 (Intel Core Ultra Series 2) - Memory: 4× DDR5 DIMM, dual-channel, max 256GB, up to 9466MHz (OC), XMP 3.0, CUDIMM - PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x16 (chipset, x4 mode), 1× PCIe 4.0 x4 (chipset) - M.2: 1× PCIe Gen5 x4 (128GB/s), 3× PCIe Gen4 x4 (64GB/s each) - SATA: 4× SATA3 6Gb/s - LAN: Killer E3100G 2.5GbE - Wireless: Wi-Fi 7 (802.11be, 2×2), Bluetooth 5.4 - USB Rear: 2× Thunderbolt 4 Type-C, 2× USB 3.2 Gen2 Type-A, 4× USB 3.2 Gen1, 2× USB 2.0 - Display: HDMI 2.1 (4K/120Hz), 2× Thunderbolt 4 (8K/60Hz or 5K/120Hz) - Audio: Realtek ALC1220, 7.1 CH HD - VRM: 18+1+1+1+1 phases, 80A SPS - PCB: 2oz copper layers - BIOS: 256Mb AMI UEFI with Flashback butt
Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – Intel® Z890 |
| CPU Type | |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100G – Supports Killer LAN Software |
| USB | CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 8 x USB 3.2 Gen1 (4 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)* – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Storage | CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| Connector | – 1 x Thermistor Cable Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

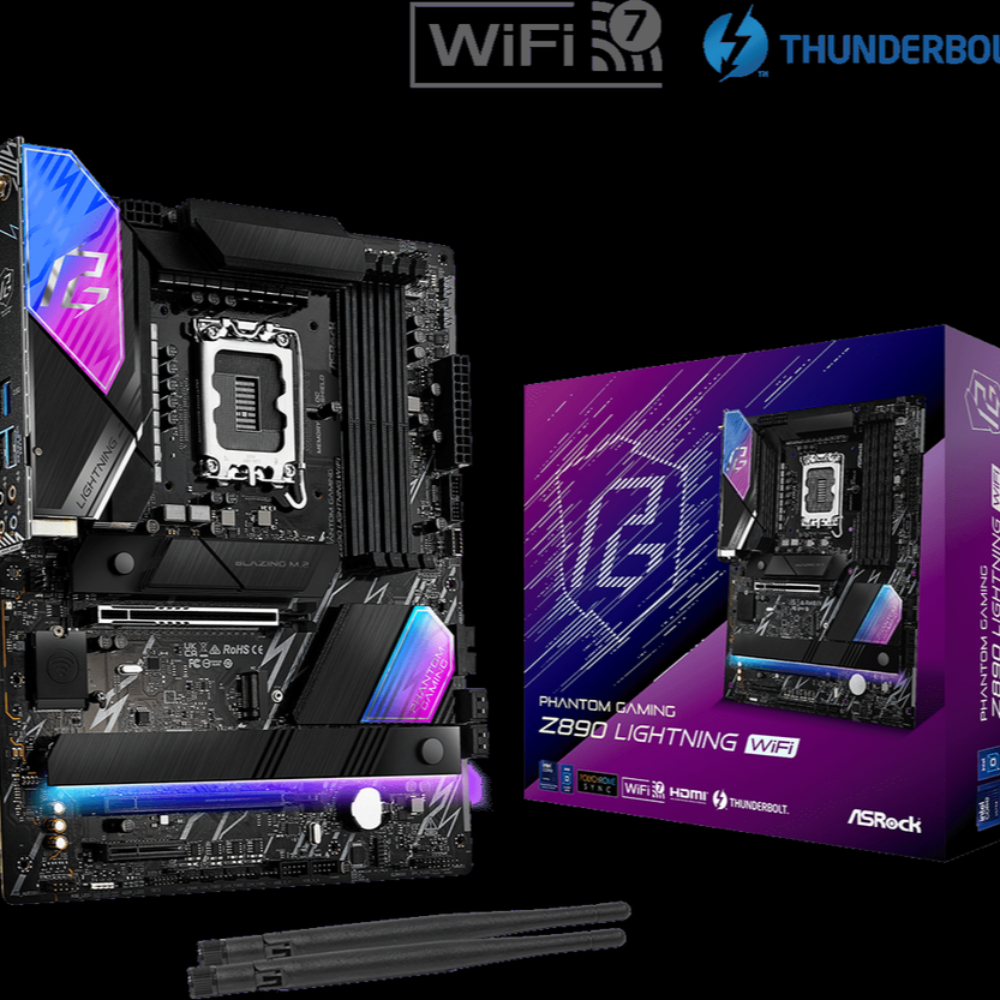

| Accessories | – 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x ARGB Splitter Cable- 1 x Thermistor Cable |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |

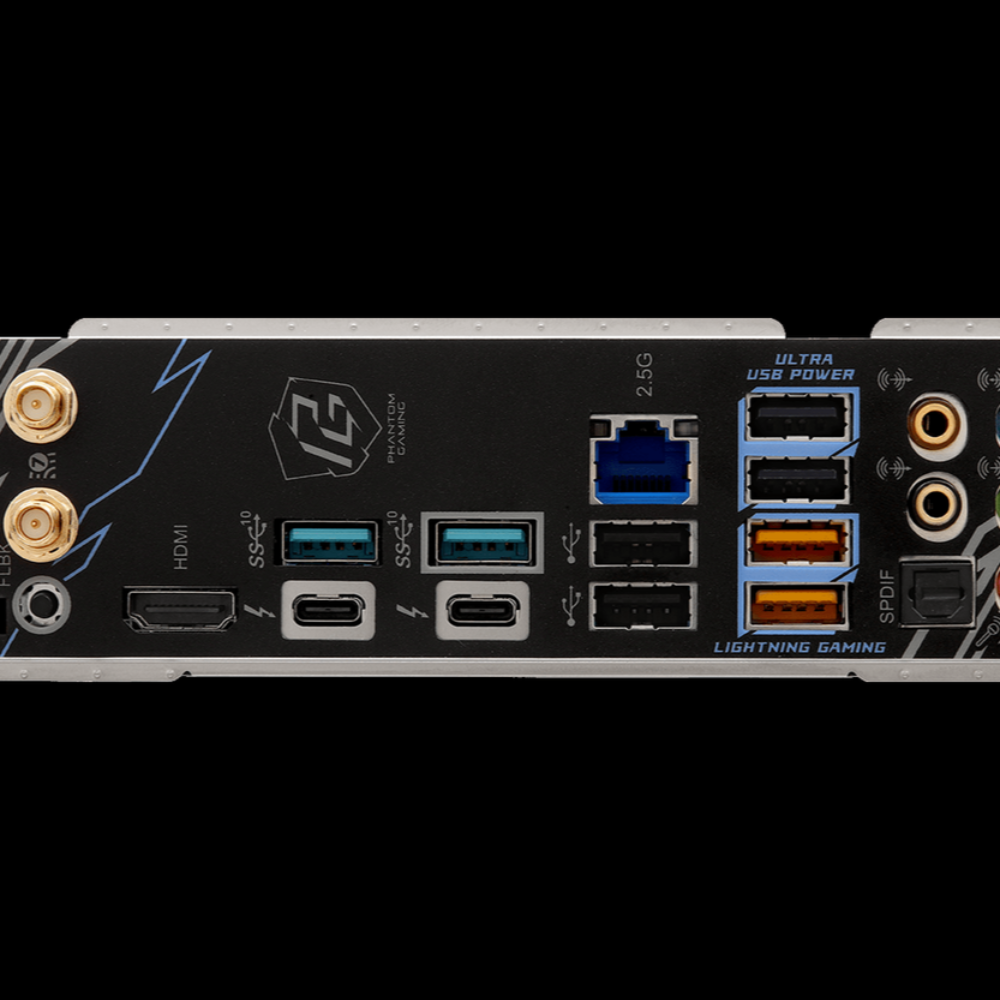

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** – 4 x USB 3.2 Gen1 Ports** – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming – Killer 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter |
| Software And Uefi | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
