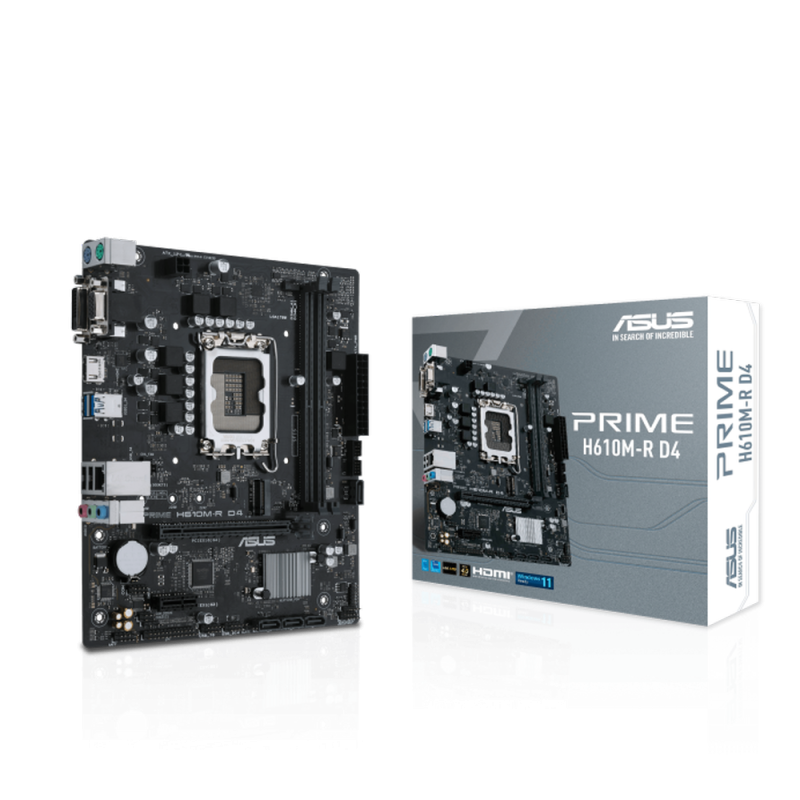

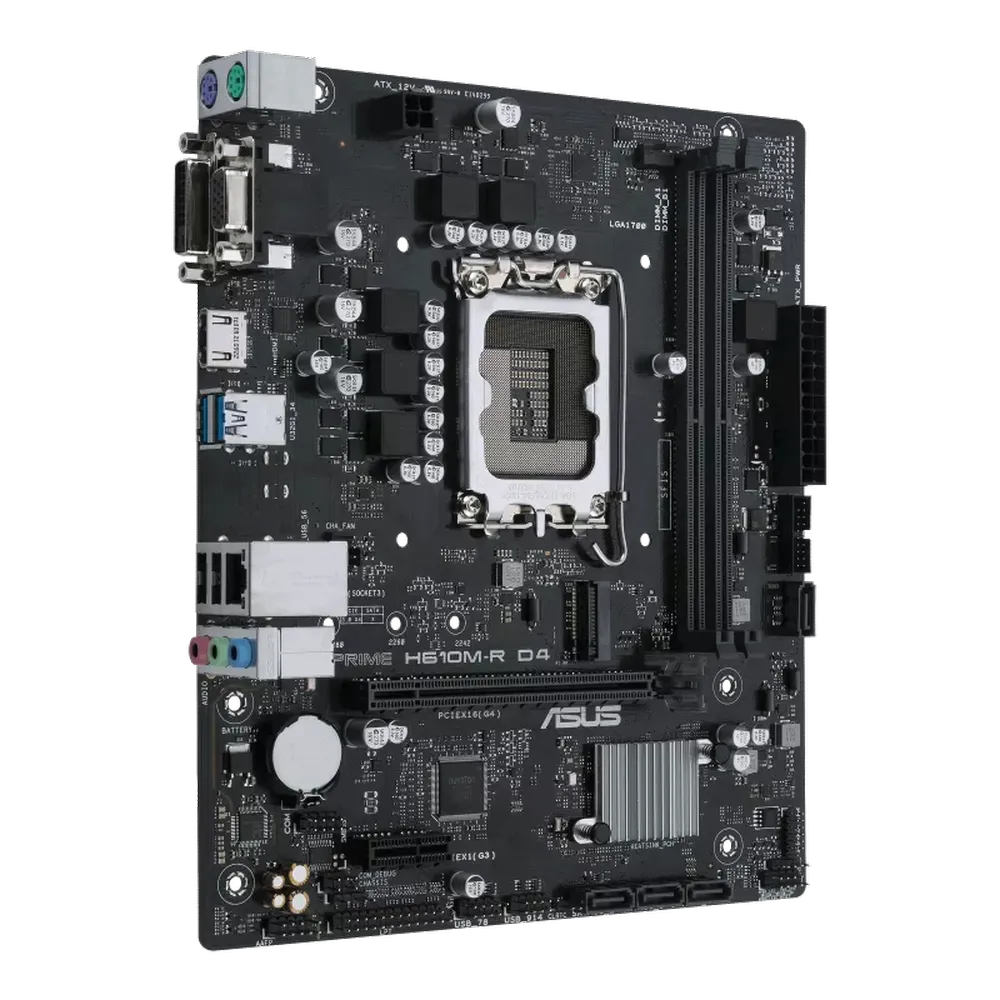

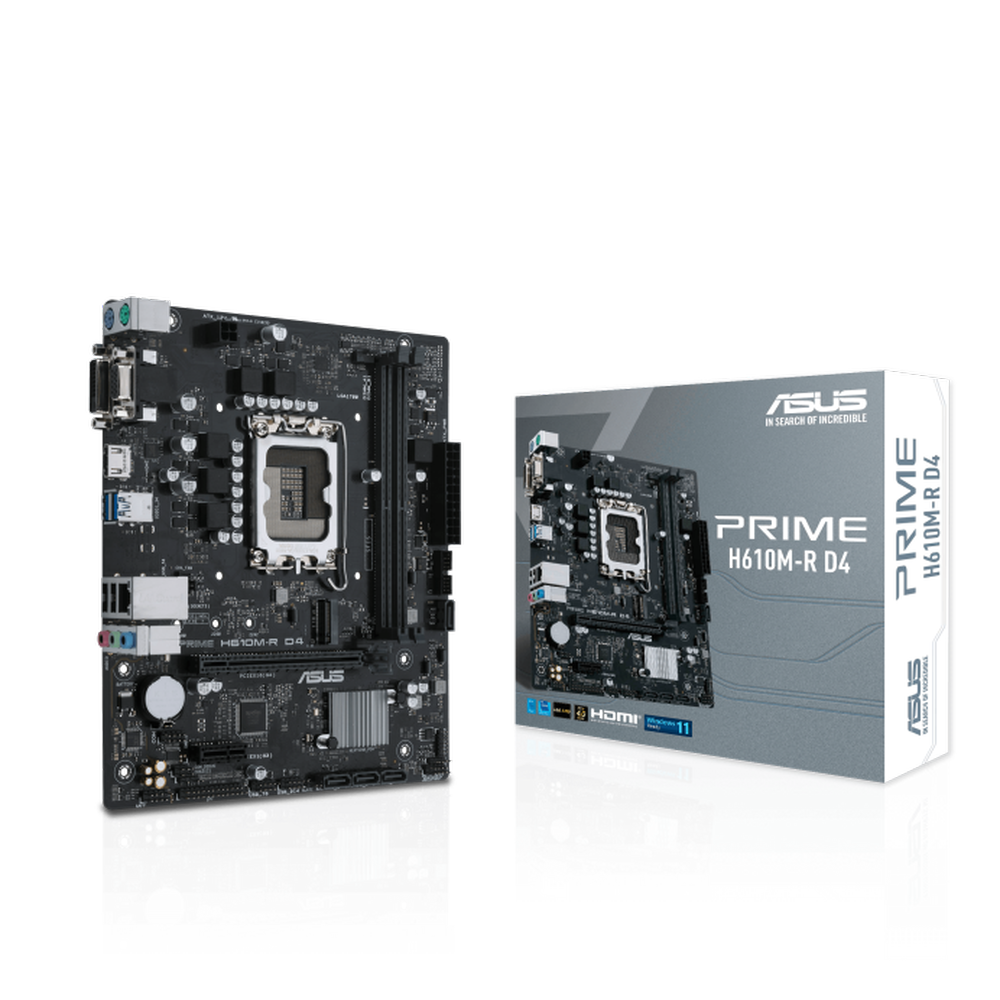

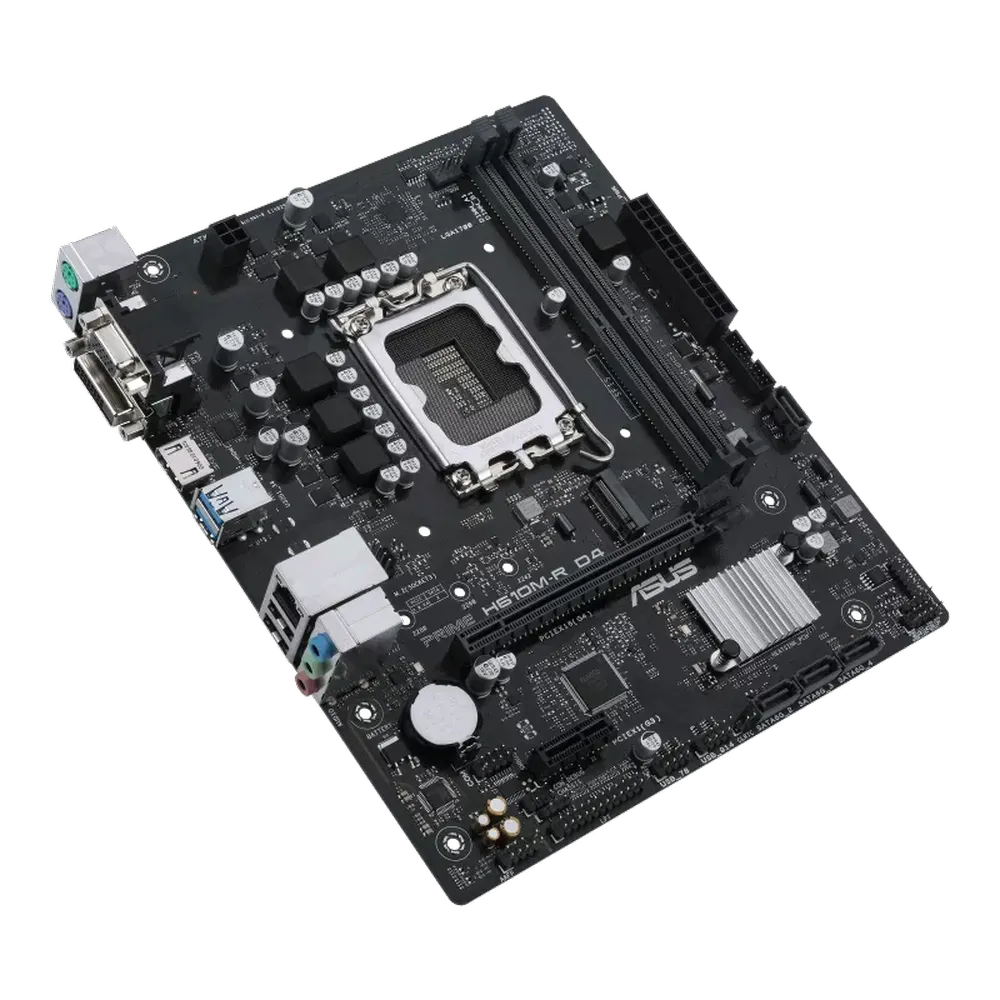

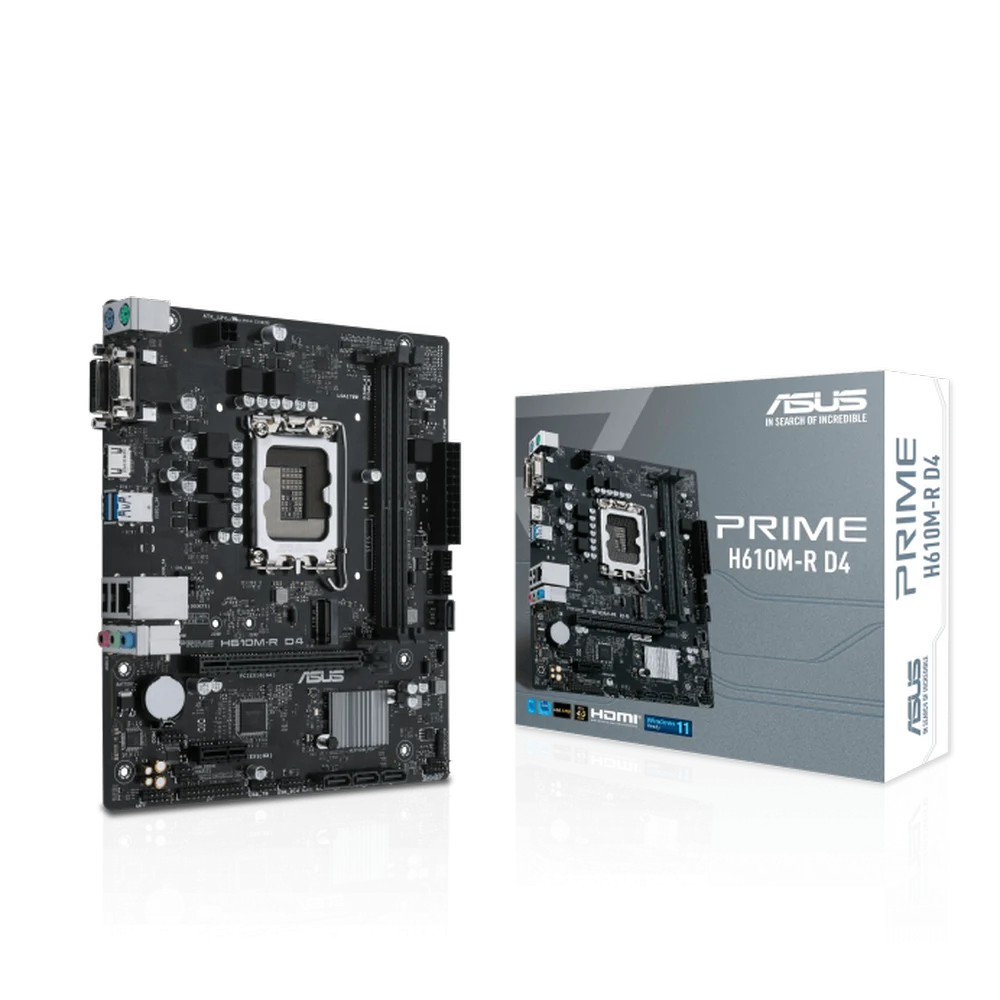

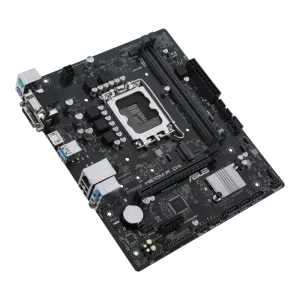

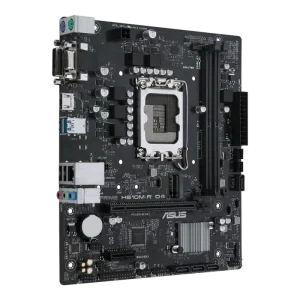

ASUS PRIME H610M-R D4 DDR4 Intel Motherboard
MPN ASUS-PRIME-H610M-R-D4-DDR4 · Brand ASUS · mATX
The ASUS PRIME H610M-R D4 is a Micro ATX motherboard with Intel H610 chipset, LGA1700 socket, dual-channel DDR4 up to 64 GB, PCIe 4.0, M.2 storage, Intel 2.5Gb LAN, and ASUS CSM 36-month lifecycle support — ideal for corporate and budget desktop builds
Inclusive of GST · GST invoice available
Overview
The ASUS PRIME H610M-R D4 is a Micro ATX motherboard built on the Intel H610 chipset and designed to pair with 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. It is part of ASUS's Corporate Stable Model (CSM) programme, which provides up to 36 months of product lifecycle support and a 6-month end-of-life notice — making it a sound choice for small businesses, offices, and system integrators that require supply chain predictability. Memory support comes via two DDR4 DIMM slots operating in dual-channel mode at speeds ranging from 2133 MT/s up to 3200 MT/s, with a maximum capacity of 64 GB. For storage, the board provides one M.2 Key-M slot (2242/2260/2280 form factors, PCIe 3.0 x4 mode) alongside four SATA 6 Gb/s ports, giving builders ample room for an NVMe boot drive and traditional hard disks or SSDs. Expansion is handled by a PCIe 4.0 x16 slot for a discrete graphics card and a PCIe 3.0 x1 slot for additional peripherals. Display output on the rear panel includes D-Sub (VGA), DVI-D, and HDMI ports for use with processors that feature integrated graphics. Networking is handled by an onboard Intel 2.5 Gb Ethernet controller, and rear-panel USB connectivity consists of two USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports, complemented by PS/2 keyboard and mouse ports for legacy peripherals. board audio delivers 7.1-channel HD sound through three audio jacks, with audio shielding to reduce noise. For enterprise-oriented deployments, each unit ships with ASUS Control Center Express — IT management software supporting remote monitoring, automated BIOS/software update scheduling, and endpoint configuration management. ASUS 5X Protection III hardware safeguards are also incorporated for component-level reliability. Verified Specifications: - Chipset: Intel H610 - Socket: LGA1700 (12th & 13th Gen Intel Core / Pentium Gold / Celeron) - Form Factor: Micro ATX (226 mm × 193 mm) - Memory: 2 × DDR4 DIMM, Dual Channel, up to 64 GB, 2133–3200 MT/s - Storage: 1 × M.2 (Key-M, 2242/2260/2280, PCIe 3.0 x4) + 4 × SATA 6 Gb/s - PCIe: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 - LAN: Intel 2.5 Gb Ethernet - USB (rear): 2 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A - Video Output: D-Sub, DVI-D, HDMI - Audio: 7.1-ch HD, 3 audio jacks - Power: 24-pin ATX + 4-pin ATX 12V

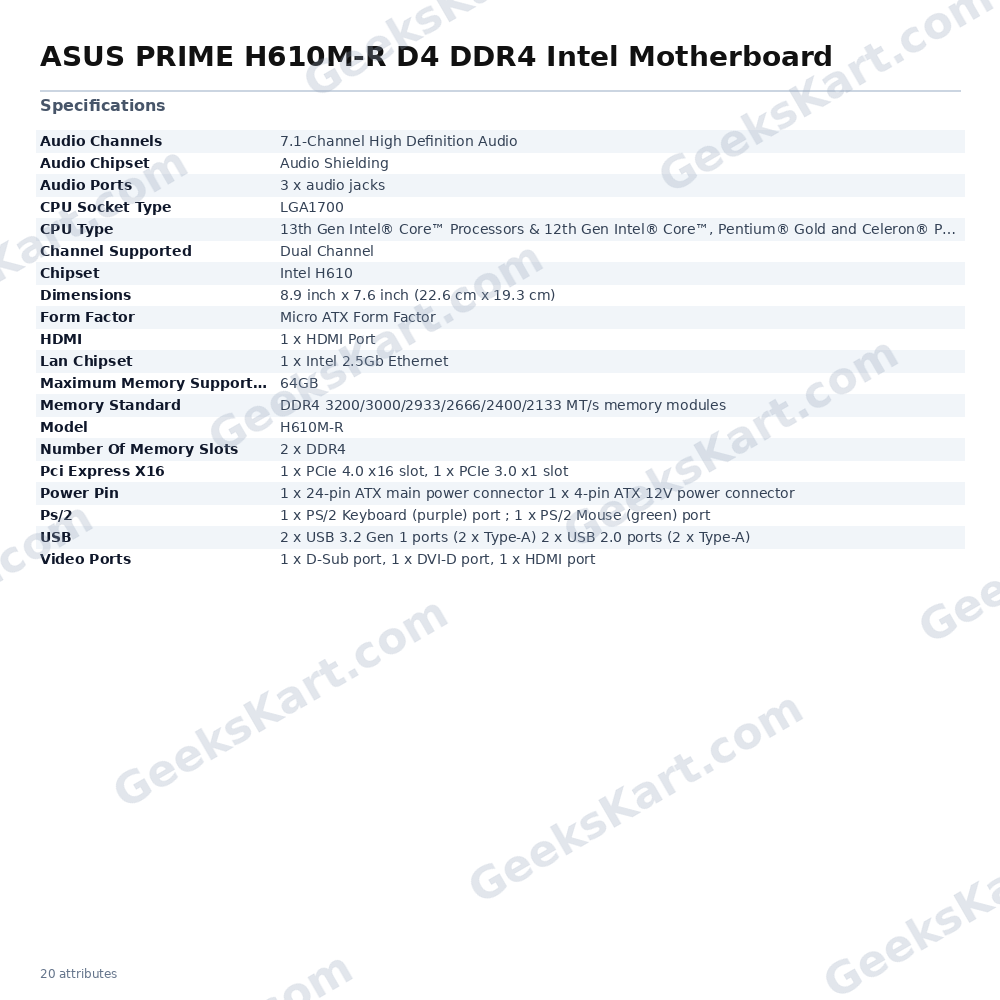

Datasheet
| Form Factor | mATX |
|---|---|
| Chipset | Intel H610 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| USB | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| HDMI | 1 x HDMI Port |
| Ps/2 | 1 x PS/2 Keyboard (purple) port ; 1 x PS/2 Mouse (green) port |
| Model | H610M-R |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm) |
| Audio Ports | 3 x audio jacks |
| Lan Chipset | 1 x Intel 2.5Gb Ethernet |
| Video Ports | 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port |
| Audio Chipset | Audio Shielding |
| Audio Channels | 7.1-Channel High Definition Audio |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| Pci Express X16 | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Channel Supported | Dual Channel |
| Number Of Memory Slots | 2 x DDR4 |
| Maximum Memory Supported | 64GB |
