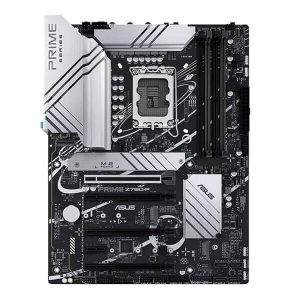

ASUS Prime Z790-P CSM DDR5 Intel Motherboard
MPN ASUS-PRIME-Z790-P-CSM-DDR5 · Brand ASUS · ATX
The ASUS Prime Z790-P CSM DDR5 ATX motherboard supports 12th and 13th Gen Intel LGA1700 CPUs with PCIe 5.0, 3x PCIe 4.0 M.2 slots, DDR5 up to 128 GB, Realtek 2.5 Gb Ethernet, and a 14+1 DrMOS power stage for reliable performance
Inclusive of GST · GST invoice available
Overview

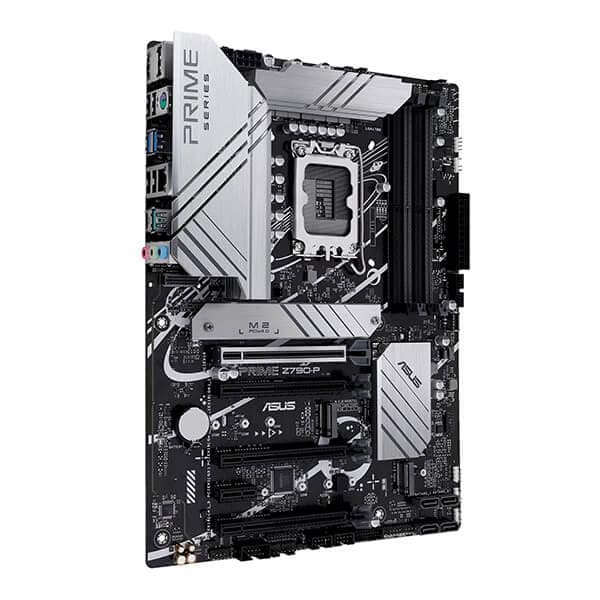

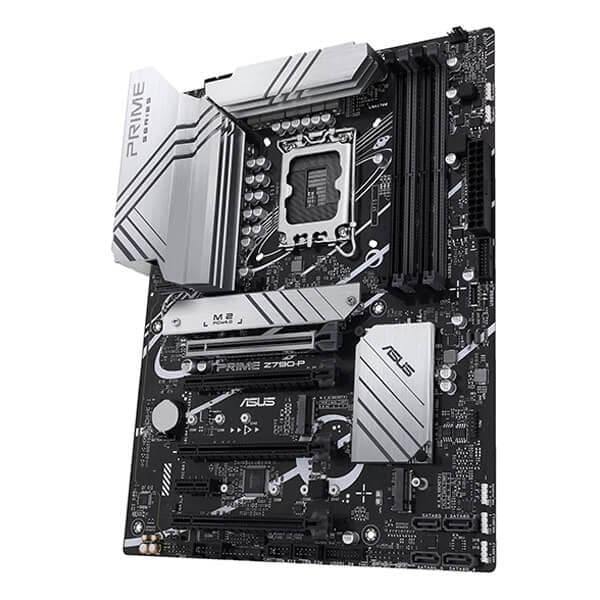

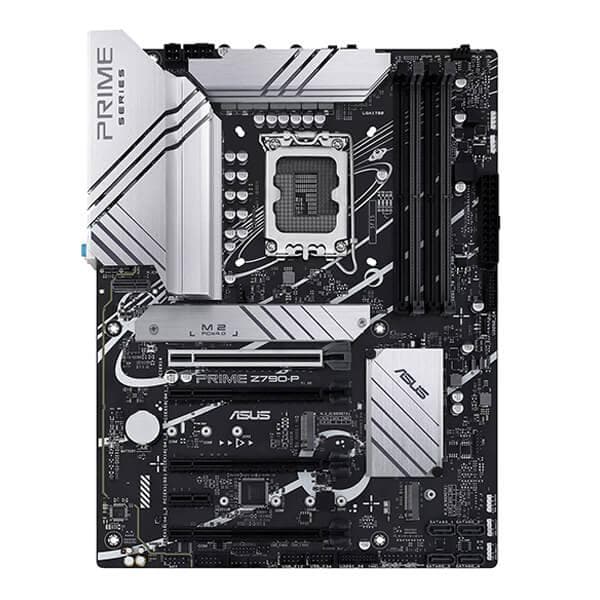

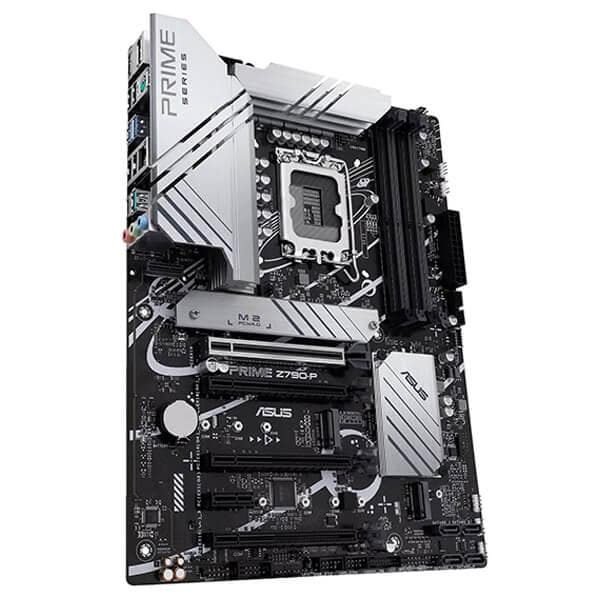

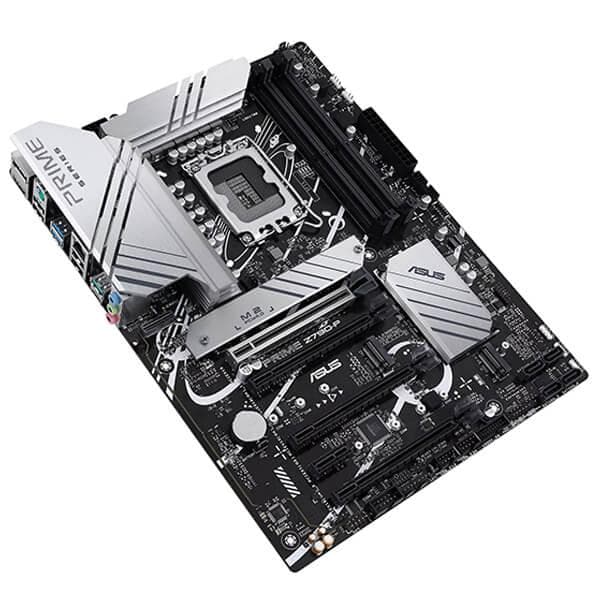

The ASUS Prime Z790-P CSM is an ATX form factor motherboard built on the Intel Z790 chipset, designed for Intel LGA1700 socket processors including 12th Gen (Alder Lake) and 13th Gen (Raptor Lake) Core, Pentium Gold, and Celeron families. It measures 12 x 9.2 inches (30.5 x 23.4 cm) and is a capable platform for system builders and IT-managed environments alike, thanks to its ASUS Control Center Express (CSM) software for real-time monitoring and fleet management. Power delivery is handled by a 14+1 DrMOS power stage design rated at 50 amperes per stage, supported by a 6-layer PCB, ProCool connectors, alloy chokes, and durable capacitors. Large VRM heatsinks with thermal pads help dissipate heat from the power delivery components, while a flexible M.2 heatsink is available for either the M.2_1 or M.2_3 slot to prevent thermal throttling during sustained storage transfers. Memory support spans four DIMM slots accommodating up to 128 GB of DDR5 non-ECC unbuffered memory in dual-channel configuration. Supported speeds range from DDR5-4800 up to DDR5-7200+, with compatibility for Intel XMP profiles and ASUS AEMP II (Enhanced Memory Profile II) for PMIC-restricted modules, as well as OptiMem II for signal integrity optimization. Storage flexibility comes via three PCIe 4.0 x4 M.2 slots (Key M) and four SATA 6 Gb/s ports. The primary PCIe 5.0 x16 slot delivers the highest bandwidth for discrete graphics cards, complemented by three additional PCIe 4.0 x16 slots (operating at x4 mode) and one PCIe 3.0 x1 slot from the chipset. Connectivity at the rear panel includes a USB 3.2 Gen 2x2 Type-C port (up to 20 Gbps), one USB 3.2 Gen 2 Type-A, two USB 3.2 Gen 1 Type-A, four USB 2.0 Type-A ports, DisplayPort 1.4 (4K@60Hz), HDMI 2.1 (4K@60Hz), Realtek 2.5 Gb Ethernet, three audio jacks, and a PS/2 combo port. A Thunderbolt (USB4) header onboard supports up to 40 Gbps bi-directional speeds with an optional ASUS add-on card. Wi-Fi capability is available via a vertical M.2 Key-E slot on the rear panel (module sold separately). Audio is powered by a Realtek HD audio CODEC with 7.1 surround sound support (requires front-panel HD audio chassis), audio shielding, premium capacitors, and dedicated PCB layers, supporting up to 24-bit/192 kHz playback. Fan management is handled through Fan Xpert 4 with AI Cooling II across five fan/pump headers, configurable via UEFI BIOS or software. The BIOS is a 192 Mb Flash ROM (UEFI AMI) with EZ and Advanced modes, CrashFree BIOS 3, and EZ Flash 3 for easy updates. RGB and addressable lighting are managed via Aura Sync with two Aura RGB headers and three Addressable Gen 2 headers onboard. Verified Specifications: - Socket: Intel LGA1700 | Chipset: Intel Z790 - Form Factor: ATX, 12 x 9.2 in (30.5 x 23.4 cm) - Memory: 4x DIMM, DDR5 up to 128 GB, DDR5-4800 to 7200+, Dual Channel, XMP / AEMP II - Storage: 3x M.2 PCIe 4.0 x4 (Key M) + 4x SATA 6 Gb/s - Expansion: 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x1 - Ethernet: Realtek 2.5 Gb - Rear USB: 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A - Display Output: 1x DisplayPort 1.4 (4K@60Hz), 1x HDMI 2.1 (4K@60Hz) - Audio: Realtek 7.1 HD, 24-bit/192 kHz - Power: 14+1 DrMOS, 6-layer PCB - OS Support: Windows 11, Windows 10 64-bit - Warranty: 3 Years

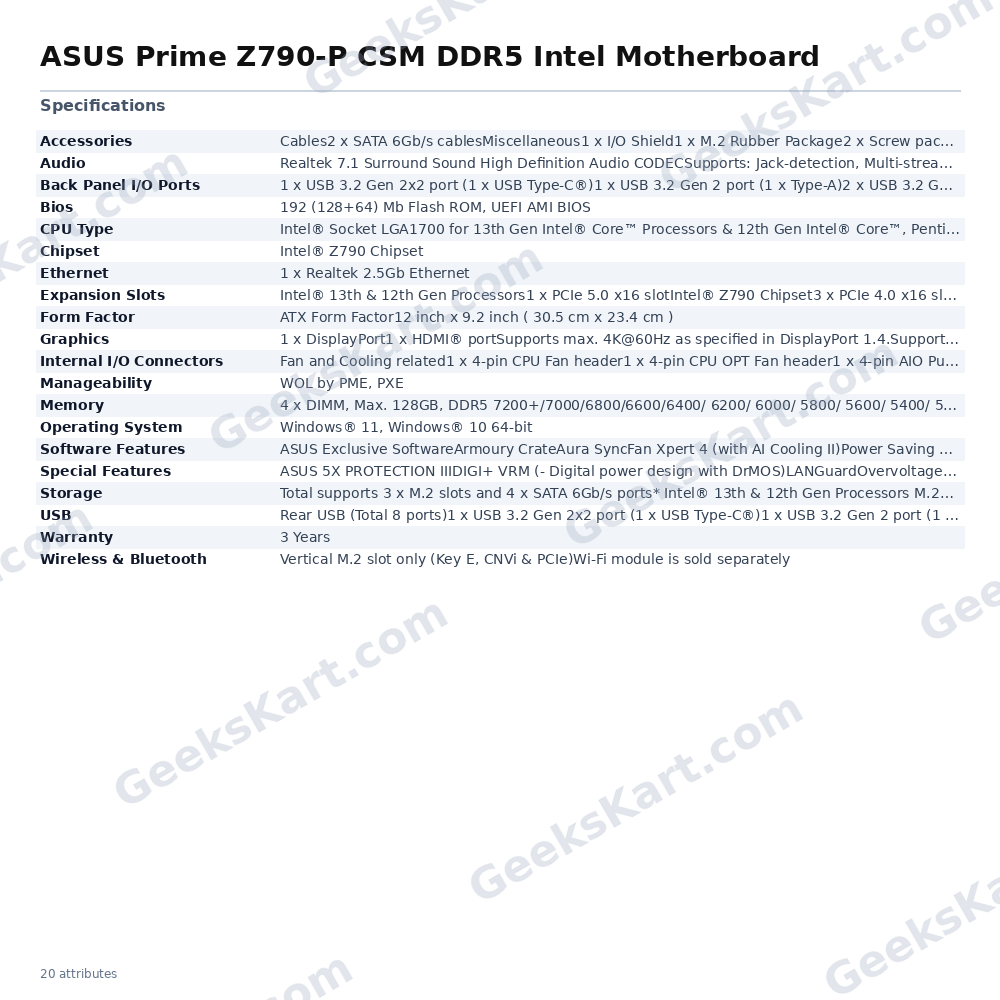

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Chipset |
| CPU Type | Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| USB | Rear USB (Total 8 ports)1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsUSB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth |
| Bios | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODECSupports: Jack-detection, Multi-streaming, Front Panel Jack-retaskingSupports up to 24-Bit/192 kHz playbackAudio FeaturesAudio ShieldingPremium audio capacitorsDedicated audio PCB layersA chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7200+/7000/6800/6600/6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Graphics | 1 x DisplayPort1 x HDMI® portSupports max. 4K@60Hz as specified in DisplayPort 1.4.Supports 4K@60Hz as specified in HDMI 2.1 |
| Accessories | Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package2 x Screw packages for M.2 SSDDocumentation1 x ACC Express Activation Key Card1 x User guide |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® 13th & 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® Z790 Chipset3 x PCIe 4.0 x16 slots (support x4 mode)1 x PCIe 3.0 x1 slot |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Special Features | ASUS 5X PROTECTION IIIDIGI+ VRM (- Digital power design with DrMOS)LANGuardOvervoltage ProtectionSafeSlot Core+Stainless-Steel Back I/OASUS Q-DesignQ-DIMMQ-SlotQ-LED Core ASUS Thermal SolutionFlexible M.2 heatsinkVRM heatsink designASUS EZ DIYProCool Aura SyncAura RGB headersAddressable Gen 2 headers |
| Software Features | ASUS Exclusive SoftwareArmoury CrateAura SyncFan Xpert 4 (with AI Cooling II)Power Saving AI Suite 3TurboV EVOPC CleanerDIGI+ VRMASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIYASUS CrashFree BIOS 3ASUS EZ Flash 3ASUS UEFI BIOS EZ Mode |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, CNVi & PCIe)Wi-Fi module is sold separately |
| Internal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers2 x Aura RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-5pin System Panel header1 x Thunderbolt™ (USB4®) Header |
