ASUS ROG Maximus XII Formula DDR4 Intel Motherboard
MPN ASUS-MAXIMUS-XII-FORMULA · Brand ASUS · 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )ATX Form Factor
The ASUS ROG Maximus XII Formula is an ATX Z490 motherboard for Intel LGA 1200 CPUs featuring 16 power stages, CrossChill EK III liquid-cooling support, Wi-Fi 6, dual Ethernet (10 Gb + 2.5 Gb) and up to 128 GB DDR4
Inclusive of GST · GST invoice available
Overview

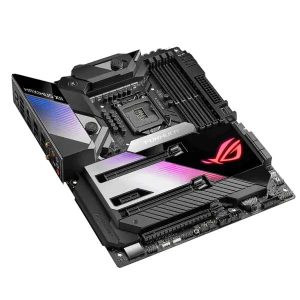

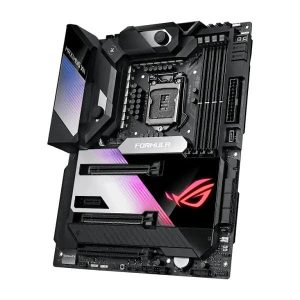

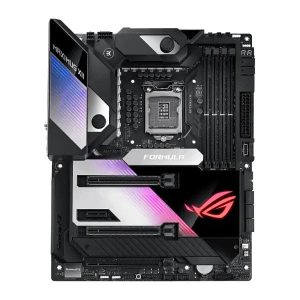

The ASUS ROG Maximus XII Formula is a full-size ATX motherboard built on the Intel Z490 chipset and designed for 10th-generation Intel Core, Pentium Gold and Celeron processors using the LGA 1200 socket. Its dimensions of 12 x 9.6 inches (30.5 x 24.4 cm) conform to the standard ATX form factor, making it compatible with most mid-tower and full-tower chassis. At the heart of its power delivery system are 16 teamed power stages paired with ProCool II reinforced power connectors, MicroFine Alloy chokes and 10,000-hour-rated capacitors. The board ships ready for custom liquid cooling loops: the CrossChill EK III VRM block — co-developed with EK Water Blocks — sits on a heatpipe connected to an extended heatsink, giving the voltage regulation circuitry the thermal headroom demanded by ten-core Comet Lake CPUs. Three M.2 slots each carry aluminium heatsinks, and dedicated water-flow headers allow integrators to monitor loop performance. Connectivity is a standout feature. The rear I/O carries both a Marvell AQtion AQC107 10Gb Ethernet port and an Intel I225-V 2.5Gb Ethernet port, backed by ASUS LANGuard surge protection. Wireless is handled by Intel Wi-Fi 6 (AX201), supporting 802.11ax with 2x2 MIMO, OFDMA and 1024-QAM across 2.4 GHz and 5 GHz bands at up to 2.4 Gbps theoretical peak. Bluetooth 5.1 is included. The four DDR4 DIMM slots support up to 128 GB of non-ECC unbuffered memory, with XMP profiles and overclocked speeds ranging up to DDR4-4800 (O.C.) via OptiMem III signal-routing technology. Storage consists of three PCIe 3.0 x4 M.2 sockets plus six SATA 6 Gb/s ports; Intel Rapid Storage Technology enables RAID 0, 1, 5 and 10, and the board is Intel Optane Memory Ready. Expansion includes two PCIe 3.0 x16 slots (x16 or dual x8 from the CPU) and supports NVIDIA 2-Way SLI and AMD 3-Way CrossFireX. Audio is delivered by the ROG SupremeFX S1220 codec providing 7.1-channel HD surround sound, 120 dB SNR stereo playback output, 113 dB SNR recording input, impedance sensing for headphone outputs and an optical S/PDIF output. The rear panel provides 10 USB ports (4× USB 3.2 Gen 2, 6× USB 3.2 Gen 1) with a further 9 available via internal headers. A 2-inch LiveDash OLED display, two Addressable Gen 2 RGB headers and two standard 4-pin RGB headers enable system-wide Aura Sync lighting control. The ROG Extreme OC Kit adds onboard Start, ReTry and FlexKey buttons for open-bench tuning sessions. Verified Specifications: - Socket: LGA 1200 (Intel 10th Gen Core / Pentium Gold / Celeron) - Chipset: Intel Z490 - Memory: 4× DIMM, DDR4, max 128 GB, up to DDR4-4800 (O.C.), Dual Channel, XMP - Storage: 3× M.2 PCIe 3.0 x4 + 6× SATA 6 Gb/s; RAID 0/1/5/10 - LAN: 10 Gb (Marvell AQC107) + 2.5 Gb (Intel I225-V) - Wireless: Intel Wi-Fi 6 AX201, Bluetooth 5.1 - USB (rear): 4× USB 3.2 Gen 2, 6× USB 3.2 Gen 1 - Audio: SupremeFX S1220, 7.1 HD, 120 dB SNR playback - Form Factor: ATX, 30.5 × 24.4 cm - BIOS: 256 Mb Flash ROM, UEFI AMI - Warranty: 3 Years

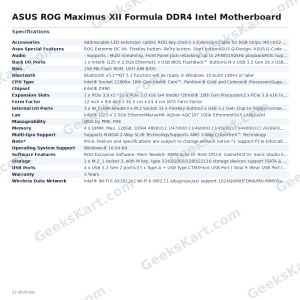

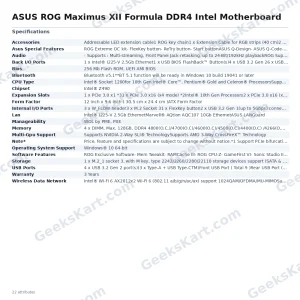

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® Z490 |
| CPU Type | |
| Lan | Intel® I225-V 2.5Gb EthernetMarvell® AQtion AQC107 10Gb EthernetASUS LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | – Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220- Premium Japanese audio capacitors- Audio Cover- SupremeFX Shielding™ Technology- Impedance sense for front and rear headphone outputs- High quality120dBSNR stereo playback outputand113dBSNR recording input- Supports up to 32-Bit/192kHz playback- Gold-plated jacks- Optical S/PDIF out port(s) at back panelAudio Feature |
| Note* | Price, feature and specifications are subject to change without notice.*1 Support PCIe bifurcation for RAID on CPU function.*2 The PCIEX16_3 shares bandwidth wih M.2_3. When M.2_3 runs x4 mode, PCIEX16_3 will be disabled. When M.2_3 and PCIEX16_3 are both occupied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode.*3 The PCIEX1 shares bandwidth with M.2_1. When M.2_1 runs x4 mode, PCIEX1 will be disabled.*4 M.2_1 shares bandwidth with PCIEX1. When PCIEX1 is occuppied, M.2_1 runs x2 or SATA mode (when M.2_1 runs SATA mode, SATA6G_2 will be disabled).*5 M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default.*6 M.2_3 shares bandwidth with PCIEX16_3. When PCIEX16_3 runs x4 mode, M.2_3 will be disabled. When M.2_3 and PCIEX16_3 are both occoppied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C) /4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.) 3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *OptiMem III* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists).Supports Intel® Extreme Memory Profile (XMP)Dual Channel Memory Architecture |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*41 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*51 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*6Total supports 3 x M.2 slots and 6 x SATA 6Gb/s portsIntel® Z490 Chipset :Intel® Rapid Storage Technology supportsSupport Raid 0, 1, 5, 10Intel® Optane™ Memory Ready6 x SATA 6Gb/s port(s) |
| Bluetooth | Bluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later |
| USB Ports | 4 x USB 3.2 Gen 2 port(s)(3 x Type-A + USB Type-CTM)Front USB Port ( Total 9 )Rear USB Port ( Total 10 )6 x USB 3.2 Gen 1 port(s)(6 x Type-A)1 x USB 3.2 Gen 2 front panel connector port(s)4 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) |
| Accessories | Addressable LED extension cable1 ROG key chain1 x Extension Cable for RGB strips (40 cm)2 x M.2 Screw Package1 x ROG logo plate sticker4 x SATA 6Gb/s cable(s)1 x ROG big sticker1 x Q-Connector1 x Wi-Fi Antenna(s)2 x ROG weave SATA 6G cable1 x ROG Thank you cardUser´s manual1 x Supporting DVD |
| Manageability | WOL by PME, PXE |
| Back I/O Ports | 1 x Intel® I225-V 2.5Gb Ethernet1 x USB BIOS FlashBack™ Button(s)4 x USB 3.2 Gen 26 x USB 3.2 Gen 11 x Aquantia AQC-107 10G LAN port1 x Optical S/PDIF out1 x Clear CMOS button(s)1 x ASUS Wi-Fi Module5 x Gold-plated audio jacks1 x PS/2 keyboard/mouse combo port(s) |
| Expansion Slots | 1 x PCIe 3.0 x1 *31 x PCIe 3.0 x16 (x4 mode) *2Intel® 10th Gen Processors2 x PCIe 3.0 x16 (x16 or dual x8) *1Intel® Z490 Chipset |
| Multi-Gpu Support | Supports NVIDIA 2-Way SLI® TechnologySupports AMD 3-Way CrossFireX™ Technology |
| Software Features | ROG Exclusive Software- Mem Tweakit- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer- Sonic Radar III- DTS® Sound Unbound- Overwolf- BullGuard Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- 5-way Optimization with AI OverclockingTPUEPUDigi+ Power ControlFan Xpert 4Turbo app- EZ updateAI ChargerWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeFlexKey |
| Internal I/O Ports | 3 x W_FLOW header3 x M.2 Socket 31 x FlexKey button2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)1 x USB 3.2 Gen 2 front panel connector2 x W_OUT header1 x Thunderbolt header(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x H_AMP fan connector1 x W_PUMP+ connector1 x W_IN header1 x AAFP connector2 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)6 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Thermal sensor connector(s)1 x ReTry button1 x System panel connector1 x Speaker connector1 x Start button2 x Aura RGB Strip Headers |
| Asus Special Features | ROG Extreme OC kit- FlexKey button- ReTry button- Start buttonASUS Q-Design- ASUS Q-Code- ASUS Q-Connector- ASUS Q-DIMM- ASUS Q-LED (CPU , DRAM , VGA , Boot Device )- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsink- CrossChill EK III- Steel backplateASUS EZ DIY- BIOS Flashback™ button- Clear CMOS button- Procool II- Pre- mounted I/O shield- SafeSlotAURA Sync- ROG Aura sync Armor- Standard RGB header(s)- Addressable Gen 2 RGB header(s)LiveDash OLED 2" |
| Wireless Data Network | Intel® Wi-Fi 6 AX2012x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports CNVI interfaceSupports channel bandwidth: HT20/HT40/HT80/HT160Supports dual band frequency 2.4/5 GHz |
| Operating System Support | Windows® 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )ATX Form Factor |
