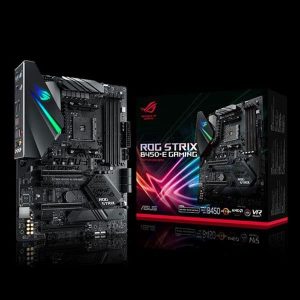

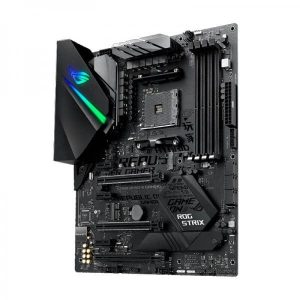

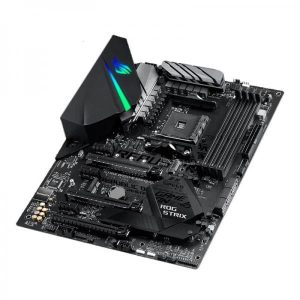

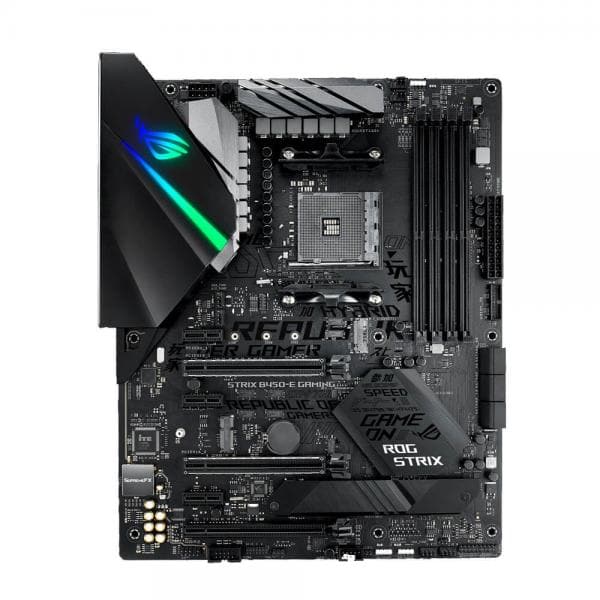

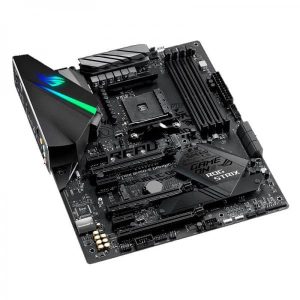

ASUS ROG Strix B450-E Gaming Wifi DDR4 AMD Motherboard
MPN ASUS-ROG-STRIX-B450-E-WIFI · Brand ASUS · ATX
The ASUS ROG Strix B450-E Gaming WiFi is an ATX motherboard for AMD AM4 Ryzen processors, featuring Intel Wireless-AC 9260 Wi-Fi, dual M.2 PCIe 3.0 x4 slots, 64 GB DDR4 support, ROG SupremeFX audio, and Aura Sync RGB lighting
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Strix B450-E Gaming WiFi is an ATX-form-factor motherboard built around the AMD B450 chipset and the AM4 socket, making it compatible with AMD Ryzen 2nd Generation, Ryzen 1st Generation, Ryzen with Radeon Vega Graphics, and Athlon with Radeon Vega Graphics processors. At 12 x 9.6 inches (30.5 x 24.4 cm), it fits standard ATX mid-tower and full-tower cases. Memory support is delivered through four DIMM slots accommodating up to 64 GB of dual-channel, non-ECC, unbuffered DDR4 RAM. Native speeds of 2133/2400/2666 MHz are supported, with overclocked profiles reaching up to 3533 MHz (OC). Storage options are equally flexible: two M.2 Socket 3 (M-key) slots support PCIe 3.0 x4 NVMe drives (one also accepting SATA), and six SATA 6 Gb/s connectors with RAID 0, 1, and 10 support via the B450 chipset round out the configuration. Networking is handled by an Intel I211-AT Gigabit Ethernet controller alongside ASUS LANGuard and GameFirst technology, and an Intel Wireless-AC 9260 module providing dual-band 2.4/5 GHz Wi-Fi with MU-MIMO. Bluetooth 5.0 is also integrated. Audio is managed by the ROG SupremeFX S1220A 8-channel HD codec featuring dual op-amplifiers, impedance sensing for front and rear headphone outputs, 120 dB SNR stereo playback, 113 dB SNR recording, SupremeFX shielding, and up to 32-bit/192 kHz playback. An optical S/PDIF output on the rear panel, Sonic Radar III, and Sonic Studio III complete the audio stack. Expansion is covered by two PCIe 3.0/2.0 x16 slots (x16 or x8/x4 mode with Ryzen 2nd/1st Gen), one B450 chipset PCIe 2.0 x16 slot (x4 mode), and three PCIe 2.0 x1 slots, with support for AMD 3-Way CrossFireX on compatible processors. The rear I/O includes two USB 3.1 Gen 2 Type-A (red), four USB 3.1 Gen 1, two USB 2.0, HDMI 2.0b (up to 4096×2160 @ 60 Hz), DisplayPort 1.2 (up to 4096×2160 @ 60 Hz), and a PS/2 combo port. ROG-exclusive features include Aura Sync RGB with one addressable RGB header and two Aura RGB strip headers, 5-Way Optimization with one-click tuning (TPU, EPU, DIGI+ VRM, Fan Xpert 4, Turbo App), a pre-mounted I/O shield, ASUS SafeSlot reinforced PCIe slot, Q-LED diagnostic indicators (CPU, DRAM, VGA, Boot), ASUS CrashFree BIOS 3, EZ Flash 3, and Armoury Crate software. Verifiable Specifications: - Socket: AMD AM4 - Chipset: AMD B450 - Form Factor: ATX, 12 x 9.6 in (30.5 x 24.4 cm) - Memory: 4x DIMM, max 64 GB, DDR4 2133–3533 MHz (OC), dual-channel - Storage: 2x M.2 PCIe 3.0 x4 + 6x SATA 6 Gb/s (RAID 0/1/10) - Wi-Fi: Intel Wireless-AC 9260, 2.4/5 GHz, MU-MIMO - Bluetooth: 5.0 - LAN: Intel I211-AT Gigabit - Audio: SupremeFX S1220A, 120 dB SNR playback - USB (rear): 2x USB 3.1 Gen 2, 4x USB 3.1 Gen 1, 2x USB 2.0 - Display out: HDMI 2.0b, DisplayPort 1.2 - Warranty: 3 Years

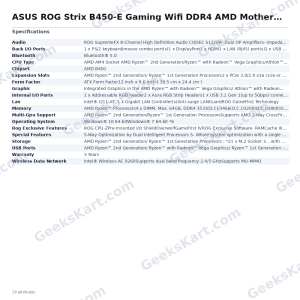

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B450 |
| CPU Type | AMD AM4 Socket AMD RyzenTM 2nd Generation/RyzenTM with RadeonTM Vega Graphics/AthlonTM with RadeonTM Vega Graphics/RyzenTM 1st Generation Processors |
| Lan | Intel® I211-AT, 1 x Gigabit LAN Controller(s)Anti-surge LANGuardROG GameFirst Technology |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *5Audio Feature :- Optical S/PDIF out port(s) at back panel- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| Memory | AMD Ryzen™ Processors4 x DIMM, Max. 64GB, DDR4 3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture |
| Graphic | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMulti-VGA output support : HDMI/DisplayPort ports- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *21 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*31 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*42 x SATA 6Gb/s port(s)AMD Ryzen™ with Radeon™ Vega Graphics Processor : *21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*32 x SATA 6Gb/s port(s)AMD Athlon™ with Radeon™ Vega Graphics Processors : *21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)AMD B450 chipset : 4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| Bluetooth | Bluetooth® 5.0 |
| USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue)AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C)AMD B450 chipset :2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)AMD B450 chipset :2 x USB 3.1 Gen 1 port(s)AMD B450 chipset :4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (red)Type-A,4 x USB 3.1 Gen 1 (blue)2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s) |
| Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)AMD Ryzen™ with Radeon™ Vega Graphics Processor1 x PCIe 3.0/2.0 x16 (x8 mode)AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode) *1AMD B450 chipset1 x PCIe 2.0 x16 (max at x4 mode)3 x PCIe 2.0 x1 |
| Operating System | Windows® 10 64-bitWindows® 7 64-bit *6 |
| Special Features | 5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.TPU- Auto Tuning, TurboV, GPU BoostFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlGamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports- DRAM Overcurrent Protection- Highly Durable Components- SafeSlotASUS EPU :- EPUAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Exclusive Features :- AI Suite 3- Ai Charger- Armoury CrateASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-Shield- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMDigi VRMTurbo APP- featuring system performance tuning for selected applications |
| Multi-Gpu Support | AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation ProcessorsSupports AMD 3-Way CrossFireX™ Technology |
| Internal I/O Ports | 1 x Addressable RGB header2 x Aura RGB Strip Headers1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s) |
| Wireless Data Network | Intel® Wireless-AC 9260Supports dual band frequency 2.4/5 GHzSupports MU-MIMO |
| Rog Exclusive Features | ROG CPU-ZPre-mounted I/O ShieldOverwolfGameFirst IVROG Exclusive Software- RAMCache III- GameFirst V |
