ASUS ROG Strix B760-A Gaming Wifi DDR4 Intel Motherboard

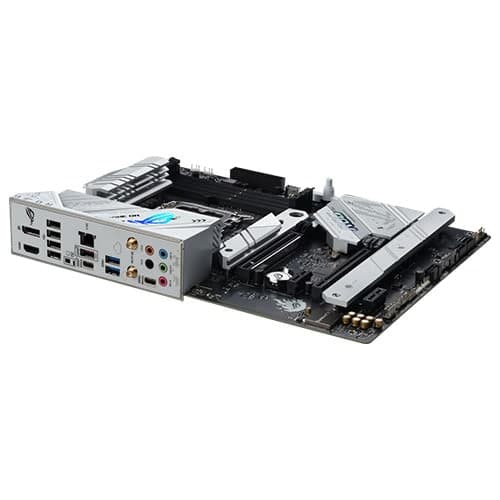

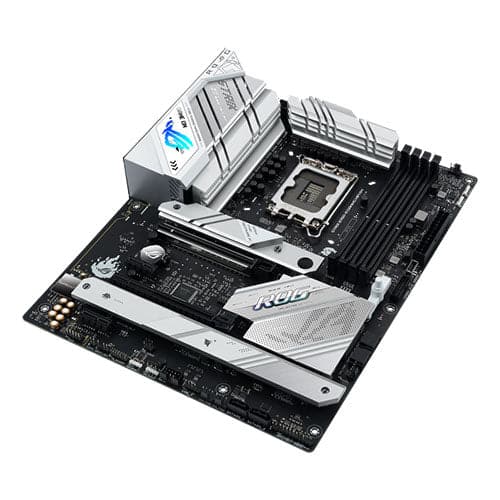

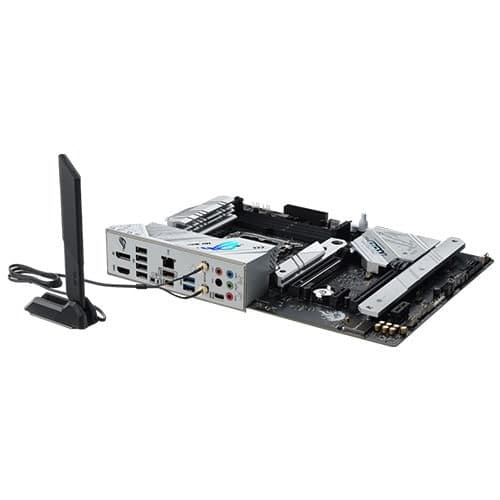

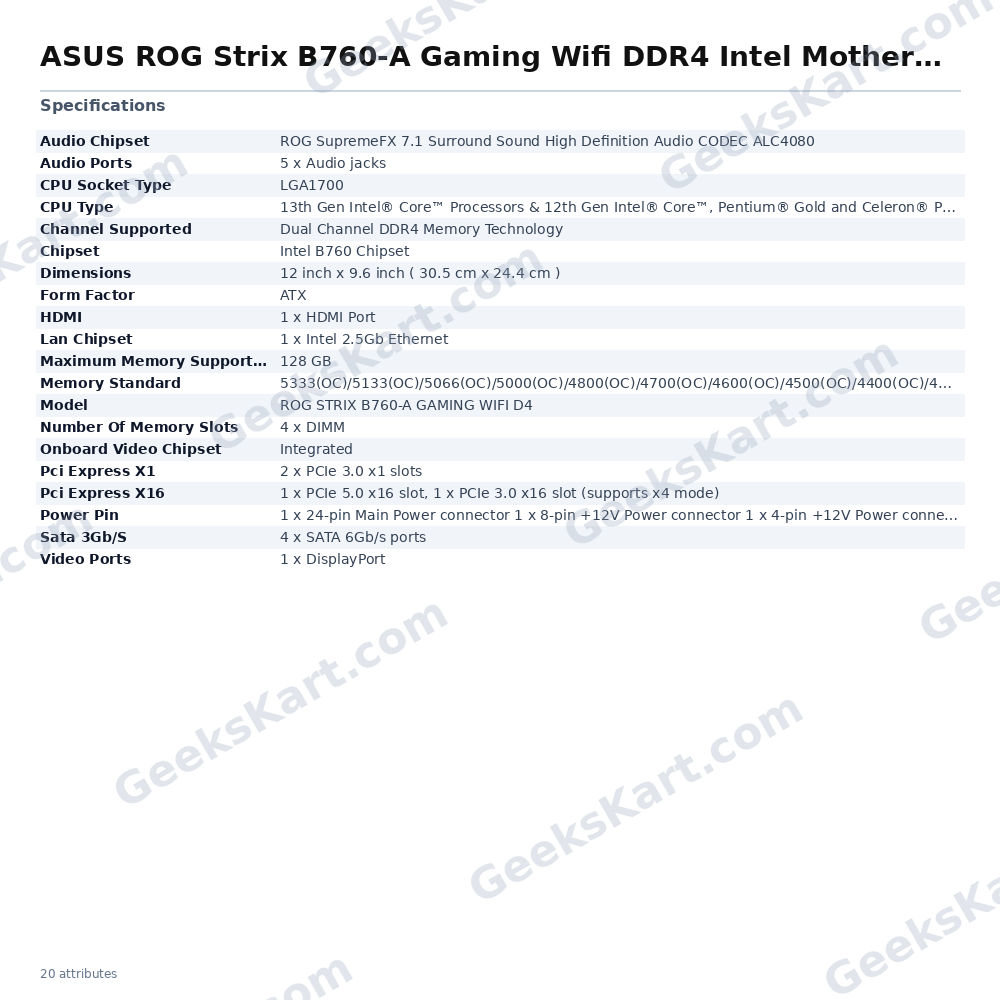

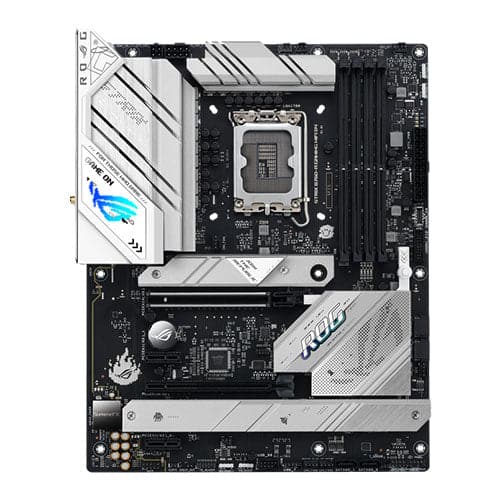

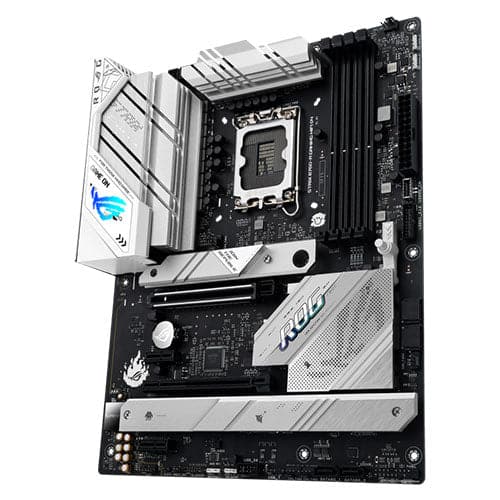

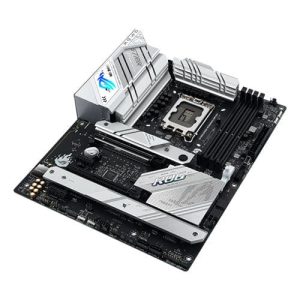

The ASUS ROG Strix B760-A Gaming WiFi D4 is an ATX-form-factor motherboard built on the Intel B760 chipset, designed for Intel 13th Gen Core processors and backward-compatible with 12th Gen Core, Pentium Gold, and Celeron processors in the LGA1700 socket. Its white, silver, and black aesthetic — featuring diagonal slats and brushed-aluminium accents — is paired with onboard Aura Sync ARGB lighting that can be synchronised across compatible ROG peripherals, graphics cards, monitors, and input devices. Power delivery is handled by a 12+1 power-stage VRM, fed through a 24-pin main ATX connector alongside an 8-pin and a 4-pin +12 V CPU connector. A six-layer PCB aids heat dissipation around the voltage regulators, complemented by alloy chokes and durable capacitors rated for elevated operating temperatures. Grey aluminium heatsinks cover the VRM and M.2 zones to sustain consistent thermal performance under load. For graphics, the primary slot is a PCIe 5.0 x16 SafeSlot, providing full-bandwidth connectivity for current and next-generation discrete GPUs. A secondary PCIe 3.0 x16 slot operates at x4 mode, and two additional PCIe 3.0 x1 slots accommodate expansion cards. Storage options include three PCIe 4.0 M.2 slots — each covered by a dedicated heatsink — and four SATA 6 Gb/s ports for traditional drives. Memory support spans four DDR4 DIMM slots in a dual-channel configuration, accepting up to 128 GB of DDR4. Native (non-OC) speeds include 2133, 2400, 2666, 2800, 2933, 3000, and 3200 MT/s, with XMP overclocking profiles reaching up to DDR4-5333. Connectivity highlights include WiFi 6E wireless networking and a 2.5 Gb Intel Ethernet port. Audio is provided by the ROG SupremeFX codec (Realtek ALC4080) supporting 7.1-channel surround sound, with five 3.5 mm audio jacks on the rear I/O panel. Video output for integrated graphics consists of one HDMI port and one DisplayPort. The PCIe Q-Release button on the primary x16 slot simplifies GPU removal without bending the safety latch. Verified Specifications: – Chipset: Intel B760 – Socket: LGA1700 – CPU Support: Intel 13th Gen Core / 12th Gen Core, Pentium Gold, Celeron – Form Factor: ATX (304.8 mm × 243.8 mm / 12 in × 9.6 in) – Memory: 4 × DDR4 DIMM, dual-channel, up to 128 GB, DDR4-2133 to DDR4-5333(OC) – PCIe Slots: 1× PCIe 5.0 x16, 1× PCIe 3.0 x16 (x4 mode), 2× PCIe 3.0 x1 – Storage: 3× M.2 (PCIe 4.0), 4× SATA 6 Gb/s – LAN: Intel 2.5 Gb Ethernet – Wireless: WiFi 6E – Audio: SupremeFX ALC4080, 7.1-ch, 5× rear audio jacks – Rear Video: 1× HDMI, 1× DisplayPort – RGB: Aura Sync ARGB – Power: 24-pin + 8-pin + 4-pin +12 V
