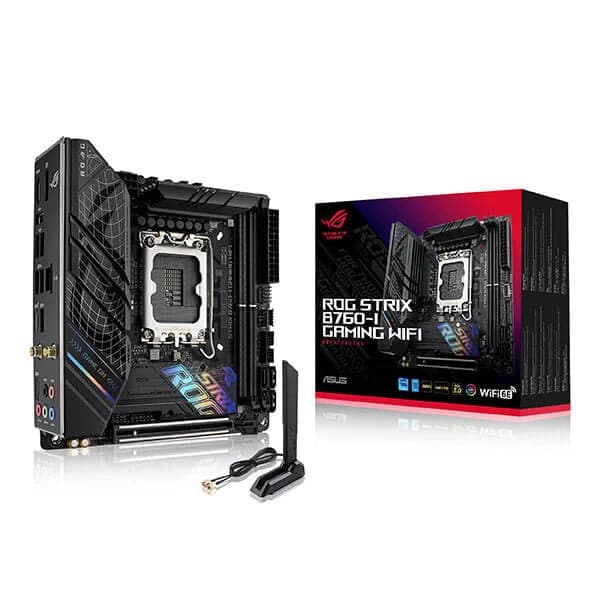

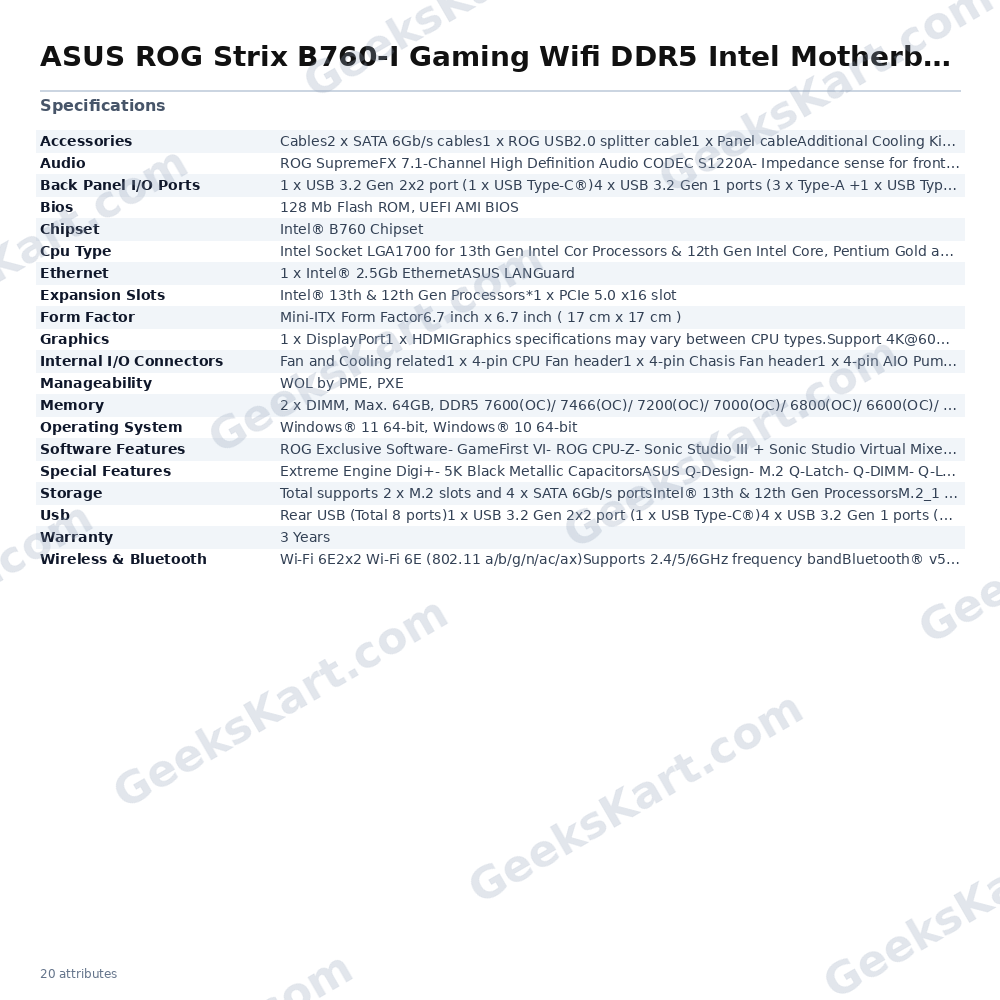

ASUS ROG Strix B760-I Gaming Wifi DDR5 Intel Motherboard

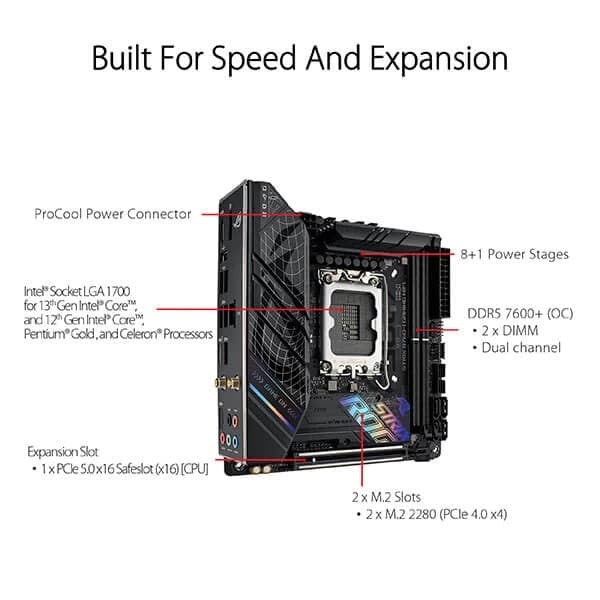

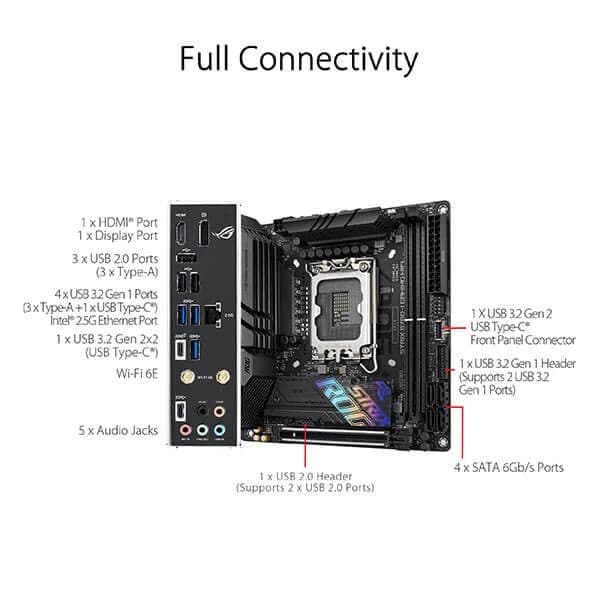

The ASUS ROG Strix B760-I Gaming WiFi is a Mini-ITX motherboard designed for compact, high-performance Intel builds. Built around the Intel B760 chipset and LGA1700 socket, it supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, including Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0. Memory support reaches up to 64 GB across two DDR5 DIMM slots, with speeds ranging from native DDR5-4800 up to DDR5-7600 under XMP overclocking. Dual-channel architecture and ASUS OptiMem II signal routing help enthusiasts push memory performance further through the UEFI tuning interface. Storage is handled by two M.2 Key-M slots — both operating at PCIe 4.0 x4 — and four SATA 6 Gb/s ports with Intel Rapid Storage Technology supporting RAID 0/1/5/10. The single PCIe 5.0 x16 slot accommodates the latest discrete graphics cards. Connectivity is a clear strength of this board. Wired networking comes via an Intel 2.5 Gb Ethernet port with ASUS LANGuard protection, while wireless is handled by a 2×2 Wi-Fi 6E adapter supporting 2.4 GHz, 5 GHz, and 6 GHz bands (802.11 a/b/g/n/ac/ax) alongside Bluetooth 5.3. The rear I/O provides 8 USB ports including a USB 3.2 Gen 2×2 Type-C (20 Gbps), and integrated display outputs include HDMI 2.1 and DisplayPort 1.4, both supporting 4K at 60 Hz for CPU-integrated graphics. Audio is delivered by the ROG SupremeFX S1220A codec, offering 7.1-channel HD audio with 120 dB SNR stereo playback, 113 dB SNR line-in recording, a Savitech SV3H712 amplifier, and SupremeFX shielding for reduced interference. The 8+1 power stage VRM, each phase rated at 80 A, is supported by an eight-layer PCB and alloy chokes with 5K-rated black metallic capacitors. ASUS EZ DIY features — including M.2 Q-Latch screwless installation, Q-LED diagnostic indicators, pre-mounted I/O shield, SafeSlot reinforced PCIe slot, and Q-DIMM single-latch memory — simplify the build process in tight SFF cases. Aura Sync RGB lighting is supported via one Aura RGB header and one Addressable Gen 2 header. Software includes Armoury Crate, Fan Xpert 4, GameFirst VI, AI Noise Cancelation, and ASUS UEFI BIOS with CrashFree BIOS 3 and EZ Flash 3. Verified Specifications: – Form Factor: Mini-ITX, 170 mm x 170 mm (6.7 in x 6.7 in) – Socket: Intel LGA1700 – Chipset: Intel B760 – CPU Support: 12th and 13th Gen Intel Core / Pentium Gold / Celeron – Memory: 2x DIMM, DDR5, max 64 GB, DDR5-4800 to DDR5-7600(OC), dual-channel, XMP – Expansion: 1x PCIe 5.0 x16 – Storage: 2x M.2 (PCIe 4.0 x4), 4x SATA 6 Gb/s – Ethernet: Intel 2.5 GbE – Wireless: Wi-Fi 6E (2×2, 802.11ax), Bluetooth 5.3 – USB Rear: 1x USB 3.2 Gen 2×2 Type-C, 4x USB 3.2 Gen 1 (3x Type-A + 1x Type-C), 3x USB 2.0 Type-A – Display: 1x HDMI 2.1, 1x DisplayPort 1.4 (4K@60Hz each) – Audio: SupremeFX S1220A, 7.1-channel, 120 dB SNR playback – BIOS: 128 Mb Flash ROM, UEFI AMI – Warranty: 3 Years
