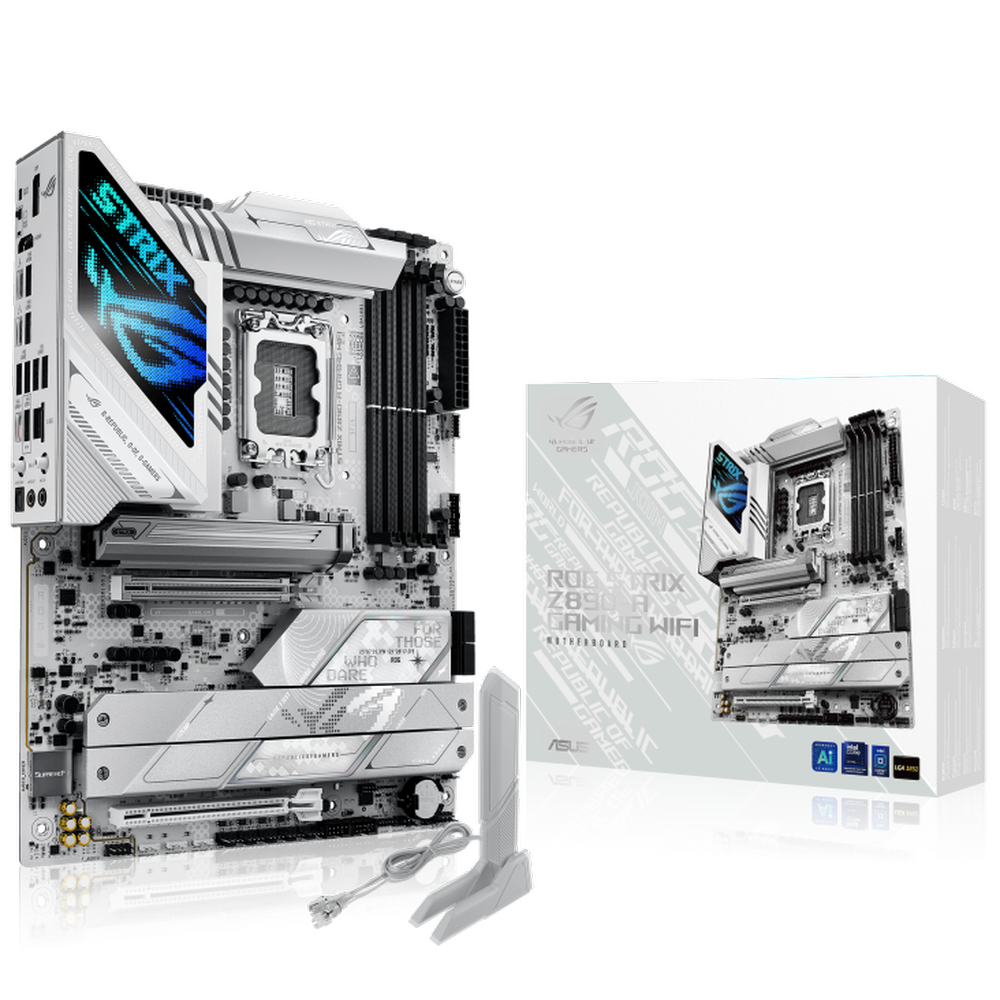

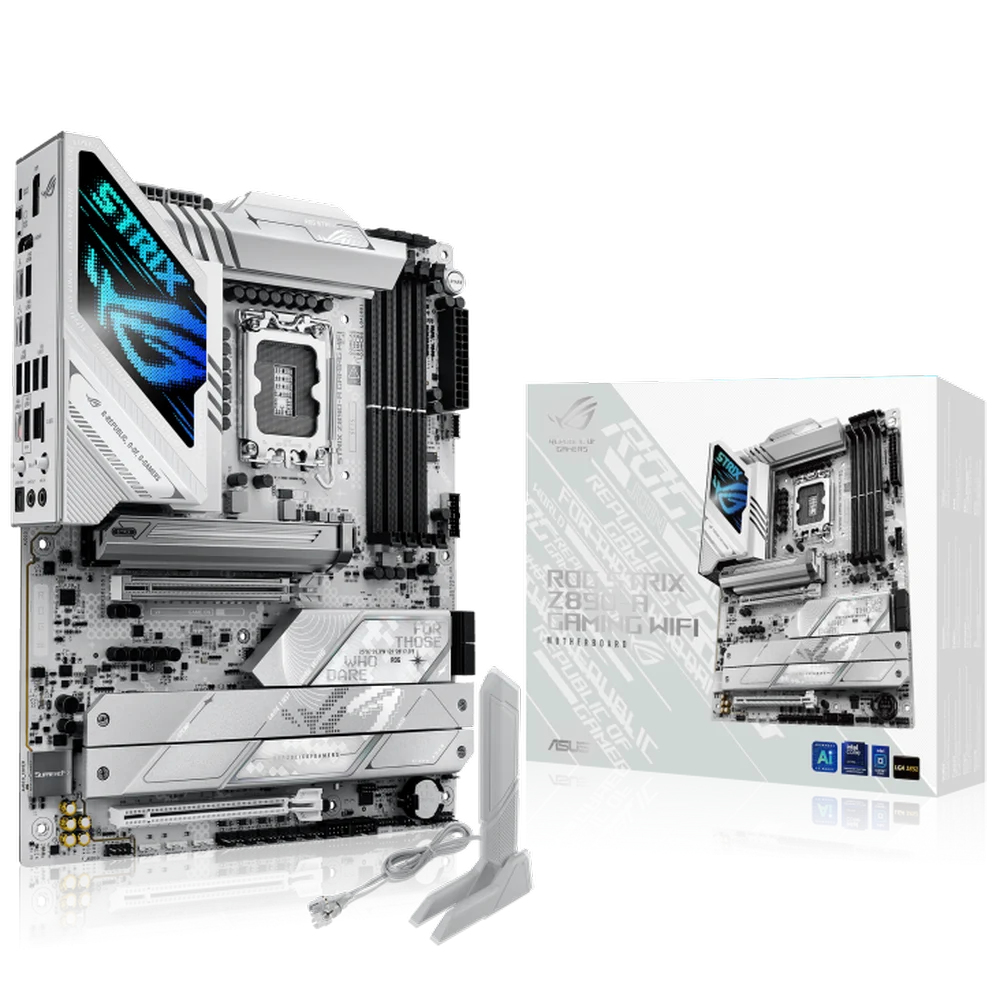

ASUS ROG Strix Z890-A Gaming Wifi DDR5 Intel Motherboard ( White )
MPN ASUS-ROG-STRIX-Z890-A-GAMING-WIFI-WHITE · Brand ASUS · ATX
The ASUS ROG Strix Z890-A Gaming WiFi (White) is an ATX Intel Z890 motherboard supporting Core Ultra Series 2 CPUs, DDR5 up to 192 GB, PCIe 5.0, Wi-Fi 7, Thunderbolt 4, and ROG SupremeFX audio — built for high-performance gaming and AI PC workloads
Inclusive of GST · GST invoice available
Overview

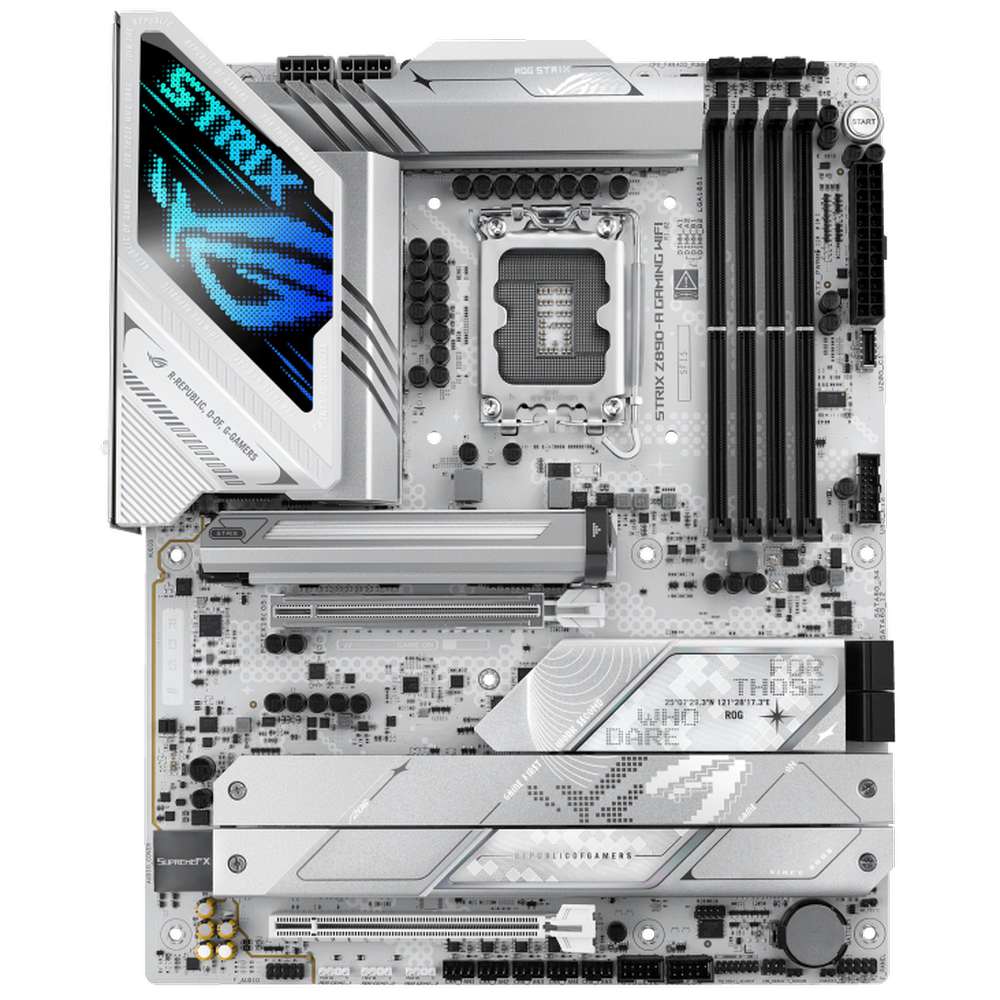

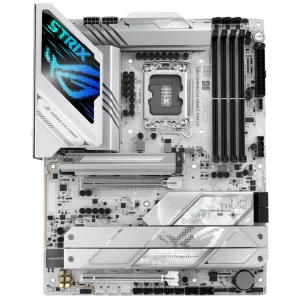

The ASUS ROG Strix Z890-A Gaming WiFi is a full ATX (30.5 cm x 24.4 cm) motherboard built on the Intel Z890 chipset, designed to support Intel Core Ultra Processors (Series 2). Its clean white aesthetic is complemented by Aura Sync RGB via three onboard Addressable Gen 2 headers, making it a strong choice for visually themed builds. Memory support is handled through four DDR5 DIMM slots capable of accommodating up to 192 GB at speeds reaching 8600+ MT/s (OC) with CUDIMM modules. Dual-channel architecture is paired with Intel XMP compatibility, DIMM Fit for module-level optimisation, and ASUS Enhanced Memory Profile III (AEMP III) for fine-grained DDR5-8000+ tuning. Storage options are generous: five M.2 Key-M slots are available, with M.2_1 operating at PCIe 5.0 x4 and the remaining four at PCIe 4.0 x4, plus four SATA 6 Gb/s ports. Intel Rapid Storage Technology supports RAID 0/1/5/10 across PCIe and SATA arrays. A single PCIe 5.0 x16 slot from the CPU caters to the primary graphics card, with a secondary PCIe 4.0 x16 (x4 mode) slot from the chipset. Connectivity is extensive. The rear I/O delivers 10 USB ports including two Thunderbolt 4 (USB Type-C) ports and six USB 10 Gbps ports (five Type-A plus one Type-C with up to 30 W Power Delivery). Wi-Fi 7 (802.11be, 2x2, 2.4/5/6 GHz, up to 5.8 Gbps) and Bluetooth 5.4 are built in. Wired networking is handled by an Intel 2.5 Gb Ethernet port with ASUS LANGuard protection. Display outputs on the rear I/O include one DisplayPort 1.4 (up to 8K@60Hz) and one HDMI 2.1 port (up to 4K@60Hz), supplemented by two Thunderbolt 4 ports that additionally support DisplayPort video output. Audio is powered by the ROG SupremeFX system using the Realtek ALC4080 codec, delivering 7.1 surround sound with 120 dB SNR stereo playback output, 110 dB SNR recording input, and support for 32-bit/384 kHz playback on the front panel. A Savitech SV3H712 amplifier and rear optical S/PDIF output round out the audio feature set. Thermal management includes a dual VRM heatsink array, M.2 heatsinks covering all five slots, and an M.2 backplate. Fan control is addressed through one CPU Fan header, one CPU OPT Fan header, one AIO Pump header, and five Chassis Fan headers. The onboard BIOS FlashBack button and Clear CMOS button simplify maintenance and BIOS updates without a CPU installed. Verified Specifications: - Form Factor: ATX (30.5 cm x 24.4 cm) - Chipset: Intel Z890 - CPU Support: Intel Core Ultra Processors (Series 2) - Memory: 4x DDR5 DIMM, max 192 GB, up to 8600+ MT/s (OC), dual-channel, XMP/AEMP III/CUDIMM support - Expansion: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x16 x4 mode (chipset) - Storage: 5x M.2 (1x PCIe 5.0 x4, 4x PCIe 4.0 x4), 4x SATA 6 Gb/s - Networking: Intel 2.5 Gb Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4 - Rear USB: 2x Thunderbolt 4 (Type-C), 5x USB 10 Gbps Type-A, 1x USB 10 Gbps Type-C (30 W PD), 2x USB 5 Gbps Type-A - Audio: ALC4080, 7.1 surround, 120 dB SNR playback, optical S/PDIF out - BIOS: 256 Mb UEFI AMI - Lighting: Aura Sync, 3x Addressable Gen 2 headers

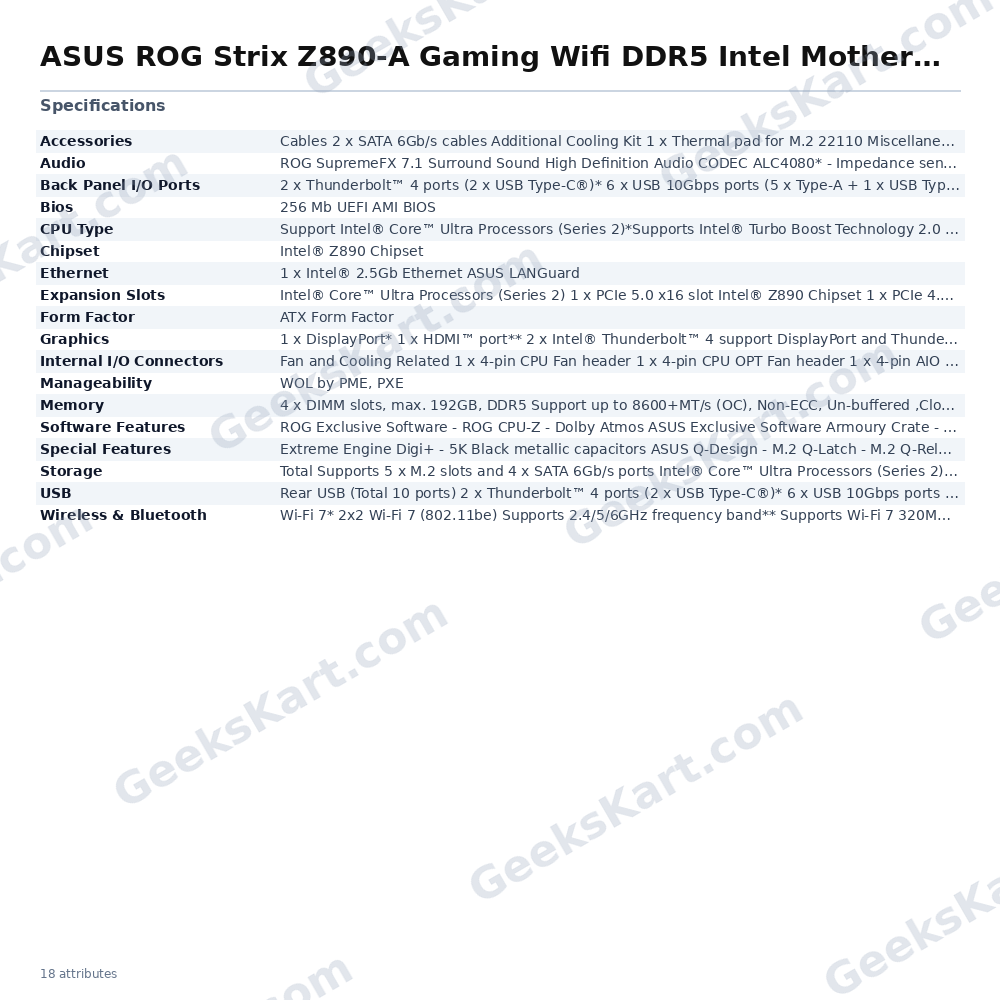

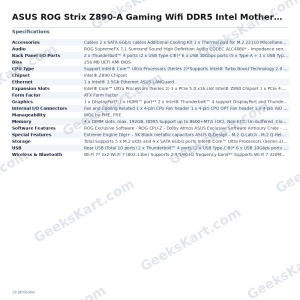

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z890 Chipset |
| CPU Type | |
| USB | Rear USB (Total 10 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)** 2 x USB 5Gbps ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| Bios | 256 Mb UEFI AMI BIOS |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Storage | Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x DisplayPort* 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs*** – Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. **** VGA resolution support depends on processors' or graphic cards' resolution. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 rubbers Documentation 1 x Quick start guide |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| Special Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers |
| Software Features | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Xpert 4 (with AI Cooling II) – GameFirst – Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX MyAsus USB Wattage Watcher TurboV Core Adobe Creative Cloud (30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey |

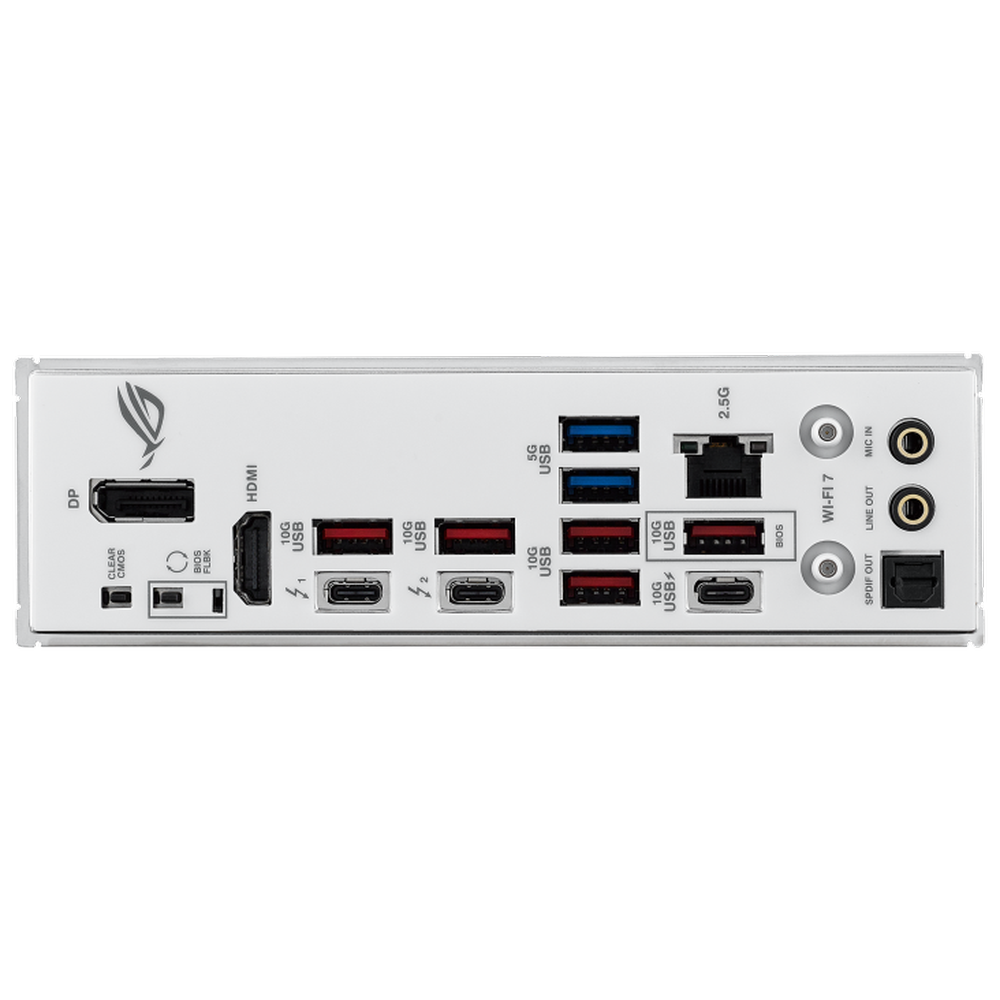

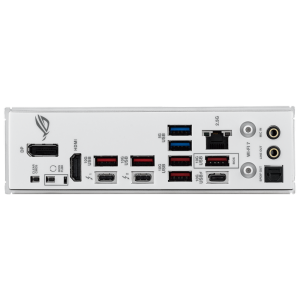

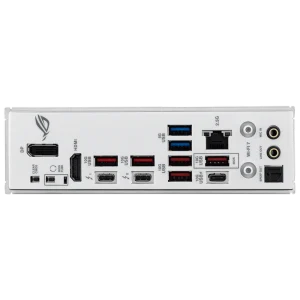

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
