ASUS TUF Gaming B650M Plus Wifi DDR5 AMD Motherboard

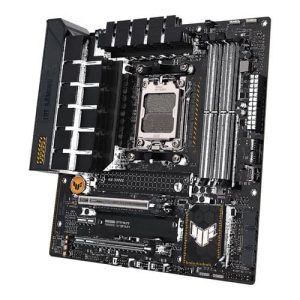

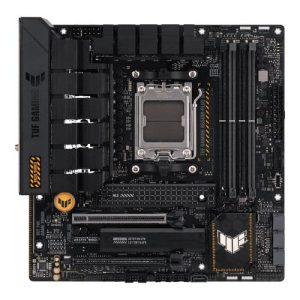

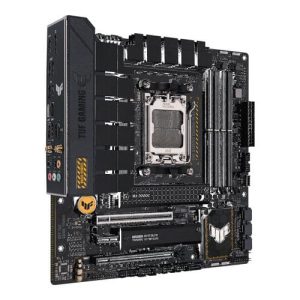

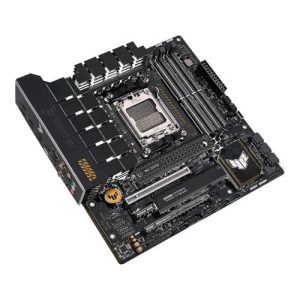

The ASUS TUF Gaming B650M-Plus WiFi is a micro-ATX motherboard built around the AMD B650 chipset and AM5 socket, designed to pair with AMD Ryzen 7000 series desktop processors. It delivers a well-rounded feature set for gamers and PC builders who want modern connectivity and proven durability in a compact form factor. At the heart of the platform is DDR5 memory support across four DIMM slots, accommodating up to 128GB of unbuffered DDR5 at speeds up to 6400MHz via overclocking, with native support for AMD EXPO memory profiles to streamline DDR5 tuning. The board also supports the OptiMem II trace layout for enhanced signal integrity. Storage connectivity is handled by two M.2 slots: the primary M.2_1 slot runs at PCIe 5.0 x4 (up to 128 Gbps) for the latest high-speed NVMe drives, while the M.2_2 slot operates at PCIe 4.0 x4. Four SATA 6Gb/s ports round out legacy storage needs, and AMD RAIDXpert2 supports NVMe RAID 0/1/10 and SATA RAID 0/1/10 configurations. Both M.2 slots are covered by dedicated heatsinks for thermal management. Networking is a highlight: onboard Wi-Fi 6 (802.11ax, 2x2, dual-band 2.4/5GHz) delivers theoretical peak wireless throughput up to 1.2 Gbps, while a Realtek 2.5Gb wired Ethernet port—protected by TUF LANGuard surge protection—provides a fast, stable LAN connection. Bluetooth 5.2 is also included. The rear I/O panel offers eight USB ports including one USB 3.2 Gen 2x2 Type-C (20Gbps), two USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 1 Type-A, and four USB 2.0 ports, alongside DisplayPort 1.4 (up to 8K@60Hz) and HDMI 2.1 (up to 4K@60Hz) for integrated-graphics output. Internal headers add a further seven USB connections for front-panel use. Audio is powered by a Realtek 7.1 surround sound HD codec with a 98dB SNR on stereo line-out, audio shielding, premium capacitors, and dedicated PCB layers. Fan control is extensive, with five 4-pin PWM headers (CPU, CPU OPT, AIO Pump, three chassis) for comprehensive cooling management. RGB enthusiasts will find one Aura RGB header and three Addressable Gen 2 ARGB headers managed through ASUS Armoury Crate software. Q-Design conveniences include Q-LED diagnostic LEDs (CPU/DRAM/VGA/Boot), Q-DIMM single-side latch, M.2 Q-Latch tool-free retention, and BIOS FlashBack for CPU-free BIOS updates. Verified Specifications: - Form Factor: micro-ATX (9.6 x 9.6 in / 24.4 x 24.4 cm) - Chipset: AMD B650 - CPU Socket: AM5 (AMD Ryzen 7000 series) - Memory: 4x DIMM, DDR5, max 128GB, up to 6400MHz (OC), EXPO support - PCIe: 1x PCIe 4.0/3.0 x16 (CPU), 1x PCIe 4.0/3.0 x16 (x4 mode, chipset), 1x PCIe 4.0/3.0 x1 - Storage: 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s - LAN: Realtek 2.5GbE with TUF LANGuard - Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.2 - Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-A, 4x USB 2.0 - Display Output: 1x DisplayPort 1.4, 1x HDMI 2.1 - Audio: Realtek 7.1 HD, 98dB SNR, 24-bit/192kHz - BIOS: 256Mb Flash ROM, UEFI AMI with FlashBack - OS Support: Windows 11, Windows 10 64-bit
