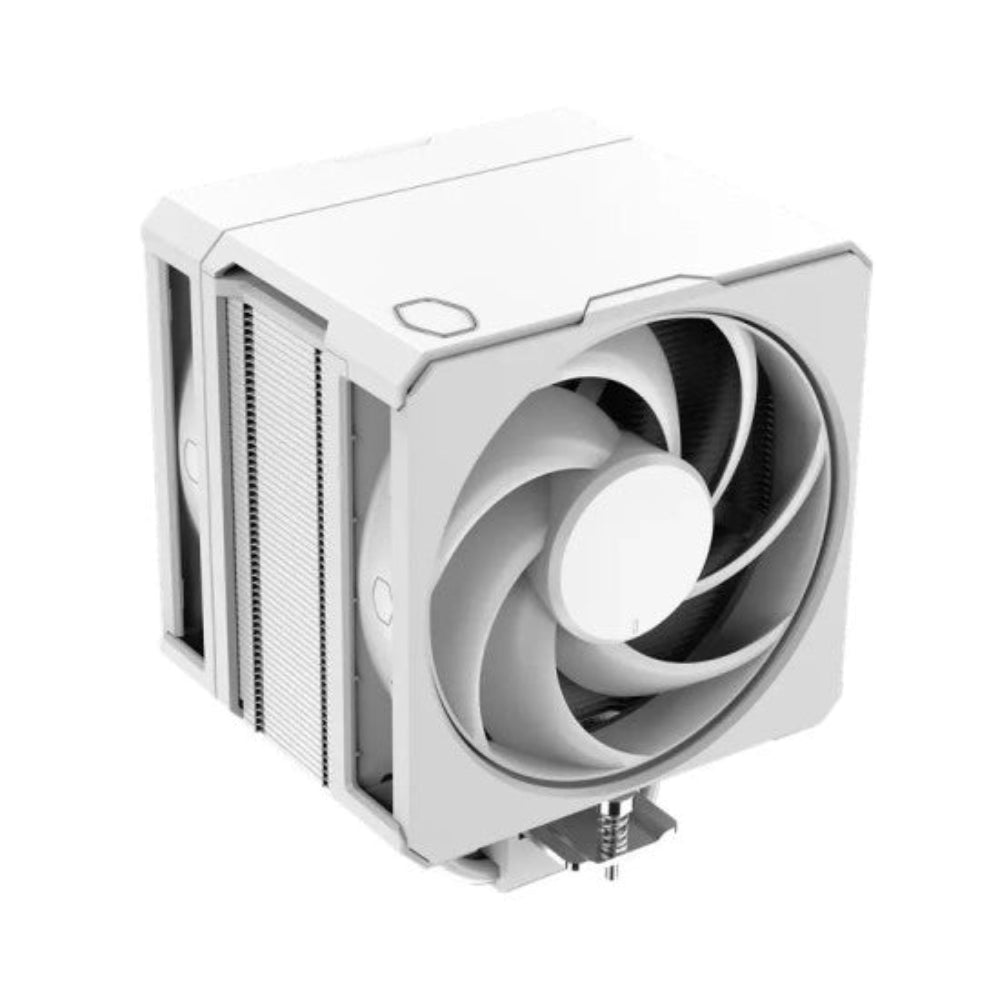

COOLER MASTER Hyper 612 Apex Dual Tower Air Cooler ( White )
MPN COOLER-MASTER-HYPER-612-APEX-WHITE-DUAL-TOWER · Brand Cooler Master
The Cooler Master Hyper 612 Apex (White) is a dual-tower air cooler featuring six Superconductive Composite copper heat pipes, dual Mobius 120P PWM fans (max 30 dBA, 75.2 CFM), and a 159 mm height — compatible with Intel LGA 1851/1700 and AMD AM5/AM4 platforms
Inclusive of GST · GST invoice available
Overview
The Cooler Master Hyper 612 Apex is a dual-tower air cooler designed for enthusiast PC builders who require strong thermal performance and quiet acoustics in a single package. At its core are six patented Superconductive Composite copper heat pipes that draw heat rapidly away from the CPU die and distribute it across a dense array of aluminium fins for efficient dissipation — even under sustained, heavy workloads. Two bundled Mobius 120P PWM fans sit front and rear of the heatsink array. These 120 mm fans spin between 0 and 2,400 RPM (±10%) and are controlled automatically by your motherboard's PWM headers, allowing the system to ramp up only when heat demands it and quiet down during light use. The Loop Dynamic Bearing design contributes to a rated MTTF exceeding 200,000 hours, pointing to long service life. Maximum airflow is rated at 75.2 CFM (127.6 m³/h) with a static pressure of 3.63 mmH₂O, and noise tops out at 30 dBA — making it a strong choice for noise-conscious setups. The overall cooler dimensions measure 127 × 114 × 159 mm, allowing it to fit comfortably in most standard mid-tower cases without fouling the side panel. At 1.35 kg net weight, it is substantial but within the mounting tolerance of mainstream motherboards. The white top cover and white fan frames complement white or monochrome build aesthetics cleanly, without RGB lighting that some builders prefer to avoid. Socket support is broad: Intel LGA 1851, 1700, 1200, 1151, 1150, 1155, and 1156, alongside AMD AM5 and AM4 — covering current-generation Intel Core Ultra and AMD Ryzen 7000 platforms as well as several prior generations. Installation uses tool-free brackets for a streamlined mounting process. Verifiable Specifications: • Model: MAP-T6PN-225PW-CW • Heat pipes: 6 × Superconductive Composite copper | Fin material: Aluminium • Fans: 2 × Mobius 120P, 120 × 120 × 25 mm, 4-Pin PWM, 12 VDC, 0.18 A rated • Fan speed: 0–2,400 RPM ±10% | Airflow (max): 75.2 CFM | Pressure (max): 3.63 mmH₂O • Noise (max): 30 dBA | Bearing: Loop Dynamic Bearing | MTTF: >200,000 hours • Cooler dimensions: 127 × 114 × 159 mm (W × D × H) | Net weight: 1.35 kg • Socket support: Intel LGA 1851/1700/1200/1151/1150/1155/1156 | AMD AM5/AM4 • Color: White | Warranty: 5 years

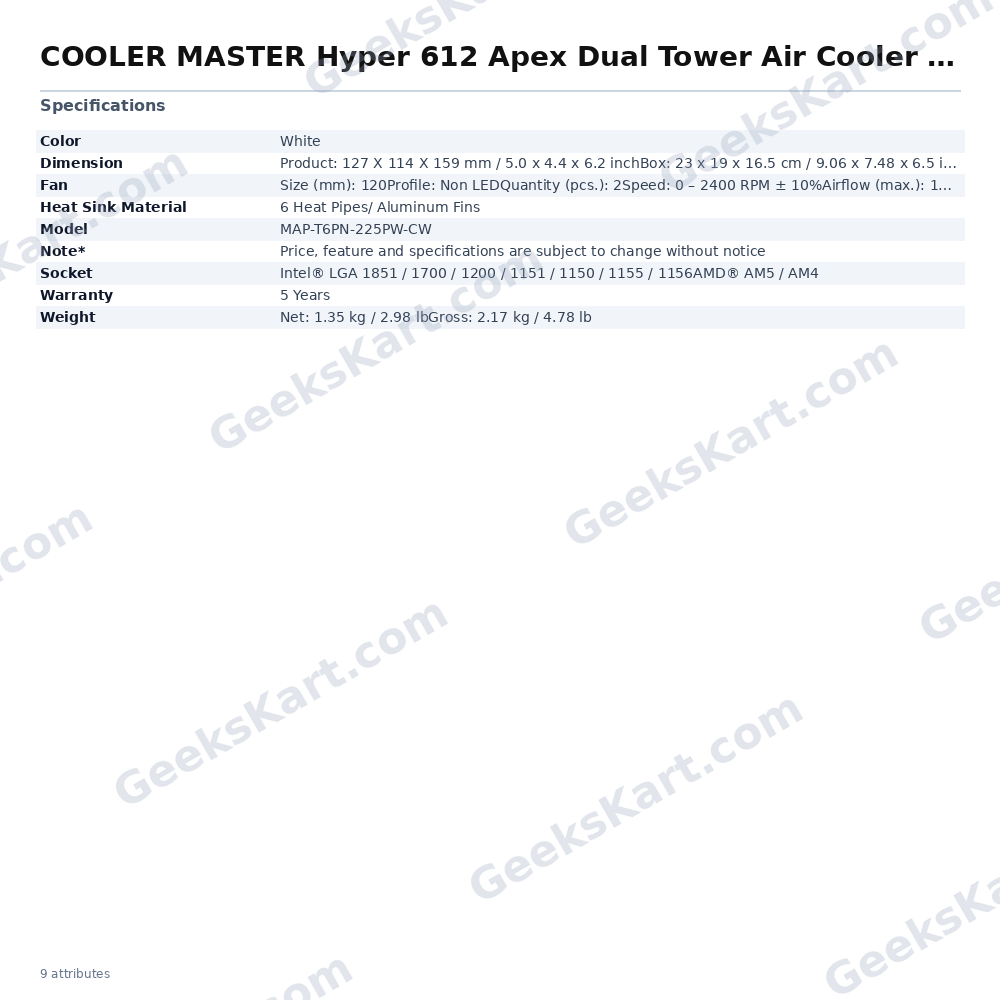

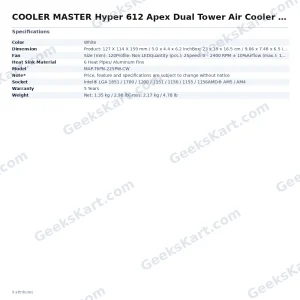

Datasheet
| Warranty | 5 Years |
|---|---|
| Color | White |
| Socket | LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, AM4 |
| Fan | Size (mm): 120Profile: Non LEDQuantity (pcs.): 2Speed: 0 – 2400 RPM ± 10%Airflow (max.): 127.6 m3/h(75.2 CFM)Pressure (max.): 3.63 mmH2OMTTF: > 200,000 hoursNoise Level(max.): 30 dBABearing: Loop Dynamic BearingPower Connector: 4-Pin PWMRated Voltage: 12 VDCRated Current: 0.18 ASafety Current: 0.35 APower Consumption: 2.16 WDimension (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Model | MAP-T6PN-225PW-CW |
| Note* | Price, feature and specifications are subject to change without notice |
| Weight | Net: 1.35 kg / 2.98 lbGross: 2.17 kg / 4.78 lb |
| Dimension | Product: 127 X 114 X 159 mm / 5.0 x 4.4 x 6.2 inchBox: 23 x 19 x 16.5 cm / 9.06 x 7.48 x 6.5 inch |
| Heat Sink Material | 6 Heat Pipes/ Aluminum Fins |
