COOLER MASTER Master Liquid Atmos II 360mm ARGB CPU Liquid Cooler ( White ) ( With LCD Display ) [ Atmos 2 ]

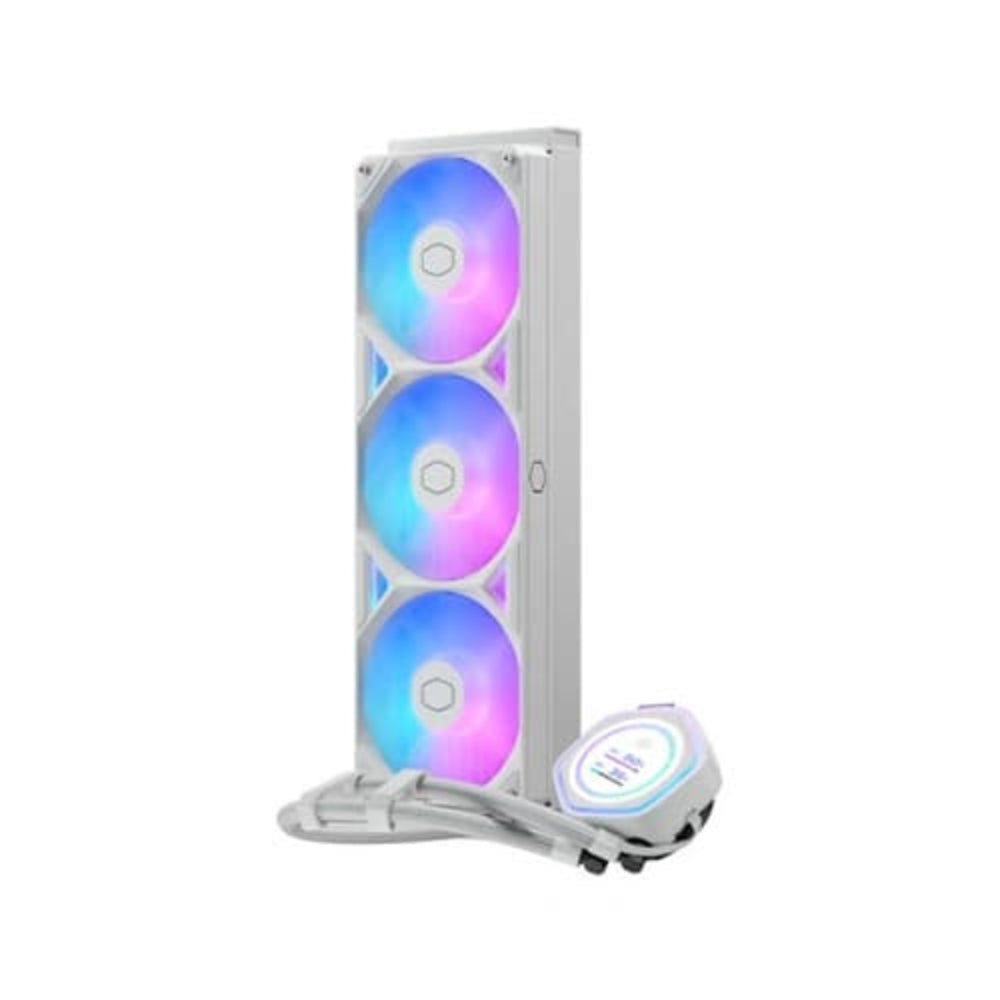

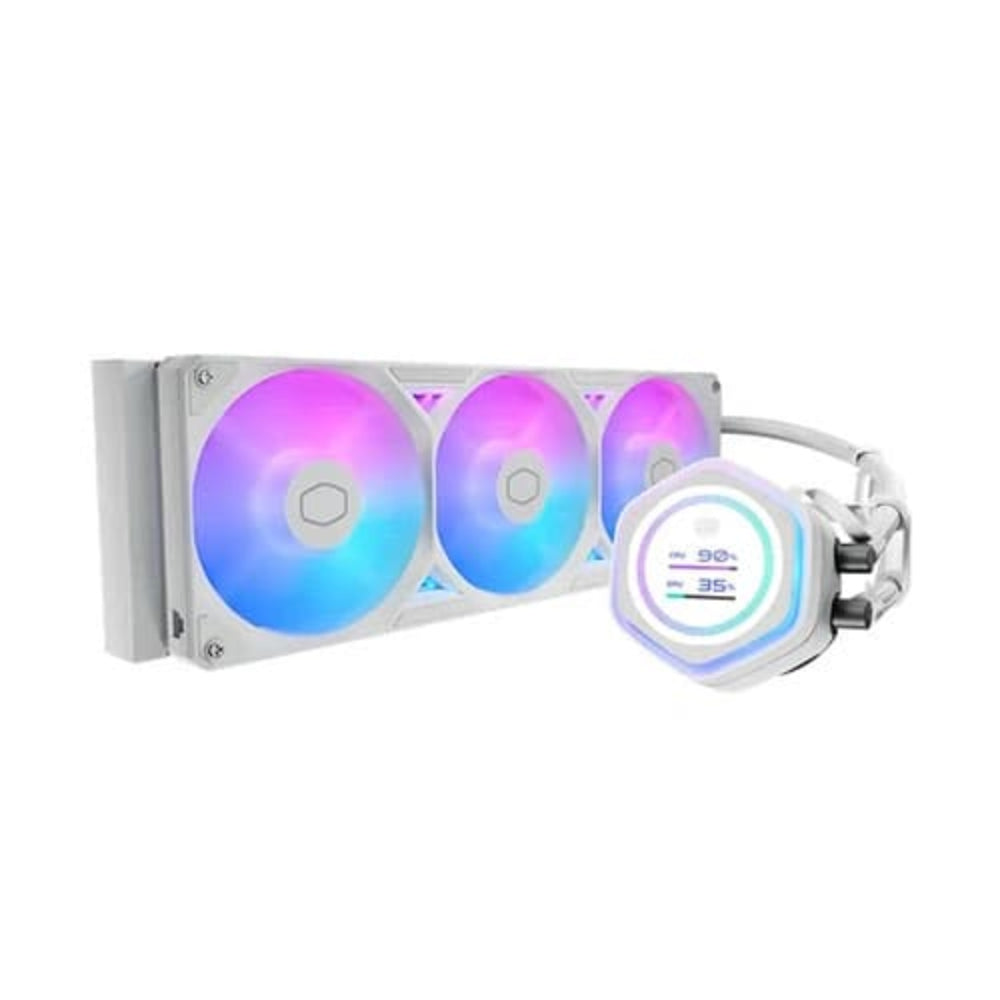

The Cooler Master MasterLiquid Atmos II 360mm ARGB is a premium all-in-one liquid CPU cooler built for enthusiasts who want strong thermal performance, striking aesthetics, and a customisable pump display — all in a clean white finish. At its core is a patented dual-chamber pump design that increases internal water pressure and directs coolant flow precisely to the CPU hot spot, helping maintain lower junction temperatures under sustained workloads. The pump housing is constructed from PPS (polyphenylene sulfide) reinforced with fiberglass, materials chosen for their industrial-grade heat resistance. According to Cooler Master, this pump has been validated through stress testing at 70°C for 3,000 hours and at 120°C for 12 hours, and carries a rated mean time to failure (MTTF) of over 210,000 hours. The ultra-low-profile pump head measures just 92.5 × 87 × 39 mm, making it compatible with a wide range of mid-tower and full-tower PC cases without clearance issues. Three pre-installed SickleFlow Edge ARGB fans — running on Loop Dynamic Bearings — cover a speed range of 690 to 2,500 RPM (±15%), delivering up to 190 CFM (322.8 m³/h) of airflow and a maximum static pressure of 3.61 mmH₂O across the 394 × 119.2 × 27 mm aluminium radiator. Noise at full load reaches up to 38.5 dB(A), while the pump itself is rated at a maximum of 25 dB(A). Each fan connects via a 7-pin PWM + ARGB header, and the pump uses a 3-pin ARGB + 4-pin PWM connector, simplifying motherboard integration. The standout feature of this model is its built-in 2.1-inch (53.3 mm diameter) round LCD panel, which sits on the pump head. Displaying at 480 × 480 px resolution with a 60 Hz refresh rate and 300 cd/m² luminance, it can show system stats, custom images, or animations adjustable through Cooler Master’s MasterCtrl software — including screen orientation control. The display connects via a USB Type-C to motherboard 9-pin header and consumes just 1.5 W. Socket compatibility spans Intel LGA 1851, 1700, 1200, 1150, 1151, 1155, and 1156 platforms, along with AMD AM5 and AM4. For LGA 1851 systems, Cooler Master includes dedicated offset mounting brackets engineered to align the cold plate with the CPU’s shifted die position. The 400 mm tubes provide flexible routing inside the chassis. This cooler ships with a 6-year manufacturer warranty. Verified Specifications: • Model: MLX-D36M-A25SZ-LW | Colour: White • Radiator: Aluminium, 394 × 119.2 × 27 mm • Pump speed: 3,400 ± 300 RPM | MTTF: >210,000 hours | Noise: ≤25 dB(A) • Fan speed: 690–2,500 RPM ±15% | Airflow: 190 CFM | Pressure: 3.61 mmH₂O | Noise: ≤38.5 dB(A) | MTTF: >160,000 hours • Fan connector: 7-pin PWM + ARGB | Pump connector: 3-pin ARGB + 4-pin PWM • LCD: 2.1 in / 480×480 px / 300 cd/m² / 60 Hz | Connector: USB Type-C to 9-pin motherboard header • Tube length: 400 mm | Warranty: 6 years
