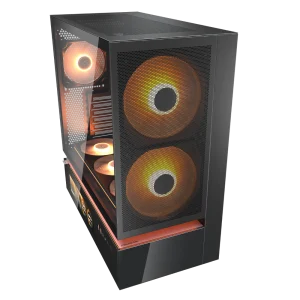

COUGAR CFV235 Mesh Vision ARGB ATX Mid Tower Cabinet ( Black )
MPN COUGAR-CFV235-MESH-VISION-ARGB-ATX-MID-TOWER-BLACK · Brand Cougar · Mid Tower
Features of COUGAR CFV235 Mesh Vision ARGB ATX Mid Tower Cabinet ( Black ) Float in Form. Flow in Function. Visualize in Motion. The CFV235 Mesh Vision is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation, preserving a compact footprint without compromising architecturally-enhanced cooling. An integrated 9.16-inch IPS TF
Inclusive of GST · GST invoice available
Overview
Features of COUGAR CFV235 Mesh Vision ARGB ATX Mid Tower Cabinet ( Black )

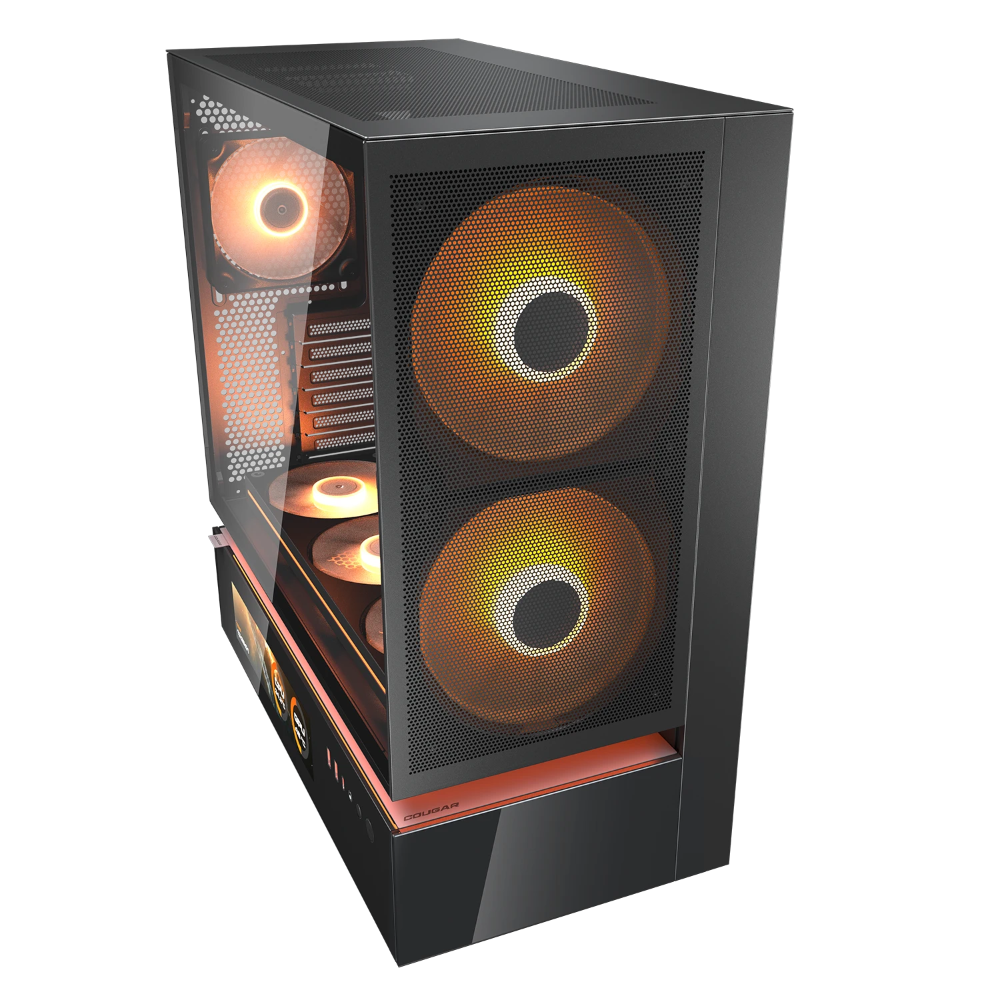

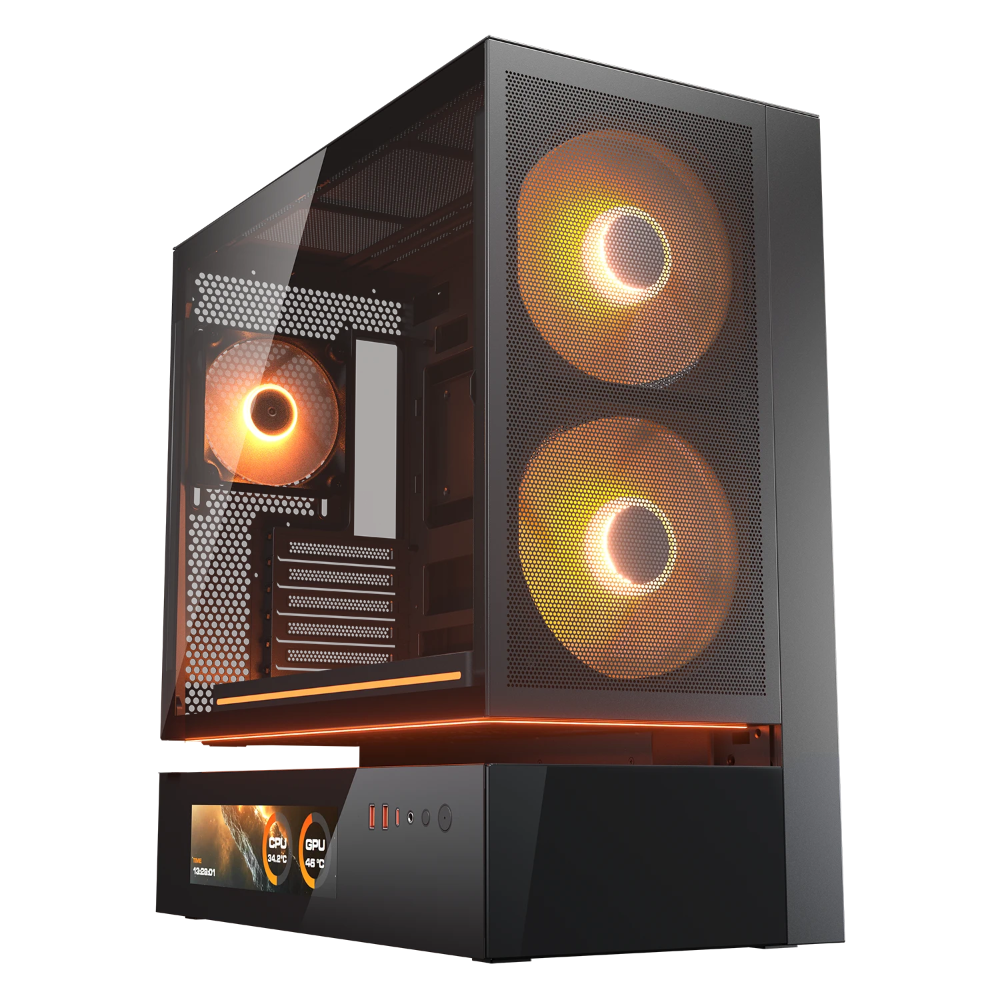

The CFV235 Mesh Vision is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation, preserving a compact footprint without compromising architecturally-enhanced cooling. An integrated 9.16-inch IPS TFT LCD panel provides real-time, software-controlled system monitoring in ultra-crisp 1920x 462 resolution at a 60Hz refresh rate, displaying critical data and customizable visuals.
Paired with a 3-in-1 front panel module—combining mesh, dual 160mm ARGB PWM fans, and a dust filter into a single pre-assembled unit— and immersive display technology, the CFV235 Mesh Vision empowers airflow beyond ordinary dimensions, visualized.
True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.
270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.
Plug and Play With One Module

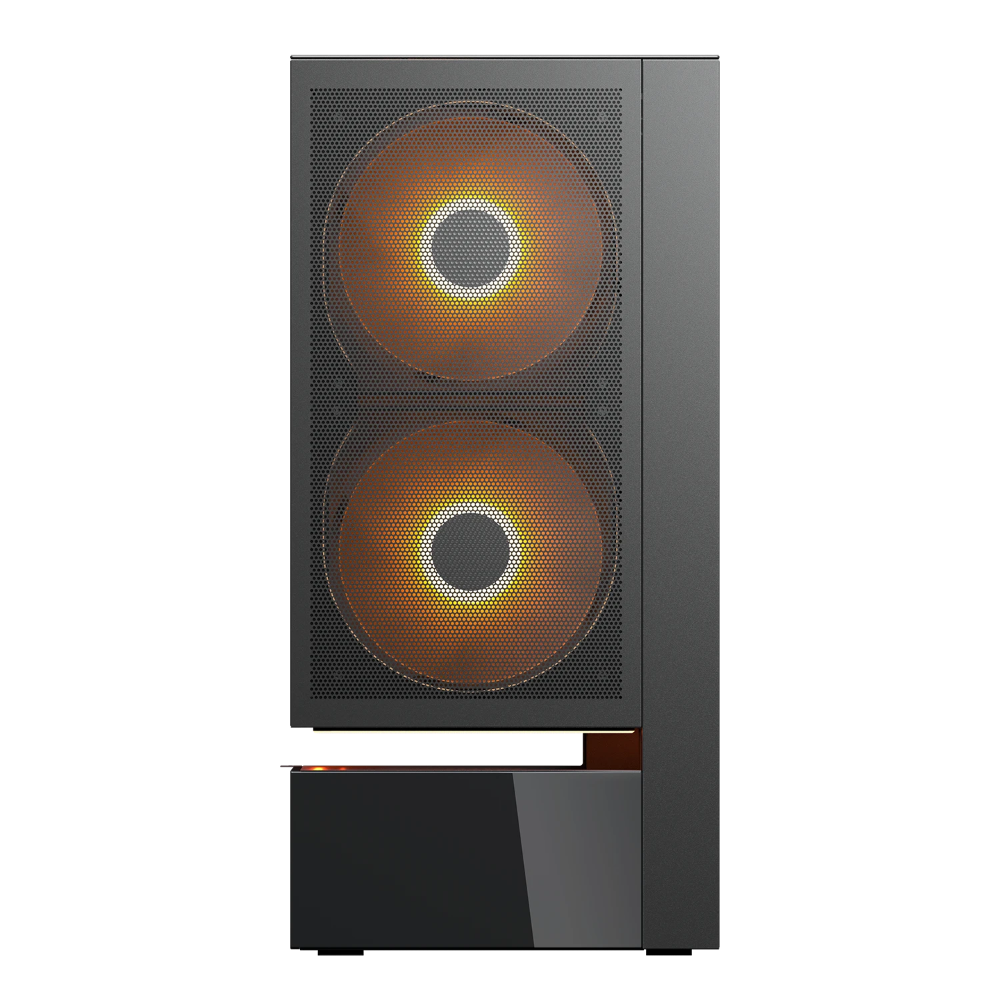

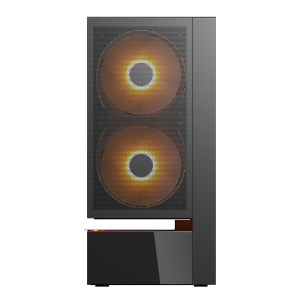

The 3-in-1 front panel module - merging dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into one pre-assembled unit - lets you handle maintenance in one smooth step.
Smart Pogo Pin Connector
Pre-Installed Dual 160mm ARGB PWM Fans
The Eye in the Machine

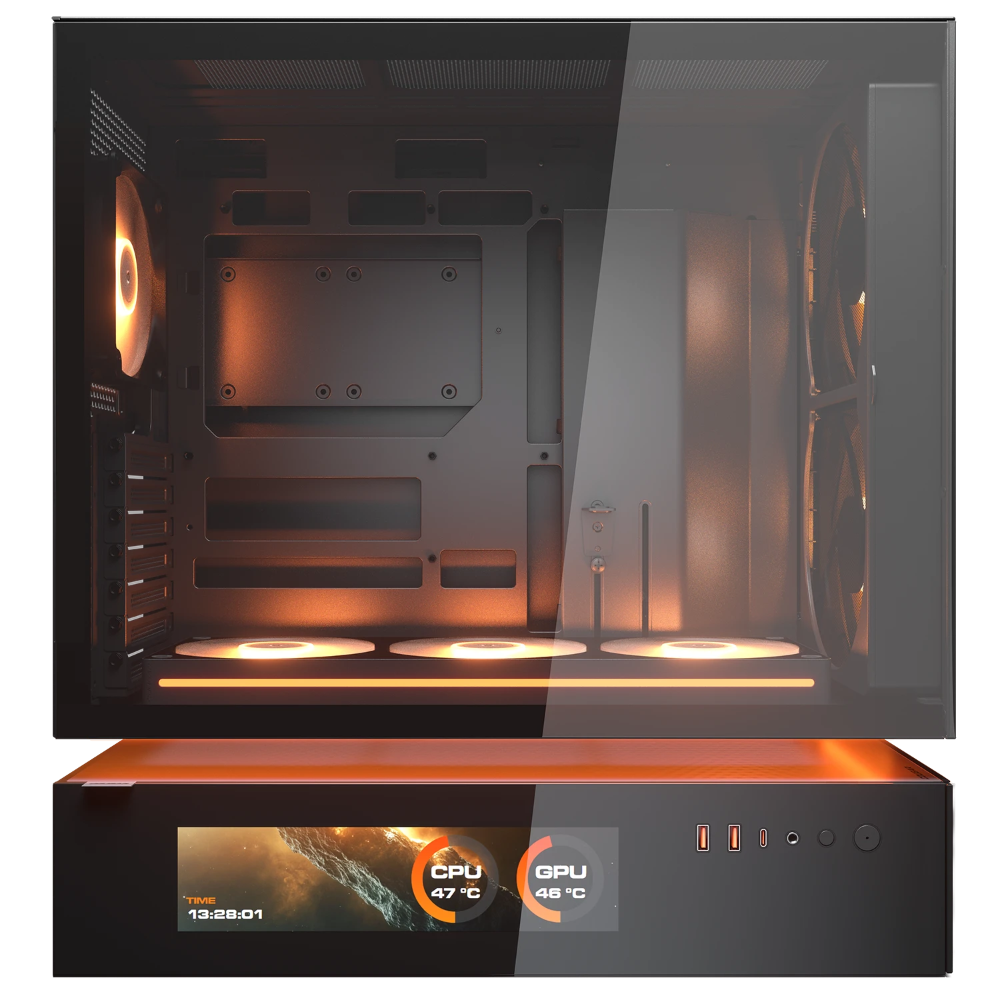

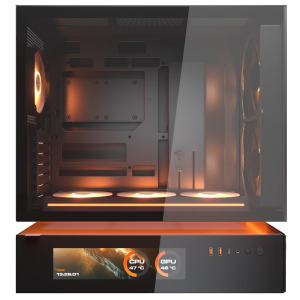

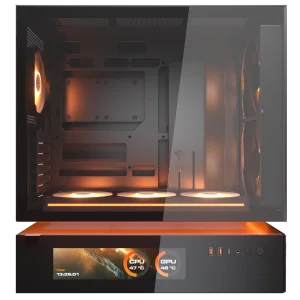

The CFV235 Mesh Vision integrates a 9.16-inch IPS TFT LCD panel for real-time system monitoring in an ultra-crisp 1920 x 462 resolution with a 60Hz refresh rate. Keep an eye on critical data from temperatures to fan speeds, while you personalize the display with JPG, PNG, GIF, or MP4 content, all managed through desktop software that acts as a live command center.
Operational Control
Performance data and absolute control over customisation and display alignment can be instantly and fully accessed through the installable software, equipping you with a command center console directly on your desktop.
The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.
Light. Speed
Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.
Vertical Spatial Efficiency
Space Engineering
Architectural Strength
Versatile Compatibility

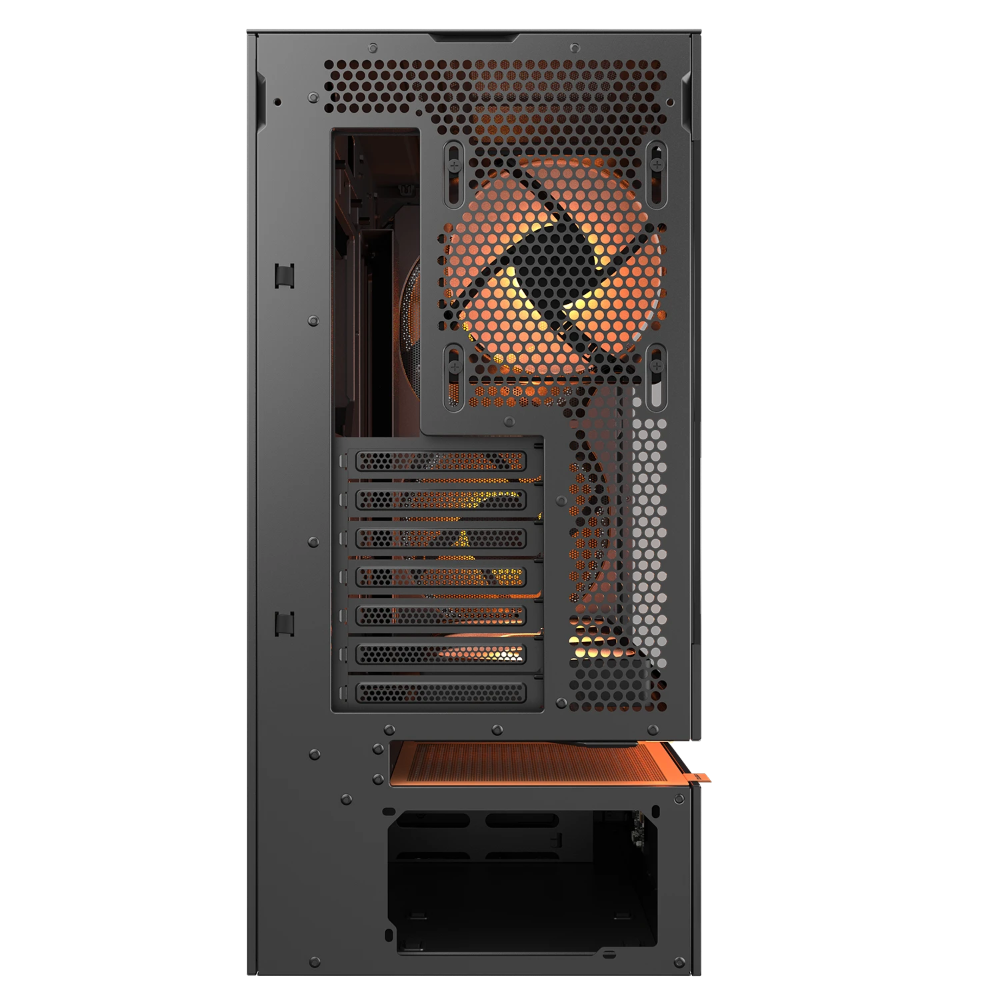

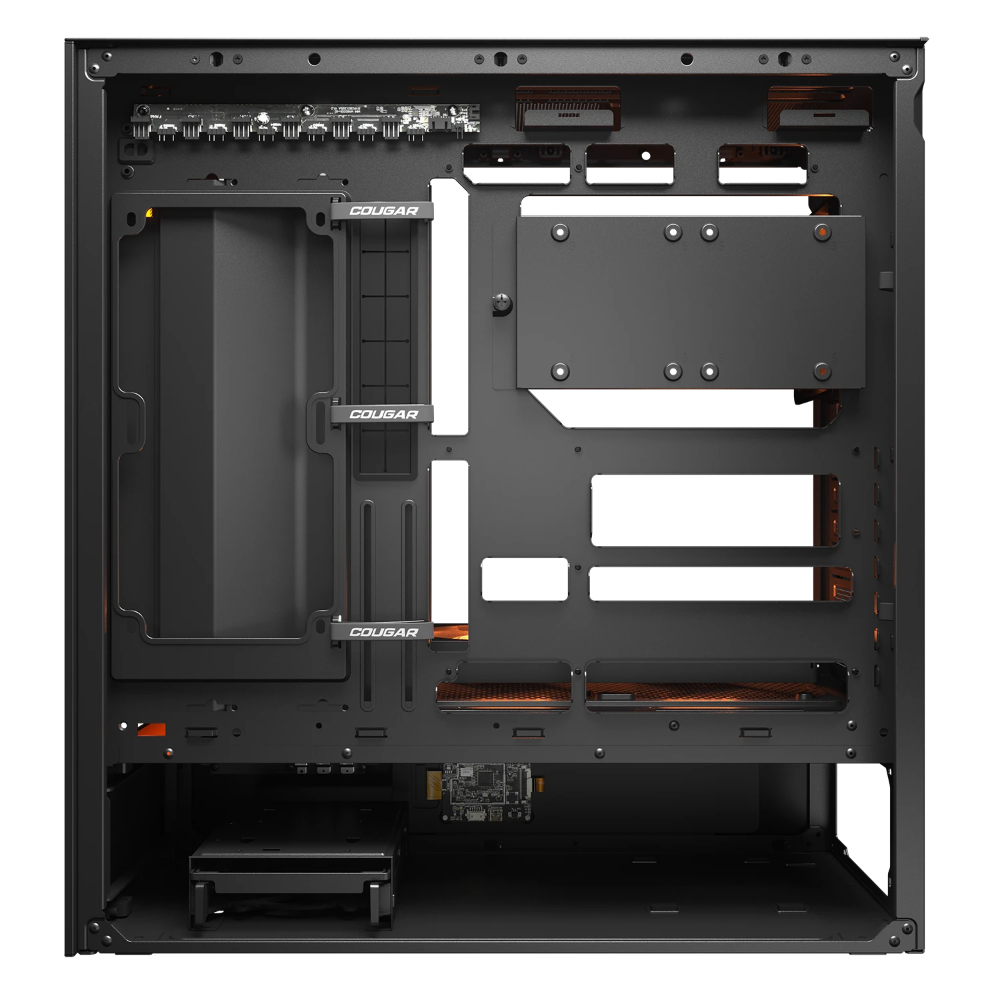

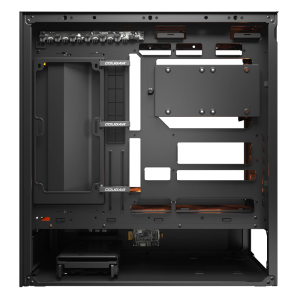

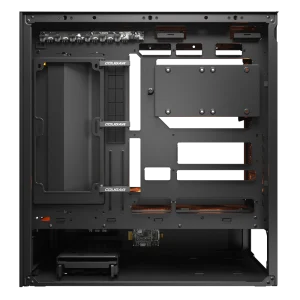

Compatible with reverse connector motherboards and accommodating GPUs of up to 400mm, the CFV235 Mesh Vision is engineered for the gaming rigs of the future. A cover pulls triple duty as airflow guide, cable management facilitator and GPU holder which can be optimally placed according to motherboard specifications: this makes the most efficient use of available space by not only reducing cable clutter but improving performance stability.
Guided Airflow
Cooling Capacity

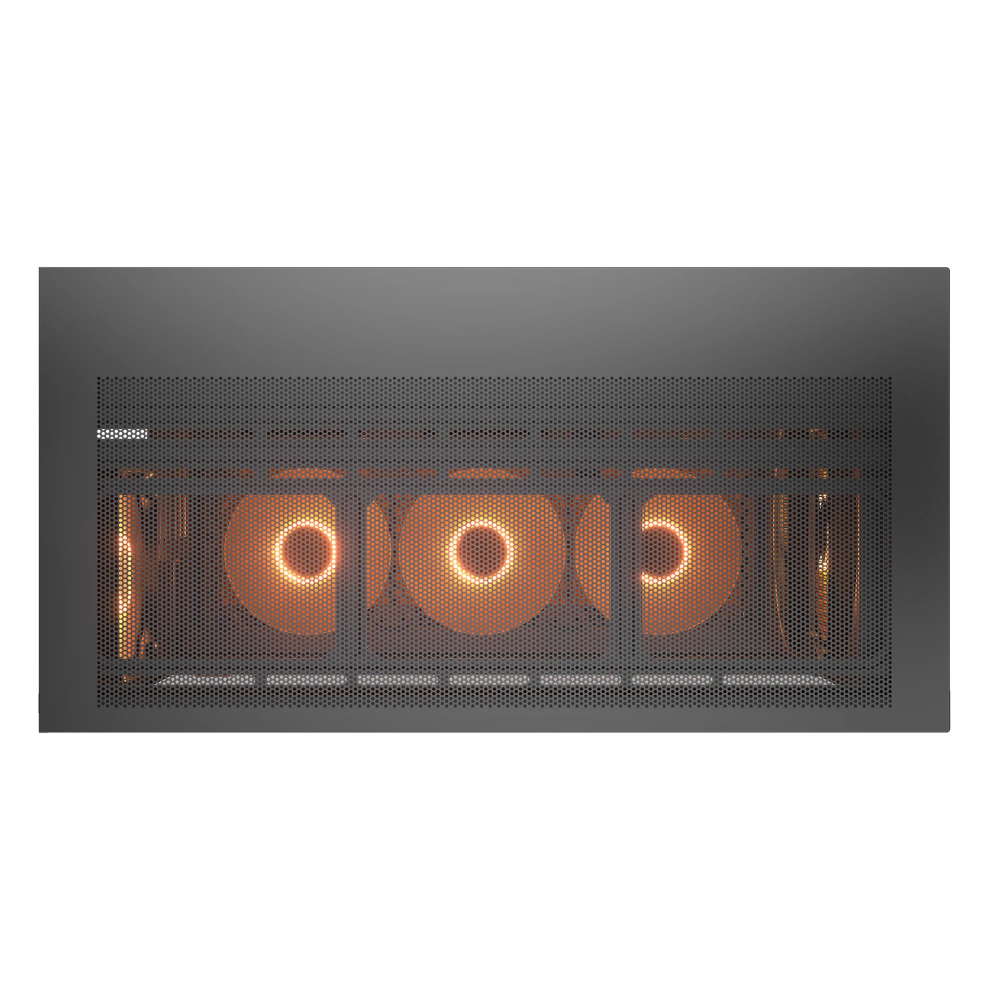

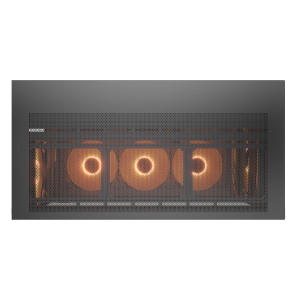

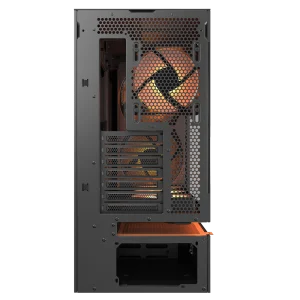

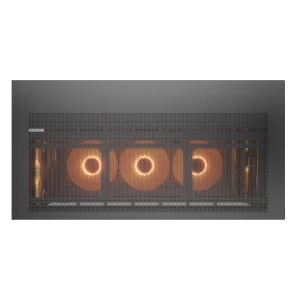

The CFV235 Mesh Vision has a fan capacity of 3x120mm or 2x140mm on the top, 3x120mm on the floor of the main chamber, 2x160mm fans on the front, and 1x120mm on the rear (2x160mm and rear 120 mm ARGB PWM fans are pre-installed). Water cooling support maxes out at 360mm on the top.
Peripheral Vision
The CFV235 Mesh Vision is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.
Full House

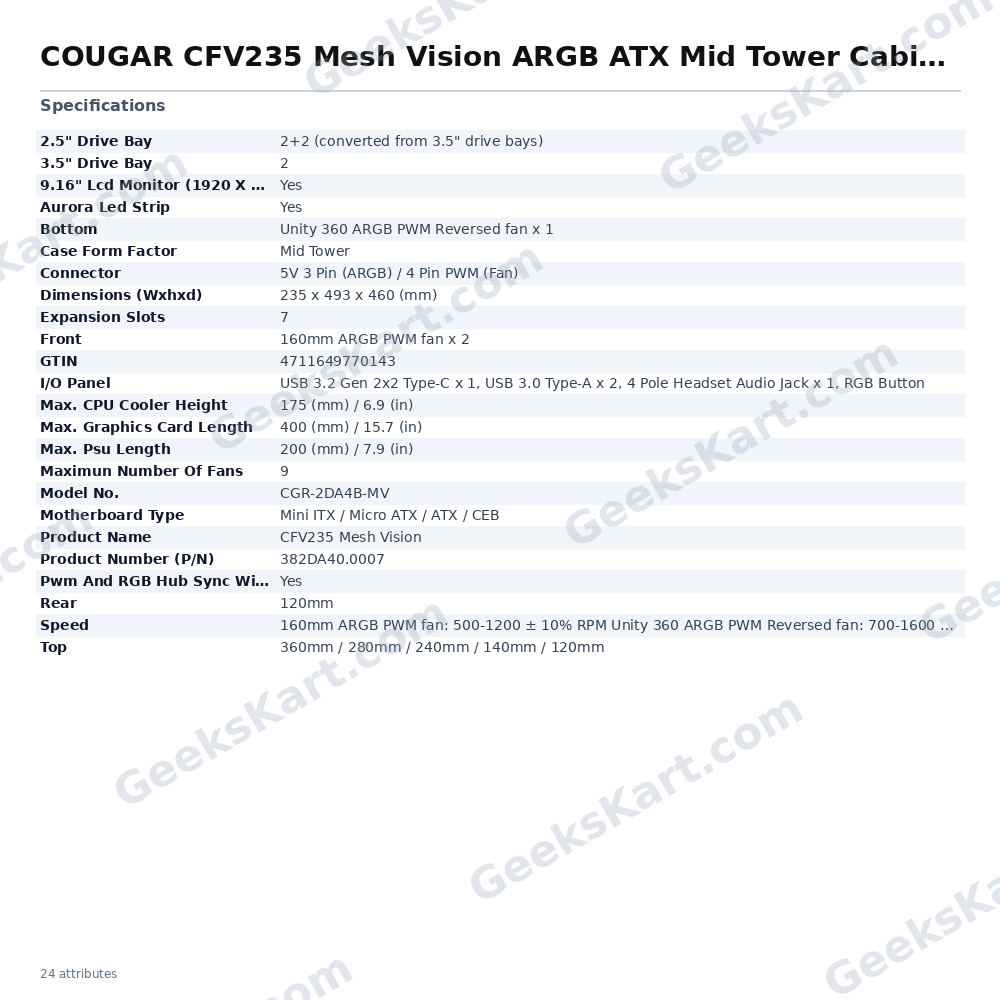

Specifications of COUGAR CFV235 Mesh Vision ARGB ATX Mid Tower Cabinet ( Black )
| Product Number (P/N) | 382DA40.0007 |
| Model No. | CGR-2DA4B-MV |
| Product Name | CFV235 Mesh Vision |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) |
| 9.3 x 19.4 x 18.1 (in) | |
| 9.16" LCD Monitor (1920 x 462 px) | Yes |
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| Expansion Slots | 7 |
| Cooling Fan Support | |
| Front | 160mm x 2 |
| Top | 120mm x 3 / 140mm x 2 |
| Bottom | 120mm x 3 |
| Rear | 120mm x 1 |
| Pre-installed Fans | |
| Front | 160mm ARGB PWM fan x 2 |
| Bottom | Unity 360 ARGB PWM Reversed fan x 1 |
| Rear | 120mm ARGB PWM fan x 1 |
| Speed | 160mm ARGB PWM fan: 500-1200 ± 10% RPM Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 9 |
| Water Cooling Support | |
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| Rear | 120mm |
| Aurora LED Strip | Yes |
| PWM and RGB hub Sync with M/B | Yes |
| Max. Graphics Card Length | 400 (mm) / 15.7 (in) |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Max. PSU Length | 200 (mm) / 7.9 (in) |
| EAN CODE | 4711649770143 |
| UPC CODE | 192554009773 |
Datasheet
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
|---|---|
| Rear | 120mm |
| Front | 160mm ARGB PWM fan x 2 |
| Speed | 160mm ARGB PWM fan: 500-1200 ± 10% RPM Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Bottom | Unity 360 ARGB PWM Reversed fan x 1 |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| I/O Panel | USB 3.2 Gen 2×2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| Model No. | CGR-2DA4B-MV |
| Product Name | CFV235 Mesh Vision |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| 3.5" Drive Bay | 2 |
| Expansion Slots | 7 |
| Max. Psu Length | 200 (mm) / 7.9 (in) |
| Aurora Led Strip | Yes |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (Wxhxd) | 235 x 493 x 460 (mm) |
| Product Number (P/N) | 382DA40.0007 |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Maximun Number Of Fans | 9 |
| Max. Graphics Card Length | 400 (mm) / 15.7 (in) |
| Pwm And RGB Hub Sync With M/B | Yes |
| 9.16" Lcd Monitor (1920 X 462 Px) | Yes |
