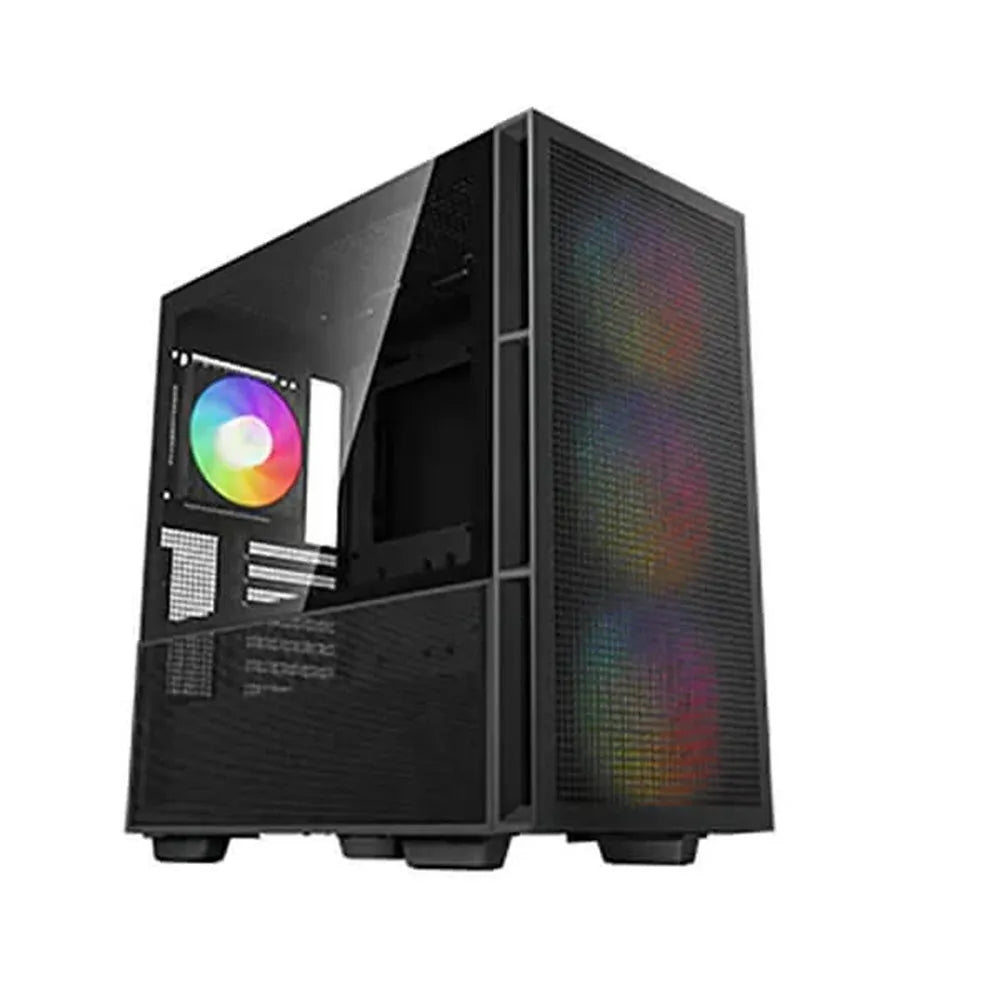

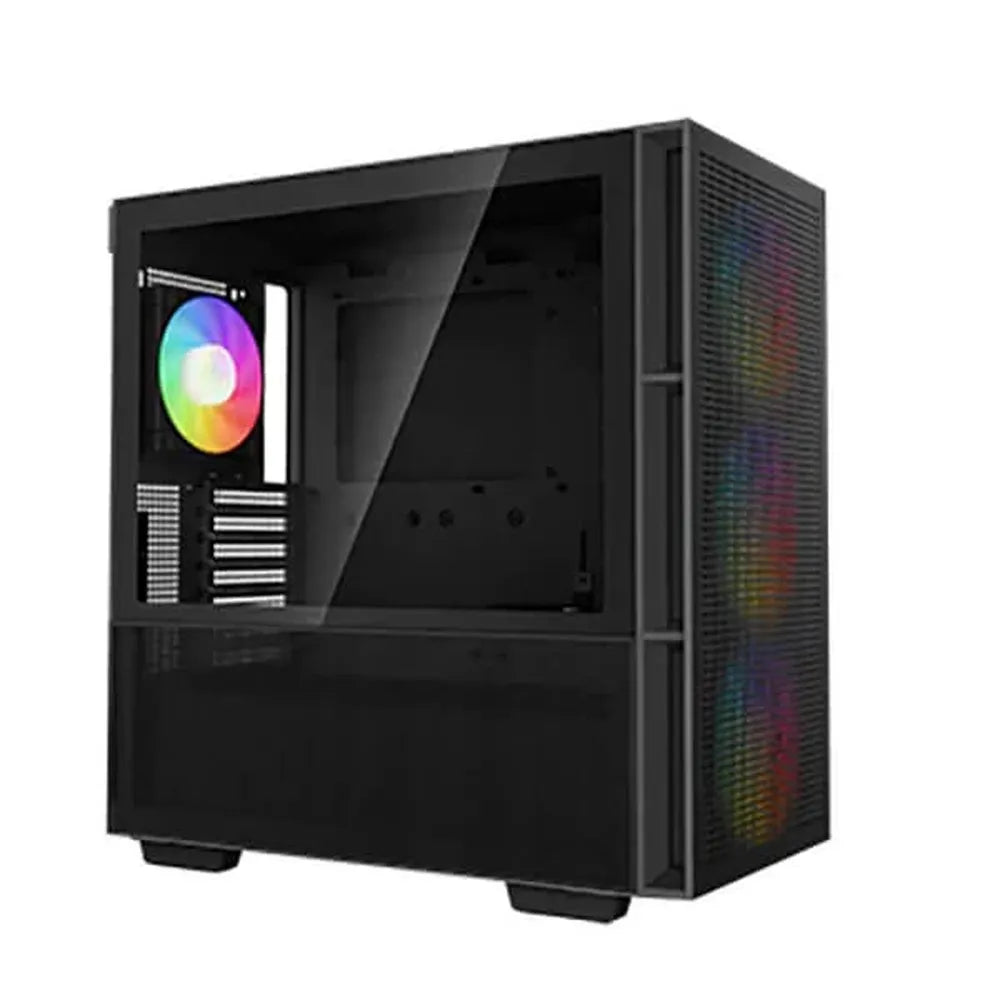

DEEPCOOL CH560 Mesh ARGB EATX Mid Tower Cabinet (Black)

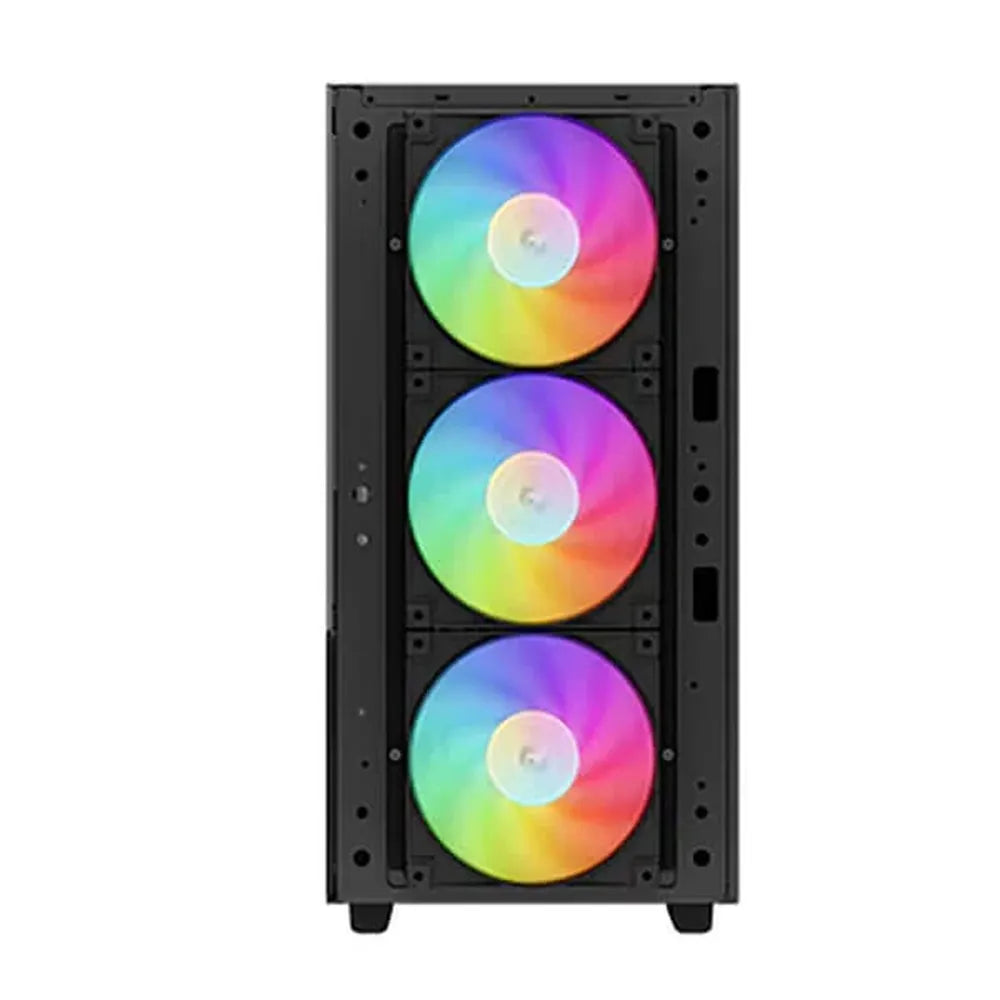

The Deepcool CH560 Mesh ARGB is a mid-tower PC cabinet engineered for builders who demand strong airflow, E-ATX compatibility, and striking RGB aesthetics in a single chassis. Measuring 458 × 230 × 471 mm and weighing 7.5 kg, the CH560 is constructed from ABS, SPCC steel, and tempered glass, balancing structural rigidity with visual appeal. Four ARGB fans come pre-installed from the factory: three 140 mm PWM ARGB fans on the front intake and one 120 mm PWM ARGB fan at the rear exhaust. These front fans are mounted outside the main compartment, preserving GPU clearance while keeping the overall footprint compact. Additional fan positions accommodate up to three 120 mm or three 140 mm fans on the front, three 120 mm or two 140 mm fans on the top, one 120 mm or 140 mm fan at the rear, and two 120 mm fans in the PSU shroud area, giving builders extensive cooling flexibility. Radiator support is equally generous: the front and top positions each accept radiators up to 360 mm, while the rear supports up to a 140 mm unit. This makes large all-in-one liquid coolers a straightforward fit. A hybrid side panel — combining a tempered glass window with a mesh ventilation strip — delivers both a clear view of internal components and supplementary airflow directly to the GPU area. Magnetic dust filters and a magnetic panel secured by an optional screw simplify routine maintenance. Component compatibility is broad. The CH560 supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards, accommodates CPU coolers up to 175 mm tall, graphics cards up to 380 mm long, and ATX PS2 power supplies up to 170 mm in length. Seven expansion slots, two 3.5-inch drive bays, and three 2.5-inch drive bays (2 + 1) provide ample storage capacity. Front I/O includes one USB 3.0 port, one USB Type-C port, and one combined audio jack. Cable management is assisted by 26 mm of clearance behind the motherboard tray, and a built-in GPU support arm reduces sag risk for heavier graphics cards. Key Specifications: – Model: CH560 | P/N: R-CH560-BKAPE4-G-1 – Dimensions: 458 × 230 × 471 mm (L × W × H) – Net Weight: 7.5 kg – Materials: ABS + SPCC + Tempered Glass – Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX – Pre-Installed Fans: 3 × 140 mm ARGB (front) + 1 × 120 mm ARGB (rear) – Fan Support: Front 3 × 120/140 mm; Top 3 × 120 / 2 × 140 mm; Rear 1 × 120/140 mm; PSU Shroud 2 × 120 mm – Radiator Support: Front & Top up to 360 mm; Rear up to 140 mm – CPU Cooler Height Limit: 175 mm – GPU Length Limit: 380 mm – PSU: ATX PS2, max 170 mm – Drive Bays: 2 × 3.5-inch, 3 × 2.5-inch – Expansion Slots: 7 – Front I/O: 1 × USB 3.0, 1 × USB Type-C, 1 × Audio – Warranty: 1 Year
