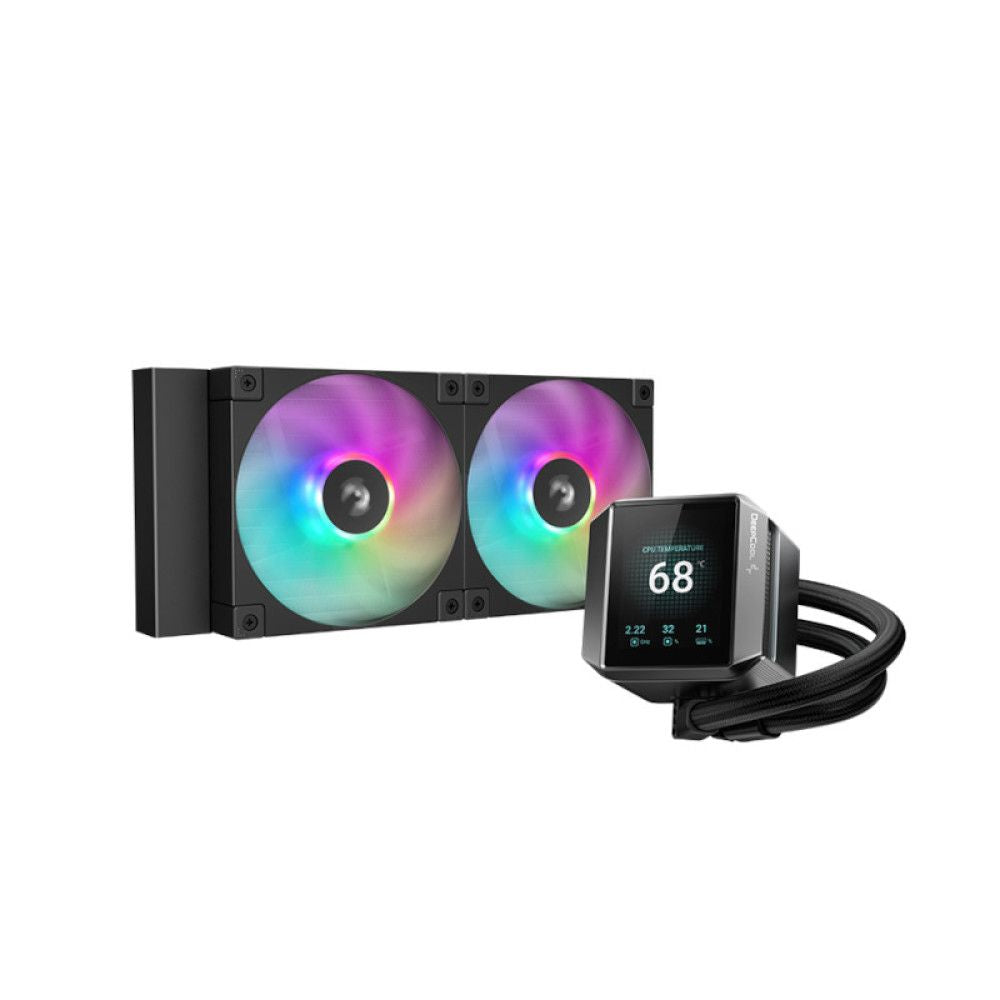

DEEPCOOL Mystique 240 ARGB 240mm CPU Liquid Cooler (Black)
MPN DEEPCOOL-MYSTIQUE-240-ARGB-BLACK · Brand Deepcool
The Deepcool Mystique 240 ARGB delivers 240mm AIO cooling with a 2.83" gyro-correcting LCD, 5th-gen 3,400 RPM pump, dual FD12 ARGB PWM fans, and Anti-Leak Technology for a confident, visually striking build
Inclusive of GST · GST invoice available
Overview

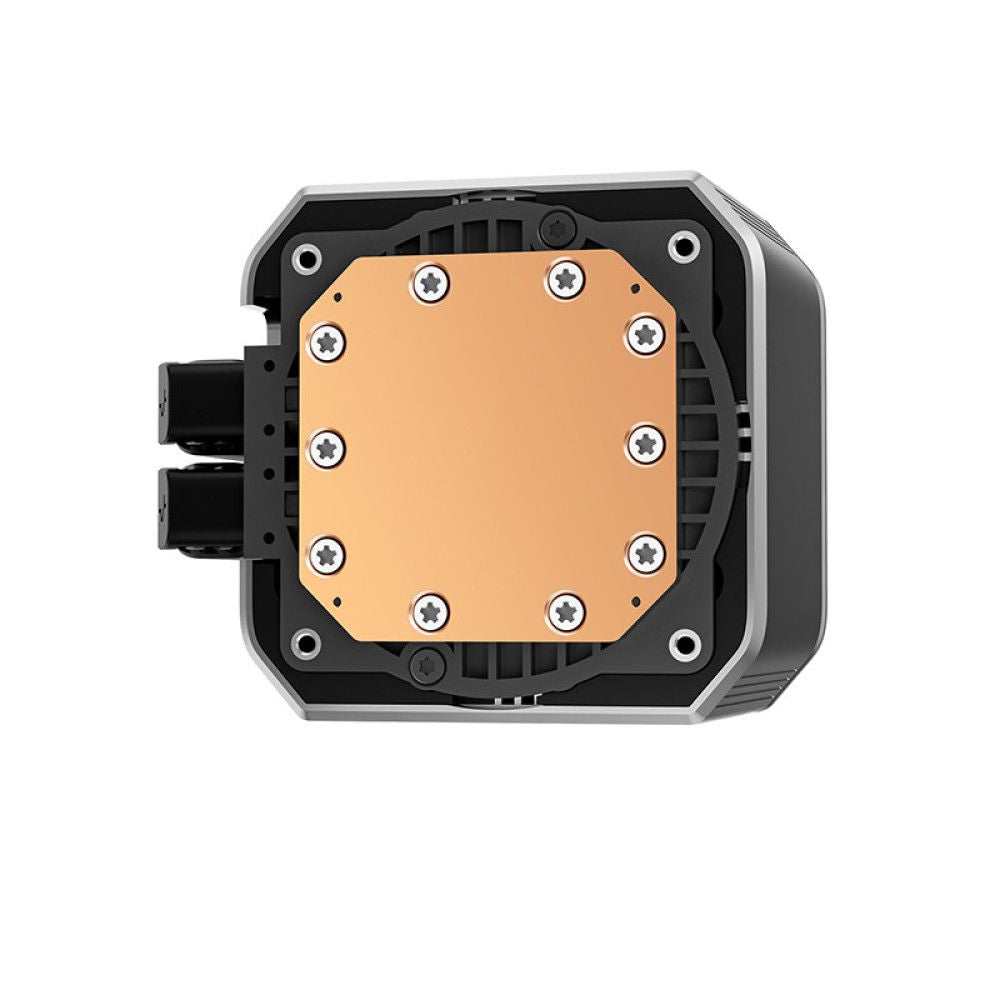

The Deepcool Mystique 240 ARGB is a 240mm all-in-one CPU liquid cooler built for enthusiasts who demand both thermal performance and visual customisation. At its heart sits Deepcool's 5th-generation pump, driven by an efficient 3-phase, 6-slot, 4-pole motor capable of reaching up to 3,400 RPM (±10%), ensuring consistent coolant circulation even under sustained workloads. One of the standout features of the Mystique 240 ARGB is its 2.83-inch TFT LCD display, which outputs a crisp 480×640 pixel resolution and renders up to 16.7 million colours. An integrated gyroscopic sensor automatically corrects the screen orientation regardless of how the radiator is mounted, so your chosen content — system stats, custom graphics, or thermal readouts — always displays upright. The redesigned coldplate incorporates 0.13 mm intensive micro-flow channels positioned directly over CPU hotspots, paired with a precision liquid splitter for uniform coolant distribution and efficient heat transfer. Tube length is 410 mm, giving flexible routing options inside most mid-tower and full-tower cases. Two FD12 ARGB PWM fans are included, each measuring 120×120×25 mm. They spin between 600 and 2,400 RPM (±10%), deliver up to 72.04 CFM of airflow at 3.48 mmAq static pressure, and stay under 38.71 dB(A) at peak. A Hydro Bearing design supports long-term reliability, and the fans connect via 4-pin PWM headers with chainable 8-pin connectors for tidy cable management. Addressable RGB lighting is handled through a 3-pin (+5V-D-G) ARGB connector compatible with major motherboard ARGB headers or controllable via Deepcool's DeepCreative software. DeepCreative also provides real-time system monitoring, device management, and a thermal colour-warning feature that changes lighting in response to CPU temperature. DeepCool's patented Anti-Leak Technology uses an internal pressure-relief valve to maintain safe internal pressure and extend the cooler's operational life. Verifiable Specifications: • Radiator: 282×120×27 mm, aluminium • Tube length: 410 mm • Pump speed: 3,400 RPM ±10% | 3-pin connector | 12 VDC / 0.35 A / 4.2 W • Pump dimensions: 93×77×66 mm • Fan speed: 600–2,400 RPM ±10% | 4-pin PWM | 12 VDC / 0.22 A / 2.64 W • Fan airflow: 72.04 CFM | Air pressure: 3.48 mmAq | Noise: ≤38.71 dB(A) • Bearing: Hydro Bearing | LED: Addressable RGB, 5 VDC, 3-pin ARGB • Display: 2.83-inch 480×640 TFT LCD • Net weight: 1,543 g | EAN: 6933412728870 | P/N: R-LX550-BKADSNC-G-1
Datasheet
| P/N | R-LX550-BKADSNC-G-1 |
|---|---|
| Led Type | Addressable RGB LED |
| Fan Noise | ≤38.71 dB(A) |
| Fan Speed | 600~2400 RPM±10% |
| Net Weight | 1543 g |
| Pump Speed | 3400 RPM±10% |
| Fan Airflow | 72.04 CFM |
| Tube Length | 410 mm |
| Bearing Type | Hydro Bearing |
| Fan Connector | 4-pin PWM |
| Led Connector | 3-pin(+5V-D-G) |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Pump Connector | 3-pin |
| Pump Dimensions | 93×77×66 mm(L×W×H) |
| Fan Air Pressure | 3.48 mmAq |
| Fan Rated Current | 0.22 A |
| Fan Rated Voltage | 12 VDC |
| Led Rated Voltage | 5 VDC |
| Radiator Material | Aluminum |
| Pump Rated Current | 0.35 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Fan Power Consumption | 2.64 W |
| Led Power Consumption | 2.45 W(PUMP)/ 2.1 W(FAN×2) |
| Display Specifications | 2.83 inch 480×640 TFT LCD |
| Pump Power Consumption | 4.2 W |
