Fractal Design Meshify 3 XL Black RGB TG Light Tint Mid Tower Case
MPN FD-C-MES3X-04 · Brand FRACTAL DESIGN · ATX, E-ATX, mATX, Mini-ITX
The Fractal Design Meshify 3 XL Black RGB mid-tower features a mesh front panel, three Momentum 14 FDB fans, E-ATX support, 512 mm GPU clearance, and 420 mm radiator compatibility for high-performance builds
Inclusive of GST · GST invoice available
Overview
The Fractal Design Meshify 3 XL Black RGB Tempered Glass Light Tint Mid Tower Case is a spacious, performance-focused enclosure designed for enthusiast and gaming builds that demand superior thermal management and clean aesthetics. Built around Fractal Design's proven mesh performance philosophy, the Meshify 3 XL combines an aerodynamic, rockface-inspired mesh front panel with a tempered glass side panel in a light tint finish, delivering both strong airflow and visual appeal. Three pre-installed Momentum 14 fans ship with the case, each engineered with LCP (Liquid Crystal Polymer) blades and true Fluid Dynamic Bearings (FDB) for a balance of high static pressure, airflow output, and quiet operation. These fans arrive ready to move air through the spacious interior immediately out of the box. For builders pursuing custom liquid cooling, the Meshify 3 XL accommodates radiators up to 420 mm in the top position and up to 360 mm at the front and side positions, covering virtually every AIO and custom loop configuration on the market. Motherboard compatibility spans the full range from Mini-ITX up to E-ATX (330 mm width), making this case a versatile foundation for both compact and workstation-class builds. Graphics card clearance of up to 512 mm ensures compatibility with even the longest high-end GPUs currently available. CPU cooler height clearance reaches 182 mm, accommodating most premium tower air coolers. Cable management is addressed through a dedicated cable cover and new cable aligners that guide routing neatly behind the motherboard tray. Panels, including the top panel with its fabric pull-tab, are designed for tool-free or quick removal, simplifying both the initial build and future maintenance. Verified Specifications: - Form Factor: Mid Tower - Motherboard Support: E-ATX (up to 330 mm), ATX, Micro-ATX, Mini-ITX - Pre-installed Fans: 3 × Momentum 14 (LCP blades, FDB bearings) - Max Fan Support: 10 - Max GPU Length: 512 mm - Max CPU Cooler Height: 182 mm - Max PSU Length: 230 mm - Radiator Support: 420 mm (top), 360 mm (front/side), 280 mm, 240 mm, 140 mm, 120 mm - Drive Bays: 4 × 2.5" SSD, 2 × 3.5" HDD - Expansion Slots: 7 - Front I/O: USB Type-C 20 Gbps, USB Type-A 5 Gbps, Audio Combo Jack, Power Button - Dust Filters: Bottom - Materials: Steel chassis, Tempered Glass side panel (light tint) - Color: Black - Warranty: 2 Years - SKU: FD-C-MES3X-04

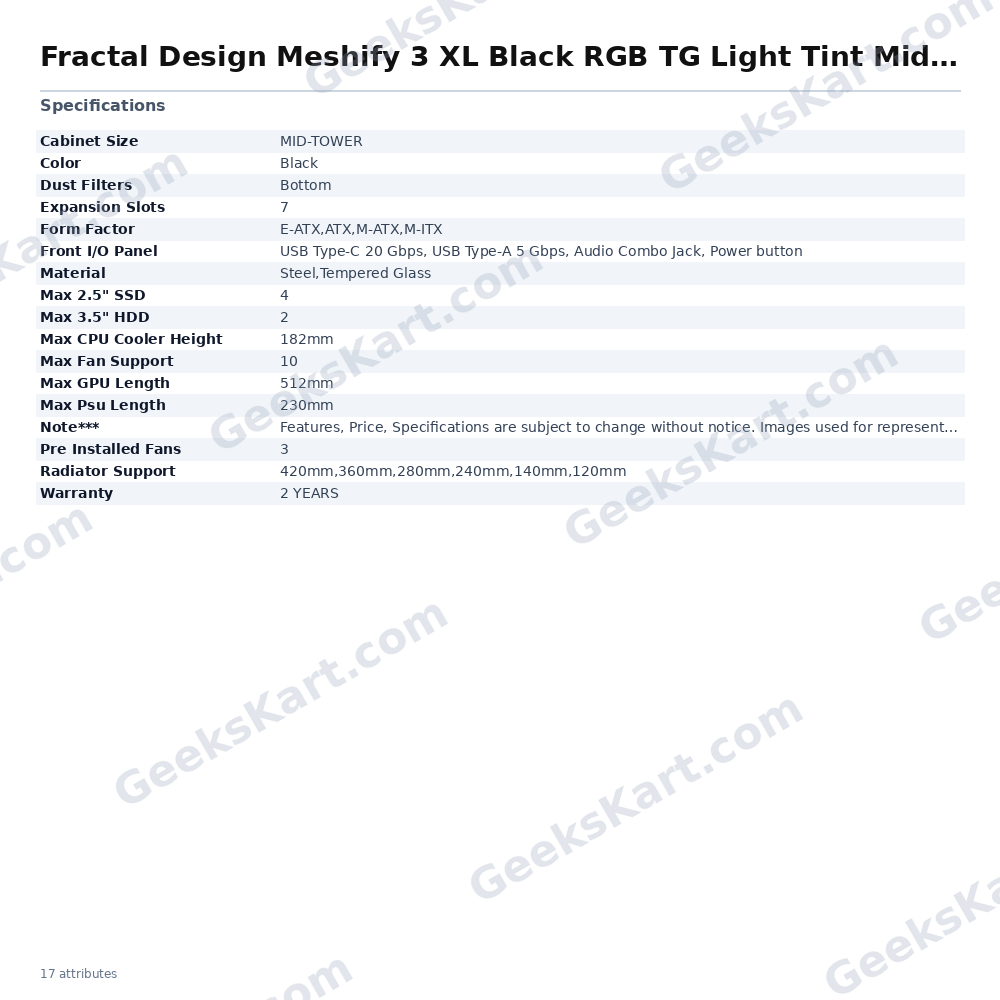

Datasheet
| Warranty | 2 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Black |
| Note*** | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
| Material | Steel,Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Bottom |
| Max 2.5" SSD | 4 |
| Max 3.5" HDD | 2 |
| Max GPU Length | 512mm |
| Max Psu Length | 230mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB Type-C 20 Gbps, USB Type-A 5 Gbps, Audio Combo Jack, Power button |
| Max Fan Support | 10 |
| Radiator Support | 420mm,360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 3 |
| Max CPU Cooler Height | 182mm |
