The Gigabyte B450M DS3H V2 is a Micro-ATX motherboard built on the AMD B450 chipset for the AM4 socket, making it a capable and compact foundation for a wide range of AMD Ryzen builds. It supports AMD 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, 2nd and 1st Gen Ryzen processors with Radeon Vega Graphics, and Athlon with Radeon Vega Graphics processors. With a BIOS update, the board also supports AMD Ryzen 5000 Series processors, extending its longevity for users who want to upgrade their CPU without changing platforms. Memory flexibility is a strong point of this board. Four DDR4 DIMM slots support dual-channel configurations with a combined capacity of up to 64 GB. Supported speeds range from DDR4 2133 MHz up to DDR4 3600 MHz (the latter via overclocking), and the board is compatible with XMP memory profiles for straightforward performance tuning. ECC Un-buffered DIMMs are also accepted, though they operate in non-ECC mode. For storage, an M.2 Socket 3 connector (M key, type 2242/2260/2280/22110) supports both PCIe x4/x2 NVMe and SATA SSDs, while four SATA 6 Gb/s ports accommodate traditional drives. RAID 0, RAID 1, and RAID 10 configurations are supported across SATA devices. Display output uses onboard integrated graphics from a compatible APU via one HDMI 2.0 port (up to 4096×2160 @ 60 Hz with HDCP 2.2) and one DVI-D port (up to 1920×1200 @ 60 Hz). Audio is handled by a Realtek ALC887 codec with High Definition Audio supporting up to 7.1-channel output and S/PDIF Out. Connectivity includes a Realtek Gigabit Ethernet controller (10/100/1000 Mbit), four USB 3.1 Gen 1 ports on the rear panel via the CPU, four USB 2.0/1.1 rear ports, and additional internal USB headers. RGB Fusion support allows customisation of the onboard RGB LED strip header in seven colours. Smart Fan 5 provides five temperature sensor inputs and two hybrid fan headers with FAN STOP capability. Verified Specifications: – Socket: AM4 – Chipset: AMD B450 – Form Factor: Micro-ATX – Memory: 4 x DDR4 DIMM, up to 64 GB, dual-channel; DDR4 2133–3600 MHz (3600 O.C.); XMP support – Storage: 1 x M.2 (PCIe x4/x2 NVMe + SATA), 4 x SATA 6 Gb/s, RAID 0/1/10 – Display: 1 x HDMI 2.0 (4096×2160 @ 60 Hz), 1 x DVI-D (1920×1200 @ 60 Hz) – Audio: Realtek ALC887, 2/4/5.1/7.1-ch, S/PDIF Out – LAN: Realtek GbE (10/100/1000 Mbit) – Rear USB: 4 x USB 3.1 Gen 1, 4 x USB 2.0/1.1 – Expansion: 1 x PCIe x16 (Gen3), 1 x PCIe x16 (runs at x4, Gen2), 1 x PCIe x1 (Gen2) – BIOS: AMI UEFI, 128 Mbit flash, Q-Flash support – Warranty: 3 years
GIGABYTE Z890 GAMING X WIFI7 DDR5 Intel Motherboard
₹30,505.00
MSI MAG X870 Tomahawk Wifi DDR5 AMD Motherboard
₹36,850.00

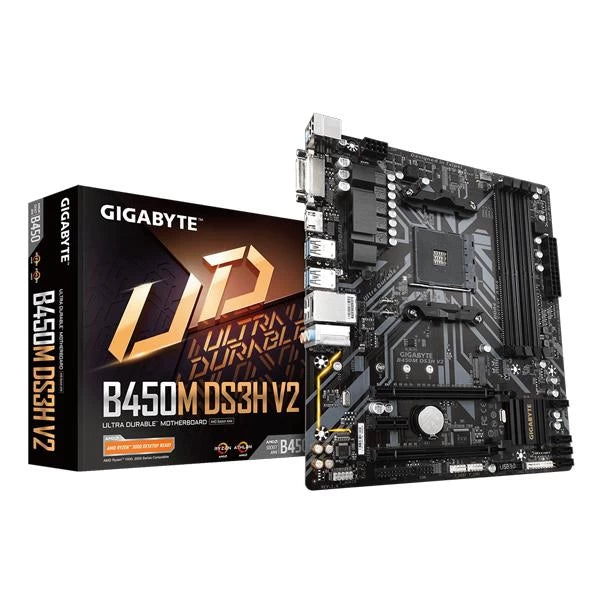

GIGABYTE B450M DS3H V2 DDR4 AMD Motherboard
₹6,590.00
The Gigabyte B450M DS3H V2 is an AM4 Micro-ATX motherboard with AMD B450 chipset, four DDR4 DIMM slots supporting up to 64 GB, PCIe Gen3 M.2, HDMI 2.0, and RGB Fusion – a solid platform for AMD Ryzen builds
Out of stock

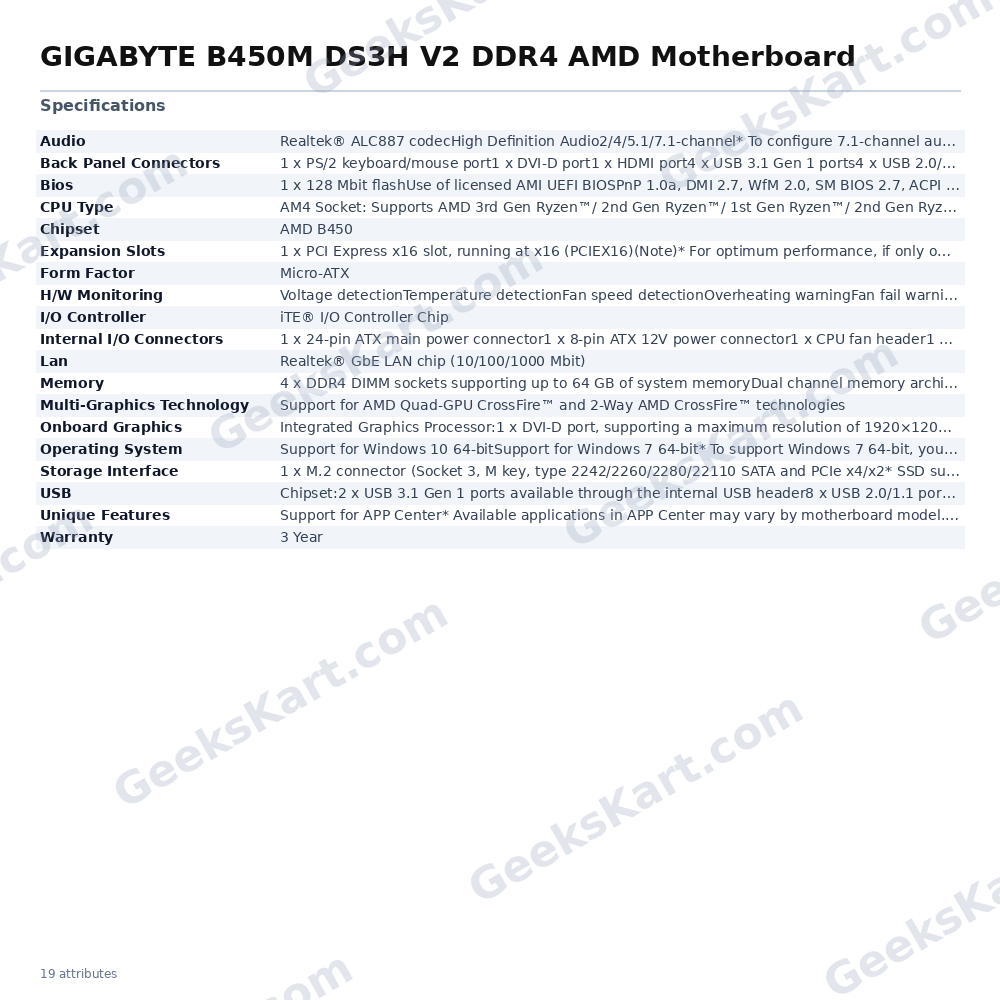

Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B450 |
| CPU Type | AM4 Socket: Supports AMD 3rd Gen RyzenTM/ 2nd Gen RyzenTM/ 1st Gen RyzenTM/ 2nd Gen RyzenTM with RadeonTM Vega Graphics/ 1st Gen RyzenTM with RadeonTM Vega Graphics/ AthlonTM with RadeonTM Vega Graphics Processors |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:2 x USB 3.1 Gen 1 ports available through the internal USB header8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)CPU:4 x USB 3.1 Gen 1 ports on the back panel |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memoryDual channel memory architectureSupport for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSDAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSmart SurveySystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note)* Support for HDMI 2.0 version and HDCP 2.2.(Note)Maximum shared memory of 16 GB |
| Operating System | Support for Windows 10 64-bitSupport for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)* Actual support may vary by CPU.* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x CPU cooler LED strip/RGB LED strip header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
