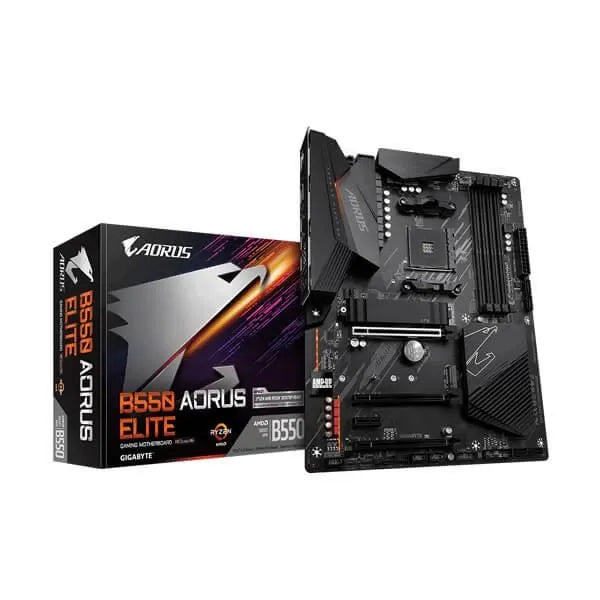

GIGABYTE B550 Aorus Elite DDR4 AMD Motherboard

The GIGABYTE B550 Aorus Elite is an ATX-form-factor motherboard built around AMD’s B550 chipset, designed to pair with 3rd Generation AMD Ryzen processors on the AM4 platform. Its robust power delivery system features a true 12+2 phases digital VRM solution, each phase rated at 50A via DrMOS components, ensuring stable current delivery during demanding workloads and giving enthusiasts meaningful headroom for processor performance tuning. Enlarged surface heatsinks work alongside this digital VRM design to manage thermals and keep the power stages within safe operating temperatures over extended sessions. For networking, the board includes a 2.5GbE LAN controller with bandwidth management, delivering noticeably faster wired transfer speeds compared to standard Gigabit Ethernet and benefiting users who move large files across a local network or stream to network-attached storage. Display output is handled directly from the rear I/O with both a DisplayPort and an HDMI port, supporting users who rely on integrated graphics without needing a discrete card. Memory support follows the DDR4 SDRAM standard, with the board accommodating up to 128 GB of system RAM across its slots, operating under the specifications appropriate for the B550 platform. USB connectivity is broad, with 11 USB ports in total across the board’s rear panel and internal headers. One of the standout maintenance features is Q-Flash Plus, which allows users to update the BIOS directly from a USB drive without installing the CPU, memory modules, or graphics card — a practical convenience when preparing a system for a newly released processor that requires a firmware update before initial boot. Verifiable Specifications: – Chipset: AMD B550 – Compatible CPUs: AMD 3rd Generation Ryzen (AM4 socket) – Memory Type: DDR4 SDRAM – Maximum Memory: 128 GB – VRM: 12+2 phase digital, 50A DrMOS – LAN: 2.5GbE – Display Output: DisplayPort, HDMI (rear I/O) – Total USB Ports: 11 – Form Factor: ATX (30.5 x 24.4 cm) – Item Weight: 430 g – Model Year: 2020 – BIOS Feature: Q-Flash Plus
