GIGABYTE B560M DS3H V2 DDR4 Intel Motherboard
MPN GIGABYTE-B560M-DS3H-V2 · Brand Gigabyte · mATX
The Gigabyte B560M DS3H V2 is a Micro ATX LGA1200 motherboard supporting 10th and 11th Gen Intel Core processors with DDR4 up to 128 GB, dual PCIe M.2 slots, PCIe 4.0 x16, USB Type-C, and RGB Fusion 2.0
Inclusive of GST · GST invoice available
Overview
The Gigabyte B560M DS3H V2 is a Micro ATX motherboard built on the Intel B560 Express Chipset, designed to support both 10th and 11th Generation Intel Core processors in the LGA1200 socket. Whether you are building a capable home workstation or a compact gaming rig, this board delivers a solid feature set at a compact 24.4 cm x 24.4 cm footprint. Power delivery is handled by a Direct 6+2 Phase Digital VRM solution with Low RDS MOSFETs, providing cleaner and more efficient power to the CPU under demanding workloads. The board accommodates four DDR4 DIMM slots in a dual-channel configuration, supporting up to 128 GB of system memory. With 11th Gen Core i9/i7/i5 processors installed, memory can run at speeds up to DDR4 3200 natively or higher via XMP overclocking profiles. Storage is covered by two M.2 Socket 3 connectors: the CPU-connected M2P_CPU slot supports PCIe 4.0 x4 NVMe drives (types 2260/2280/22110) when used with a compatible 11th Gen processor, while the chipset-connected M2A_SB slot supports PCIe 3.0 x4 and SATA M.2 drives. Six SATA 6 Gb/s ports provide additional storage flexibility. The back panel offers three video outputs — DVI-D (up to 1920×1200@60 Hz), DisplayPort 1.2 (up to 4096×2304@60 Hz), and HDMI 1.4 (up to 4096×2160@30 Hz) — enabling up to three simultaneous displays using integrated Intel graphics. Connectivity includes one USB Type-C port with USB 3.2 Gen 1 support, three USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, a PS/2 port, and an RJ-45 LAN port backed by a Realtek GbE chip. Audio is delivered via a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output, complemented by high-quality audio capacitors and an audio noise guard with LED trace path lighting. RGB Fusion 2.0 provides onboard and external RGB lighting control, including support for addressable LED and standard RGB strips. The Smart Fan 6 system offers multiple temperature sensors and hybrid fan headers with FAN STOP capability. The Q-Flash Plus feature allows BIOS updates without installing a CPU, memory, or graphics card — useful for troubleshooting or upgrading. The BIOS uses a licensed AMI UEFI implementation with a 256 Mbit flash chip. Verified Specifications: - Socket: LGA1200 | Chipset: Intel B560 Express - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Memory: 4 x DDR4 DIMM, up to 128 GB, dual-channel, XMP supported - Storage: 1 x PCIe 4.0 x4 M.2 (CPU), 1 x PCIe 3.0 x4/SATA M.2 (chipset), 6 x SATA 6 Gb/s - Expansion: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 - Video Output: DVI-D, DisplayPort 1.2, HDMI 1.4 (up to 3 simultaneous displays) - USB: 1 x USB Type-C (USB 3.2 Gen 1), 5 x USB 3.2 Gen 1, 6 x USB 2.0/1.1 - LAN: Realtek GbE (1 Gbps/100 Mbps) - Audio: Realtek HD Audio CODEC, 7.1-channel - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

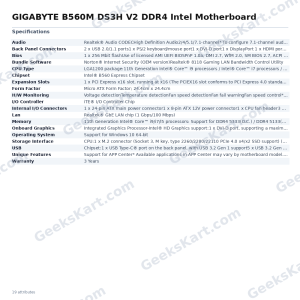

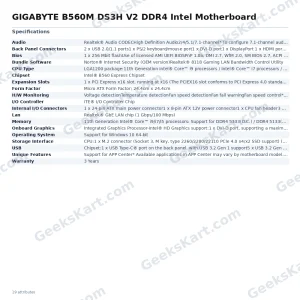

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 2.0 Hub:2 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)(Note) Supported by 11th Generation processors only |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.31 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same time |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectors* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready *System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.(Note) Supported by 11th Generation processors only |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DVI-D port1 x DisplayPort 1 x HDMI port3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header 1 x RGB LED strip header6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x Clear CMOS jumper1 x Q-Flash Plus button＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
