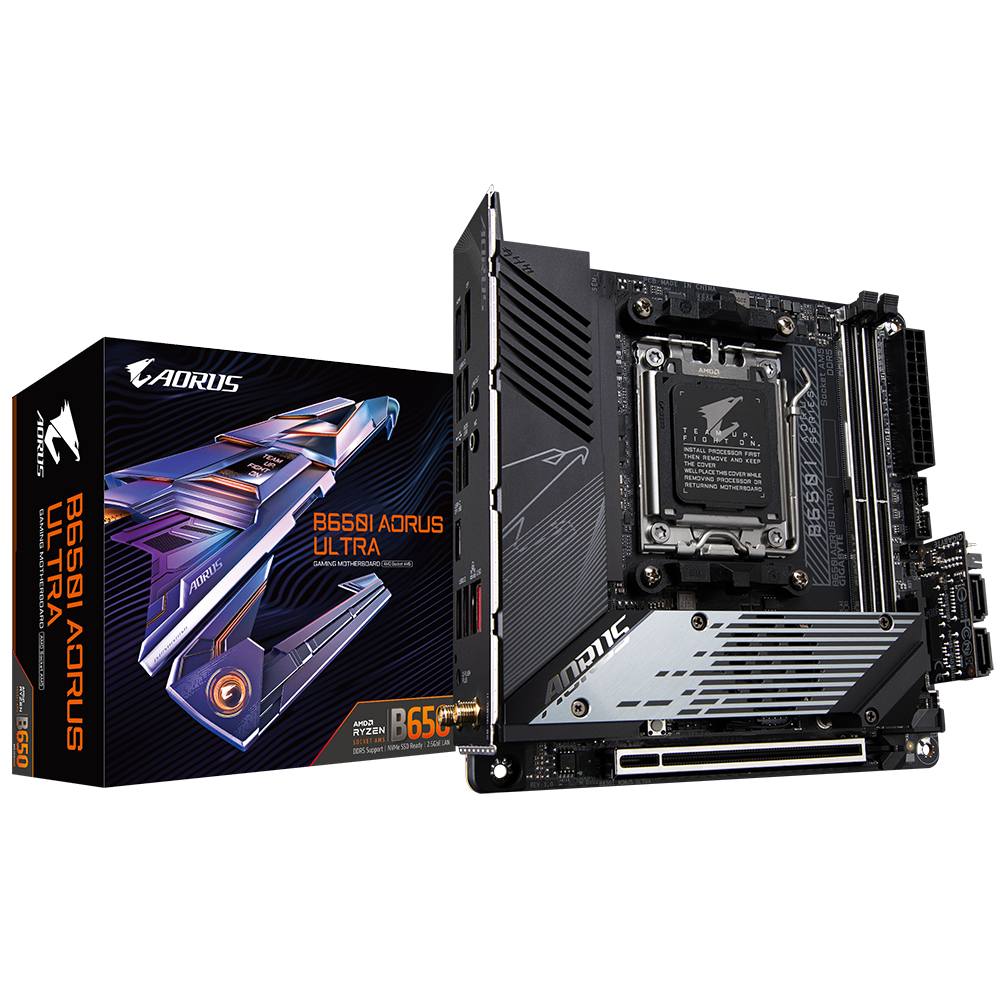

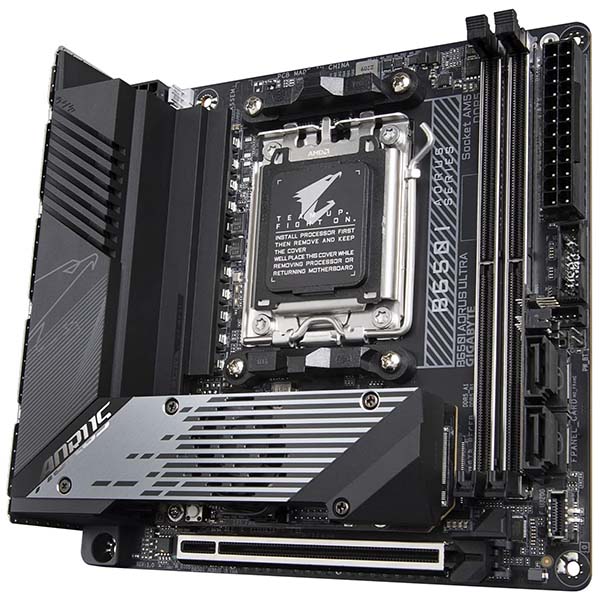

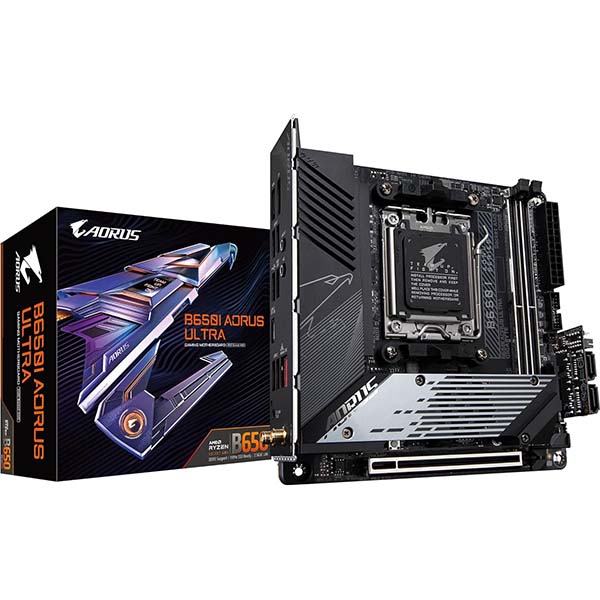

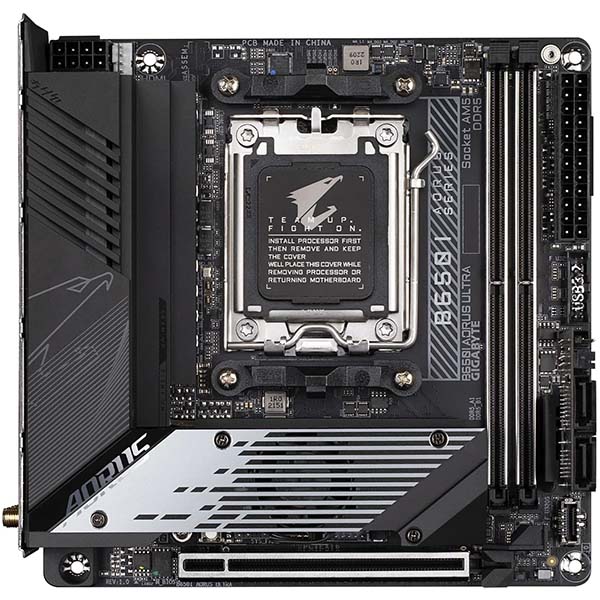

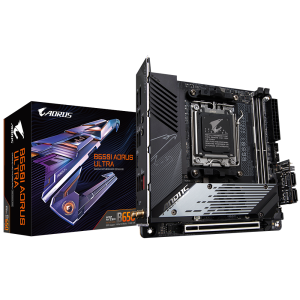

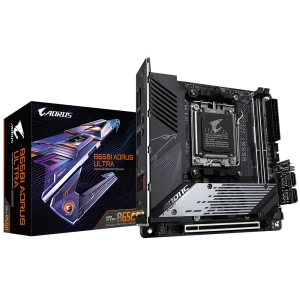

GIGABYTE B650I Aorus Ultra DDR5 AMD Motherboard
MPN B650I-AORUS-ULTRA · Brand Gigabyte · Mini-ITX
GIGABYTE B650I Aorus Ultra DDR5 AMD Motherboard. Highlights: DDR5
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B650I Aorus Ultra DDR5 AMD Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: AM5; Chipset: AMD B650; Form Factor: Mini-ITX Form Factor; 17.0cm x 17.0cm; Memory Type: DDR5; Color: Black. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹33685 subject to availability — confirm at checkout

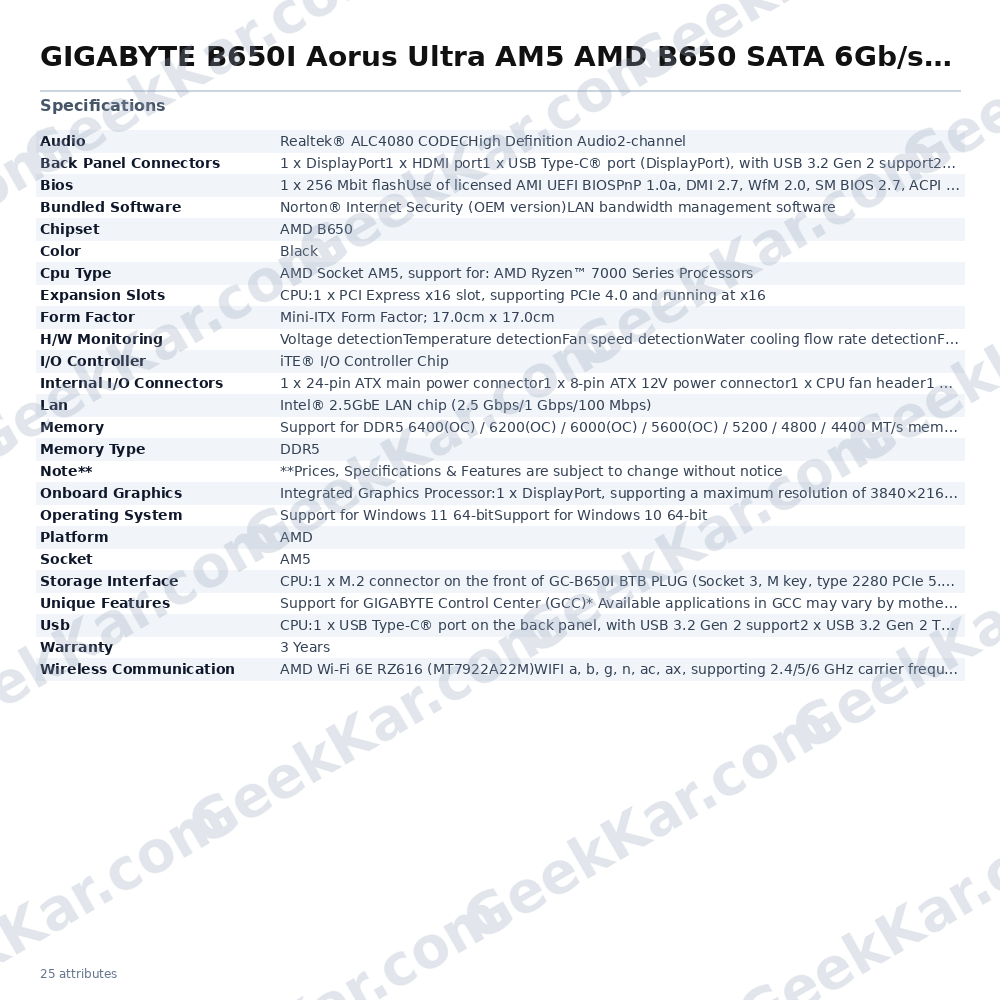

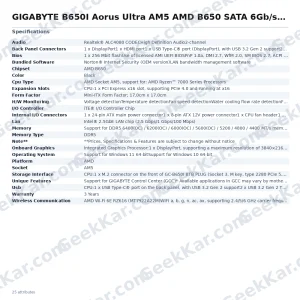

Datasheet
| Platform | AMD |
|---|---|
| Lan | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Usb | CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUGChipset:1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panel |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC4080 CODECHigh Definition Audio2-channel |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)* Actual support may vary by CPU.1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |

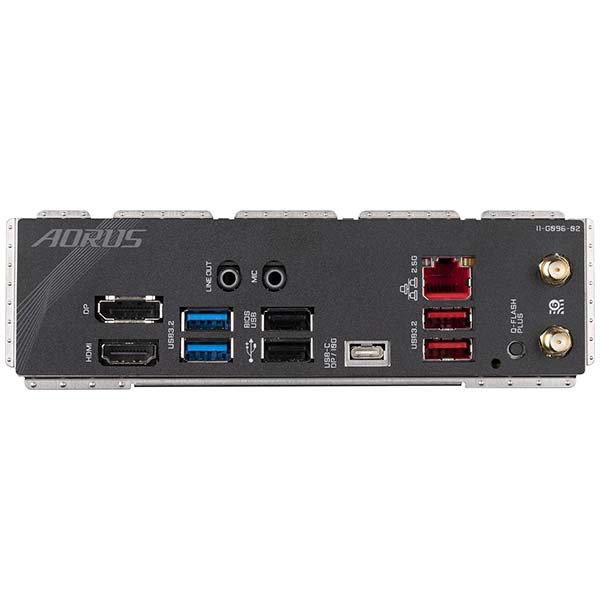

| Back Panel Connectors | 1 x DisplayPort1 x HDMI port1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port2 x SMA antenna connectors (2T2R)1 x Q-Flash Plus button2 x audio jacks |
| Wireless Communication | AMD Wi-Fi 6E RZ616 (MT7922A22M)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header (SYS_FAN1(Note 1))1 x addressable LED strip header(Note 2)1 x RGB LED strip header(Note 1)3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4))4 x SATA 6Gb/s connectors(Note 1)1 x front panel header(Note 1)1 x front panel audio header (routed from the adapter card on the rear panel)1 x USB Type-C® header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header(Note 2)1 x reset button(Note 2)1 x reset jumper1 x power switch jumper1 x Clear CMOS jumper(Note 1) The connector is on the front of GC-B650I FRONT CARD.(Note 2) The connector is on the front of GC-B650I BTB PLUG.(Note 3) The connector is on the back of GC-B650I BTB PLUG.(Note 4) The connector is on the back of the motherboard |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | Mini-ITX |
| color | Black |
| Chipset | AMD B650 |
| Socket | AM5 |
| CPU Type | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
