The Gigabyte B650M Aorus Pro AX WIFI M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: AM5; Chipset: B650; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 8000; Color: Black. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹20515 subject to availability — confirm at checkout
Gigabyte Z790 UD AX Intel (Wi-Fi) Motherboard Supports Intel 12th, 13th & 14th Gen Processors
₹23,150.00

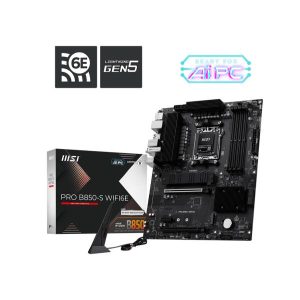

MSI Pro B850-S WiFi6E ATX Motherboard
₹15,740.00

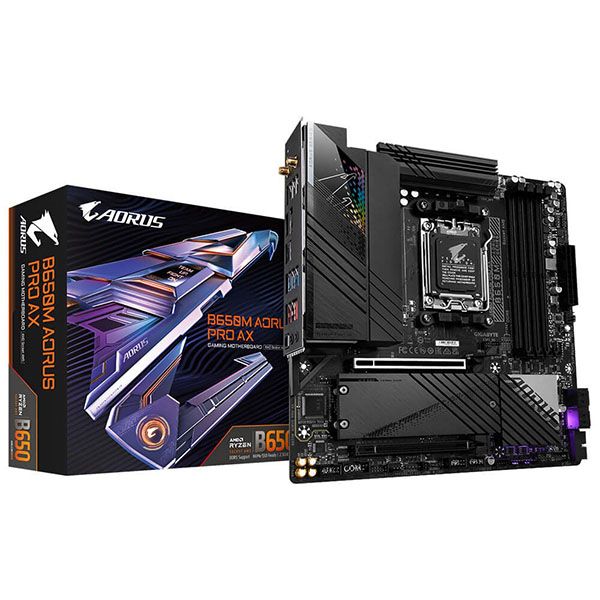

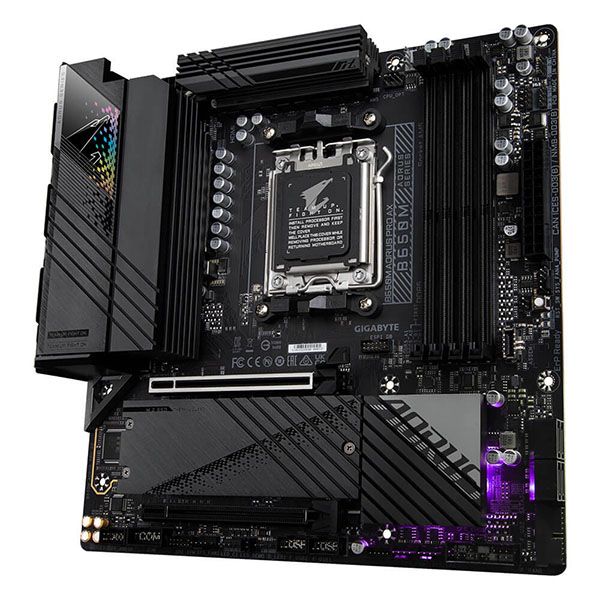

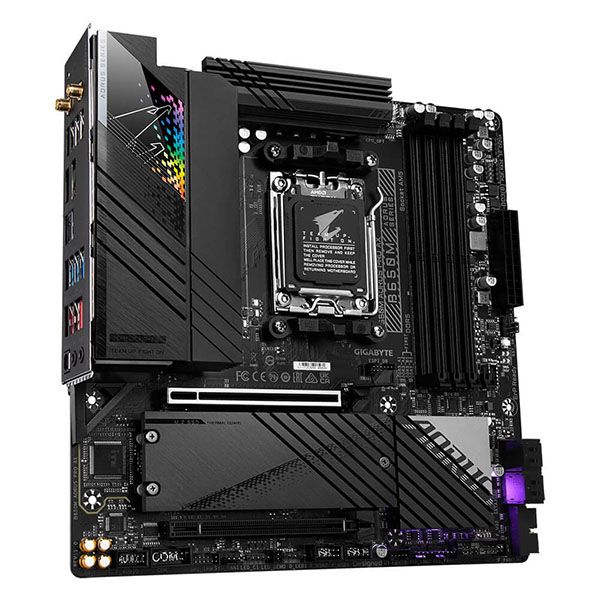

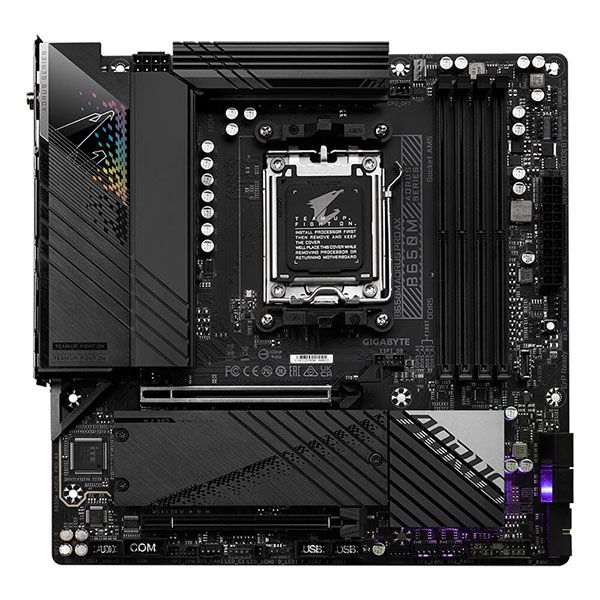

Gigabyte B650M Aorus Pro AX WIFI M-ATX Motherboard
₹21,765.00
Gigabyte B650M Aorus Pro AX WIFI M-ATX Motherboard. Highlights: up to 8000
100 in stock
This item is selling fast!

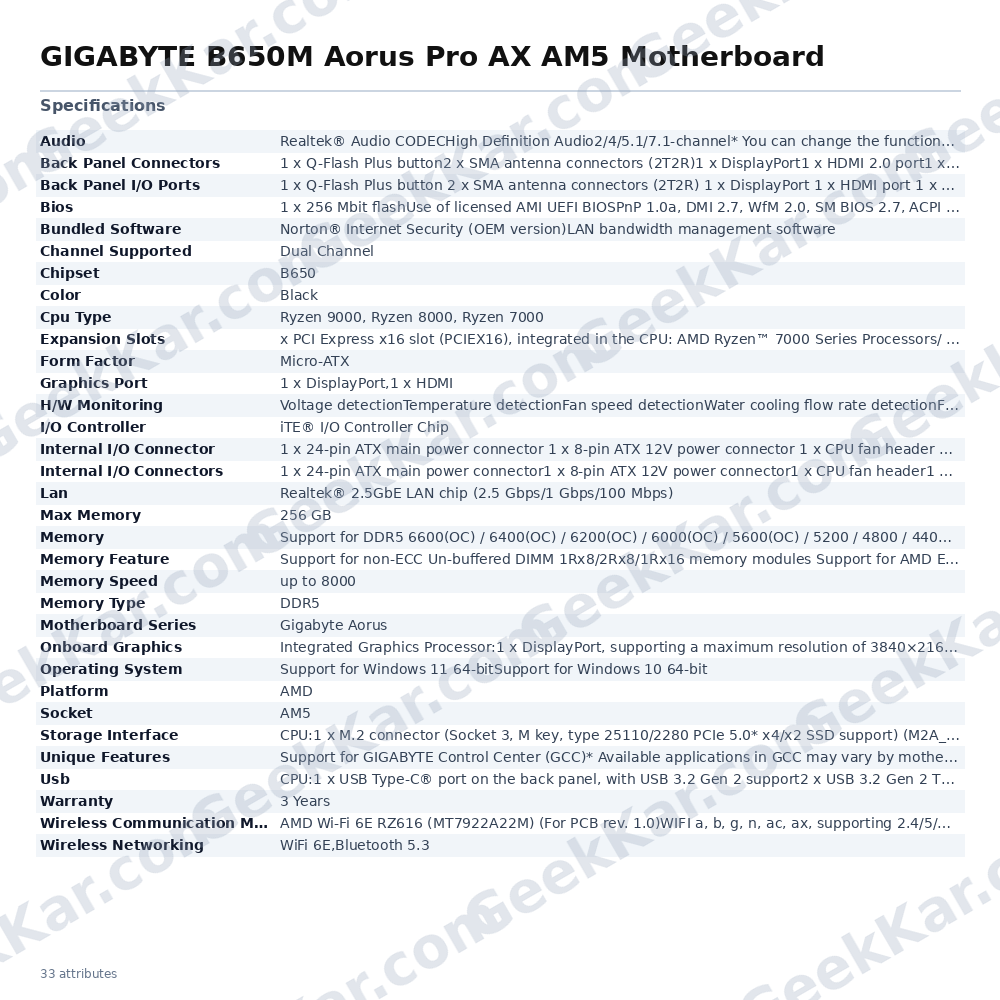

Additional information
| Platform | AMD |
|---|---|
| Motherboard Series | Gigabyte Aorus |
| Graphics Port | 1 x DisplayPort,1 x HDMI |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Expansion Slots | x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Usb | CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back pane |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Memory | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(Please refer “Memory Support List” for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)* Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x DisplayPort1 x HDMI 2.0 port1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX210 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.) |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | B650 |
| Socket | AM5 |
| CPU Type | Ryzen 9000, Ryzen 8000, Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8000 |
