Gigabyte B760 Gaming X WiFi6E GEN5 ATX Motherboard
MPN B760-G-X-WF6E-GEN5 · Brand GIGABYTE · ATX
The GIGABYTE B760 Gaming X WiFi6E GEN5 ATX motherboard supports Intel 12th–14th Gen CPUs on LGA 1700, with PCIe 5.0, quad DDR5 slots up to 7600 MHz, Wi-Fi 6E, and 2.5GbE LAN
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760 Gaming X WiFi6E GEN5 is a full-size ATX motherboard built on Intel's B760 chipset, fitted with an LGA 1700 socket to support Intel Core 12th, 13th, and 14th Generation processors as well as Pentium Gold and Celeron CPUs on the same platform. At the heart of this board is a PCIe 5.0 x16 primary slot that doubles the bandwidth ceiling of PCIe 4.0 — from 16 GT/s to 32 GT/s per lane — ensuring that current and upcoming graphics cards and NVMe accelerators can operate at full potential without a bandwidth bottleneck. Three M.2 Socket 3 connectors, each running at PCIe 4.0 x4, give you high-speed storage expansion, and each slot is shielded by GIGABYTE's M.2 Thermal Guard to keep SSD temperatures in check during sustained workloads. Memory configuration relies on four DDR5 DIMM slots in dual-channel arrangement, supporting speeds up to 7600 MHz via XMP profiles, with a maximum capacity of 256 GB. ECC unbuffered DIMMs are accommodated in non-ECC mode, broadening compatibility for workstation use cases. Network connectivity is handled by a 2.5GbE LAN port alongside an integrated Wi-Fi 6E (802.11ax) adapter with Bluetooth 5.3, using a 2T2R antenna configuration. GIGABYTE's WIFI EZ-Plug simplifies antenna installation, and the WIFI Compass feature assists in positioning the antenna for the strongest available signal. The VRM section uses a Hybrid 8+1+1 phase design paired with VRM Thermal Armor heatsinks to sustain stable voltage delivery under extended loads. Power connectors include the standard 24-pin ATX main and an 8-pin ATX 12V header. Fan management is handled by Smart Fan 6, which reads multiple temperature sensors and drives five fan or pump headers, including headers with FAN STOP support for silent operation at low loads. Rear I/O provides a USB 3.2 Gen 2 Type-A port, a USB Type-C with Gen 1 support, a USB 3.2 Gen 1 Type-A, five USB 2.0/1.1 ports, HDMI and DisplayPort outputs, an RJ-45 LAN jack, and six 3.5 mm audio jacks with S/PDIF out header onboard. Internally, a USB Type-C header offers USB 3.2 Gen 2 speeds for front-panel connectivity. For RGB enthusiasts, three addressable RGB Gen 2 headers and one standard RGB header are available. Q-Flash Plus allows BIOS updates without a CPU, memory, or graphics card installed. Key Verified Specifications: — Form Factor: ATX | Socket: LGA 1700 | Chipset: Intel B760 — CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron — Memory: 4x DDR5 DIMM, Dual Channel, up to 256 GB, up to 7600 MHz (XMP) — Primary Slot: 1x PCIe 5.0 x16 (CPU) — Additional Slots: 2x PCIe 3.0 x1 (chipset) — Storage: 3x M.2 PCIe 4.0 x4, 4x SATA 6 Gb/s — Networking: 2.5GbE LAN, Wi-Fi 6E 802.11ax, Bluetooth 5.3 — Rear USB: USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, 5x USB 2.0 — Display Out: 1x HDMI, 1x DisplayPort — Warranty: 3 Years

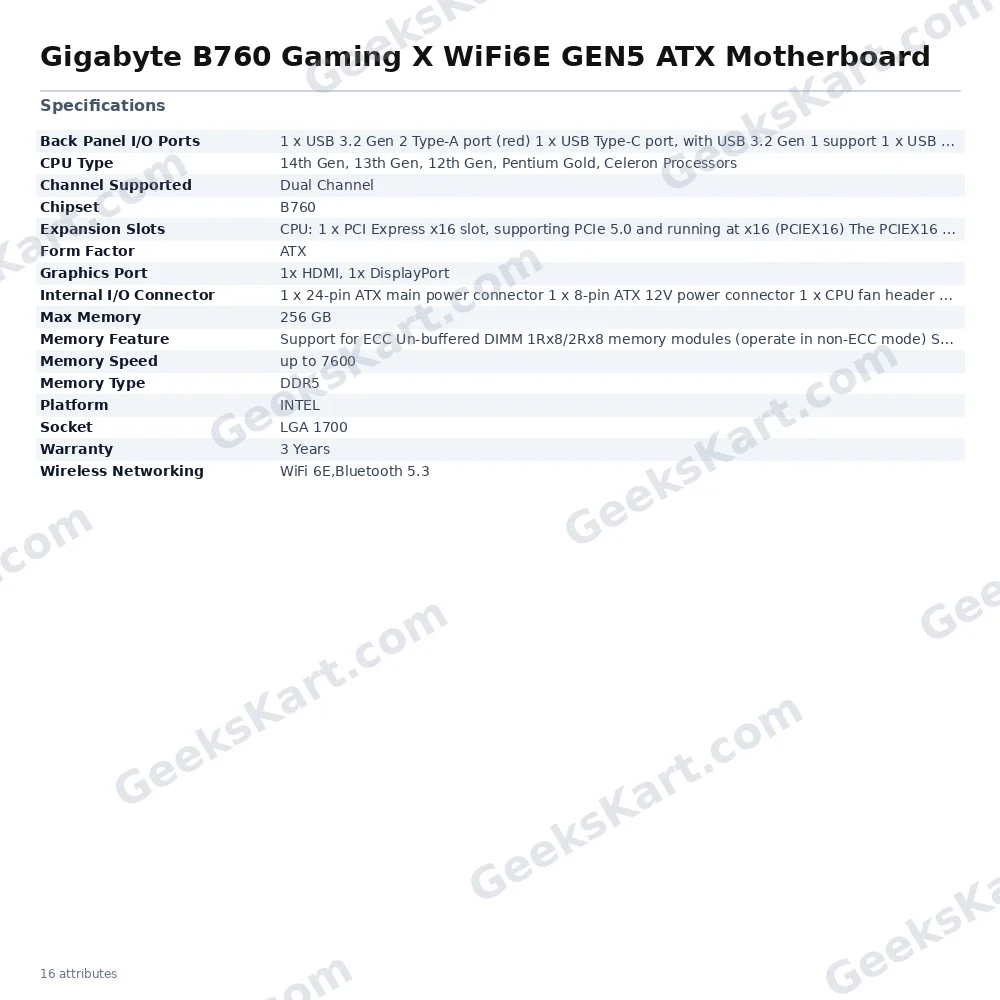

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 256 GB |
| Memory Speed | up to 7600 |
| Platform | INTEL |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" Visit Brand website for more information.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x RJ-45 port 6 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
