Gigabyte B760M DS3H Wifi6e DDR4 M-ATX Gen5 Motherboard
MPN B760M-DS3H-WIFI6E-DDR4-GEN5 · Brand GIGABYTE · mATX
The GIGABYTE B760M DS3H WiFi 6E DDR4 is a Micro-ATX motherboard for Intel LGA1700 processors (12th–14th Gen) featuring PCIe 5.0, dual-channel DDR4 up to 128 GB, 2.5G LAN, and Wi-Fi 6E with Bluetooth 5.3
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760M DS3H WiFi 6E DDR4 is a Micro-ATX motherboard designed for Intel LGA1700-socket processors, offering support for 12th, 13th, and 14th Generation Intel Core, Pentium, and Celeron CPUs on the B760 chipset. Its compact Micro-ATX form factor makes it well suited to space-efficient desktop builds without sacrificing modern connectivity. For graphics and high-speed storage, the board features a PCIe 5.0 x16 slot equipped with GIGABYTE's EZ-Latch quick-release mechanism and PCIe UD Slot SMD armour for reinforced graphics card installation. Two M.2 Socket 3 connectors support PCIe 4.0 x4 NVMe drives, enabling fast sequential read and write speeds from modern SSDs. An additional two PCIe 3.0 x1 slots and four SATA 6Gb/s ports round out the storage and expansion options. Memory support runs up to 128 GB across four DDR4 DIMM slots in a dual-channel configuration, with XMP profiles supported and overclocked speeds reachable up to DDR4-5333 (O.C.). The board's Hybrid 6+2+1 phase VRM solution provides stable power delivery for demanding workloads. Networking is handled by onboard 2.5 GbE LAN paired with Wi-Fi 6E (802.11ax) and Bluetooth 5.3, delivered via a 2T2R antenna configuration. GIGABYTE's WIFI EZ-Plug and WIFI Compass features simplify antenna installation and optimise signal direction. Rear I/O includes one HDMI port, two DisplayPorts, three USB 3.2 Gen 1 Type-A ports, one USB Type-C (USB 3.2 Gen 2), two USB 2.0 ports, a PS/2 port, RJ-45, and three audio jacks. Smart Fan 6 technology manages cooling across one CPU fan header and three system fan headers, each supporting hybrid PWM/DC control with FAN STOP capability. Two addressable RGB Gen2 headers and one standard RGB header accommodate lighting setups. Q-Flash Plus allows BIOS updates without installing a CPU, memory, or graphics card—useful during initial builds. Key Verified Specifications: - Form Factor: Micro-ATX - Socket: LGA1700 - Chipset: Intel B760 - Supported CPUs: Intel 12th / 13th / 14th Gen, Pentium, Celeron - Memory: 4x DDR4 DIMM, dual channel, up to 128 GB, DDR4-5333 (O.C.) max - PCIe: 1x PCIe 5.0 x16 (CPU), 2x PCIe 3.0 x1 (chipset) - Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s - LAN: 2.5 GbE - Wireless: Wi-Fi 6E (802.11ax), Bluetooth 5.3 - Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 - Display: 1x HDMI, 2x DisplayPort - RGB Headers: 2x ARGB Gen2, 1x RGB - Warranty: 3 Years

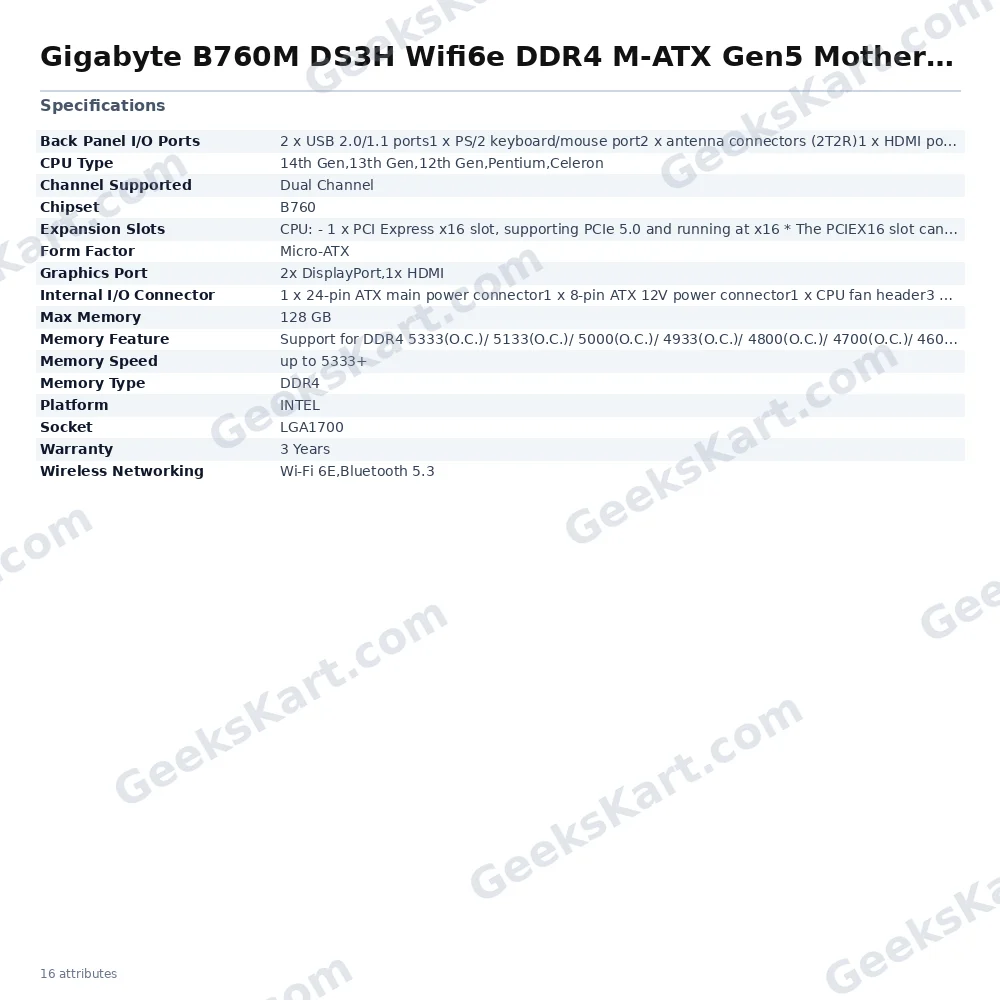

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen,Pentium,Celeron |
| Max Memory | 128 GB |
| Memory Speed | up to 5333+ |
| Platform | INTEL |
| Graphics Port | 2x DisplayPort,1x HDMI |
| Memory Feature | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x antenna connectors (2T2R)1 x HDMI port (Note)2 x DisplayPorts (Note)3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks (Note) Actual support may vary by CPU |
| Internal I/O Connector | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
