GIGABYTE B760M Gaming AC Wifi DDR5 Intel Motherboard
MPN GIGABYTE-B760M-GAMING-AC-WIFI · Brand Gigabyte · mATX
The Gigabyte B760M Gaming AC WiFi is a Micro-ATX LGA1700 motherboard featuring Intel B760 chipset, dual DDR5 slots up to 96 GB, two PCIe 4.0 M.2 slots, 2.5GbE LAN, and Wi-Fi 802.11ac — ideal for compact 12th and 13th Gen Intel builds
Inclusive of GST · GST invoice available
Overview

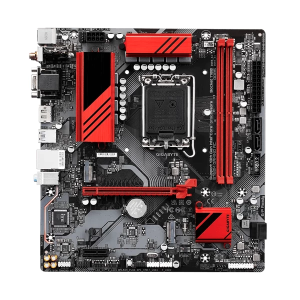

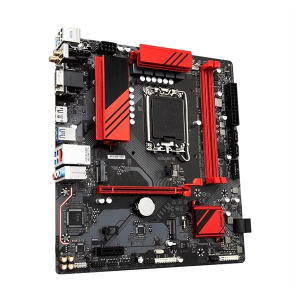

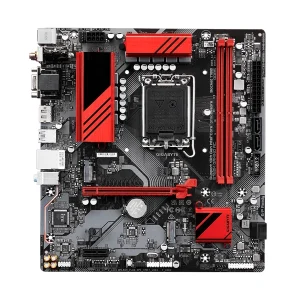

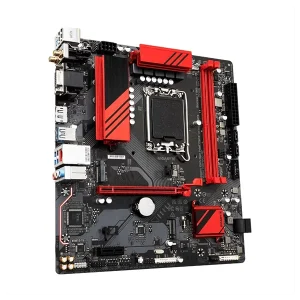

The Gigabyte B760M Gaming AC WiFi is a Micro-ATX motherboard built on the Intel B760 Express Chipset, designed for 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. It strikes a practical balance between feature density and compact form factor, making it a capable foundation for gaming builds, home workstations, and compact productivity rigs alike. Memory support is a strong point: two DDR5 DIMM slots accommodate up to 96 GB of system memory (with 48 GB per single DIMM), operating natively at 4800 MT/s and with XMP profiles reaching up to 7800 MT/s via overclocking. A 6+2+1 phase hybrid digital VRM solution helps deliver stable power delivery to the CPU under sustained loads. Storage options are generous for this price tier. Two PCIe 4.0 x4 M.2 connectors — one CPU-direct and one chipset-attached — allow high-speed NVMe SSDs to run without bandwidth contention from other devices. An additional four SATA 6 Gb/s ports round out the storage configuration, with RAID 0, 1, 5, and 10 supported across SATA devices. Networking covers both wired and wireless bases. A Realtek 2.5GbE LAN chip provides up to 2.5 Gbps wired throughput, while the AzureWave AW-CB304NF (Realtek RTL8821CE) module adds dual-band Wi-Fi 802.11ac (2.4 GHz / 5 GHz) and Bluetooth 4.2 for cable-free flexibility. Rear connectivity includes a USB Type-C port (USB 3.2 Gen 1), three USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, HDMI 2.0 (up to 4096×2160 @ 60 Hz), DisplayPort 1.2 (up to 4096×2304 @ 60 Hz), D-Sub, and three audio jacks backed by a Realtek HD Audio CODEC with 7.1-channel support and S/PDIF out. Integrated graphics output supports up to three simultaneous displays when paired with a CPU that includes integrated graphics. Gigabyte's Smart Fan 6 system monitors temperature across multiple sensors and controls four fan/pump headers with hybrid FAN STOP capability. Q-Flash Plus allows BIOS updates without a CPU or memory installed. ARGB and RGB LED headers provide lighting personalisation. Key Specifications: - Socket: LGA1700 | Chipset: Intel B760 Express - Form Factor: Micro-ATX (24.4 cm × 22.5 cm) - Memory: 2× DDR5 DIMM, up to 96 GB, up to DDR5-7800 (O.C.), XMP supported - Storage: 2× M.2 PCIe 4.0 x4 (2280), 4× SATA 6 Gb/s, RAID 0/1/5/10 - GPU Slot: 1× PCIe 4.0 x16; 1× PCIe 3.0 x1 - LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Wireless: Wi-Fi 802.11a/b/g/n/ac, Dual-Band 2.4/5 GHz; Bluetooth 4.2 - Rear USB: 1× USB-C 3.2 Gen 1, 3× USB-A 3.2 Gen 1, 2× USB 2.0 - Video Output: HDMI 2.0, DisplayPort 1.2, D-Sub - Audio: Realtek HD CODEC, 7.1-channel, S/PDIF out - BIOS: AMI UEFI, 128 Mbit flash, Q-Flash, Q-Flash Plus - OS Support: Windows 11 / Windows 10 (64-bit) - Warranty: 3 Years

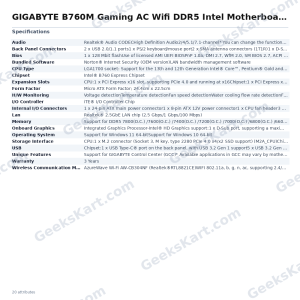

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B760 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Memory | Support for DDR5 7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same time |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |

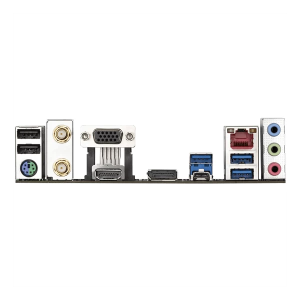

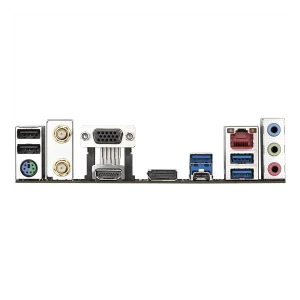

| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R)1 x D-Sub port1 x HDMI port1 x DisplayPort3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip headers1 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | AzureWave Wi-Fi AW-CB304NF (Realtek®RTL8821CE)WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 4.2Support for 11ac wireless standard and up to 433 Gbps data rate(Actual data rate may vary depending on environment and equipment.) |
