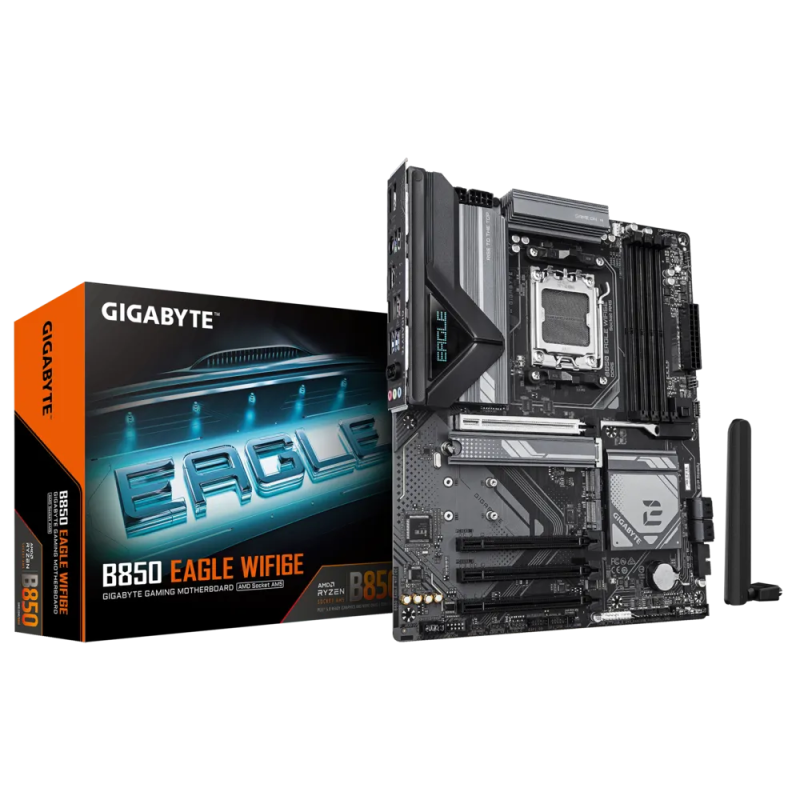

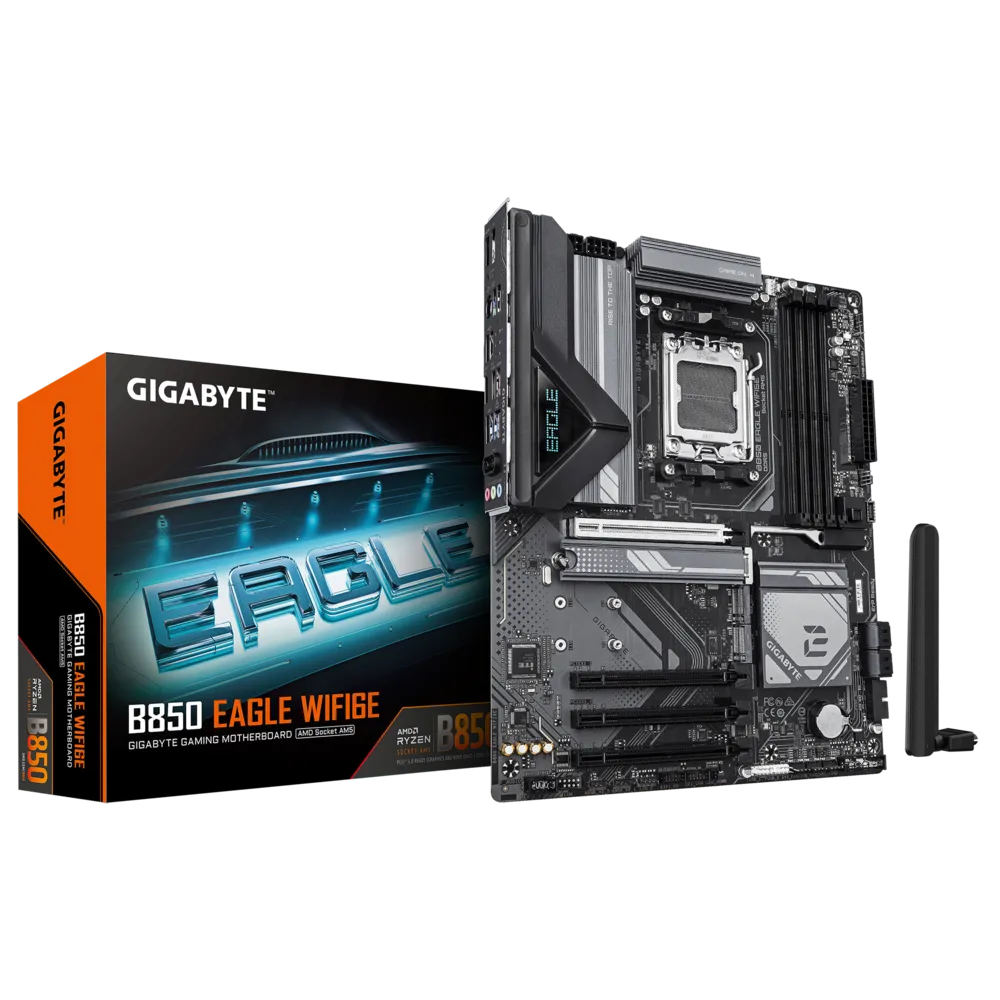

GIGABYTE B850 Eagle WIFI6E AMD Motherboard
MPN GIGABYTE-B850-EAGLE-WIFI6E · Brand GIGABYTE · ATX
The GIGABYTE B850 Eagle WiFi 6E is a full-size ATX motherboard for AMD AM5 processors (Ryzen 7000/8000/9000), featuring DDR5 support up to 256 GB, PCIe 5.0 x16, three M.2 slots, Wi-Fi 6E, and Bluetooth 5.3
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B850 Eagle WiFi 6E is a full-size ATX motherboard (30.5 cm x 24.4 cm) built on the AMD B850 chipset with the AM5 socket, offering compatibility with AMD Ryzen 9000, 8000, and 7000 Series processors. It is engineered for enthusiast-level gaming and productivity builds that demand fast memory, next-generation storage, and reliable wireless connectivity. The board features four DDR5 DIMM slots supporting up to 256 GB of system memory (with 64 GB maximum per single DIMM), running at speeds from 4400 MT/s up to 8200 MT/s under overclocking. Both AMD EXPO and Intel XMP memory profiles are supported, allowing easy one-click memory performance tuning. The dual-channel architecture ensures balanced bandwidth across workloads. Storage options are plentiful. Three M.2 Socket 3 connectors support NVMe SSDs up to type 22110 and 2280. The primary CPU-connected M.2 slot (M2A_CPU) supports PCIe 5.0 x4 with Ryzen 9000 and 7000 processors, delivering exceptional sequential throughput. A second CPU-connected slot (M2B_CPU) runs at PCIe 4.0 x4, and a chipset-connected slot (M2C_SB) supports PCIe 4.0 x2. Four SATA 6 Gb/s connectors are also available. RAID configurations (0, 1, 10) are supported for both SATA and NVMe devices, with RAID 5 available exclusively on Ryzen 9000 Series CPUs. For discrete graphics, the primary PCIe x16 slot runs at PCIe 5.0 x16 bandwidth on Ryzen 9000 and 7000 processors, ensuring headroom for current and upcoming GPU generations. Three additional PCIe x16 physical slots operate at PCIe 3.0 x1 via the chipset for expansion cards. Wireless connectivity is handled by Wi-Fi 6E supporting the 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11ax 160 MHz channel support and Bluetooth 5.3. Wired networking uses a Realtek Gigabit Ethernet (1 Gbps) controller. The rear I/O panel includes two USB 3.2 Gen 2 Type-A ports, one USB Type-C (3.2 Gen 1), two USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports, a DisplayPort 1.4 (up to 3840x2160@144 Hz), an HDMI 2.1 port (up to 4096x2160@60 Hz), and three audio jacks for 7.1-channel surround audio via the Realtek HD Audio CODEC. A PS/2 keyboard/mouse port and Q-Flash Plus button for BIOS flashing without a CPU are also present. The board's Smart Fan 6 system supports PWM and DC fan control with up to 24 W (12 V x 2 A) per fan header, over-current protection, fan stop function, and customisable slope/stair curve modes. Onboard headers include addressable RGB Gen 2 (x3) and standard RGB (x1) for lighting customisation. The GIGABYTE UC BIOS provides a refined interface with multi-theme support, Quick Access function, Direct-To-BIOS button, and AIO fan control pre-OS. Verifiable Specifications: - Socket: AMD AM5 - Chipset: AMD B850 - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4x DDR5, up to 256 GB, up to 8200 MT/s (O.C.), dual-channel, EXPO & XMP - Storage: 3x M.2 (PCIe 5.0 x4 / PCIe 4.0 x4 / PCIe 4.0 x2), 4x SATA 6 Gb/s, RAID 0/1/5/10 - Primary PCIe slot: PCIe 5.0 x16 (Ryzen 9000/7000) - Wireless: Wi-Fi 6E (2.4/5/6 GHz, 802.11ax 160 MHz), Bluetooth 5.3 - LAN: Realtek Gigabit Ethernet - Display Output: DisplayPort 1.4 (3840x2160@144 Hz), HDMI 2.1 (4096x2160@60 Hz) - Audio: Realtek HD Audio, 2/4/5.1/7.1-channel - USB (rear): 2x USB 3.2 Gen 2 Type-A, 1x USB Type-C Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0 - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - OS Support: Windows 11 64-bit, Windows 10 64-bit

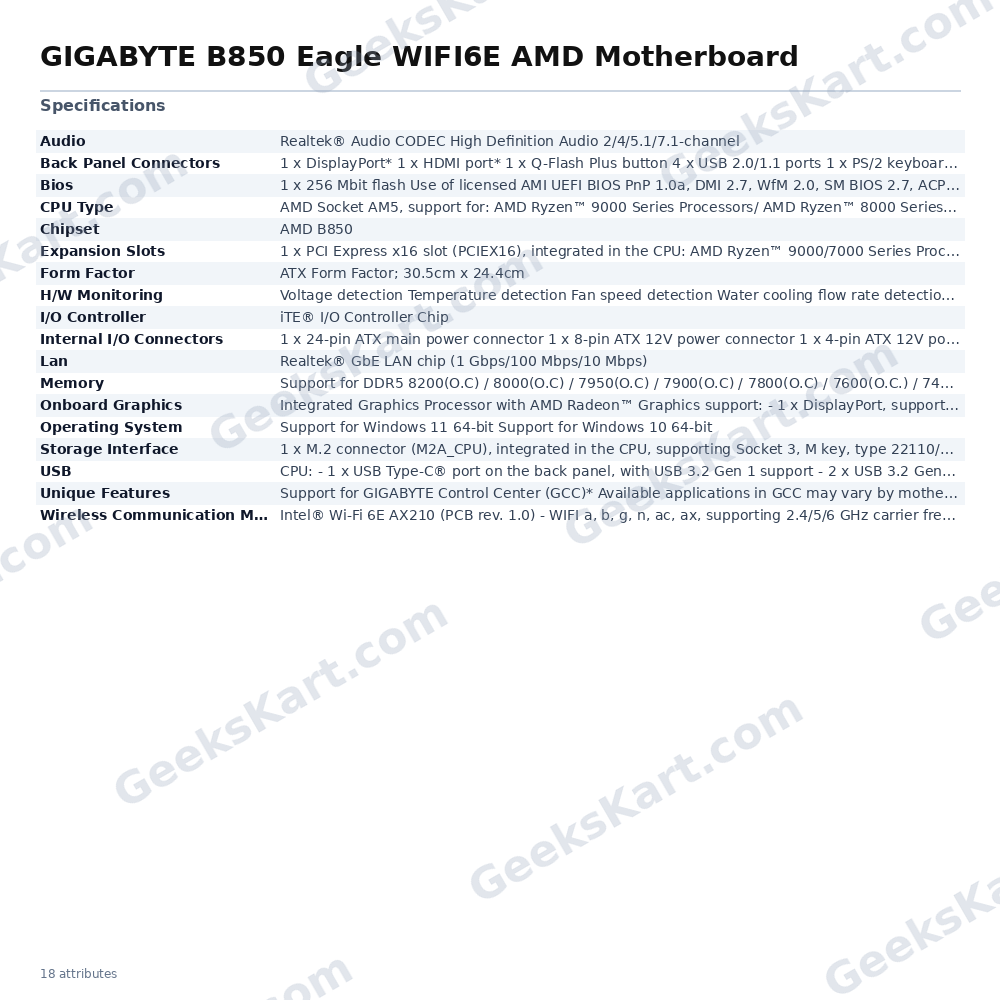

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | AMD B850 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| USB | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks * Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
