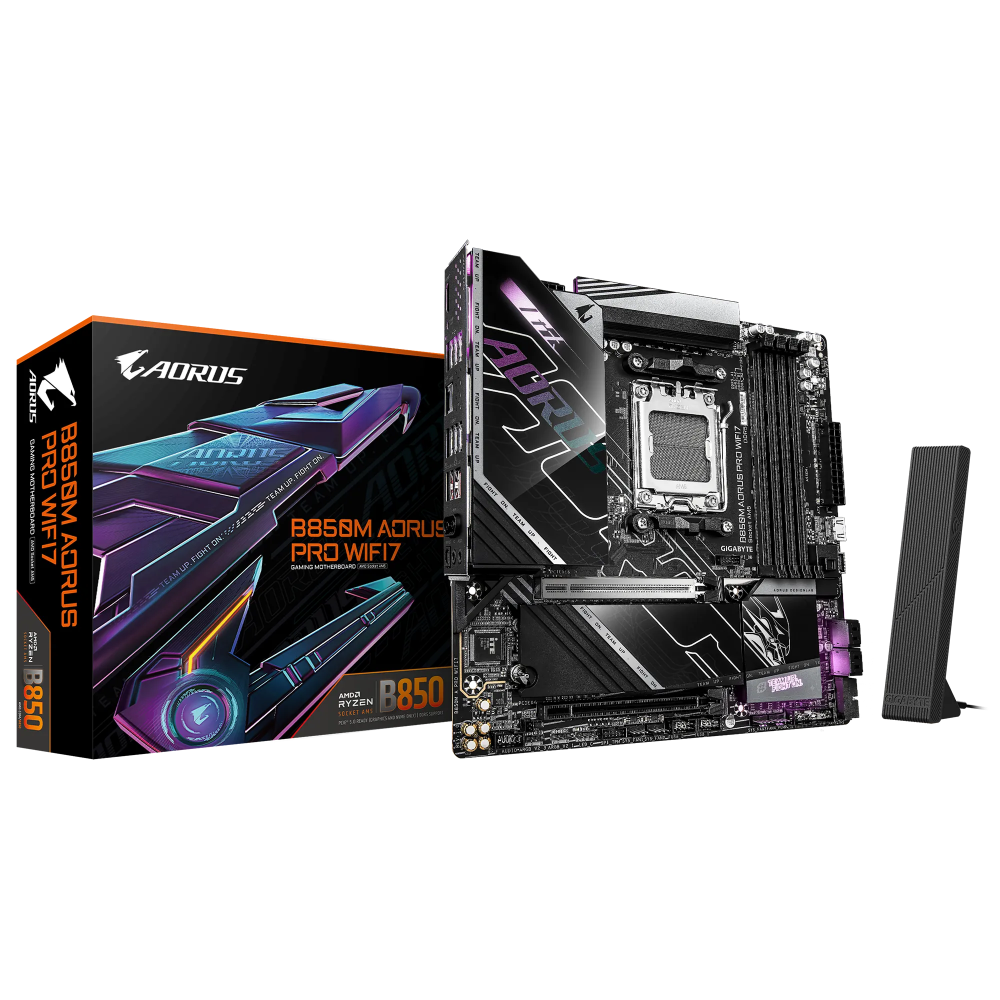

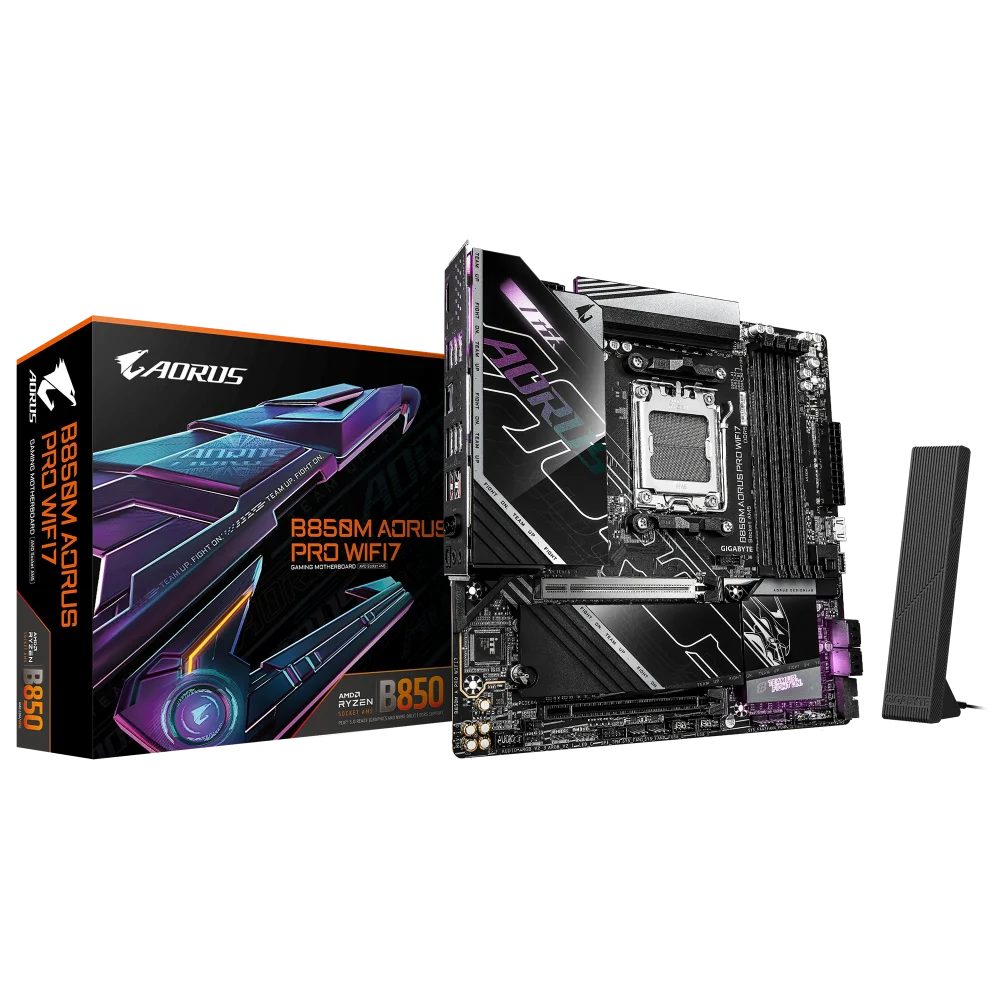

The GIGABYTE B850M Aorus Pro WiFi 7 is a Micro ATX motherboard (24.4 cm × 24.4 cm) built on the AMD B850 chipset with Socket AM5, offering compatibility with AMD Ryzen 9000, 8000, and 7000 Series processors. Designed for enthusiast-level gaming and productivity builds in a compact form factor, it packs a feature set more commonly associated with larger boards. At the heart of its power delivery is GIGABYTE’s Digital Twin VRM design, configured in a 12+2+2 phase layout. The 12 VCORE phases use SPS 80A power stages in a 7+7 parallel configuration, while 2 SOC phases and 2 MISC phases handle integrated GPU and PCIe lane power respectively. This substantial VRM architecture is cooled by VRM Thermal Armor Advanced heatsinks, keeping temperatures in check even during sustained CPU loads. Memory support spans four DDR5 DIMM slots in a dual-channel configuration, accepting up to 256 GB total capacity (64 GB per DIMM). Speeds range from native 4800 MT/s up to 8600 MT/s via overclocking, with support for both AMD EXPO and Intel XMP profiles. GIGABYTE’s X3D Turbo Mode is a BIOS-level feature that applies optimisation parameters to help AMD Ryzen 9000 X3D and non-X3D processors achieve improved in-game frame rates and reduced latency. Storage is served by two M.2 slots — both CPU-attached and capable of PCIe 5.0 x4 speeds with Ryzen 9000/7000 processors — plus four SATA 6 Gb/s connectors. The EZ-Latch Click mechanism allows tool-free M.2 heatsink and slot access. RAID 0, 1, 5, and 10 are supported for NVMe arrays (RAID 5 requires Ryzen 9000), while SATA arrays support RAID 0, 1, and 10. Connectivity is a clear strength: onboard Realtek Wi-Fi 7 (RTL8922AE, 802.11be, 2.4/5/6 GHz, 160 MHz, Bluetooth 5.4) pairs with a Realtek 2.5GbE LAN port for versatile wired and wireless networking. The rear I/O includes HDMI 2.1 (up to 4096×2160@60 Hz), a USB-C port with DisplayPort 1.4 output, two USB 3.2 Gen 2 Type-A ports, five USB 3.2 Gen 1 ports, and four USB 2.0 ports, plus optical S/PDIF out. Internal headers add a USB 3.2 Gen 2×2 Type-C connector (20 Gbps), addressable RGB Gen2 and standard RGB headers, and comprehensive fan/pump control. Audio is handled by the Realtek ALC1220 codec with 7.1-channel HD Audio output and DSD support on the rear line-out. BIOS management uses AMI UEFI with Q-Flash Plus (update without CPU/RAM installed), Q-Flash, and Smart Backup utilities. The board officially supports Windows 11 64-bit. Verified Specifications: • Form Factor: Micro ATX — 24.4 cm × 24.4 cm • Chipset: AMD B850 • Socket: AM5 (AMD Ryzen 9000 / 8000 / 7000 Series) • Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB, 4800–8600 MT/s (OC), AMD EXPO & XMP • VRM: 12+2+2 phase (SPS 80A VCORE, 7+7 parallel) • Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) • M.2 Slots: 2× M.2 (both PCIe 5.0 x4 capable with Ryzen 9000/7000) • SATA: 4× SATA 6 Gb/s • Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4, 2T2R • LAN: Realtek 2.5GbE • Audio: Realtek ALC1220, 7.1-channel HD Audio • Display Outputs: HDMI 2.1 (rear), USB-C with DisplayPort 1.4 (rear), HDMI 1.4 (front internal) • USB (rear): 1× USB-C, 2× USB 3.2 Gen 2 Type-A, 5× USB 3.2 Gen 1, 4× USB 2.0 • OS Support: Windows 11 64-bit
GIGABYTE B850M Eagle Wifi6E DDR5 AMD Motherboard
₹18,500.00
GIGABYTE B850M Aorus Elite ICE-P Wifi7 DDR5 AMD Motherboard
₹24,050.00
GIGABYTE B850M Aorus Pro Wifi7 DDR5 AMD Motherboard
₹22,320.00
The GIGABYTE B850M Aorus Pro WiFi 7 is a Micro ATX AM5 motherboard with AMD B850 chipset, 12+2+2 phase VRM, PCIe 5.0, dual M.2 slots, DDR5 up to 8600 MT/s OC, Wi-Fi 7, and 2.5GbE LAN — built for AMD Ryzen 9000/8000/7000 Series processors
Out of stock

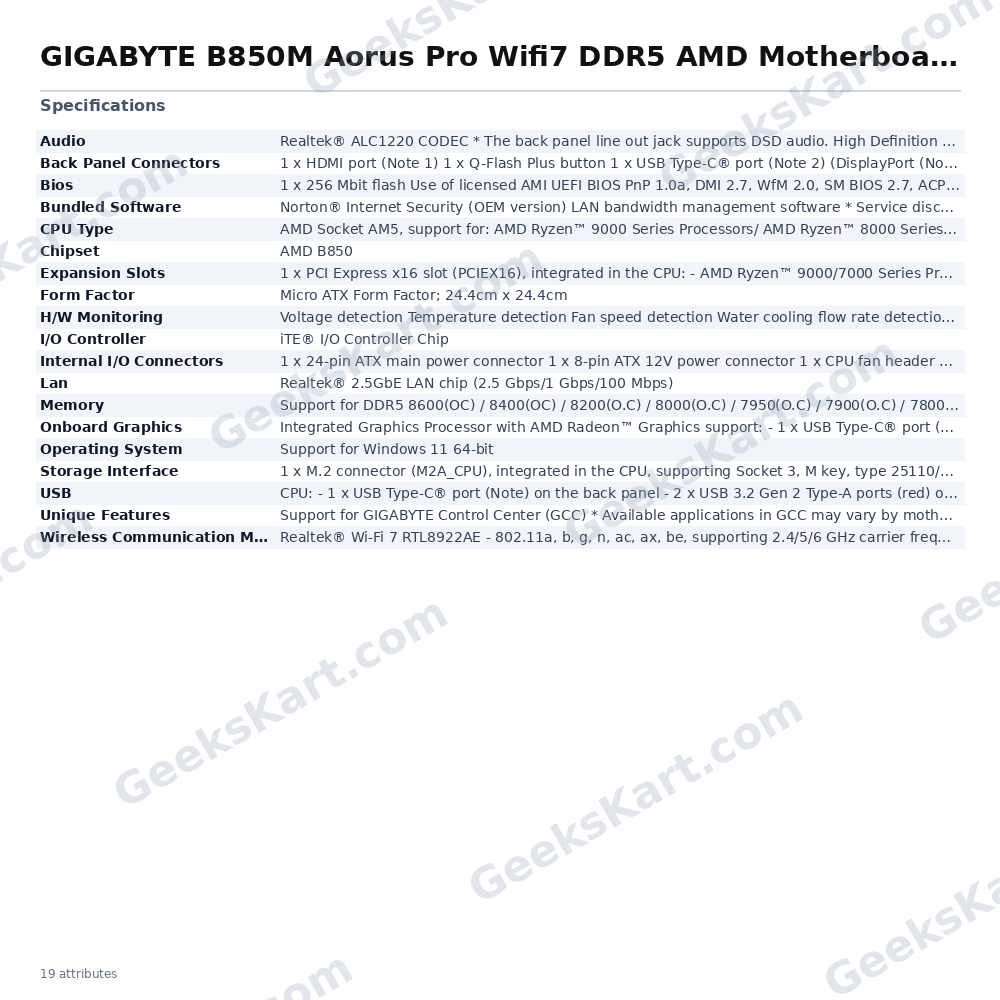

Additional information
| Form Factor | mATX |
|---|---|
| Chipset | AMD B850 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB Type-C® port (Note) on the back panel – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers (Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | Support for DDR5 8600(OC) / 8400(OC) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x USB Type-C® port (Note) with DisplayPort video output, supporting a maximum resolution of 3840×2160@144 Hz. * Support for DisplayPort 1.4 version and HDR. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time (Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: – AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 5.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x HDMI port (Note 1) 1 x Q-Flash Plus button 1 x USB Type-C® port (Note 2) (DisplayPort (Note 1)) 4 x USB 2.0/1.1 ports 5 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note 1) Actual support may vary by CPU. (Note 2) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations |
