Features of GIGABYTE GeForce RTX 4090 WindForce V2 24GB

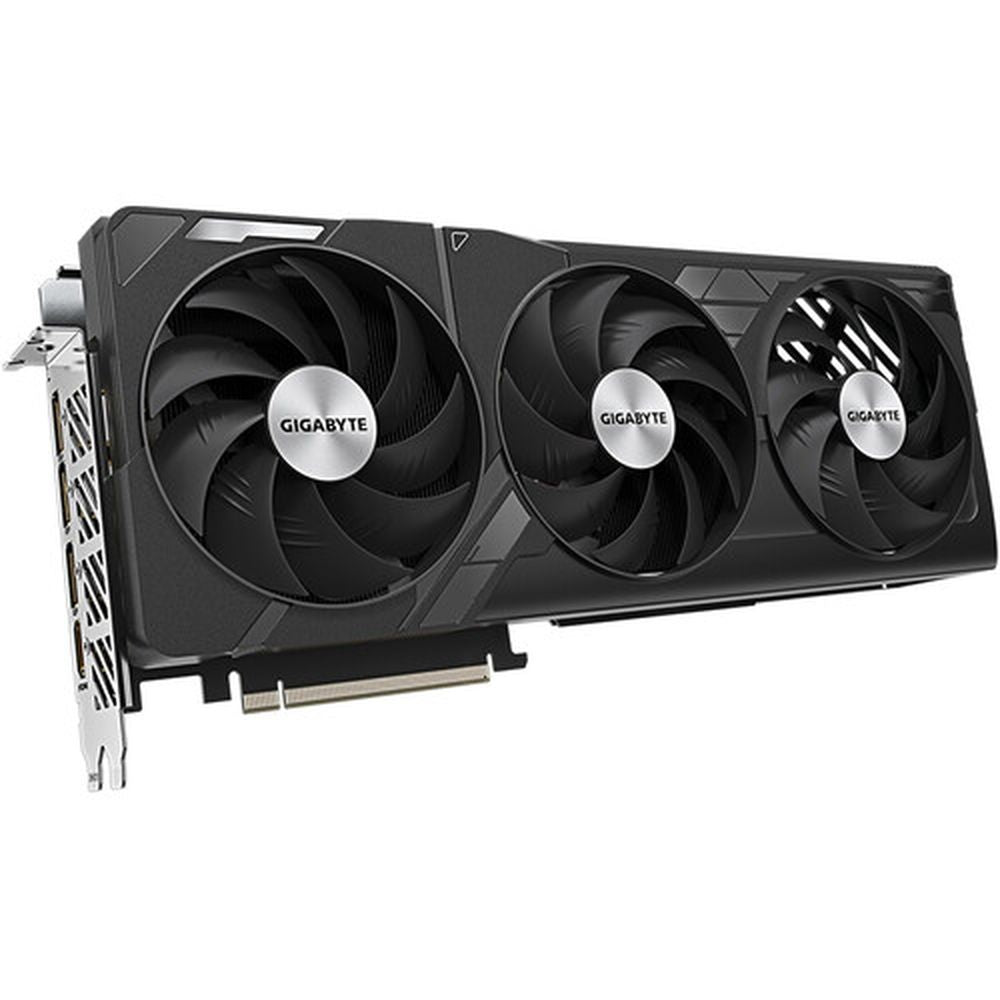

The WINDFORCE cooling system of the gigabyte rtx 4090 WindForce V2 24GB Nvidia Graphic Card features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4090 gigabyte rtx 4090
- Integrated with 24GB GDDR6X 384-bit memory interface
- WINDFORCE cooling system
- Dual BIOS

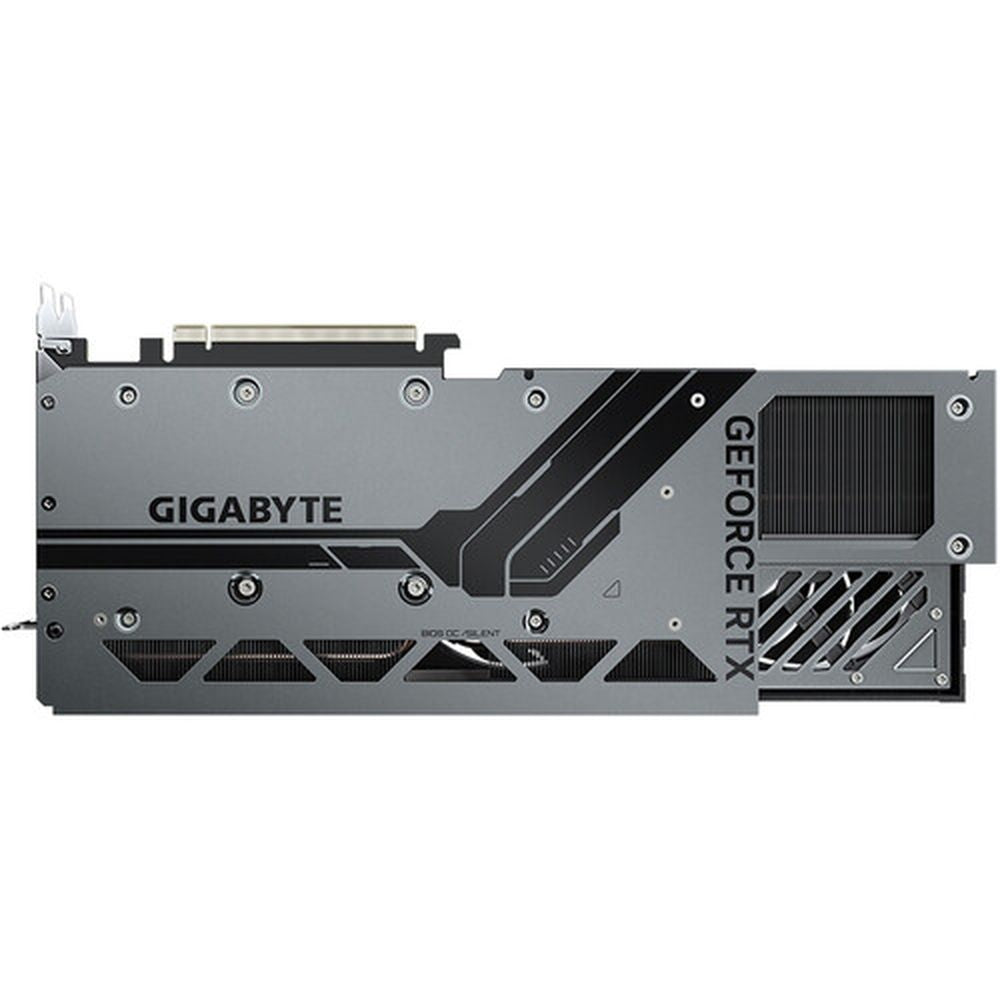

- Protection metal back plate
- Anti-sag bracket
CORE CLOCK
- 2520 MHz
Specifications of GIGABYTE GeForce RTX 4090 WindForce V2 24GB
| Chipset | GeForce RTX™ 4090 |
| Core Clock | 2520 MHz |
| CUDA® Cores | 16384 |
| Memory Clock | 21 Gbps |
| Memory Size | 24GB |
| Memory Bus | 384 bit |
| Memory Type | GDDR6X |
| Card Bus | PCI-E 4.0 |
| Resolution | 7680×4320 |
| Multi-view | 4 |
| Dimension | L=331 W=136 H=55.5 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 850 W |
| Power Connectors | 16 Pin*1 |

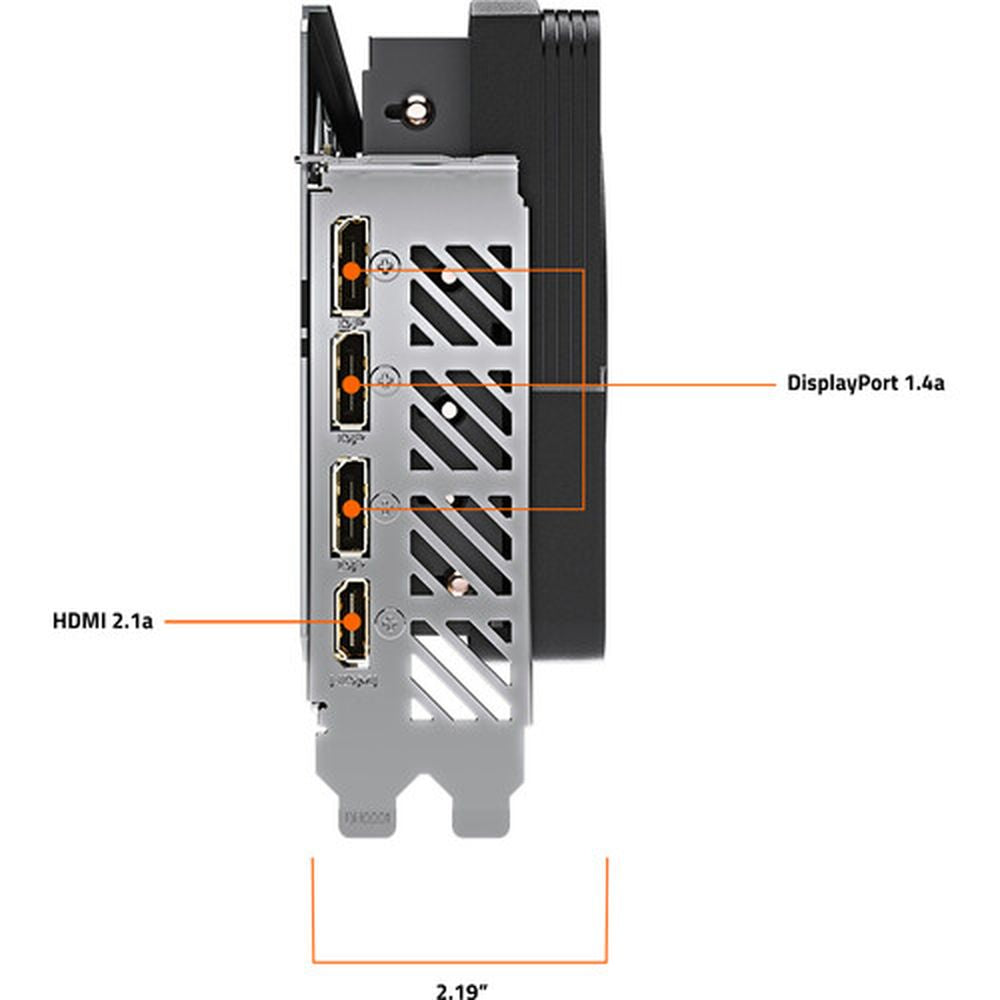

| Output | DisplayPort 1.4 *3 HDMI 2.1 *1 |
| Accessories | 1. Quick guide 2. Anti-sag bracket 3. Anti-sag bracket installation guide 4. One 16-pin to four 8-pin power adapto |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
