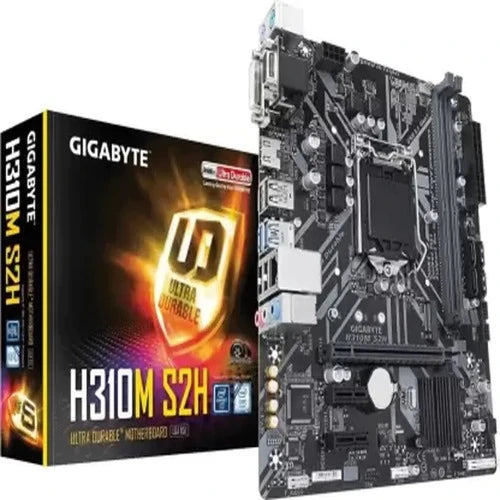

GIGABYTE H310M S2H DDR4 Intel Motherboard
MPN GIGABYTE-H310-MS2H-MOTHERBOARD · Brand Gigabyte · mATX
The Gigabyte H310M S2H is a Micro ATX motherboard supporting 8th Gen Intel Core CPUs on the LGA1151 socket, with dual-channel DDR4 up to 32 GB, M.2 storage, Realtek Gigabit LAN, and Smart Fan 5 thermal management
Inclusive of GST · GST invoice available
Overview
The Gigabyte H310M S2H is a Micro ATX motherboard built on the Intel H310 Express Chipset, designed for 8th Generation Intel Core processors in the LGA1151 socket — including Core i7, Core i5, Core i3, Pentium, and Celeron variants. Its compact 22.6 cm x 17.4 cm footprint makes it a practical choice for space-constrained builds without sacrificing connectivity or feature depth. Memory support spans two DDR4 DIMM slots with a dual-channel architecture, accommodating up to 32 GB of system memory at speeds of 2133, 2400, or 2666 MHz. XMP profiles are supported for users pairing compatible kits with an 8th Gen Core i7 or i5 CPU. Storage flexibility is delivered through four SATA 6 Gb/s connectors and an M.2 slot supporting both PCIe Gen2 x2 and SATA interfaces for NVMe and SATA SSDs up to 2280 in length. Networking is handled by a Realtek Gigabit LAN chip (10/100/1000 Mbit) with the Realtek 8118 controller providing automatic bandwidth allocation — a feature aimed at prioritising gaming and latency-sensitive traffic. Audio is powered by the Realtek ALC887 codec with High Definition Audio output across 2, 4, 5.1, or 7.1 channels, paired with high-quality audio capacitors and PCB-level audio noise isolation. Display output options on the rear I/O include one D-Sub port supporting up to 1920x1200 at 60 Hz via the integrated Intel HD Graphics engine. The expansion slot configuration consists of one PCIe 3.0 x16 slot for a discrete GPU and two PCIe 2.0 x1 slots for add-in cards. USB connectivity covers four USB 3.1 Gen 1 ports (two rear, two internal header) and six USB 2.0/1.1 ports (four rear, two internal header). The rear I/O panel also includes PS/2 keyboard and mouse ports, an RJ-45 LAN jack, and three audio jacks. Smart Fan 5 thermal management provides multiple temperature sensor inputs and hybrid fan headers that support both PWM and voltage-mode fans. The FAN STOP feature allows any mapped fan to halt completely when temperatures fall below a user-defined threshold. Hardware monitoring covers voltages, temperatures, fan speeds, overheat warnings, and fan failure alerts. The board ships with a 128 Mbit flash AMI UEFI BIOS compliant with PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. Gigabyte APP Center software provides access to utilities including Q-Flash, EasyTune, Fast Boot, Game Boost, Smart Backup, and System Information Viewer. Durability features include an anti-sulfur resistor design, anti-surge IC protection, Glass Fabric PCB for humidity resistance, and low RDS MOSFETs for reduced heat dissipation. Verified Specifications: - Socket: LGA1151 | Chipset: Intel H310 Express - CPU Support: 8th Gen Intel Core i7/i5/i3, Pentium, Celeron - Memory: 2x DDR4 DIMM, up to 32 GB, DDR4 2133/2400/2666 MHz, dual channel - Storage: 4x SATA 6 Gb/s; 1x M.2 (PCIe Gen2 x2 / SATA, 2280) - Expansion: 1x PCIe 3.0 x16; 2x PCIe 2.0 x1 - Audio: Realtek ALC887, HD Audio, up to 7.1-channel - LAN: Realtek GbE (10/100/1000 Mbit), Realtek 8118 controller - USB: 4x USB 3.1 Gen 1; 6x USB 2.0/1.1 - Display: 1x D-Sub (max 1920x1200 @ 60 Hz) - Form Factor: Micro ATX, 22.6 cm x 17.4 cm - BIOS: AMI UEFI, 128 Mbit flash - OS: Windows 10 64-bit - Warranty: 3 Years

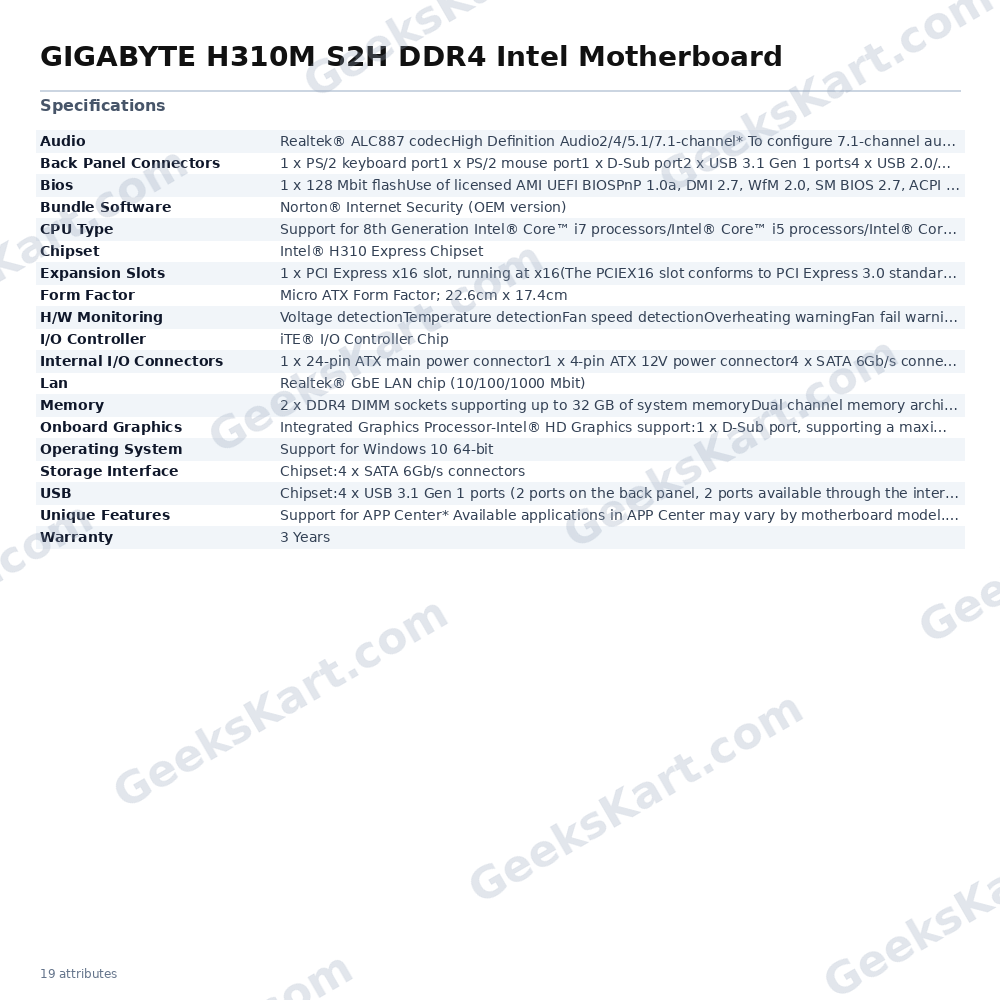

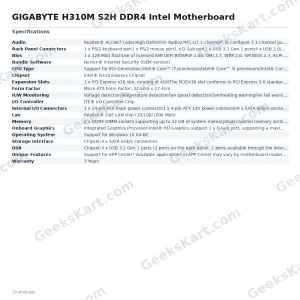

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H310 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargePlatform Power ManagementSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 HzMaximum shared memory of 1 GB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port2 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x USB 3.1 Gen 1 header1 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper |
