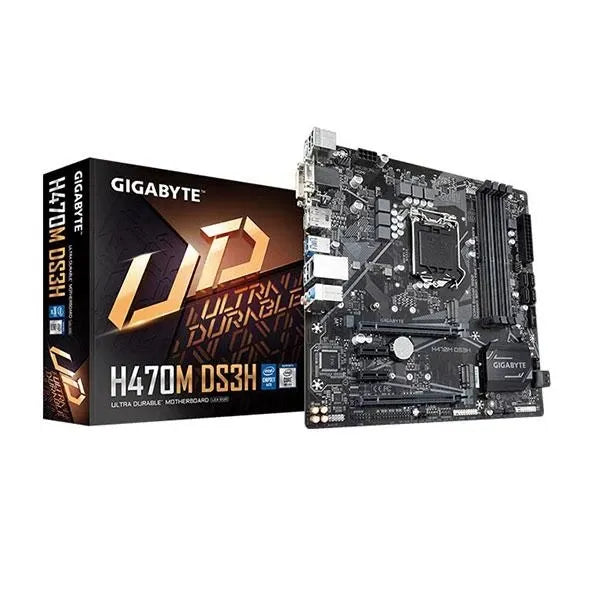

GIGABYTE H470M DS3H DDR4 Intel Motherboard

The Gigabyte H470M DS3H is a Micro ATX motherboard built on the Intel H470 Express chipset, designed for Intel's 10th Generation Core processors in the LGA1200 socket. It accommodates a full range of 10th Gen CPUs, from the Core i9 and i7 down to Pentium and Celeron, making it a practical platform for both mainstream desktop builds and productivity-focused workstations. Memory support is comprehensive: four DDR4 DIMM slots accept up to 128 GB of system memory (32 GB per slot), with speeds up to DDR4 2933 MHz on Core i9/i7 platforms and up to DDR4 2666 MHz on Core i5 and below. XMP profiles are supported, and the board accommodates non-ECC unbuffered modules in common configurations. Storage options are generous for this form factor. Two M.2 Socket 3 connectors support PCIe Gen3 x4 NVMe SSDs — the first slot (M2Q) also accepts 22110-length drives, while the second (M2P) additionally handles SATA-based M.2 SSDs. Six SATA 6 Gb/s ports round out the storage array, with RAID 0, 1, 5, and 10 configurations supported. Intel Optane Memory compatibility is also included. Display output flexibility is a highlight: the rear I/O carries a D-Sub port, DVI-D port, HDMI 1.4 port (up to 4096×2160 at 30 Hz), and a DisplayPort 1.4 output (up to 4096×2304 at 60 Hz with HDR support), providing four simultaneous display interface options via the integrated Intel HD Graphics processor. Connectivity is handled by an Intel GbE LAN chip with cFosSpeed network traffic management software included. USB ports on the rear panel include one USB Type-C with USB 3.2 Gen 1 support, three USB 3.2 Gen 1 Type-A ports, and two USB 2.0 ports. Internal headers extend USB connectivity further. Audio is provided via a Realtek ALC887 codec supporting up to 7.1-channel High Definition Audio. Expansion slots consist of one PCIe x16 slot running at full x16 bandwidth, one PCIe x16 slot running at x4, and two PCIe x1 slots, all conforming to PCIe 3.0. AMD CrossFire multi-GPU configurations are supported. The 4+2 hybrid digital VRM design uses Low RDS MOSFETs to reduce thermal waste during power delivery. Gigabyte's Smart Fan 5 system manages up to four fan headers (one CPU, three system), each supporting both PWM and voltage-mode fans with individual temperature-sensor mapping and the FAN STOP feature for silent operation at low loads. RGB Fusion 2.0 controls onboard lighting zones as well as external ARGB and standard RGB LED strips via dedicated headers. Q-Flash Plus enables BIOS updates without installing a CPU or memory — a useful recovery feature. The BIOS is a licensed AMI UEFI implementation stored on a 256 Mbit flash chip. Verified Specifications: - Form Factor: Micro ATX, 244 mm × 244 mm - Socket: LGA1200 - Chipset: Intel H470 Express - CPU Support: 10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron - Memory: 4× DDR4 DIMM, up to 128 GB, DDR4 2933/2666/2400/2133 MHz - Storage: 2× M.2 PCIe Gen3 x4 NVMe, 6× SATA 6 Gb/s, RAID 0/1/5/10 - Display Outputs: D-Sub, DVI-D, HDMI 1.4, DisplayPort 1.4 - Rear USB: 1× USB Type-C (USB 3.2 Gen 1), 3× USB 3.2 Gen 1, 2× USB 2.0 - Audio: Realtek ALC887, 2/4/5.1/7.1-channel HD Audio - LAN: Intel GbE (1000/100 Mbit) - BIOS: AMI UEFI, 256 Mbit flash - Warranty: 3 Years
