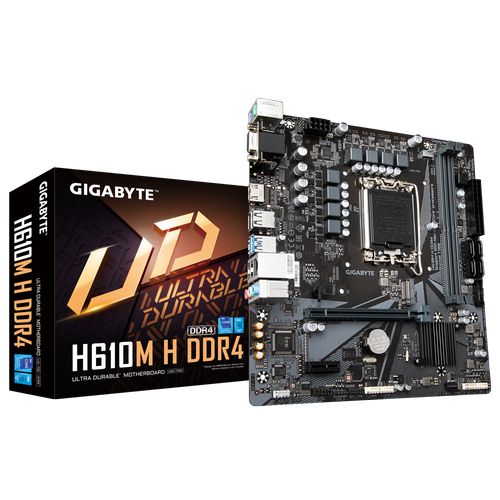

GIGABYTE H610M H DDR4 Intel Motherboard

The Gigabyte H610M H DDR4 is a Micro ATX motherboard built around the Intel H610 Express chipset and the LGA1700 socket, offering compatibility with 12th Generation Intel Core, Pentium Gold, and Celeron processors. At 23.0 cm x 21.5 cm, it fits standard Micro ATX cases and serves as a practical foundation for home, office, or entry-level content-creation builds. Power delivery is handled by a 6+1+1 phase hybrid digital VRM design using low RDS MOSFETs paired with solid capacitors for stable transient response. The 8-pin solid-pin ATX 12V CPU power connector provides a reliable feed to the processor under sustained workloads. Memory support spans two DDR4 DIMM slots in a dual-channel configuration, accepting speeds from 2133 MHz up to 3200 MHz including XMP profiles. After Intel’s memory reference code update, each slot can accommodate a single 32 GB module, bringing the board’s maximum supported capacity to 64 GB — suitable for memory-intensive tasks such as video editing and rendering. Expansion is provided by one reinforced PCIe 4.0 x16 slot for a discrete graphics card, one PCIe 3.0 x1 slot for add-in cards, and one M.2 Socket 3 connector supporting NVMe drives via PCIe 3.0 x4. Four SATA 6 Gb/s ports handle traditional storage. Display output on the back panel includes one HDMI 2.0 port and one D-Sub port for use with integrated graphics. Connectivity includes an Intel GbE LAN chip supporting 1 Gbps and 100 Mbps speeds, bundled with cFosSpeed network traffic management software to help reduce latency. USB ports total four USB 3.2 Gen 1 (two rear, two via internal header) and eight USB 2.0/1.1 ports (four rear, four via internal headers). PS/2 keyboard and mouse ports are present on the rear panel. Audio is managed by a Realtek codec supporting High Definition Audio with 2/4/5.1/7.1-channel output, backed by high-quality audio capacitors and a PCB-level audio noise guard that isolates analog components from digital interference. Thermal management uses Gigabyte’s Smart Fan 6, with one CPU fan header, two system fan headers supporting PWM and DC modes, and multiple temperature sensors for custom fan curves. Anti-sulfur resistors are included for improved long-term reliability. The BIOS uses a licensed AMI UEFI implementation stored on a 256 Mbit flash chip, with Q-Flash support for USB-based updates. Software utilities available through Gigabyte APP Center include EasyTune, @BIOS, Fast Boot, Game Boost, Smart Backup, System Information Viewer, and ON/OFF Charge. An RGB LED strip header is included for basic lighting. Verifiable Specifications: – Form Factor: Micro ATX, 23.0 cm x 21.5 cm – Socket: LGA1700 – Chipset: Intel H610 Express – CPU Support: 12th Gen Intel Core, Pentium Gold, Celeron – Memory: 2 x DDR4 DIMM, dual-channel, up to 64 GB (32 GB per slot), DDR4 2133–3200 MHz, XMP support – Expansion: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 – Storage: 1 x M.2 (PCIe 3.0 x4 NVMe), 4 x SATA 6 Gb/s – Display Output: 1 x HDMI 2.0, 1 x D-Sub – USB (rear): 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 – LAN: Intel GbE (1 Gbps/100 Mbps) – Audio: Realtek HD Audio, up to 7.1-channel – Power Connectors: 24-pin ATX, 8-pin ATX 12V – OS Support: Windows 11 64-bit, Windows 10 64-bit
