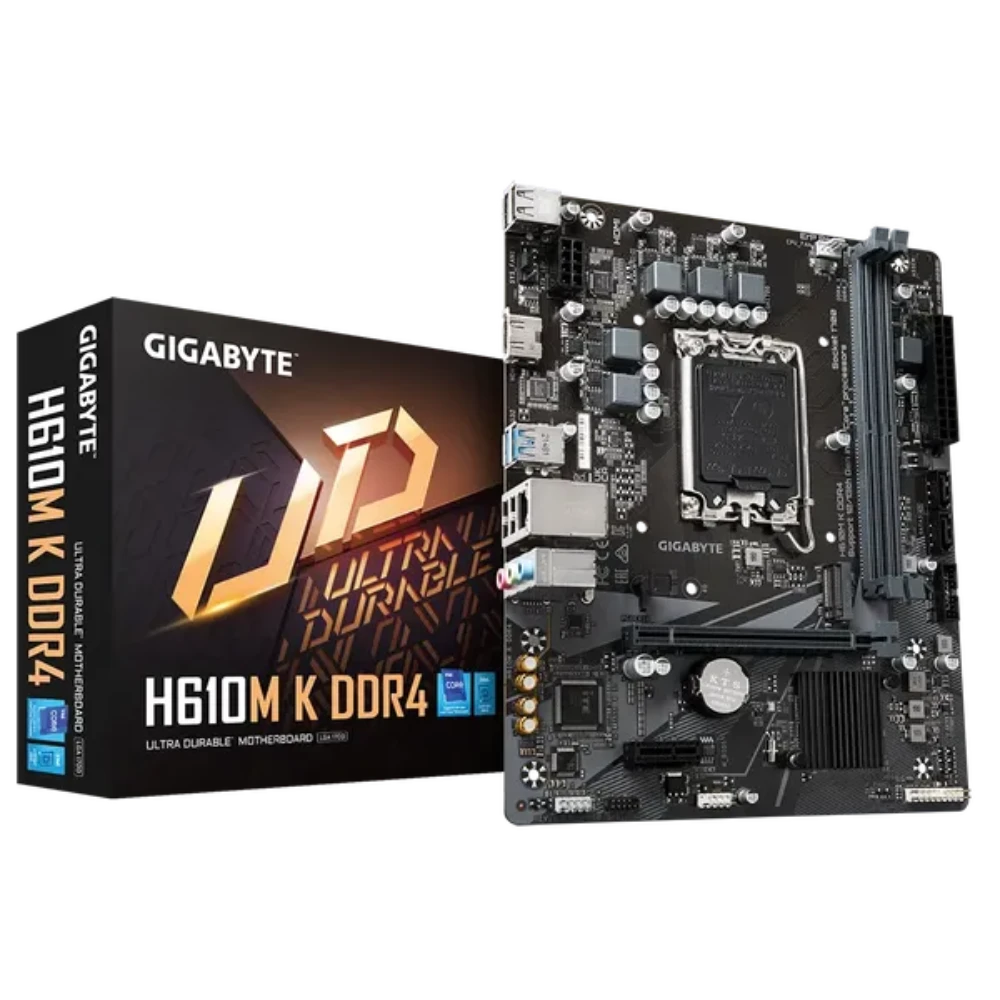

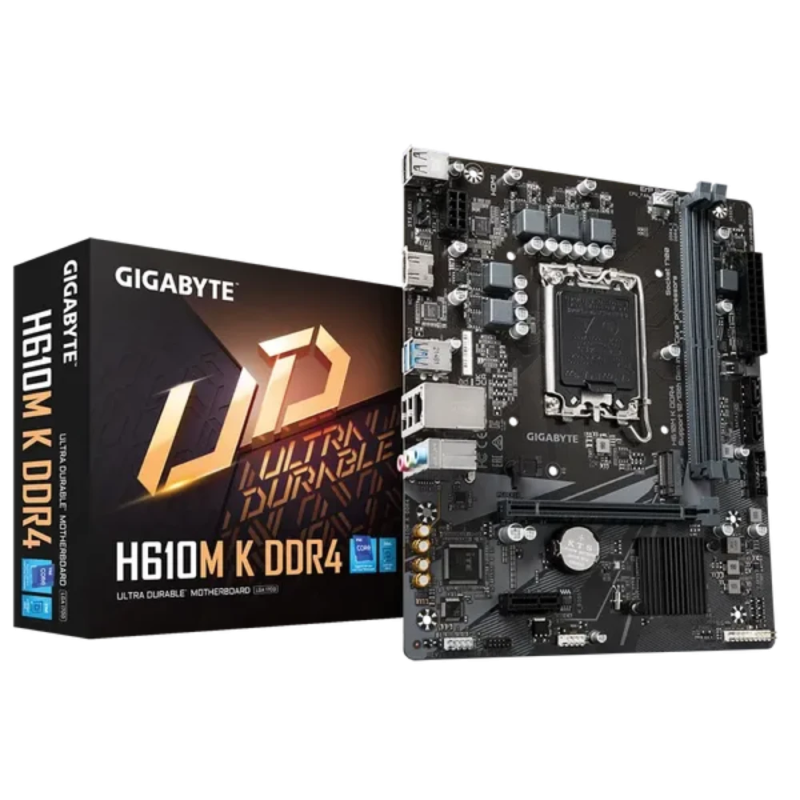

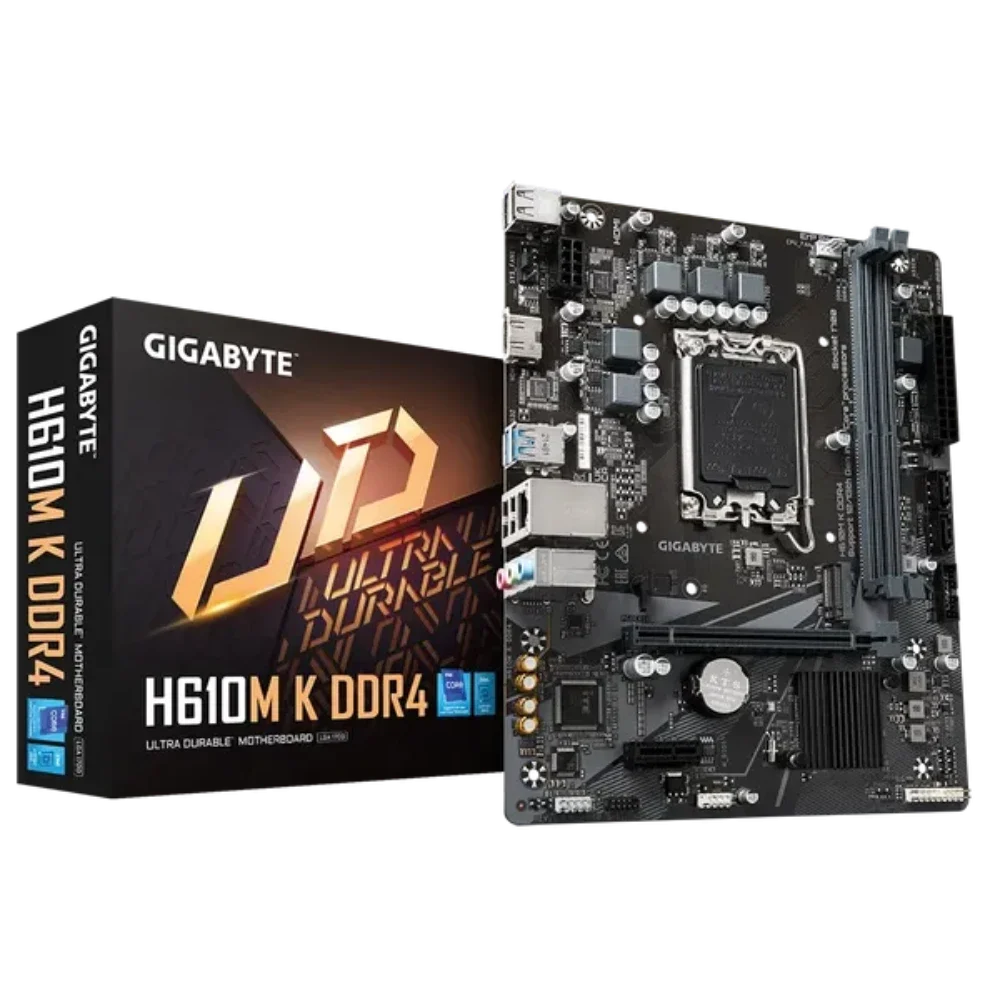

GIGABYTE H610M K DDR4 Intel Motherboard

The Gigabyte H610M K DDR4 is a Micro ATX motherboard designed for Intel's LGA1700 platform, making it a reliable foundation for budget-conscious and entry-level system builds based on 12th or 13th Generation Intel Core, Pentium Gold, and Celeron processors. Powered by the Intel H610 Express Chipset, it offers a practical feature set without unnecessary complexity, fitting neatly into compact mid-tower and small-form-factor cases. Memory support covers two DDR4 DIMM slots capable of holding up to 64 GB of system memory (32 GB per slot), operating in dual-channel mode at speeds ranging from 2133 MT/s up to 3200 MT/s. XMP profiles are supported for users who wish to run memory at rated speeds beyond the JEDEC baseline. For storage, a single M.2 connector (Socket 3, M key, supporting 2280 and 2260 form-factor drives via PCIe 3.0 x4) enables fast NVMe SSD installation, complemented by two SATA 6 Gb/s ports for additional drives. The primary PCIe x16 slot operates at PCIe 4.0 speeds, ensuring compatibility with current and recent discrete graphics cards. Connectivity is handled by a Realtek Gigabit Ethernet LAN chip with bundled bandwidth management software to help minimise network latency. The rear I/O panel provides one HDMI 2.0 port (up to 4096×2160 at 60 Hz via the CPU's integrated graphics), two USB 3.2 Gen 1 ports, four USB 2.0 ports, and three audio jacks. Audio is delivered through a Realtek High Definition Audio CODEC supporting up to 7.1-channel output, with PCB-level noise isolation via the onboard audio noise guard and high-quality audio capacitors. Smart Fan 6 technology provides multiple temperature sensor inputs and hybrid fan headers with FAN STOP capability, enabling quiet or zero-RPM operation under light loads. The board's AMI UEFI BIOS includes Gigabyte's Q-Flash for firmware updates and EasyTune for system monitoring and tuning within Windows. Anti-sulfur resistors are used throughout to improve long-term reliability in environments with trace corrosive gases. Key Specifications: - Socket: LGA1700 | Chipset: Intel H610 Express - Memory: 2× DDR4 DIMM, up to 64 GB, DDR4-2133 to DDR4-3200 MT/s, dual-channel, XMP support - PCIe Slots: 1× PCIe 4.0 x16 (CPU); 1× PCIe 3.0 x1 (chipset) - Storage: 1× M.2 (PCIe 3.0 x4, 2280/2260); 2× SATA 6 Gb/s - Display: 1× HDMI 2.0 (max 4096×2160@60 Hz, HDCP 2.3) - USB: 4× USB 3.2 Gen 1 (2 rear + 2 internal); 6× USB 2.0 (4 rear + 2 internal) - LAN: Realtek GbE (1 Gbps/100 Mbps) - Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-channel, 3× rear audio jacks - Form Factor: Micro ATX, 22.6 cm × 18.5 cm - BIOS: 128 Mbit flash, AMI UEFI - OS Support: Windows 10 64-bit, Windows 11 64-bit - Warranty: 3 years manufacturer warranty
