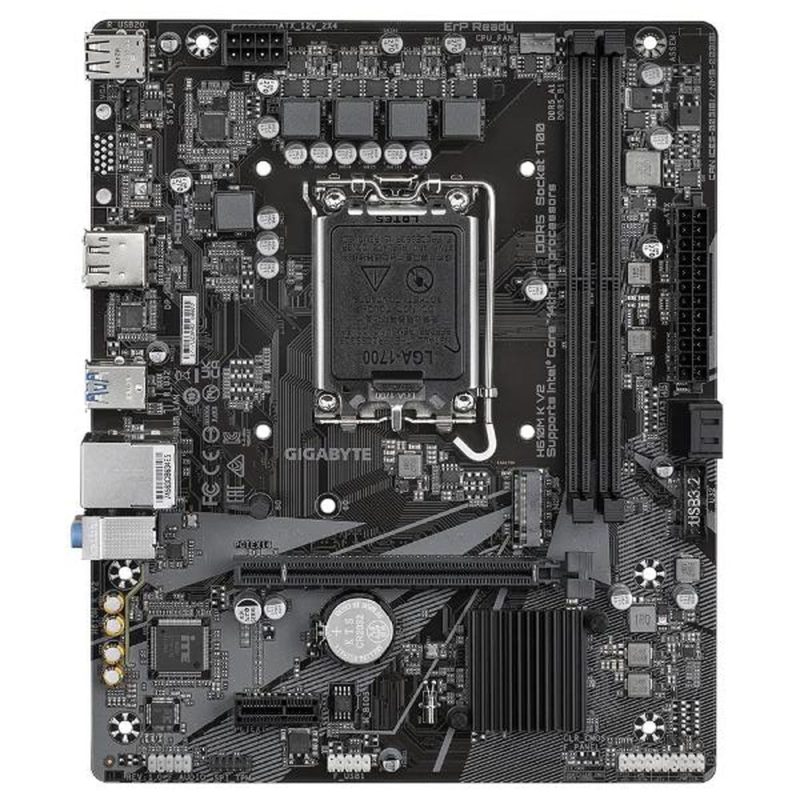

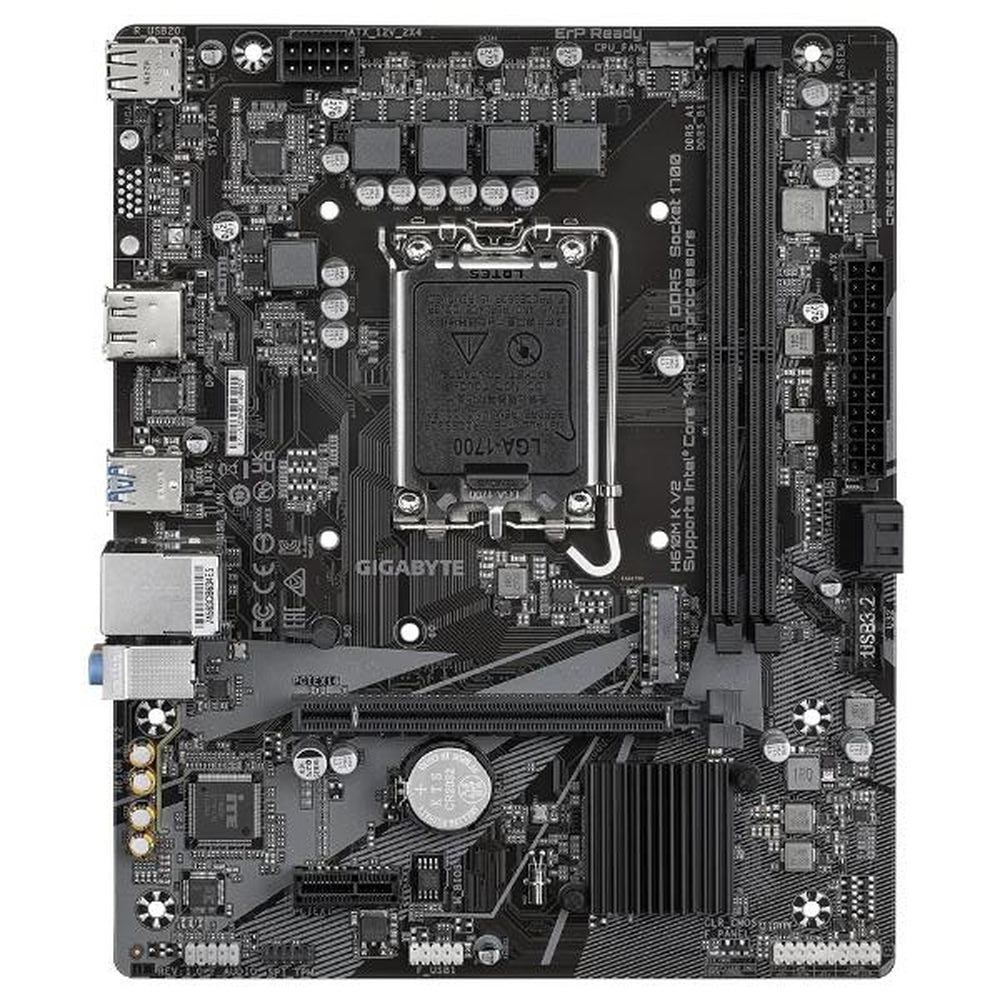

GIGABYTE H610M K V2 DDR5 Intel Motherboard

The Gigabyte H610M K V2 is a Micro-ATX motherboard built on the Intel H610 Express Chipset, designed for LGA1700-socket processors spanning Intel’s 12th, 13th, and 14th Generation Core, Pentium Gold, and Celeron families. It pairs the accessibility of the H610 platform with native DDR5 memory support, making it a capable foundation for office workstations, home-office PCs, and entry-level builds that want a path to modern memory technology without overspending. The board houses two DDR5 DIMM slots in a dual-channel configuration, supporting up to 128 GB of system memory (64 GB per slot). With 14th and 13th Gen Core i9/i7 processors, speeds of DDR5 5600/5200/4800/4400 MT/s are supported; 13th Gen Core i5/i3 and 12th Gen processors are rated for DDR5 4800/4400 MT/s. XMP-capable modules are supported, and Gigabyte’s exclusive PMIC programmable-mode design unlocks native DDR5 voltage control for those who wish to explore memory tuning. All memory traces run through inner PCB layers shielded by a ground plane to minimise signal interference. For expansion, a single PCIe 4.0 x16 slot accommodates discrete graphics cards, while a PCIe 3.0 x1 slot handles add-in cards. Storage is handled via one M.2 Socket 3 connector (M-key, 2280/2260, PCIe 3.0 x4/x2 NVMe) and two SATA 6 Gb/s ports. Display output is available through one HDMI 2.1 port (up to 4096×2160 @ 60 Hz, HDCP 2.3) and one DisplayPort 1.2 (up to 4096×2304 @ 60 Hz) when using a processor with integrated graphics. Connectivity on the rear I/O includes two USB 3.2 Gen 1 Type-A ports, four USB 2.0/1.1 Type-A ports, a Gigabit Ethernet RJ-45 port powered by a Realtek GbE controller, and three 3.5 mm audio jacks driven by a Realtek HD Audio CODEC supporting 2/4/5.1/7.1-channel output. Audio-section PCB isolation (Audio Noise Guard) and high-end audio capacitors are included to reduce noise floor. Internally, headers extend USB 3.2 Gen 1 (×2 ports) and USB 2.0/1.1 (×2 ports) to the front panel. Thermal management is handled by Gigabyte’s Smart Fan 6 system. Each fan header supports both PWM and DC fans as well as water-cooling pumps, with up to 24 W (12 V × 2 A) per header and over-current protection. Fan curves offer up to seven control points in either Slope (linear) or Stair (stepped) mode, and a Fan Stop function allows complete fan shutdown below a user-set temperature threshold. Profiles are stored in BIOS ROM and survive firmware updates. The board ships with the Gigabyte BIOS featuring a refreshed GUI and Hybrid Cores Optimization profiles (P-Core / E-Core activation and voltage adjustments for Intel Hybrid processors). Software utilities include EasyTune for in-Windows clock and voltage tuning, System Information Viewer for real-time monitoring, and GIGABYTE APP CENTER for driver and utility management. Anti-sulfur resistors and solid-pin ATX 12V 8-pin power connectors with solid-plated contacts round out the reliability-focused hardware design. Verified Specifications: – Model: GIGABYTE H610M K V2 – Form Factor: Micro-ATX – Socket: LGA1700 – Chipset: Intel H610 Express – CPU Support: Intel 12th / 13th / 14th Gen Core, Pentium Gold, Celeron – Memory: 2× DDR5 DIMM, dual-channel, max 128 GB; speeds up to DDR5 5600 MT/s (i9/i7 13th/14th Gen) – PCIe: 1× PCIe 4.0 x16; 1× PCIe 3.0 x1 – Storage: 1× M.2 (PCIe 3.0 x4/x2, 2280/2260); 2× SATA 6 Gb/s – Display: 1× HDMI 2.1 (4096×2160 @ 60 Hz); 1× DisplayPort 1.2 (4096×2304 @ 60 Hz) – Audio: Realtek HD Audio CODEC, up to 7.1-channel – LAN: Realtek GbE (1 Gbps) – USB (Rear): 2× USB 3.2 Gen 1, 4× USB 2.0/1.1 – USB (Internal headers): 2× USB 3.2 Gen 1, 2× USB 2.0/1.1 – Fan Headers: 1× CPU fan, 1× system fan (Smart Fan 6, up to 24 W each) – TPM: 1× SPI TPM header (GC-TPM2.0 compatible)
