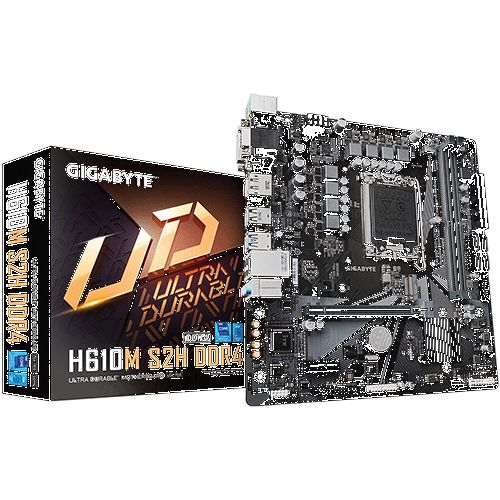

GIGABYTE H610M S2H DDR4 Intel Motherboard

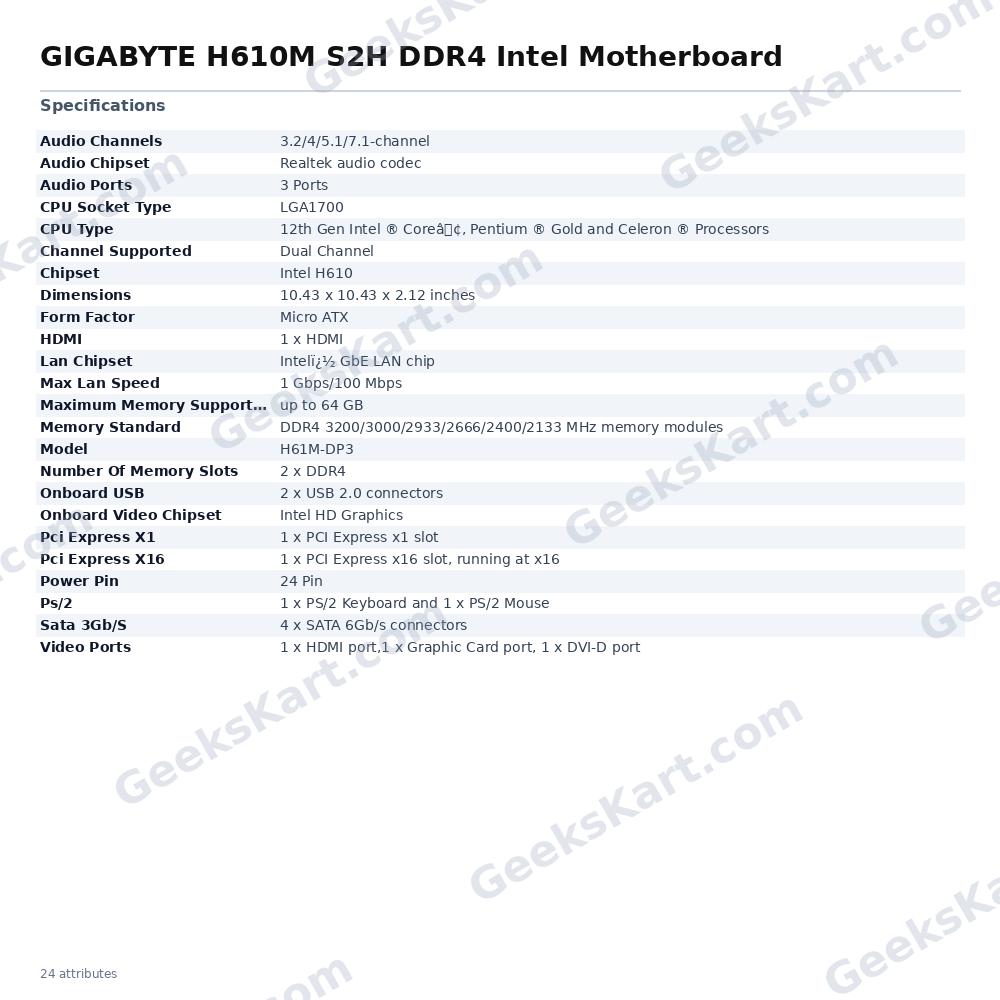

The GIGABYTE H610M S2H DDR4 is a Micro ATX motherboard designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. Built around the Intel H610 Express chipset, it offers a practical and efficient foundation for everyday desktop builds, home office systems, and entry-level workstations. Power delivery is handled through a 6+1+1 phase hybrid design, providing cleaner and more stable power to the CPU under varied load conditions. The board uses a solid-pin 8-pin ATX 12V power connector, which offers a larger contact area and greater durability compared to standard connectors. Memory support covers two DDR4 DIMM slots in a dual-channel configuration, accommodating speeds from 2133 MHz up to 3200 MHz and a maximum capacity of 64 GB (up to 32 GB per single DIMM). XMP profiles are supported for compatible modules, and ECC unbuffered DIMMs can be installed but operate in non-ECC mode. Display output options are generous for this tier: one HDMI port (up to 4096×2160 @ 60 Hz), one DisplayPort (up to 4096×2304 @ 60 Hz), one DVI-D port, and one D-Sub port — all driven by Intel integrated HD Graphics. Networking is provided by an Intel GbE LAN controller paired with cFosSpeed traffic management software for improved responsiveness in congested network environments. Storage connectivity includes one M.2 Socket 3 connector (type 2260/2280, PCIe 3.0 x4/x2) and four SATA 6 Gb/s ports. Expansion slots comprise one PCIe 4.0 x16 slot for a discrete GPU and one PCIe 3.0 x1 slot for additional cards. USB ports on the rear panel include two USB 3.2 Gen 1 and four USB 2.0/1.1 ports, supplemented by internal headers for further USB expansion. Audio is delivered via a Realtek HD Audio codec supporting up to 7.1-channel output through three rear audio jacks. The board also features one RGB LED strip header, hardware monitoring (voltage, temperature, fan speed), and AMI UEFI BIOS with Q-Flash support. Verifiable Specifications: - Form Factor: Micro ATX, 230 mm × 215 mm - Socket: LGA1700 - Chipset: Intel H610 Express - Memory: 2× DDR4 DIMM, up to 64 GB, dual-channel, 2133–3200 MHz - Display: HDMI, DisplayPort, DVI-D, D-Sub - Storage: 1× M.2 (PCIe 3.0 x4), 4× SATA 6 Gb/s - Expansion: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 - LAN: Intel GbE (1 Gbps) - Audio: Realtek HD, 7.1-channel - USB Rear: 2× USB 3.2 Gen 1, 4× USB 2.0 - BIOS: AMI UEFI, 256 Mbit flash - OS Support: Windows 11 64-bit, Windows 10 64-bit
