Gigabyte X870E Aorus Pro ICE ATX Motherboard
MPN X870E-AORUS-PRO-ICE · Brand GIGABYTE · ATX
The Gigabyte X870E Aorus Pro ICE is an ATX motherboard for AMD AM5 (Ryzen 9000/8000/7000) featuring a 16+2+2 phase VRM, DDR5 up to 8200 MT/s, four M.2 slots (3x PCIe 5.0), dual USB4, and Wi-Fi 7
Inclusive of GST · GST invoice available
Overview
The Gigabyte X870E Aorus Pro ICE is a full-size ATX motherboard built on AMD's flagship X870E chipset and designed for the AM5 platform. It supports AMD Ryzen 9000, 8000, and 7000 series processors, giving builders a forward-looking foundation for both current-generation and upcoming Ryzen CPUs. Power delivery is handled by a digital twin 16+2+2 phase VRM solution, supported by VRM Thermal Armor Advanced to keep temperatures stable under demanding workloads. Four DDR5 DIMM slots accommodate up to 256 GB of non-ECC unbuffered memory, with support for AMD EXPO and XMP profiles at speeds reaching up to 8200 MT/s, enabling enthusiast-grade overclocking configurations. Storage is a clear strength of this board. Four M.2 Socket 3 connectors are included, with three running at PCIe 5.0 x4 speeds, providing headroom for the fastest NVMe drives currently available. The primary PCIe x16 slot operates at PCIe 5.0 x16 with Ryzen 9000 and 7000 series processors and features Gigabyte's PCIe UD Slot X reinforcement for enhanced durability. Four SATA 6 Gb/s ports round out storage connectivity. Networking is led by Wi-Fi 7 with a 2T2R directional antenna and Bluetooth 5.4, complemented by a 2.5 GbE wired LAN port. The rear I/O panel features two USB4 Type-C ports with DisplayPort Alt-mode, three USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, two USB 2.0 ports, an HDMI output, optical S/PDIF out, and two audio jacks. An onboard Q-Flash Plus button allows BIOS updates without a CPU or memory installed. Installation conveniences include EZ-Latch Plus for tool-free PCIe and M.2 slot retention, EZ-Latch Click for screwless M.2 heatsinks, and WIFI EZ-Plug for straightforward antenna attachment. Sensor Panel Link provides an onboard video port for in-chassis LCD panel integration. Lighting is managed through three addressable RGB Gen 2 headers and one standard RGB header. Audio is powered by a Realtek ALC1220 HD codec paired with audiophile-grade capacitors. Fan control spans one CPU fan header, one CPU fan/pump header, four system fan headers, and two system fan/pump combo headers. Key Specifications: - Socket: AMD AM5 - Chipset: AMD X870E - CPU Support: Ryzen 9000 / 8000 / 7000 series - Form Factor: ATX - Memory: 4x DDR5 DIMM, dual channel, up to 256 GB, up to 8200 MT/s, AMD EXPO & XMP - Primary PCIe slot: PCIe 5.0 x16 (CPU) - M.2 slots: 4x (3x PCIe 5.0 x4, 1x PCIe 4.0 x4 via chipset) - SATA: 4x SATA 6 Gb/s - LAN: 2.5 GbE - Wireless: Wi-Fi 7, Bluetooth 5.4 - Rear USB: 2x USB4 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0 - Audio: Realtek ALC1220 - RGB: 3x ARGB Gen 2, 1x RGB - Warranty: 3 Years

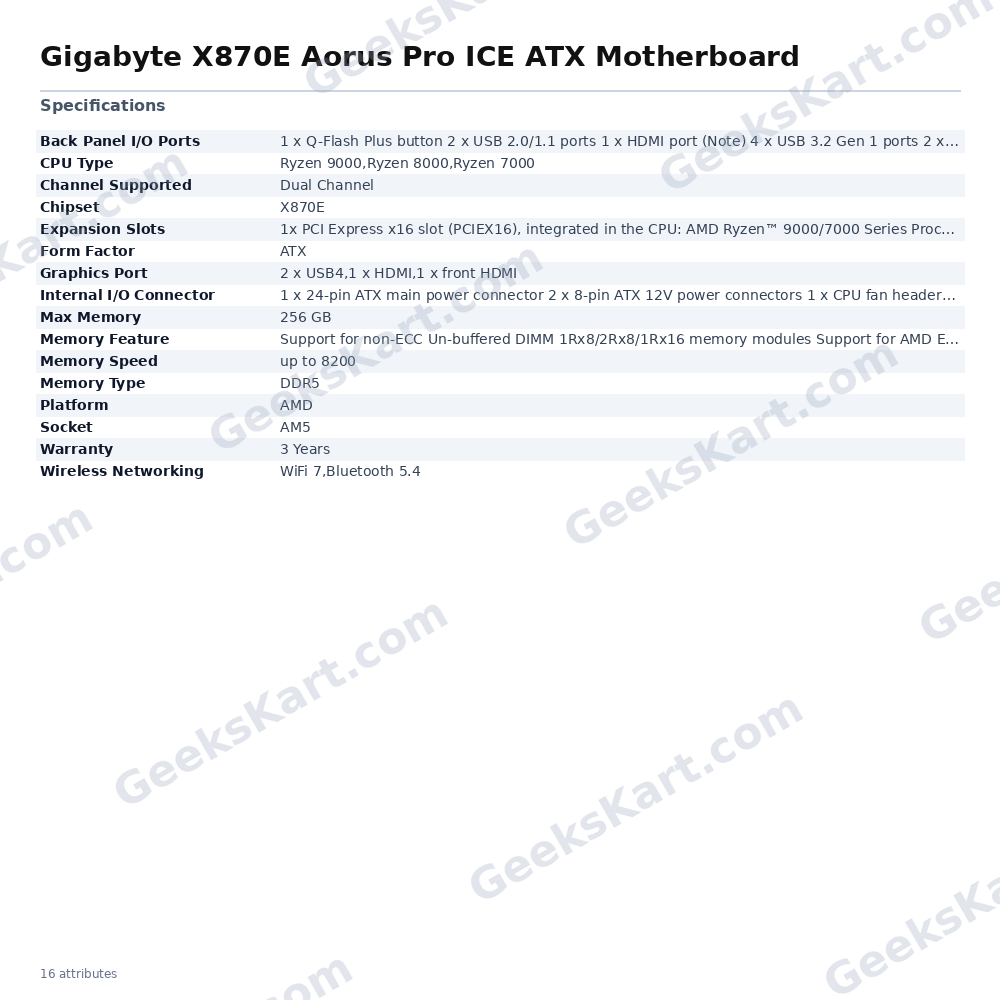

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | X870E |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200 |
| Platform | AMD |
| Graphics Port | 2 x USB4,1 x HDMI,1 x front HDMI |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
