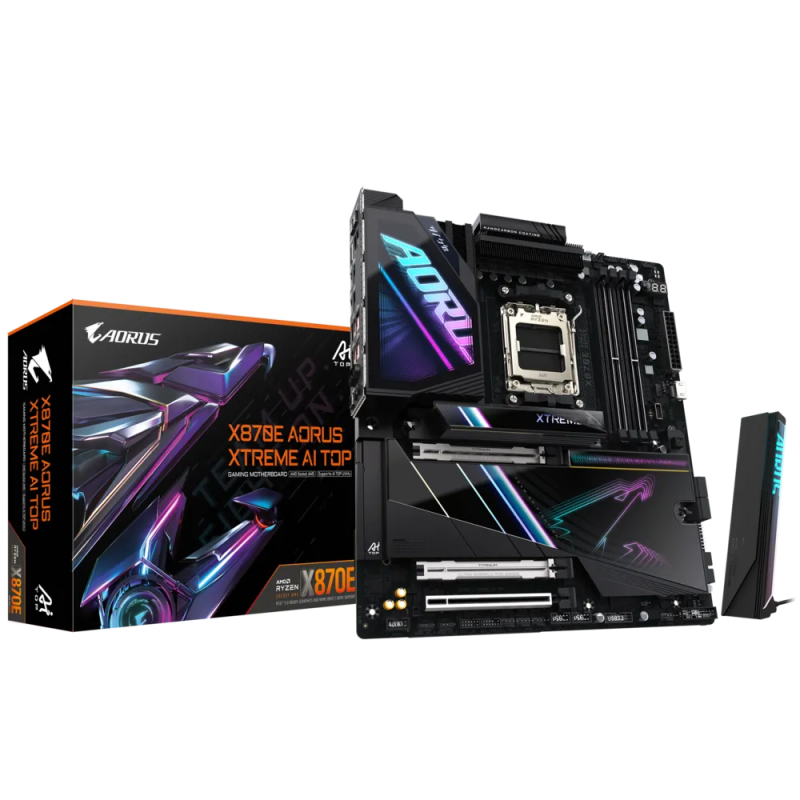

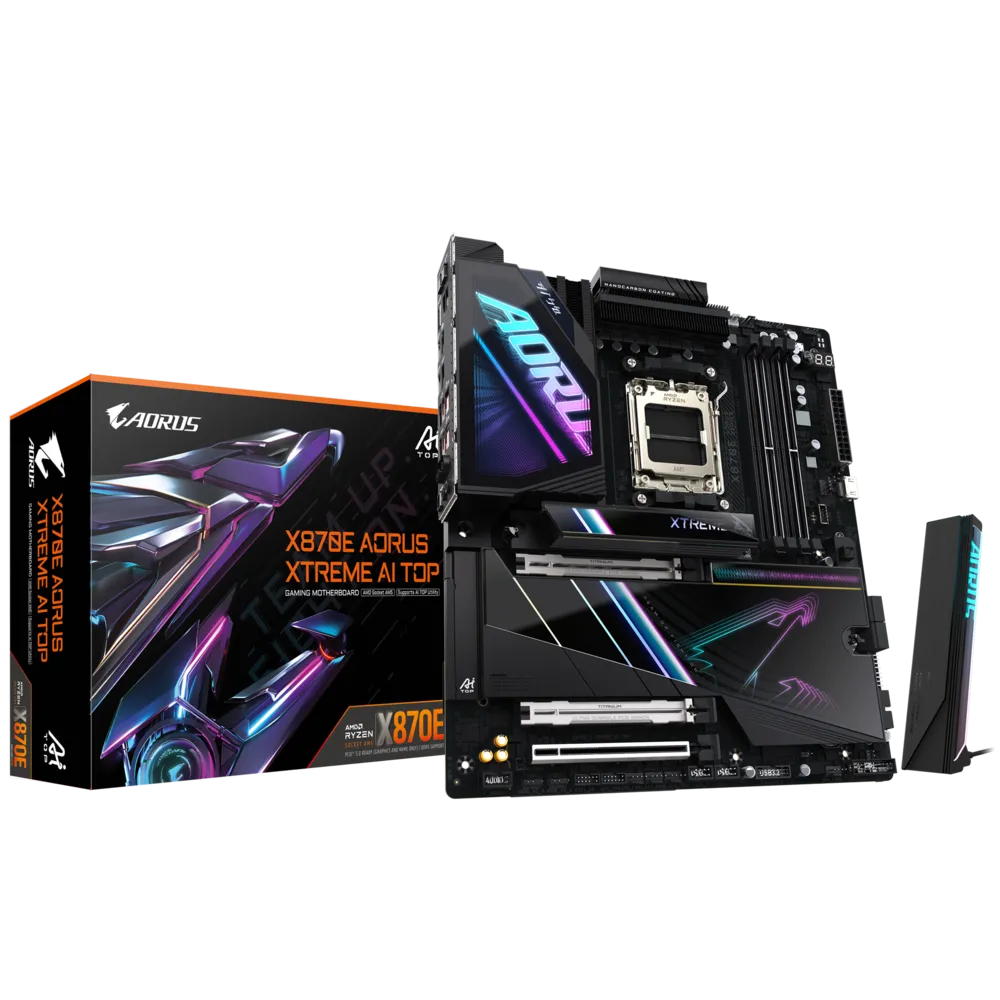

GIGABYTE X870E Aorus Xtreme AI Top DDR5 AMD Motherboard

The GIGABYTE X870E Aorus Xtreme AI Top is a flagship E-ATX motherboard built on the AMD X870E chipset with an AM5 socket, designed for enthusiast builders, overclockers, and users exploring local AI workloads on AMD Ryzen 7000, 8000, and 9000 Series processors. At the heart of its power delivery is a Digital Twin VRM Design featuring a 9+9 (18-phase) parallel configuration for the CPU cores, complemented by 2 SOC phases for integrated GPU and memory management, and 2 MISC phases for stable PCIe lane power. This architecture is engineered to sustain demanding workloads across extended sessions. Connectivity is a standout strength. The board carries dual Marvell AQtion AQC113C 10GbE RJ-45 LAN ports, a Qualcomm Wi-Fi 7 QCNCM865 module supporting 2.4 GHz, 5 GHz, and 6 GHz bands with 320 MHz channel support, Multi-Link Operation (MLO), 4K-QAM, and Bluetooth 5.3. For wired peripherals, two rear USB4 Type-C ports (via ASMedia controller) deliver up to 40 Gbps each and support DisplayPort output at up to 3840×2160@240 Hz, alongside six USB 3.2 Gen 2 Type-A ports, two USB 2.0 ports, and additional internal headers. Storage is handled by four M.2 Socket 3 connectors: one CPU-direct slot (M2A_CPU) supporting PCIe 5.0 x4 with Ryzen 9000/7000 processors, plus three chipset-connected slots supporting PCIe 4.0. Four SATA 6 Gb/s connectors are also present, with RAID 0, 1, 5 (Ryzen 9000 only), and 10 support for NVMe devices. Expansion slots include a primary PCIe 5.0 x16 slot and a second PCIe 5.0 x8 slot (both CPU-integrated on Ryzen 9000/7000), enabling dual-GPU or multi-accelerator configurations. The AI TOP platform supports the AI TOP Utility 2.0 for accessible local LLM training workflows. Audio is delivered through a Realtek ALC1220 codec paired with an ESS ES9118 DAC chip, WIMA audiophile-grade capacitors, a TXC oscillator, DTS:X Ultra support, and S/PDIF optical output. Memory support spans 4 x DDR5 DIMM slots accommodating up to 256 GB (64 GB per DIMM) at speeds up to DDR5-8800 (O.C.), with AMD EXPO and XMP profile compatibility, plus ECC unbuffered DIMM support. The board ships in E-ATX form factor (305 mm × 269 mm), runs an AMI UEFI BIOS on a 256 Mbit flash chip, and includes GIGABYTE Control Center, Q-Flash, Q-Flash Plus, and Smart Backup utilities. I/O lighting is provided by I/O Zone AORUS RGB and RGB Fusion with addressable Gen2 LED headers. EZ-Latch mechanisms enable tool-less M.2 SSD and heat sink installation. A 3-year warranty is included. Verifiable Specifications: – Socket: AMD AM5 – Chipset: AMD X870E – Form Factor: E-ATX, 305 mm × 269 mm – Memory: 4 × DDR5 DIMM, up to 256 GB, DDR5-4400 to DDR5-8800 (O.C.), ECC support, AMD EXPO / XMP – PCIe: 2 × PCIe 5.0 slots (x16 / x8 CPU-direct, Ryzen 9000/7000), 1 × PCIe 4.0 x2 (chipset) – M.2: 4 × M.2 (1 × PCIe 5.0 x4 CPU, 3 × PCIe 4.0 chipset) – SATA: 4 × SATA 6 Gb/s; RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) – LAN: 2 × Marvell AQtion AQC113C 10GbE – Wi-Fi: Qualcomm Wi-Fi 7 QCNCM865 (2.4/5/6 GHz, 802.11be, 320 MHz); Bluetooth 5.3 – USB: 2 × USB4 40 Gbps Type-C (rear), 6 × USB 3.2 Gen 2 Type-A (rear), internal headers – Audio: Realtek ALC1220 + ESS ES9118 DAC, DTS:X Ultra, S/PDIF optical out – Video Out: 1 × HDMI 2.1 (rear, up to 4096×2160@60 Hz), 2 × USB4 Type-C DisplayPort – BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus – Warranty: 3 years
