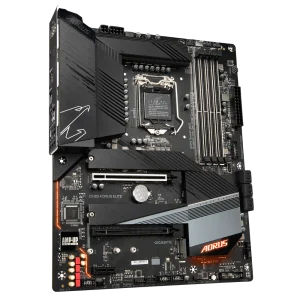

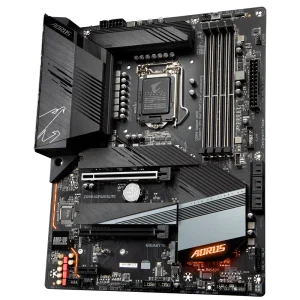

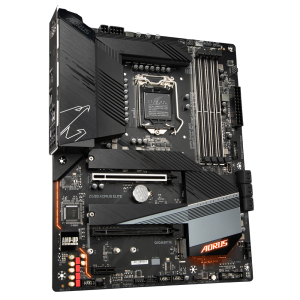

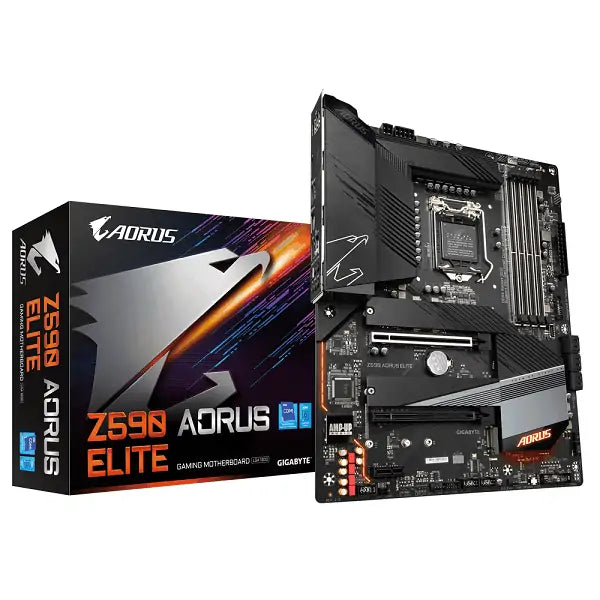

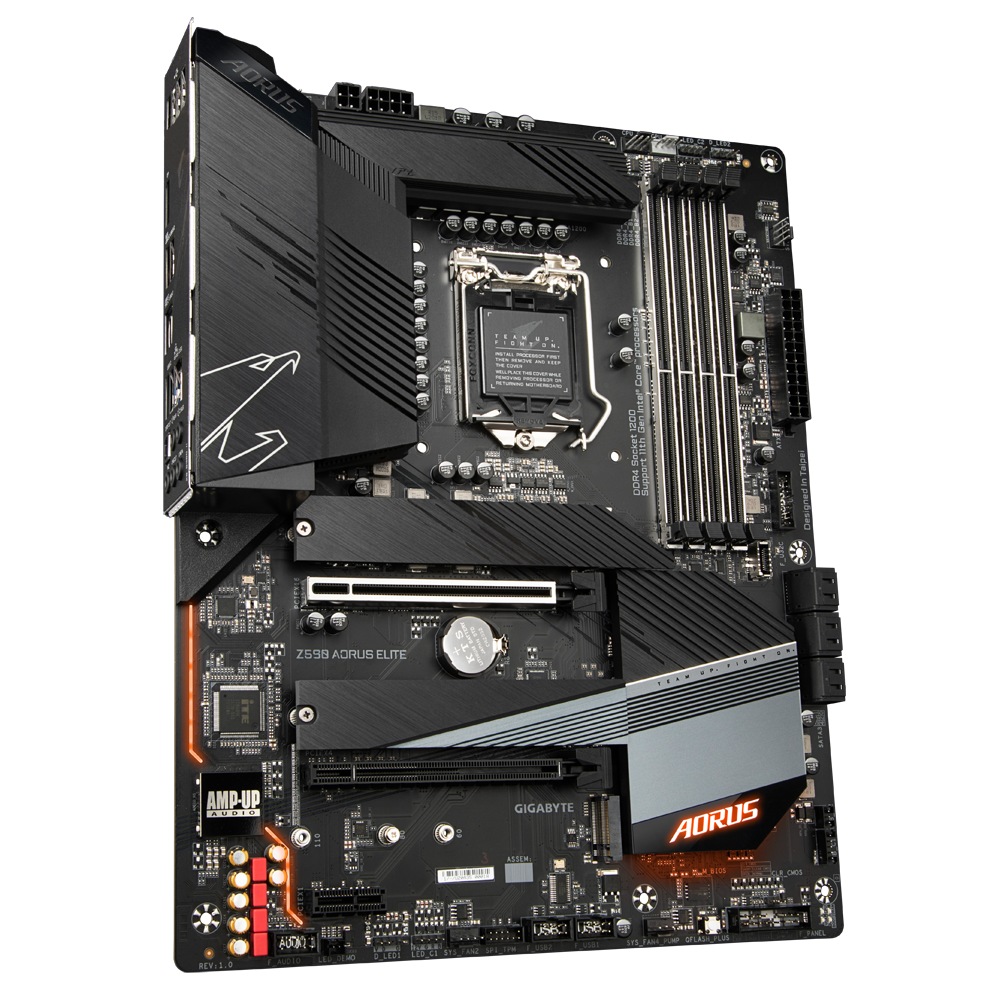

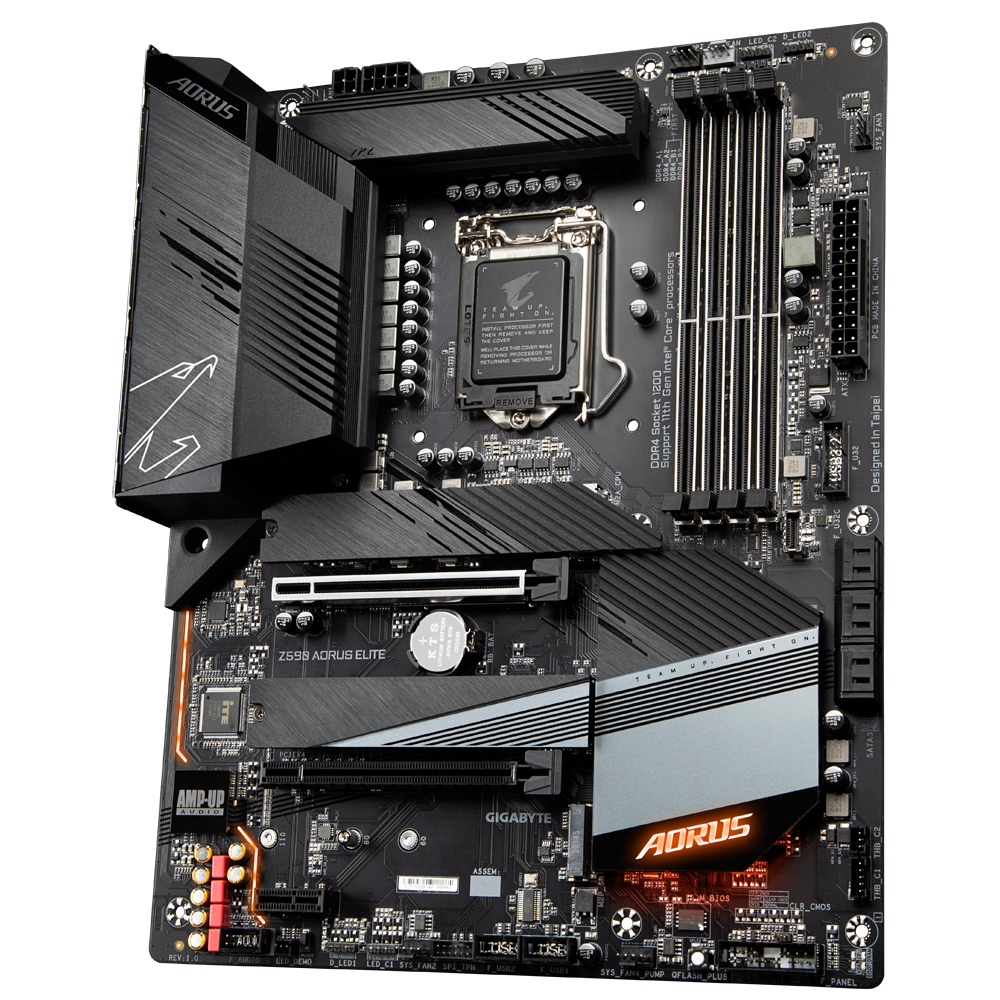

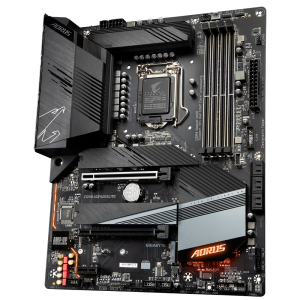

GIGABYTE Z590 AORUS ELITE DDR4 Intel MOTHERBOARD
MPN GIGABYTE-Z590-AORUS-ELITE · Brand Gigabyte
The Gigabyte Z590 AORUS ELITE DDR4 motherboard supports Intel 11th and 10th Gen LGA1200 processors with a 12+1 phase digital VRM, triple M.2 slots (PCIe 4.0 on 11th Gen), 2.5GbE LAN, and USB 3.2 Gen 2x2 connectivity
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z590 AORUS ELITE DDR4 is an ATX form-factor motherboard built on the Intel Z590 Express Chipset for LGA1200-compatible 11th Generation (Rocket Lake) and 10th Generation (Comet Lake) Intel Core processors. At the heart of its power delivery is a direct 12+1 phase digital VRM solution, pairing a digital PWM controller with 60A DrMOS components. An 8-pin plus 4-pin ATX 12V power connector arrangement ensures stable power delivery during sustained workloads and overclocking sessions. Four DDR4 DIMM slots support up to 128 GB of dual-channel non-ECC unbuffered memory, with XMP profile support and overclocked speeds reaching DDR4-5400 (OC) on compatible 11th Gen processors. Storage versatility is addressed through three M.2 connectors, each accommodating Socket 3 M-key drives up to 22110 length. One slot (M2A_CPU) supports PCIe 4.0 x4 with an 11th Gen processor installed, while the remaining two slots handle PCIe 3.0 x4 or SATA drives. Six SATA 6 Gb/s connectors provide additional storage bandwidth. The primary PCIe x16 slot runs at full PCIe 4.0 x16 speed with an 11th Gen CPU, supplemented by a secondary x16 slot wired at x4 and a PCIe 3.0 x1 slot. Thermal management benefits from fully covered MOSFET heatsinks and dedicated M.2 thermal guards that help sustain consistent SSD performance under load. Connectivity is handled by a Realtek 2.5GbE LAN chip supporting 2.5 Gbit, 1 Gbit, and 100 Mbit operation. USB ports include one rear-panel USB Type-C running at USB 3.2 Gen 2x2 (up to 20 Gb/s), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, and four USB 2.0 ports on the back panel, with additional internal headers for front-panel USB 3.2 Gen 1 and USB 2.0. Audio is delivered by a Realtek ALC1220-VB codec supporting High Definition Audio in up to 7.1-channel configuration with S/PDIF optical output. RGB FUSION 2.0 controls onboard LEDs alongside two addressable LED headers and two standard RGB headers. Verified Specifications: - Chipset: Intel Z590 Express - Socket: LGA1200 - Supported CPUs: Intel 11th Gen and 10th Gen Core processors - Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB, DDR4-2133 to DDR4-5400 (OC, 11th Gen) - VRM: 12+1 phase digital, 60A DrMOS - M.2 Slots: 3x (1x PCIe 4.0 x4 via CPU [11th Gen only], 2x PCIe 3.0 x4/SATA) - SATA: 6x SATA 6 Gb/s - Primary PCIe x16: PCIe 4.0 (11th Gen) / PCIe 3.0 (10th Gen) - LAN: Realtek 2.5GbE - USB (rear): 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 4x USB 2.0 - Audio: Realtek ALC1220-VB, 7.1-channel, S/PDIF optical out - BIOS: AMI UEFI, Q-Flash Plus (CPU-free update) - RGB: FUSION 2.0, 2x ARGB headers, 2x RGB headers - Fan Headers: 1x CPU, 1x CPU water cooling, 3x system, 1x pump/system - Form Factor: ATX - OS Support: Windows 10 64-bit

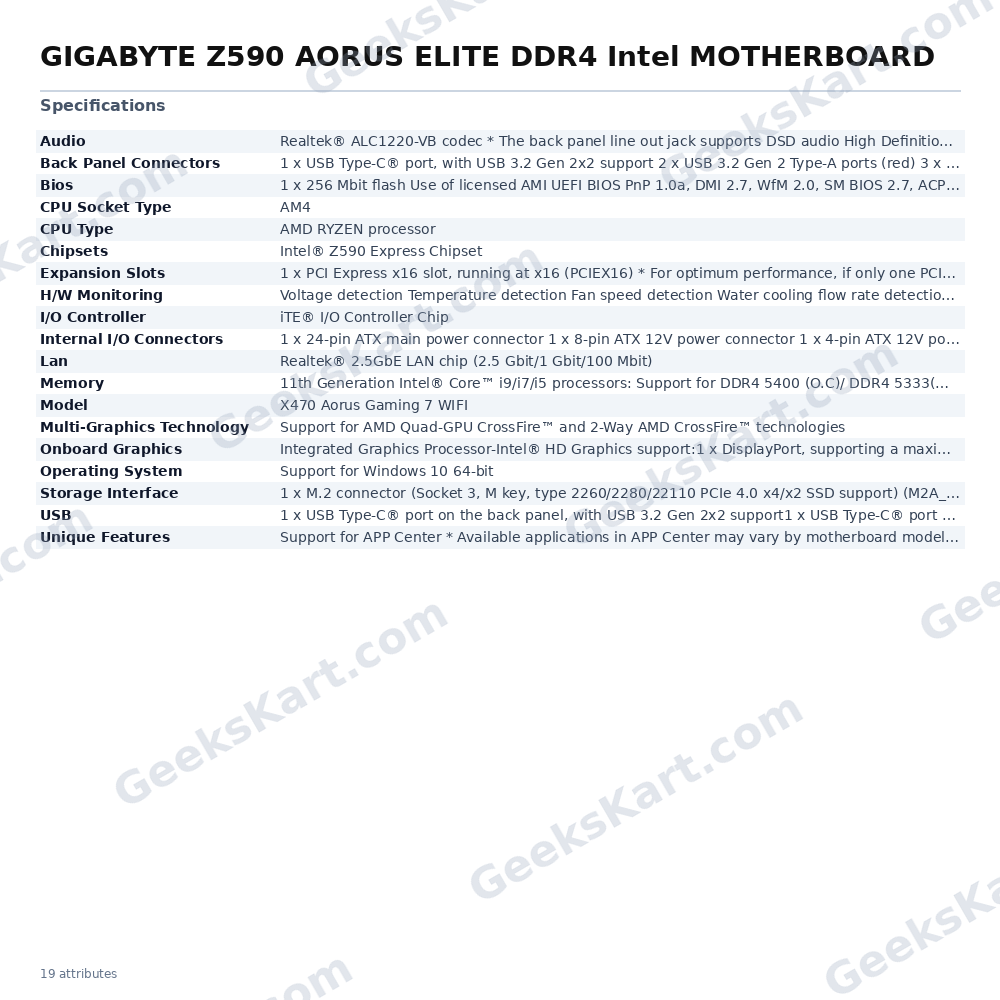

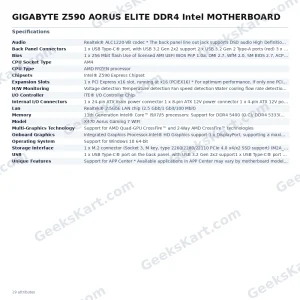

Datasheet
| CPU Type | AMD RYZEN processor |
|---|---|
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| USB | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen2 Type-A ports (red) on the back panel5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Model | X470 Aorus Gaming 7 WIFI |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Chipsets | Intel® Z590 Express Chipset |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| CPU Socket Type | AM4 |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)**Supported by 11th Generation processors only.1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)6 x SATA 6Gb/s connectors |

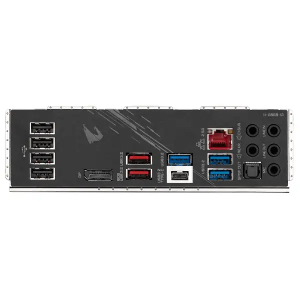

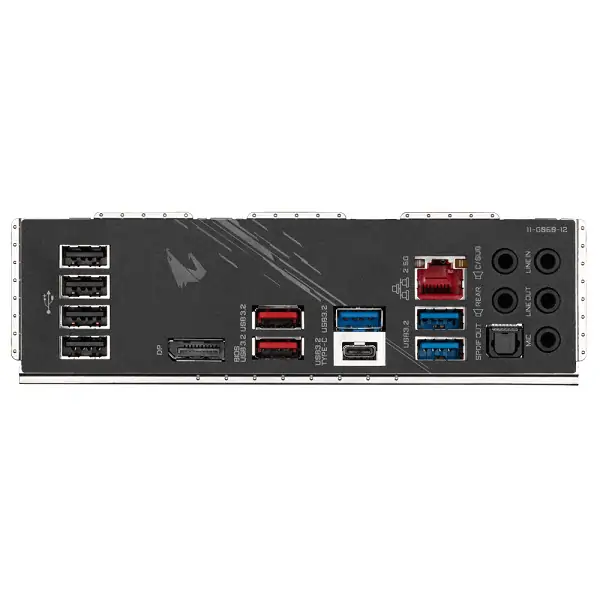

| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
