GIGABYTE Z790 AORUS ELITE AX-W DDR5 Intel Motherboard
MPN GIGABYTE-Z790-AORUS-ELITE-AX-W-MOTHERBOARD · Brand Gigabyte · ATX
The Gigabyte Z790 AORUS ELITE AX-W is an ATX Intel motherboard (LGA1700) with a 16+1+2 phase DDR5 VRM, quad PCIe 4.0 M.2 slots, PCIe 5.0 primary slot, 2.5 GbE LAN, and Intel Wi-Fi 6E — supporting 12th and 13th Gen Intel processors
Inclusive of GST · GST invoice available

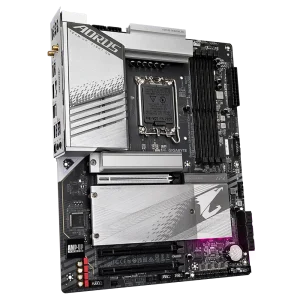

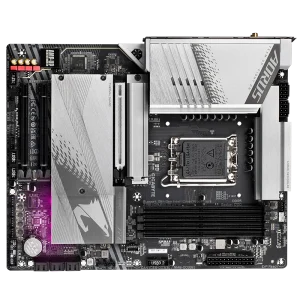

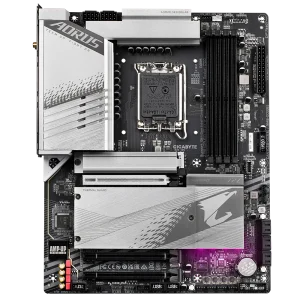

Overview

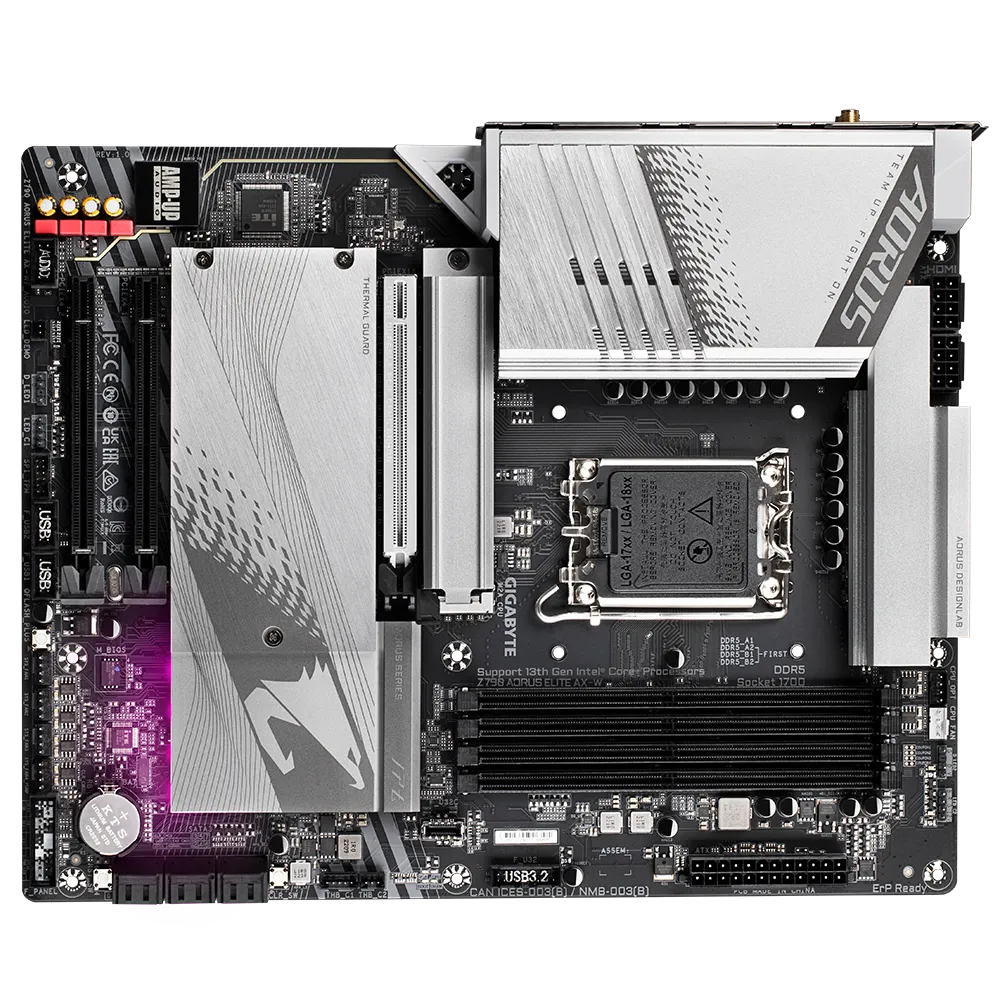

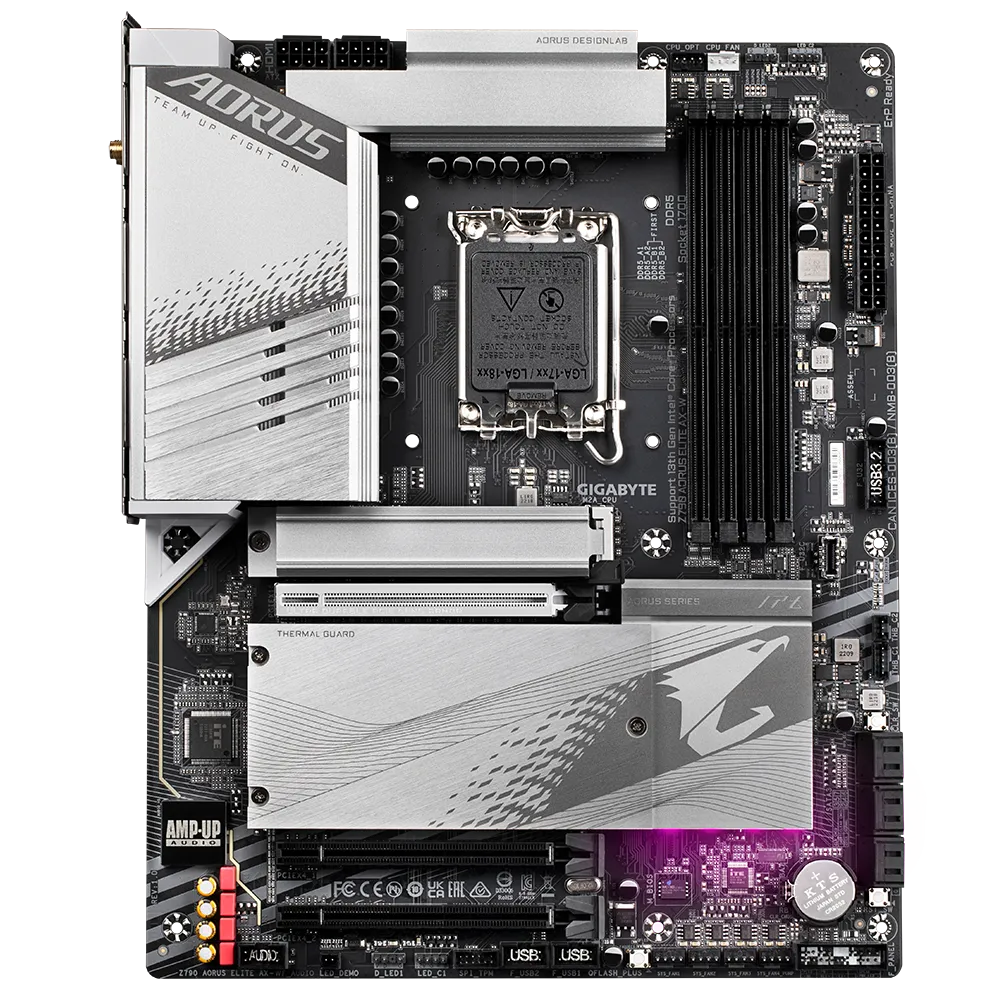

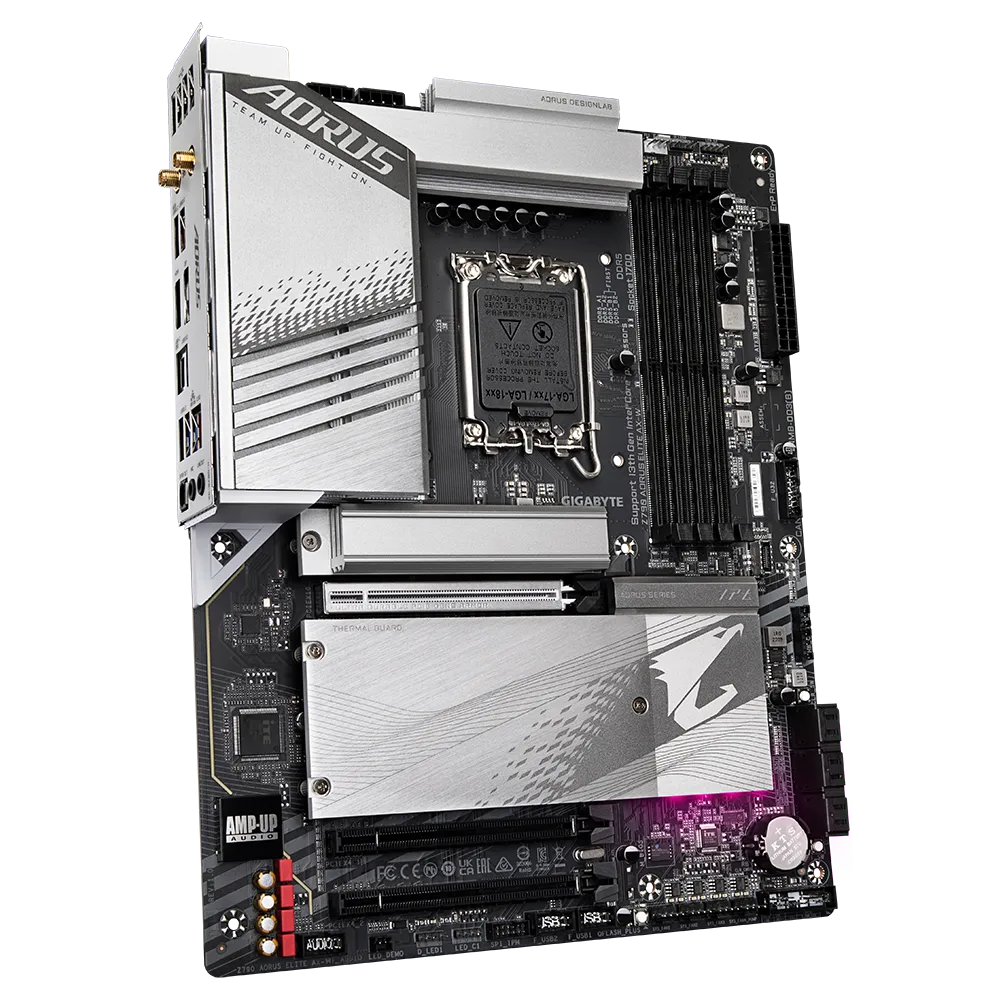

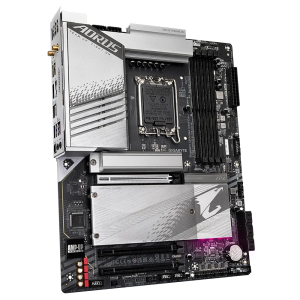

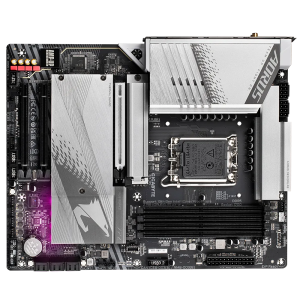

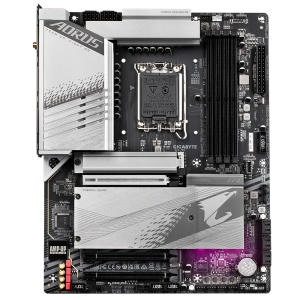

The Gigabyte Z790 AORUS ELITE AX-W is an ATX-form-factor Intel motherboard built on the Z790 Express Chipset and designed around the LGA1700 socket, supporting 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors. It pairs a robust power-delivery system with modern connectivity to serve enthusiast builders and content creators who demand stable, high-throughput platforms. Power delivery is handled by a twin 16+1+2 phase digital VRM solution, with 70A Smart Power Stages per VCORE phase, a fully covered MOSFET heatsink, and a 6 mm heatpipe to keep temperatures in check under sustained loads. A 7.5 W/mK thermal pad and a 6-layer PCB with 2× copper layers reinforce thermal headroom across the board. Memory support spans four DDR5 DIMM slots in a dual-channel configuration, accepting up to 128 GB total (32 GB per slot maximum). Speed support ranges from DDR5-4000 at native JEDEC speeds up to DDR5-7600 via XMP 3.0 overclocking profiles, enabling high-bandwidth configurations for gaming and creative workloads. Storage is equally generous, with four M.2 connectors (all PCIe 4.0 x4, one of which also supports SATA), complemented by six SATA 6 Gb/s ports. The primary PCIe x16 slot runs at PCIe 5.0 speeds from the CPU, while two additional chipset-fed PCIe 4.0 x4 slots provide expansion flexibility. EZ-Latch Plus offers screwless, tool-free M.2 installation and removal. Networking is covered by a Realtek 2.5 GbE LAN chip and an Intel Wi-Fi 6E AX211 module, which supports the 2.4 GHz, 5 GHz, and 6 GHz bands, the 802.11ax (Wi-Fi 6E) standard at up to 160 MHz channel width, and Bluetooth 5.3, with a maximum wireless data rate of up to 2.4 Gbps. Rear-panel connectivity includes a USB Type-C port with USB 3.2 Gen 2×2 (20 Gb/s), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, and four USB 2.0 ports. A front-panel USB Type-C header delivers USB 3.2 Gen 2 (10 Gb/s). Display outputs comprise HDMI 2.0 and DisplayPort 1.2 for systems using integrated graphics. Audio is powered by a Realtek HD Audio CODEC supporting 2/4/5.1/7.1-channel output with optical S/PDIF out. The board also features Q-Flash Plus (BIOS update without a CPU or memory installed), Smart Fan 6 thermal management with multiple sensor inputs and fan-stop functionality, two ARGB headers, two RGB headers, and Gigabyte Control Center software for fan, RGB, and system tuning. Verified Specifications: - Socket: LGA1700 | Chipset: Intel Z790 Express - Memory: 4× DDR5 DIMM, up to 128 GB, DDR5-4000 native / DDR5-7600 XMP 3.0 - Storage: 4× M.2 PCIe 4.0 x4, 6× SATA 6 Gb/s - PCIe: 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x4 (chipset) - LAN: Realtek 2.5 GbE | Wi-Fi: Intel AX211 Wi-Fi 6E (2.4/5/6 GHz), BT 5.3 - USB (rear): 1× USB-C 20 Gb/s, 2× USB-A 10 Gb/s, 3× USB-A 5 Gb/s, 4× USB 2.0 - Display: 1× HDMI 2.0, 1× DisplayPort 1.2 - Form Factor: ATX, 30.5 cm × 24.4 cm - Warranty: 3 Years

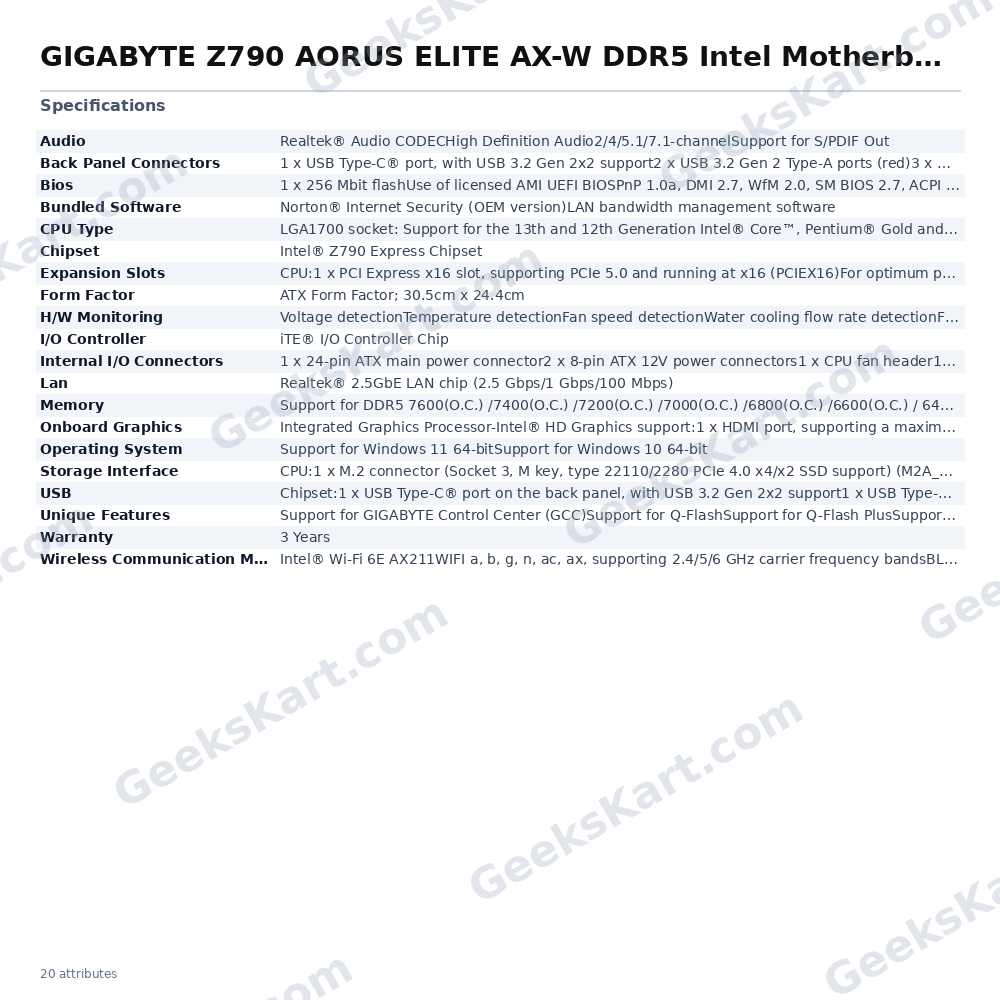

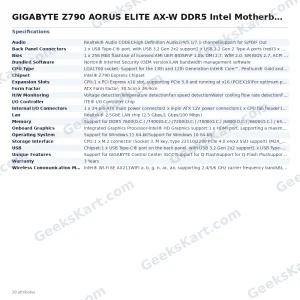

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolutionSupport for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolutionSupport for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectors |

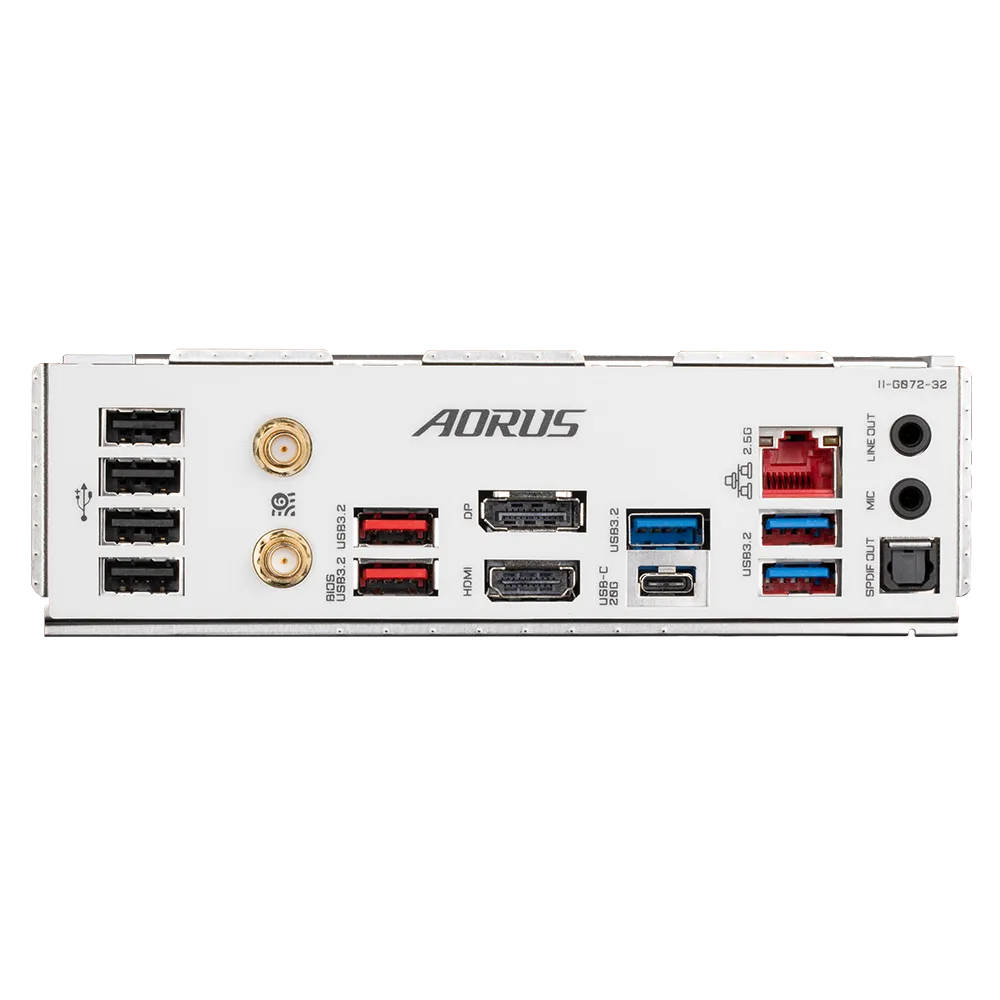

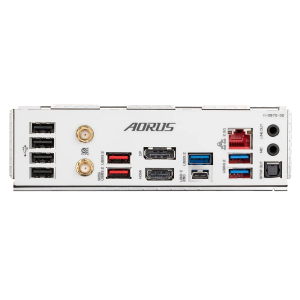

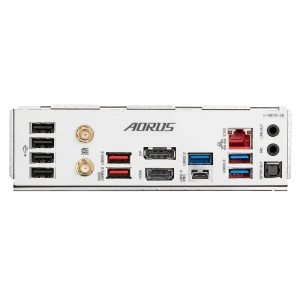

| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
