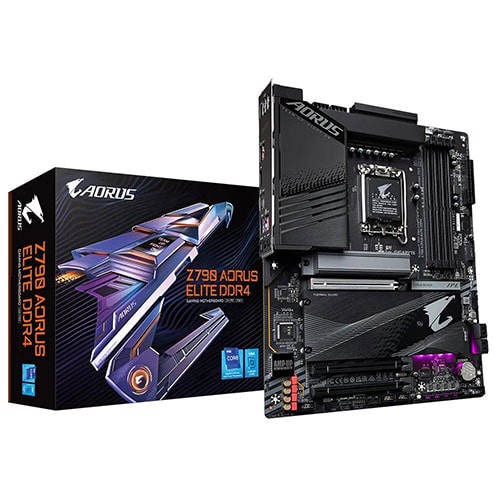

GIGABYTE Z790 Aorus Elite DDR4 Intel Motherboard
MPN GIGABYTE-Z790-AORUS-ELITE-DDR4 · Brand Gigabyte · ATX
The GIGABYTE Z790 Aorus Elite DDR4 (ATX, LGA1700) supports 12th and 13th Gen Intel processors with 4x PCIe 4.0 M.2 slots, a PCIe 5.0 primary x16 slot, DDR4 XMP up to 5333 MHz, and 2.5GbE LAN — a well-specified Intel platform for gaming and content-creation builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z790 Aorus Elite DDR4 is an ATX-form-factor motherboard built on the Intel Z790 Express Chipset, designed for Intel LGA1700 socket processors. It supports both 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors, making it a capable platform for gaming and productivity workstation builds that do not require a DDR5 upgrade path. Memory flexibility is a highlight: four DDR4 DIMM slots support dual-channel configurations up to 128 GB total system memory (32 GB per DIMM), with standard speeds starting at DDR4-2133 and XMP overclocking profiles reaching up to DDR4-5333 MHz. This wide range accommodates both value-oriented builds and performance-tuned configurations. Storage throughput is addressed by four M.2 connectors — one directly off the CPU (PCIe 4.0 x4) and three from the chipset (two PCIe 4.0 x4 and one supporting both SATA and PCIe 4.0 x4). These slots are paired with GIGABYTE's M.2 Thermal Guard III heatsinks to help manage heat from high-speed NVMe drives. Four additional SATA 6 Gb/s ports are available, and NVMe or SATA RAID 0, 1, 5, and 10 configurations are supported. The primary PCIe x16 slot runs at PCIe 5.0 bandwidth directly from the CPU, enabling compatibility with current and near-future discrete graphics cards. Two additional chipset-connected PCIe x16 physical slots operate at x4 electrical bandwidth (PCIe 4.0). Connectivity on the rear I/O panel includes one USB Type-C port at USB 3.2 Gen 2x2 (20 Gb/s), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, four USB 2.0 ports, one HDMI 2.0 output (up to 4K@60 Hz with compatible Intel integrated graphics), and a Realtek 2.5GbE RJ-45 LAN port. Audio is handled by a Realtek High Definition Audio CODEC supporting up to 7.1-channel output, with optical S/PDIF out also present. For system builders, the board includes GIGABYTE's Q-Flash Plus — allowing BIOS updates via USB without a CPU or memory installed — and Smart Fan 6 fan control with multiple temperature sensor inputs and hybrid fan headers supporting FAN STOP. Two ARGB and two standard RGB headers are provided for lighting customisation. Internal headers also include two Thunderbolt add-in card connectors and a TPM header. Verified Specifications: - Socket: Intel LGA1700 - Chipset: Intel Z790 Express - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB, DDR4-2133 to DDR4-5333 (O.C.), XMP support - Storage: 4x M.2 PCIe 4.0 (1x CPU, 3x chipset), 4x SATA 6 Gb/s, RAID 0/1/5/10 - Primary PCIe Slot: PCIe 5.0 x16 (CPU) - LAN: Realtek 2.5GbE (2.5G/1G/100M) - Rear USB: 1x USB-C 20 Gb/s, 2x USB-A 10 Gb/s, 3x USB-A 5 Gb/s, 4x USB 2.0 - Video Output: 1x HDMI 2.0 (4096x2160@60 Hz) - Audio: Realtek HD, 7.1-channel, S/PDIF out - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years

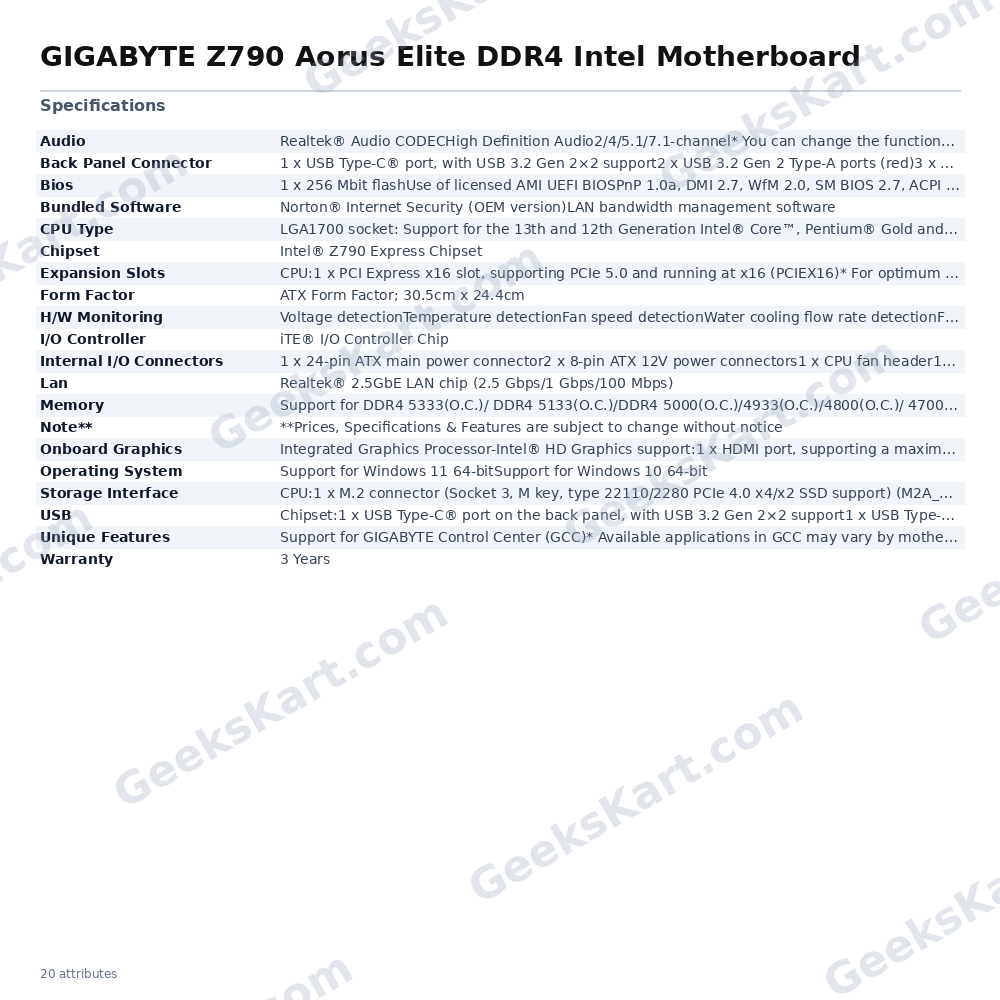

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors |
| Back Panel Connector | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x HDMI 2.0 port1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper |
