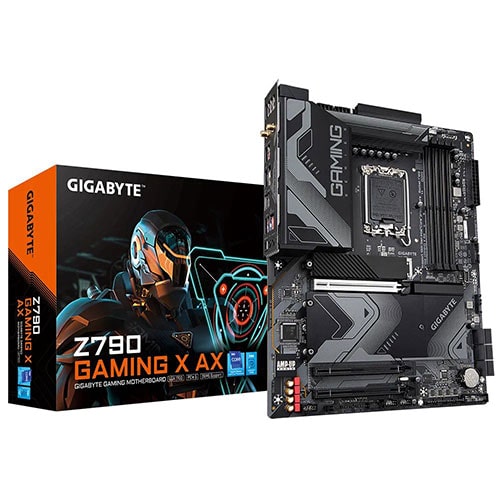

GIGABYTE Z790 Gaming X AX DDR5 Intel Motherboard
MPN GIGABYTE-Z790-GAMING-X-AX-DDR5 · Brand Gigabyte · ATX
The GIGABYTE Z790 Gaming X AX DDR5 ATX motherboard supports Intel 12th and 13th Gen LGA1700 CPUs, DDR5 memory up to 128 GB, four PCIe 4.0 M.2 slots, PCIe 5.0 graphics, Wi-Fi 6E, and a 20 Gb/s rear USB-C port — making it a well-rounded foundation for a high-performance gaming or productivity build
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z790 Gaming X AX DDR5 is an ATX form-factor motherboard built around the Intel Z790 Express Chipset and the LGA1700 socket, making it compatible with Intel 12th and 13th Generation Core, Pentium Gold, and Celeron processors. It is designed for builders who want a high-performance platform for gaming and content creation without stepping up to a flagship tier price. Power delivery is handled by a Twin 16+2+1 Phase Digital VRM solution, giving the board the headroom to support demanding CPUs under sustained loads. Four DDR5 DIMM slots accept up to 128 GB of system memory (32 GB per DIMM) in dual-channel configuration, with XMP profile support and overclocked speeds up to DDR5-7600 MHz achievable through BIOS adjustment. Storage flexibility is a standout feature: the board provides four M.2 connectors (all PCIe 4.0 x4), three via the chipset and one via the CPU, in addition to six SATA 6 Gb/s ports. RAID 0, 1, 5, and 10 configurations are supported for both NVMe and SATA storage. GIGABYTE's EZ-Latch Plus mechanism allows tool-free M.2 installation, and the M.2 Thermal Guard shields drives from heat-related throttling. Networking covers both wired and wireless with a Realtek 2.5GbE LAN port and an Intel Wi-Fi 6E AX211 module supporting the 2.4 GHz, 5 GHz, and 6 GHz bands with Bluetooth 5.3. The primary PCIe x16 slot runs at PCIe 5.0 speeds directly from the CPU, while two additional x16 physical slots run PCIe 4.0 x4 from the chipset. The rear I/O panel includes a USB Type-C port at USB 3.2 Gen 2×2 (20 Gb/s), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, four USB 2.0 ports, DisplayPort 1.2, HDMI 2.0 (up to 4K@60 Hz for CPUs with integrated graphics), optical S/PDIF out, and an RJ-45 jack. A front-panel USB Type-C header (USB 3.2 Gen 2, 10 Gb/s) is also present internally. Fan control is managed through the Smart Fan 6 system with multiple temperature sensors and hybrid headers that support FAN STOP. Q-Flash Plus allows BIOS updates without a CPU, memory, or GPU installed. Two addressable LED and two RGB headers are included for lighting builds. The board is covered by a 3-year manufacturer warranty. Verifiable Specifications: - Socket: LGA1700 | Chipset: Intel Z790 Express - Form Factor: ATX, 30.5 cm × 24.4 cm - Memory: 4× DDR5 DIMM, dual-channel, up to 128 GB, DDR5-4000 native / up to DDR5-7600 (O.C.), XMP support - Storage: 4× M.2 PCIe 4.0 x4 (one CPU-attached, three chipset), 6× SATA 6 Gb/s, RAID 0/1/5/10 - Expansion: 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x4 (chipset, x16 physical) - Wireless: Intel Wi-Fi 6E AX211, 2.4/5/6 GHz, Bluetooth 5.3, up to 2.4 Gbps - LAN: Realtek 2.5GbE - USB (rear): 1× USB-C 20 Gb/s, 2× USB-A 10 Gb/s, 3× USB-A 5 Gb/s, 4× USB 2.0 - Display: 1× HDMI 2.0 (4096×2160@60 Hz), 1× DisplayPort 1.2 (4096×2304@60 Hz) - Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF out - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

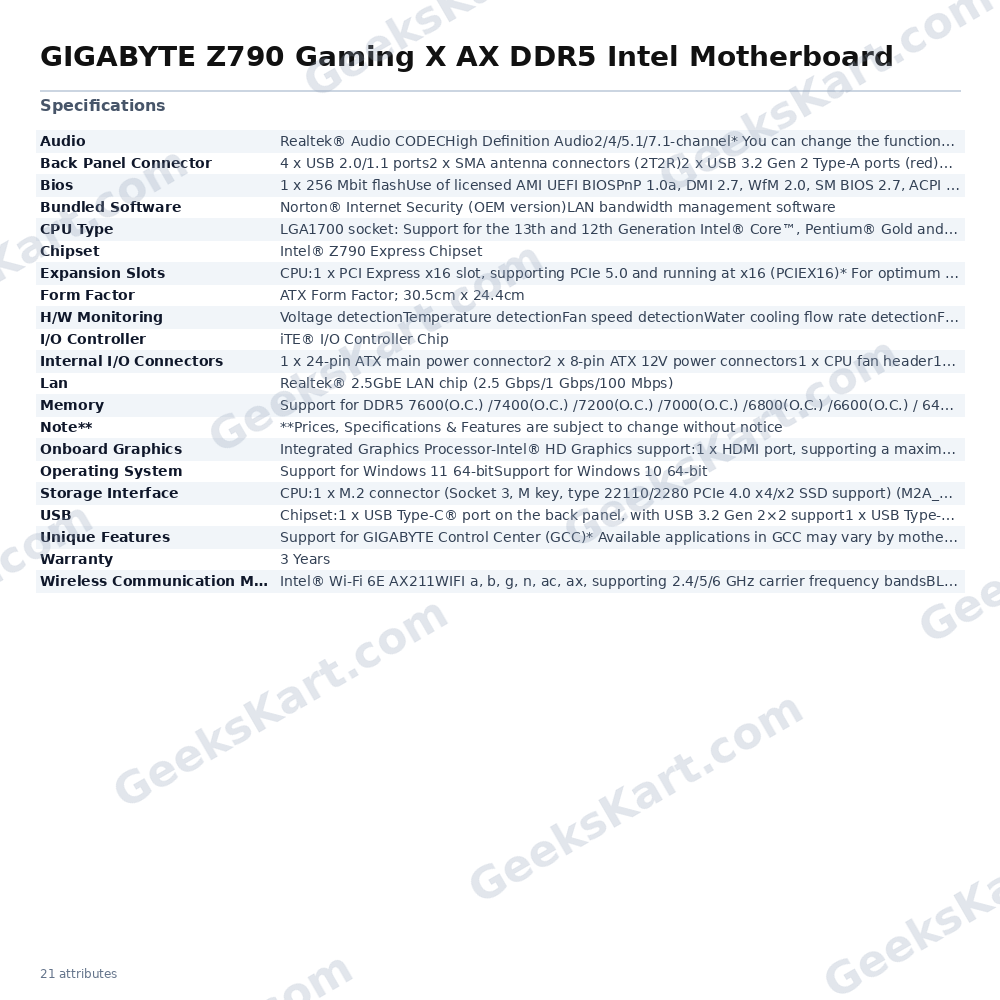

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60* Support for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectors* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connector | 4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)1 x DisplayPort1 x HDMI 2.0 port3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
