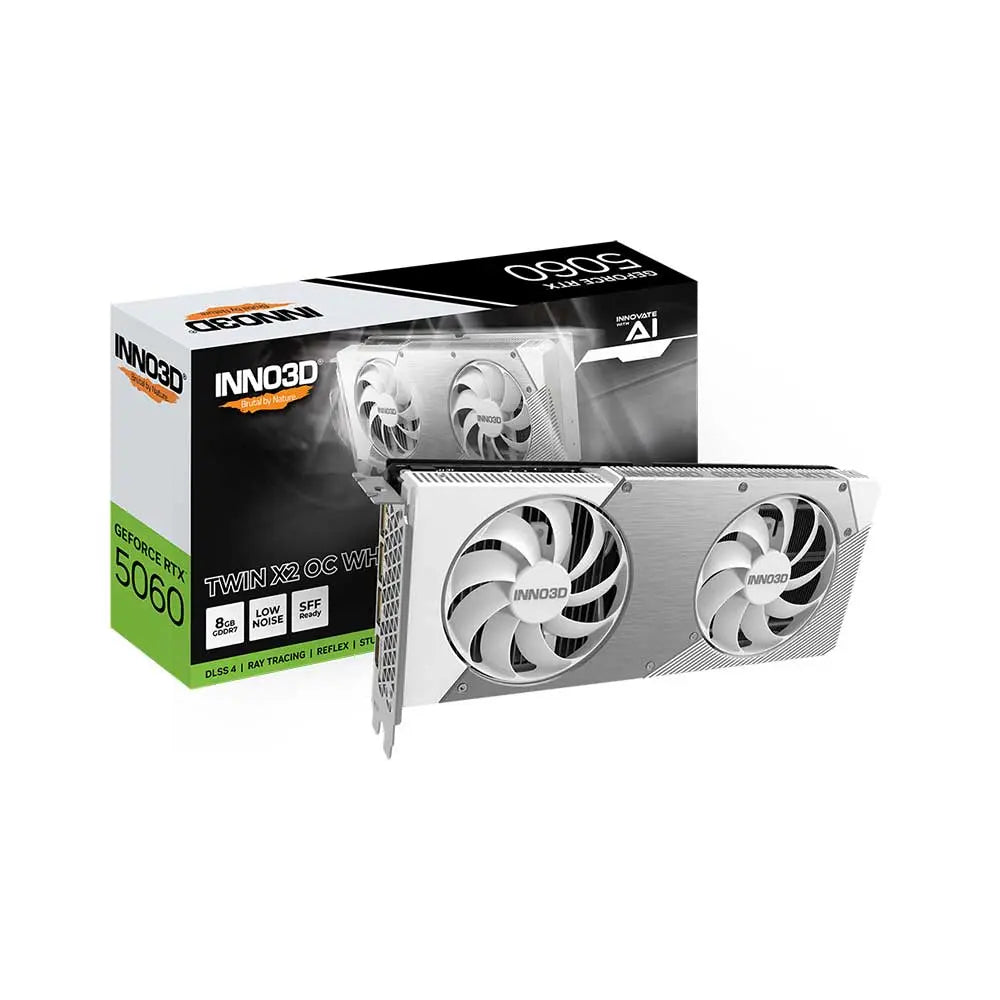

INNO3D GeForce RTX 5060 Twin X2 OC White SFF 8GB Nvidia Graphic Card

The Inno3D GeForce RTX 5060 Twin X2 OC White SFF is a compact dual-slot graphics card built on NVIDIA's Blackwell architecture, purpose-designed for small form factor (SFF) builds where space is at a premium. Despite its restrained 250 mm length and 41 mm width, it delivers the full capability of the GeForce RTX 50 series, making it an attractive option for mini-ITX and micro-ATX chassis that cannot accommodate longer or thicker cards. At the heart of the card sit 3,840 CUDA cores operating at a base clock of 2,280 MHz and an overclocked boost clock of up to 2,527 MHz. The 8 GB GDDR7 frame buffer runs on a 128-bit memory interface at 28 Gbps, yielding 448 GB/s of memory bandwidth — a notable step up over previous-generation GDDR6 solutions in this class. Cooling is handled by a pair of 88 mm scythe-blade fans with a low-noise profile, backed by two nickel-plated composite heatpipes. A metal backplate provides structural rigidity and assists with hot-air extraction, while the white shroud and backplate finish give the card a clean, contemporary aesthetic suited to white-themed builds. On the feature side, the RTX 5060 Twin X2 OC White supports NVIDIA DLSS 4 — including Multi Frame Generation — powered by fifth-generation Tensor Cores rated at 614 AI TOPS. Fourth-generation Ray Tracing Cores deliver 58 TFLOPS for real-time ray tracing workloads. The card also supports NVIDIA Reflex 2, G-SYNC, Ansel, FreeStyle, ShadowPlay, and Highlights. For creators, NVIDIA Studio drivers and hardware-accelerated encoding via a ninth-generation NVENC encoder and sixth-generation NVDEC decoder accelerate video editing and streaming workflows. Display output is provided through three DisplayPort 2.1b and one HDMI 2.1b connector, supporting up to four simultaneous displays. Maximum resolutions reach 4K at 480 Hz or 8K at 165 Hz with DSC. The card connects via PCI Express Gen 5 and requires a single 8-pin PCIe power connector, with a minimum recommended system PSU of 550 W. Verified Specifications: - GPU Architecture: NVIDIA Blackwell - CUDA Cores: 3,840 - Boost Clock: 2,527 MHz | Base Clock: 2,280 MHz - Memory: 8 GB GDDR7, 128-bit interface, 28 Gbps, 448 GB/s bandwidth - Tensor Cores: 5th Generation, 614 AI TOPS - Ray Tracing Cores: 4th Generation, 58 TFLOPS - Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (max 4 displays) - Power Connector: 1× PCIe 8-pin | Min. System PSU: 550 W - Card Dimensions: 250 mm × 116 mm × 41 mm (2-slot) - APIs: DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 - OS Support: Windows 11/10, Linux, FreeBSD x86 - Warranty: 3 Years
