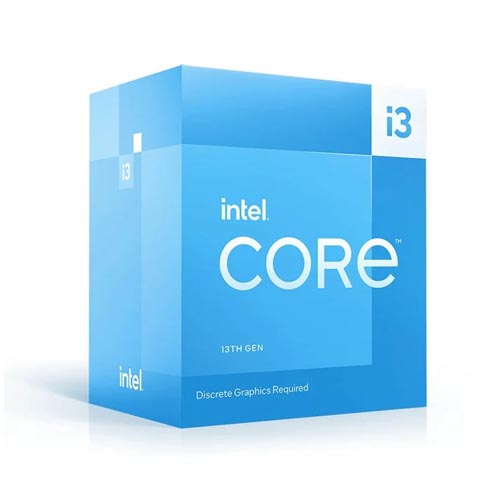

INTEL Core i3 13100 13th Generation Processor ( 4.5 GHz / 4 Cores / 8 Threads )
MPN I3-13100 · Brand Intel
Features Of INTEL Core i3 13100 13th Generation Processor Intel Core i3 13100 is a desktop processor produced by Intel. It has 4 cores and 8 threads. CPU base clock frequency is 3400 MHz, but its due to Turbo Boost technology, it can perform up to 4500 MHz. Intel Processor i3 13100 has integrated graphics Intel UHD Graphics 730 Intel Core i3 13th Generation is based on a 7 nm fabrication process and a TDP of 60W. It supports DDR5 | DDR4 memory with a double-channel interface and a memory speed i
Inclusive of GST · GST invoice available
Overview
Features Of INTEL Core i3 13100 13th Generation Processor
Intel Core i3 13100 is a desktop processor produced by Intel. It has 4 cores and 8 threads. CPU base clock frequency is 3400 MHz, but its due to Turbo Boost technology, it can perform up to 4500 MHz. Intel Processor i3 13100 has integrated graphics Intel UHD Graphics 730
Intel Core i3 13th Generation is based on a 7 nm fabrication process and a TDP of 60W. It supports DDR5 | DDR4 memory with a double-channel interface and a memory speed is 4800 MT/s | 3200 MT/s.
- Total Cores: 4
- Total Threads: 8
- Max Turbo Frequency: 4.50 GHz
- Cache: 12 MB Intel® Smart Cache
- SKU: BX8071513100
- 3 Years Warranty

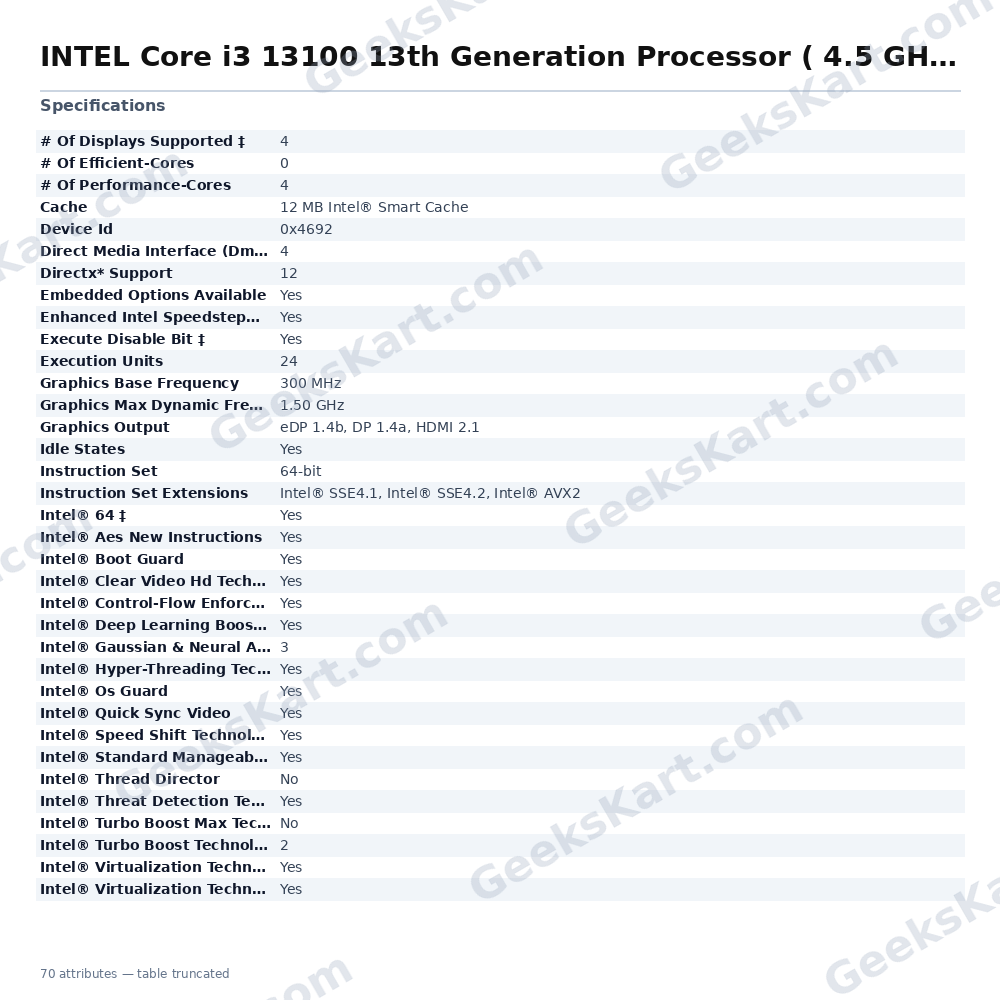

Specifications Of INTEL Core i3 13100 13th Generation Processor
| Weight | 0.1 kg |
| BRANDS | INTEL |
| CPU Specifications | |
| Total Cores | 4 |
| # of Performance-cores | 4 |
| # of Efficient-cores | 0 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.50 GHz |
| Performance-core Max Turbo Frequency | 4.50 GHz |
| Performance-core Base Frequency | 3.40 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Total L2 Cache | 5 MB |
| Processor Base Power | 60 W |
| Maximum Turbo Power | 89 W |
| Supplemental Information | |
| Embedded Options Available | Yes |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 730 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.50 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 1 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4692 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | No |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Datasheet
| Weight | 0.1 kg |
|---|---|
| Device Id | 0x4692 |
| Tjunction | 100°C |
| Secure Key | Yes |
| Idle States | Yes |
| Scalability | 1S Only |
| Total Cores | 4 |
| Memory Types | Up to DDR5 4800 MT/sUp to DDR4 3200 MT/s |
| Package Size | 45.0 mm x 37.5 mm |
| Total Threads | 8 |
| Intel® 64 ‡ | Yes |
| Total L2 Cache | 5 MB |
| Execution Units | 24 |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Instruction Set | 64-bit |
| Opencl* Support | 3 |
| Opengl* Support | 4.5 |
| Directx* Support | 12 |
| Intel® Os Guard | Yes |
| Sockets Supported | FCLGA1700 |
| Intel® Boot Guard | Yes |
| Max # Of Dmi Lanes | 8 |
| Max Turbo Frequency | 4.50 GHz |
| Maximum Turbo Power | 89 W |
| # Of Efficient-Cores | 0 |
| Max Memory Bandwidth | 76.8 GB/s |
| Pci Express Revision | 5.0 and 4.0 |
| Processor Base Power | 60 W |
| Max Cpu Configuration | 1 |
| # Of Performance-Cores | 4 |
| Max Resolution (Dp)‡ | 7680 x 4320 @ 60Hz |
| Processor Graphics ‡ | Intel® UHD Graphics 730 |
| Execute Disable Bit ‡ | Yes |
| Graphics Base Frequency | 300 MHz |
| Intel® Thread Director | No |
| Intel® Quick Sync Video | Yes |
| Max # Of Memory Channels | 2 |
| Max Resolution (Hdmi)‡ | 4096 x 2160 @ 60Hz |
| Embedded Options Available | Yes |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Max # Of Pci Express Lanes | 20 |
| Multi-Format Codec Engines | 1 |
| # Of Displays Supported ‡ | 4 |
| Intel® Aes New Instructions | Yes |
| Graphics Max Dynamic Frequency | 1.50 GHz |
| Intel® Speed Shift Technology | Yes |
| Pci Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Thermal Solution Specification | PCG 2020C |
| Performance-Core Base Frequency | 3.40 GHz |
| Thermal Monitoring Technologies | Yes |
| Intel® Clear Video Hd Technology | Yes |
| Mode-Based Execute Control (Mbec) | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Performance-Core Max Turbo Frequency | 4.50 GHz |
| Direct Media Interface (Dmi) Revision | 4 |
| Enhanced Intel Speedstep® Technology | Yes |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Volume Management Device (Vmd) | Yes |
| Intel® Standard Manageability (Ism) ‡ | Yes |
| Intel® Threat Detection Technology (Tdt) | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Max Memory Size (Dependent On Memory Type) | 128 GB |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Virtualization Technology (Vt-X) ‡ | Yes |
| Intel® Deep Learning Boost (Intel® Dl Boost) | Yes |
| Intel® Vt-X With Extended Page Tables (Ept) ‡ | Yes |
| Max Resolution (Edp – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| Intel® Virtualization Technology For Directed I/O (Vt-D) ‡ | Yes |
| Cache | 12 MB Intel® Smart Cache |
